CDA174 UNSC17410 Beryllium Copper Material Alloy Strip

Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Name | CDA174 (UNS.C17410) Copper Alloy Strip | CUBERYLLIUM® Grade | CUBERYLLIUM® 741 |
---|---|---|---|
Max Width | 305mm | Max Coil Wt. | 2T |
Thinest Thick. | 0.05mm | Length | 200mm, 500mm, 1000mm Or As Required |
Standard | ASTM B768, B888 | Safe Handling | No Special Health Risk. |
Machining Property | Good | State | 1/2 HT(TH02), HT(TH04) |
Surface | Bright, Polished | Typical Application | Electrical Applications Or Engineering Applications |
Available Shapes | Strip, Sheet | ||
High Light | CDA174 UNSC17410 Beryllium Copper Material,UNSC17410 Beryllium Copper Material Alloy Strip,CDA174 UNSC17410 beryllium alloy Strip |
Beryllium Material CDA174 (UNS.C17410) Copper Alloy Strip With Excellent Hot Working Ability
Product Name: Beryllium material copper alloy strip
Grade: CDA174 (UNS.C17410)
Size: 0.25mmx200mm, Or as customers' requirement
State: 1/2 HT(TH02), HT(TH04)
Chemical Composition of CDA174 (UNS.C17410) Copper Alloy:
Element | Content (%) |
---|---|
Cobalt, Co | 0.35-0.60 |
Silicon, Si | 0.20 |
Aluminum, Al | 0.20 |
Iron, Fe | 0.20 |
Beryllium, Be | 0.15-0.50 |
Copper, Cu | Balance |
Forms Available
Alloy 174 mill hardened strip is available in widths ranging from 1mm~300mm and in thicknesses ranging from 0.02 to 2.5mm.
Typical application of CDA174 (UNS.C17410) Copper Alloy Strips:
Bearings
Plastic molds
Welding electrodes
Current-carrying springs
Corrosioin resistant components
Precision screw machined parts
Connectors for appliances and consumer electronics
Related material specifications of CDA174 (UNS.C17410) Copper Alloy | |
Strips | ASTM B768, B888 |
Sheets | ASTM B768, B888 |
Typical Physical Properties of CDA174 (UNS.C17410) Copper Alloy:
Elastic Modulus | Melting Point (Solidus) | Electrical Conductivity/ Resistivity |
Density |
Thermal Expansion Coefficient | Thermal Conductivity (25 °C) |
138 GPa | 1020 °C | 2.9-3.8 μΩcm | 8.80 g/cm3 | 17.6 x 10-6 m/m °C | 230 W/ m K |
MECHANICAL PROPERTIES of CDA174 (UNS.C17410) Copper Alloy Strip:
0.2% Offset Yield Strength (min) | Ultimate Tensile Strength (min) | Elongation (min) | ||||
Temper | Hardness | |||||
ksi | MPa | ksi | MPa | % | HV | |
1/2HT(TH02) |
80 - 100 | 550 - 690 | 95 - 115 | 665 - 790 | 10~20 | 180 - 230 |
HT(TH04) | 100 - 120 | 690 - 830 | 110 - 130 | 760 - 895 | 7~17 | 210 - 278 |

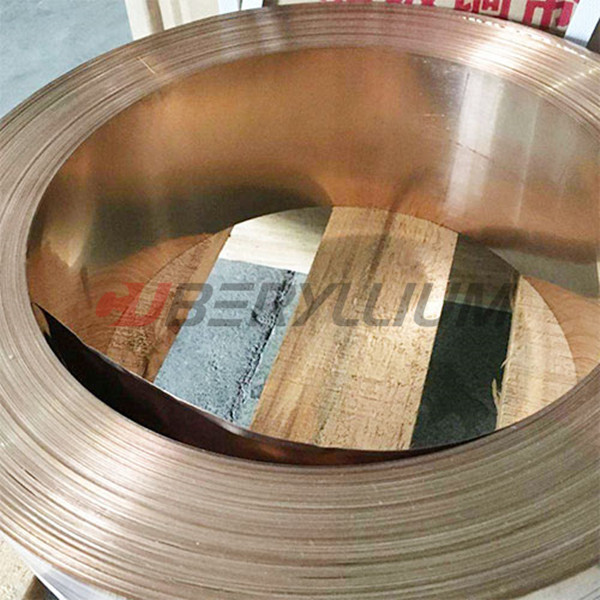

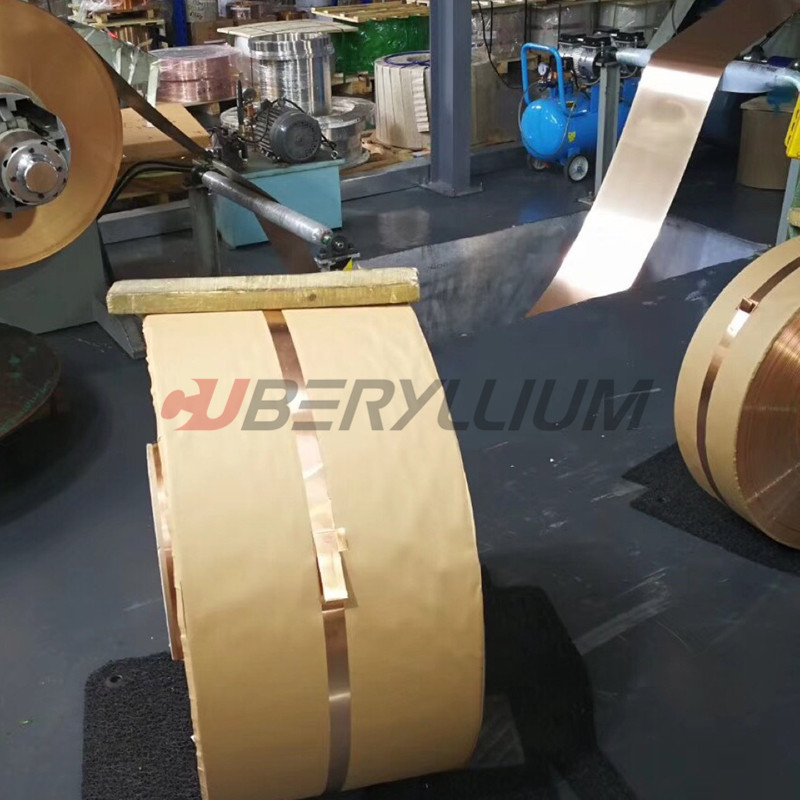

Product Photo:
FAQ:
Q1:Could you produce Beryllium Copper strip by Mill Hardened process.
A1:Yes, we could produce AM(TM00), 1/2HM(TM01).HM(TM04) XHM(TM06) XHMS(TM08).,we are the only factory could do mill harden strip in China.
Q2: What’s the advantages the Beryllium Copper of CUBERYLLIUM®.
A2: 1: The Biggest Coil weight could be reach 1200kg/Coil
2:We are the only one who melting by Vacuum semi-Continuous Furnace.
3:Surface further polishing for top clients.
Q3: Why you melting by Vacuum semi-Continuous Furnace.
A3:Could be get the Cast ingot without gas,smaller segregation, Grain Refinement
Q4: What's the payment terms?
A4: We accept T/T, L/C, Paypal etc. It can be negotiated when the amount is different.
