TH02 C17410 Beryllium Copper Alloys Strips 1/2 hard For Connector Application
| Place of Origin | China |
|---|---|
| Brand Name | CUBERYLLIUM |
| Certification | ISO,SGS |
| Model Number | C17410 |
| Minimum Order Quantity | 200 |
| Price | 30USD |
| Packaging Details | in coil packed into wooden case |
| Delivery Time | 10~15days |
| Payment Terms | L/C, T/T, Western Union |
| Supply Ability | 200T/Month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | C17410 New Beryllium Copper Alloys Copper Strips | CUBERYLLIUM® Grade | CUBERYLLIUM® 741 |
|---|---|---|---|
| Max Width | 305mm | Max Coil Wt. | 2T |
| Thinest Thick. | 0.05mm | Length | 200mm, 500mm, 1000mm Or As Required |
| Standard | ASTM B768, B888 | Safe Handling | No Special Health Risk. |
| Machining Property | Good | State | 1/2 HT(TH02), HT(TH04) |
| Surface | Bright, Polished | Typical Application | For Connector Application |
| Available Shapes | Strip, Sheet | ||
| High Light | C17410 Beryllium Copper Alloys Strips,TH02 C17410 Beryllium Copper,c17410 copper alloy |
||
Product Description
C17410 New Beryllium Copper Alloys Copper Strips For Connector Application
Product Name: New Beryllium Copper Alloys Copper Strips
Grade: C17410
Size: 0.25mmx200mm, Or as customers' requirement
State: 1/2 HT(TH02), HT(TH04)
Product Informance of CUBERYLLIUM® Company:
CUBERYLLIUM® manufactures copper beryllium in several distinct compositions. These fall into two categories: alloys selected for high strength (Alloys 172,173,170) and alloys selected for high conductivity (Alloys 751,750,741). And Gost standard QBe2,QBe1.9Ti for Russia Market. Also Supply Master alloy : CuBeryllium-200; CuBeryllium-275);CuBeryllium-350 and Cuberyllium-400 to global factory.
CUBERYLLIUM ®-741 also named -C17410 Copper alloy with low beryllium content. It contains only few alloy elements: Beryllium and cobalt. Alloy 741, C17410 combines outstanding electric conductivity with high mechanical strength (typical values: 50% et 750N/mm2 .
Alloy 741 is supplied hardened so that a later heat treatment of the products is not necessary. This reduces production costs and prevents the deformation of the finished products. Although alloy 741 is supplied in hardened condition, it shows excellent bending behavior. This alloy distinguishes by excellent bending behavior in connection with mechanical strength and conductivity, which outperforms any other copper alloy of this price level.
Chemical Composition of C17410 New Beryllium Copper Alloys:
| Cuberyllium Brand | UNS-Number | Beryllium | Cobalt | Nickel | Cobalt + Nickel |
+Cobalt + Nickel + Iron |
Lead | Copper |
| Cuberyllium-C741 | C17410 | 0.15-0.50 | 0.35-0.60 | _ | _ | _ | _ | Balance |
Forms Available
Alloy 174 mill hardened strip is available in widths ranging from 1mm~300mm and in thicknesses ranging from 0.02 to 2.5mm.
Typical application of C17410 New Beryllium Copper Strips:
Bearings
Plastic molds
Welding electrodes
Current-carrying springs
Corrosioin resistant components
Precision screw machined parts
Connectors for appliances and consumer electronics
| Related material specifications of C17410 New Beryllium Copper Alloys | |
| Strips | ASTM B768, B888 |
| Sheets | ASTM B768, B888 |
Typical Physical Properties of C17410 New Beryllium Copper Alloys:
| Melting Point - Liquidus °F | 1950 |
| Melting Point - Solidus °F | 1875 |
| Density lb/cu in. at 68°F | 0.318 |
| Specific Gravity | 8.81 |
| Thermal Conductivity Btu/ sq ft/ ft hr/ °F at 68°F | 120(*) |
| Modulus of Elastivity in Tension ksi | 19000 |
| (*) Cold worked and aged. Actual value is 120-150. | |
MECHANICAL PROPERTIES of C17410 New Beryllium Copper Strips:
| 0.2% Offset Yield Strength (min) | Ultimate Tensile Strength (min) | Elongation (min) | ||||
| Temper | Hardness | |||||
| ksi | MPa | ksi | MPa | % | HV | |
|
1/2HT(TH02) |
80 - 100 | 550 - 690 | 95 - 115 | 665 - 790 | 10~20 | 180 - 230 |
| HT(TH04) | 100 - 120 | 690 - 830 | 110 - 130 | 760 - 895 | 7~17 | 210 - 278 |

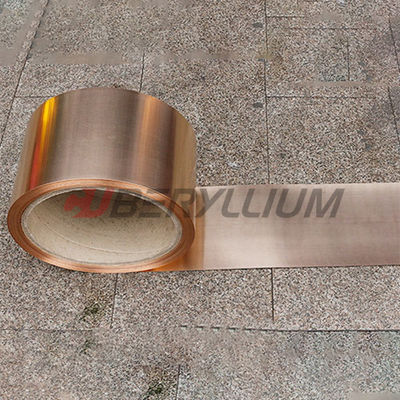

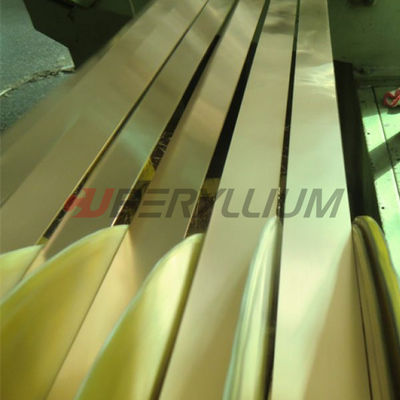

Product Photo:
Weldability
Soldering, brazing, gas shielded arc welding, coated metal arc welding, spot welding, seam welding and butt welding are all recommended
Hot & Cold Workability
Good hot working properties. Excellent cold working properties.
Health and Safety
Processing beryllium-containing alloys poses a health risk if safe practices are not followed. Inhalation of airborne beryllium can cause serious lung diseases in some individuals. Occupational safety and health regulatory agencies worldwide have set mandatory limits on occupational respiratory exposures. Read and follow the guidance in the Safety Data Sheet (SDS) before working with this material.
For questions on safe practices for beryllium-containing alloys, contact us by e mail at info@cuberyllium.com
Fabrication
FAQ:
Q1:Could you produce Beryllium Copper strip by Mill Hardened process.
A1:Yes, we could produce AM(TM00), 1/2HM(TM01).HM(TM04) XHM(TM06) XHMS(TM08).,we are the only factory could do mill harden strip in China.
Q2: What’s the advantages the Beryllium Copper of CUBERYLLIUM®.
A2: 1: The Biggest Coil weight could be reach 1200kg/Coil
2:We are the only one who melting by Vacuum semi-Continuous Furnace.
3:Surface further polishing for top clients.
Q3: Why you melting by Vacuum semi-Continuous Furnace.
A3:Could be get the Cast ingot without gas,smaller segregation, Grain Refinement
Q4: What's the payment terms?
A4: We accept T/T, L/C, Paypal etc. It can be negotiated when the amount is different.
