Mill Hardened Alloy 174 Beryllium Copper Strip 0.05mm In Automotive Market
| Place of Origin | China |
|---|---|
| Brand Name | CUBERYLLIUM |
| Certification | ISO,SGS |
| Model Number | Alloy 174 |
| Minimum Order Quantity | 200 |
| Price | 30USD |
| Packaging Details | in coil packed into wooden case |
| Delivery Time | 10~15days |
| Payment Terms | L/C, T/T, Western Union |
| Supply Ability | 200T/Month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Mill Hardened Alloy 174 Copper Beryllium Strip | CUBERYLLIUM® Grade | CUBERYLLIUM® 741 |
|---|---|---|---|
| Max Width | 305mm | Max Coil Wt. | 2T |
| Thinest Thick. | 0.05mm | Length | 200mm, 500mm, 1000mm Or As Required |
| Standard | ASTM B768, B888 | Safe Handling | No Special Health Risk. |
| Machining Property | Good | State | 1/2 HT(TH02), HT(TH04) |
| Surface | Bright, Polished | Typical Application | Electrical Applications Or Engineering Applications |
| Available Shapes | Strip, Sheet | ||
| High Light | Mill Hardened Alloy 174 Beryllium Copper Strip,Alloy 174 Beryllium Copper Strip 0.05mm,beryllium bronze Strip |
||
Product Description
Mill Hardened Alloy 174 Copper Beryllium Strip Used In Automotive Market
Product Name: Mill hardened copper beryllium
Grade: Alloy 174
Size: 0.05mmx200mm, Or as customers' requirement
State: 1/2 HT(TH02), HT(TH04)
Product Informance of CUBERYLLIUM® Company:
CUBERYLLIUM® manufactures copper beryllium in several distinct compositions. These fall into two categories: alloys selected for high strength (Alloys 172,173,170) and alloys selected for high conductivity (Alloys 751,750,741). And Gost standard QBe2,QBe1.9Ti for Russia Market. Also Supply Master alloy : CuBeryllium-200; CuBeryllium-275);CuBeryllium-350 and Cuberyllium-400 to global factory.
CUBERYLLIUM ®-741 also named -C17410 Copper alloy with low beryllium content. It contains only few alloy elements: Beryllium and cobalt. Alloy 741, C17410 combines outstanding electric conductivity with high mechanical strength (typical values: 50% et 750N/mm2 .
Alloy 741 is supplied hardened so that a later heat treatment of the products is not necessary. This reduces production costs and prevents the deformation of the finished products. Although alloy 741 is supplied in hardened condition, it shows excellent bending behavior. This alloy distinguishes by excellent bending behavior in connection with mechanical strength and conductivity, which outperforms any other copper alloy of this price level.
Chemical Composition of Alloy 174 Copper Beryllium Alloy:
| Cuberyllium Brand | UNS-Number | Beryllium | Cobalt | Nickel | Cobalt + Nickel |
+Cobalt + Nickel + Iron |
Lead | Copper |
| Cuberyllium-C741 | C17410 | 0.15-0.50 | 0.35-0.60 | _ | _ | _ | _ | Balance |
Forms Available
Alloy 174 mill hardened strip is available in widths ranging from 1mm~300mm and in thicknesses ranging from 0.02 to 2.5mm.
Typical application of Alloy 174 Copper Beryllium Strip:
Bearings
Plastic molds
Welding electrodes
Current-carrying springs
Corrosioin resistant components
Precision screw machined parts
Connectors for appliances and consumer electronics
| Related material specifications of Alloy 174 Copper Beryllium Alloy | |
| Strips | ASTM B768, B888 |
| Sheets | ASTM B768, B888 |
Typical Physical Properties of Alloy 174 Copper Beryllium Alloy:
| Properties | Metric | Imperial |
|---|---|---|
| Density | 8.8 g/cm3 | 0.318 lb/in3 |
| Melting point | 1024°C |
1875°F |
MECHANICAL PROPERTIES of Alloy 174 Copper Beryllium
| Properties | Metric | Imperial |
|---|---|---|
| Tensile strength | 750 - 900 MPa | 109000 - 131000 ksi |
| Yield strength | 650 - 870 MPa | 94300 - 126000 ksi |
| Modulus of elasticity | 138 GPa | 20000 ksi |
| Elongation | 7.0 - 17 % | 7.0 - 17 % |
| Hardness, Rockwell B | 95 - 102 | 95 - 102 |
| Hardness, Vickers | 210 – 278 | 210 – 278 |

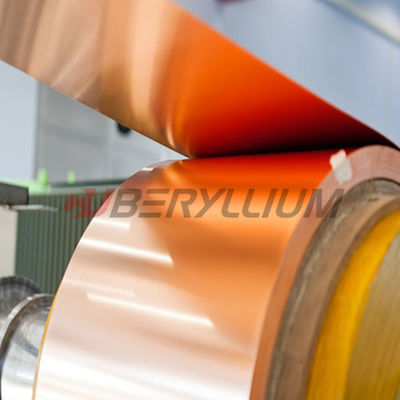

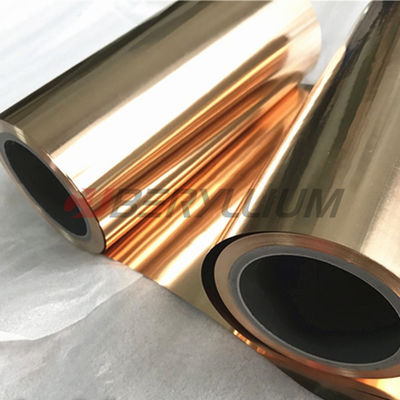

Product Photo:
FAQ:
Q1:Could you produce Beryllium Copper strip by Mill Hardened process.
A1:Yes, we could produce AM(TM00), 1/2HM(TM01).HM(TM04) XHM(TM06) XHMS(TM08).,we are the only factory could do mill harden strip in China.
Q2: What’s the advantages the Beryllium Copper of CUBERYLLIUM®.
A2: 1: The Biggest Coil weight could be reach 1200kg/Coil
2:We are the only one who melting by Vacuum semi-Continuous Furnace.
3:Surface further polishing for top clients.
Q3: Why you melting by Vacuum semi-Continuous Furnace.
A3:Could be get the Cast ingot without gas,smaller segregation, Grain Refinement
Q4: What's the payment terms?
A4: We accept T/T, L/C, Paypal etc. It can be negotiated when the amount is different.
