UNS C17410 Beryllium Copper sheet Strips 0.2mmx200mmx1000mm For Plastic Molds

Place of Origin China
Brand Name CUBERYLLIUM
Certification ISO,SGS
Model Number UNS.C17410
Minimum Order Quantity 200
Price 30USD
Packaging Details in coil packed into wooden case
Delivery Time 10~15days
Payment Terms L/C, T/T, Western Union
Supply Ability 200T/Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name UNS.C17410 Beryllium Copper Strips CUBERYLLIUM® Grade CUBERYLLIUM® 741
Max Width 305mm Max Coil Wt. 2T
Thinest Thick. 0.05mm Length 500mm, 1000mm Or As Required
Standard ASTM B768, B888 Safe Handling No Special Health Risk.
Machining Property Good State 1/2 HT(TH02), HT(TH04)
Surface Bright, Polished Typical Application Electrical Applications Or Engineering Applications
Available Shapes Strip, Sheet
High Light

UNS C17410 Beryllium Copper sheet

,

C17410 Beryllium Copper sheet 0.2mm

,

uns c17410 0.2mmx200mmx1000mm

Leave a Message
Product Description

UNS.C17410 Beryllium Copper Strips 0.2mmx200mmx1000mm For Plastic Molds

Product Name: Beryllium copper strips

Grade: UNS.C17410

Size: 0.2mmx200mmx1000mm, Or as customers' requirement

State: 1/2 HT(TH02), HT(TH04)





Product Informance of CUBERYLLIUM® Company:

CUBERYLLIUM® manufactures copper beryllium in several distinct compositions. These fall into two categories: alloys selected for high strength (Alloys 172,173,170) and alloys selected for high conductivity (Alloys 751,750,741). And Gost standard QBe2,QBe1.9Ti for Russia Market. Also Supply Master alloy : CuBeryllium-200; CuBeryllium-275);CuBeryllium-350 and Cuberyllium-400 to global factory.





Chemical Composition of UNS.C17410 Beryllium Copper Alloy:

Cuberyllium Brand UNS-Number Beryllium Cobalt Nickel Cobalt
+ Nickel
+Cobalt
+ Nickel
+ Iron
Lead Copper
Cuberyllium-C741 C17410 0.15-0.50 0.35-0.60 _ _ _ _ Balance



Forms Available

Alloy 174 mill hardened strip is available in widths ranging from 1mm~300mm and in thicknesses ranging from 0.02 to 2.5mm.



Typical application of UNS.C17410 Beryllium Copper Strips:

Bearings

Plastic molds

Welding electrodes

Current-carrying springs

Corrosioin resistant components

Precision screw machined parts

Connectors for appliances and consumer electronics



Related material specifications of UNS.C17410 Beryllium Copper Alloy
Strips ASTM B768, B888
Sheets ASTM B768, B888




Typical Physical Properties of UNS.C17410 Beryllium Copper Alloy:

Elastic Modulus Melting Point (Solidus) Electrical Conductivity/ Resistivity



Density

Thermal Expansion Coefficient Thermal Conductivity (25 °C)
138 GPa 1020 °C 2.9-3.8 μΩcm 8.80 g/cm3 17.6 x 10-6 m/m °C 230 W/ m K





MECHANICAL PROPERTIES of UNS.C17410 Beryllium Copper Strips:

  0.2% Offset Yield Strength (min) Ultimate Tensile Strength (min) Elongation (min)
Temper Hardness
  ksi MPa ksi MPa % HV

1/2HT(TH02)

80 - 100 550 - 690 95 - 115 665 - 790 10~20 180 - 230
HT(TH04) 100 - 120 690 - 830 110 - 130 760 - 895 7~17 210 - 278



Common Fabrication Processes:

  • Blanking
  • Drilling
  • Forming and Bending
  • Tapping
  • Turning

Thermal Properties:

Treatment Minimum * Maximum * Time **
Hot Working Temp 1200 1750
Solution Treatment     0

* Temperature is measured in Fahrenheit.

** Time is measured in minutes.

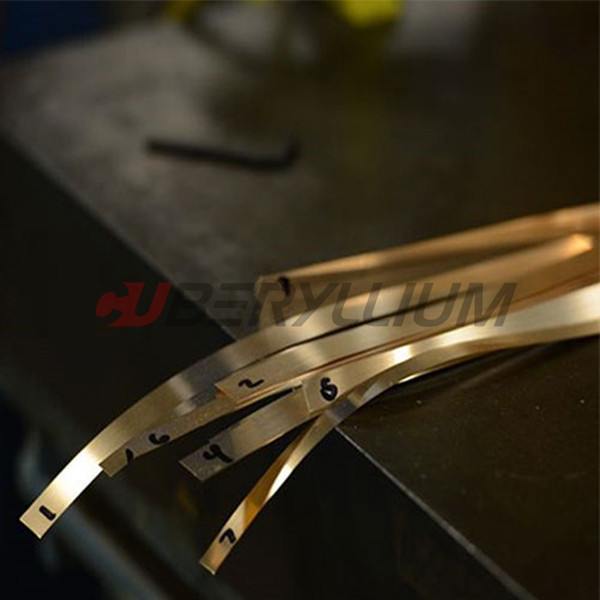

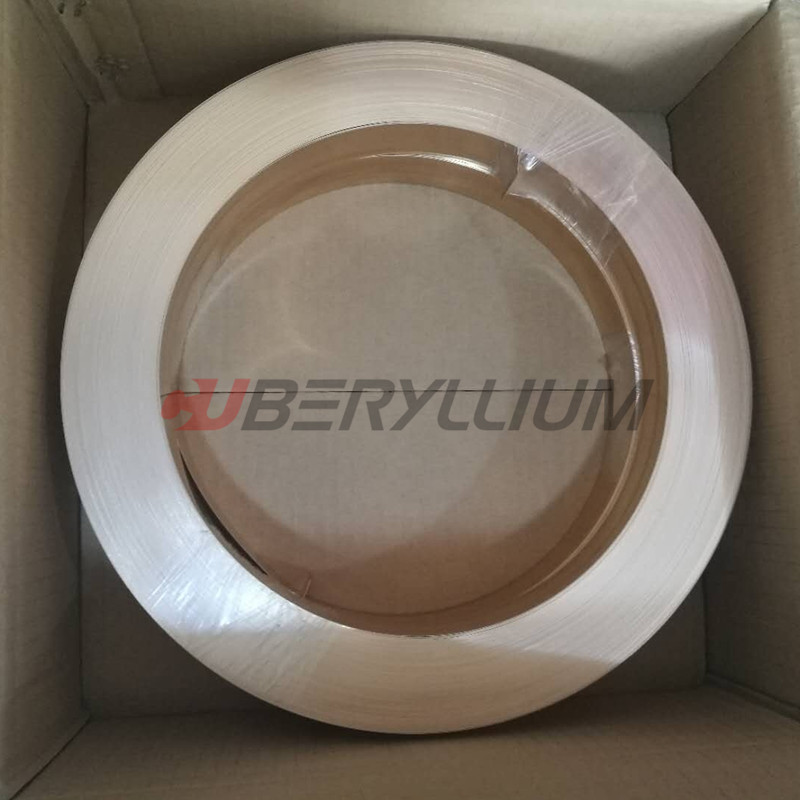

Product Photo:

UNS C17410 Beryllium Copper sheet Strips 0.2mmx200mmx1000mm For Plastic Molds 0





Health and Safety

Processing beryllium-containing alloys poses a health risk if safe practices are not followed. Inhalation of airborne beryllium can cause serious lung diseases in some individuals. Occupational safety and health regulatory agencies worldwide have set mandatory limits on occupational respiratory exposures. Read and follow the guidance in the Safety Data Sheet (SDS) before working with this material.

For questions on safe practices for beryllium-containing alloys, contact us by e mail at info@cuberyllium.com

Fabrication



FAQ:

Q1:Could you produce Beryllium Copper strip by Mill Hardened process.
A1:Yes, we could produce AM(TM00), 1/2HM(TM01).HM(TM04) XHM(TM06) XHMS(TM08).,we are the only factory could do mill harden strip in China.

Q2: What’s the advantages the Beryllium Copper of CUBERYLLIUM®.
A2: 1: The Biggest Coil weight could be reach 1200kg/Coil

2:We are the only one who melting by Vacuum semi-Continuous Furnace.

3:Surface further polishing for top clients.

Q3: Why you melting by Vacuum semi-Continuous Furnace.
A3:Could be get the Cast ingot without gas,smaller segregation, Grain Refinement

Q4: What's the payment terms?
A4: We accept T/T, L/C, Paypal etc. It can be negotiated when the amount is different.
