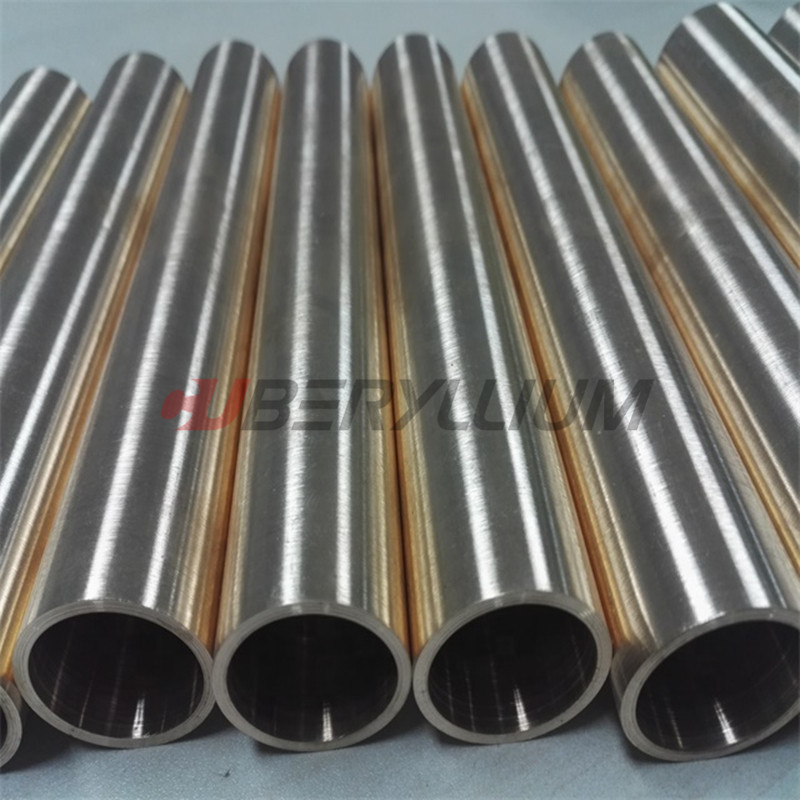

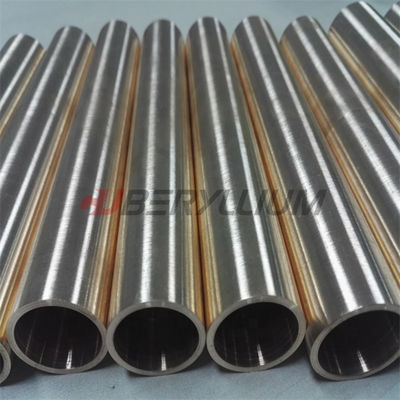

ASTM C17500 Beryllium Copper Tube Dia 3mm With High Conductivity

  • ASTM C17500 Beryllium Copper Tube Dia 3mm With High Conductivity
  • ASTM C17500 Beryllium Copper Tube Dia 3mm With High Conductivity
Place of Origin China
Brand Name CUBERYLLIUM
Certification ISO ROHS
Model Number CUBERYLLIUM 750 Alloy（ASTM C17500)
Minimum Order Quantity 30kg
Price USD 30～50/KG
Packaging Details Pack in coil+waterproofing winding film+Drier+Wooden Case
Delivery Time 10～15 Working days
Payment Terms L/C, T/T
Supply Ability 50T/Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name Cobalt Beryllium Copper Tube Grade CUBERYLLIUM 750 Alloy（ASTM C17500)
ASTM ASTM B 937, SAE J 461, SAE J 463, RWMA Class 3, EN 12163, EN 12165, EN 12167 Temper A(TB00)
Surface Bright Typical Application Electrical Industry, Fasteners, Industrial
Shape For Available Round Tube, Hollow Bars, Pipes Size All Size
Brand CUBERYLLIUM® Type Straight Copper Pipe
High Light

ASTM C17500 Beryllium Copper Tube

,

Beryllium Copper Tube dia 3mm

,

beryllium tube
Leave a Message
Product Description

CUBERYLLIUM 750 Alloy(ASTM C17500) Tube With High Conductivity Dia. 3mm In Stock

Product Description:

Name: CUBERYLLIUM TUBE

Grade: ASTM C17500

End Product Form: Tube / Pipe

Standard: ASTM B 937, SAE J 461, SAE J 463, RWMA Class 3, EN 12163, EN 12165, EN 12167

Application: Industry application

Feature: with high conductivity

Package: in plywoode cases or wooden cases

Size: Custom Diameter & Sizes, Random Mill Lengths



CUBERYLLIUM® manufactures copper beryllium in several distinct compositions. These fall into two categories: alloys selected for high strength (Alloys 172,173,170) and alloys selected for high conductivity (Alloys 751,750,741). And Gost standard QBe2,QBe1.9Ti for Russia Market. Also Supply Master alloy : CuBeryllium-200; CuBeryllium-275);CuBeryllium-350 and Cuberyllium-400 to global factory.



CUBERYLLIUM ®-750 also named -C17500 (CDA 750) combine moderate yield strength, up to 960Mpa(140ksi), with electrical and thermal conductivity from 45 to 60 % of pure copper. Alloys 750 and 751 are available in wrought product forms and can be supplied fully hardened. Hardened products are identified by the temper designation AT or HT, and have good formability.



  • Typical Chemical Composition of C17500 Copper Alloy:

  • Weight % Be Co Fe Cu Si
    minimum 0.40 2.40 — Bal —
    maximum 0.70 2.70 0.10 0.20

  • Physical Properties of C17500 Copper Alloy:

  • Characteristics   English Metric
    Nominal density



    (68°F/20°C)

    		   0.316 lbs/in3 8.75 g/cm3
    Specific heat



    (212 °F/100°C)

    		   0.10 BTU/lb – °F 420 J/KG- °K
    Melting range   1890-1960 °F 1030-1070 °C
    Coefficient of thermal expansion 68°F – 392°F



    20°C – 200°C

    		 9.8 micro in/in- °F 17.6 micro m/m- °K
    Electrical resistivity 20°C / 68°F 29-86 nΩ ∙ m

Related material specifications of CUBERYLLIUM 750 Alloy(ASTM C17500)

Tubes/Pipes: ASTM B 937, SAE J 461, SAE J 463, RWMA Class 3, EN 12163, EN 12165, EN 12167

European Standards: CuCo2Be, CuCoBe, Alloy 10, DIN 2.2185, CW104C to EN



Note:

ASTM: American Society for Testing and Materials

SAE: Society of Automotive Engineers

AMS: Aerospace Materials Specification(Published by SEA)

RWMA: Resistance Welder Manufacturers' Association

Note: Unless otherwise specified, material will be produced by ASTM.



Typical Applications for CUBERYLLIUM 750 Alloy(ASTM C17500):

A: Electrical Industry: Switch Parts, Connectors, Spring Connectors, Fuse Clips, Relay Parts;

B: Fasteners: Washers, Fasteners;

C: Industrial: Spring, Resistance Welding Equipment, Resistance and Spot Welding Tips, Seam Welding Dies, Die-Casting Plunger Tips, Tooling for Plastic Moulds.



Temper Designations of CUBERYLLIUM 750 Alloy(ASTM C17500) Tube:

Cuberyllium Designation ASTM Mechanical and Electrical Properties of Copper Beryllium Tube / Pipe
Temper

Outside Diameter or Distance Between Parallel Surfaces

(mm)

 Tensile Strength
(Mpa)		 Yield Strength 0.2% offset(Mpa) Elongation Percent HARDNESS
(Rockwell B Scale)		 Electrical Conductiviry percent(IACS)
A TB00 All sizes 240～380 70～210 20-35 B20-50 20-30
H TD04 up to 76 440~550 340~520 10-15 B60-80 20-30
AT
 		 TF00 All sizes 680～890 550～690 10-25 B92-100 45-60
HT TH04 up to 76 750 ~ 960 650 ~ 860 5-25 B95-102 48-60



Product Photo:

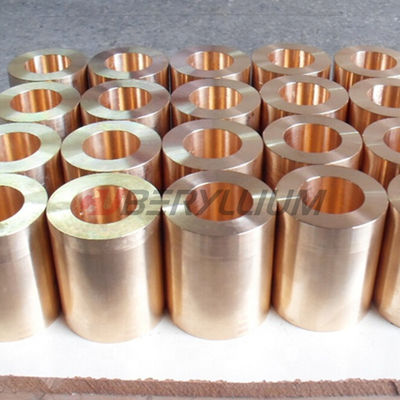

ASTM C17500 Beryllium Copper Tube Dia 3mm With High Conductivity 0



FAQ:

Q1:What’s the advantages the Beryllium Copper of CUBERYLLIUM®?

A1: 1: The Biggest Coil weight could be reach 1200kg/Coil

2:We are the only one who melting by Vacuum semi-Continuous Furnace.

3:Surface further polishing for top clients.

Q2: How about your payment terms?
A2: Generally, 30% as deposit by T/T, then 70% should be paid before the delivery.

Q3: Why you melting by Vacuum semi-Continuous Furnace?
A3:Could be get the Cast ingot without gas,smaller segregation, Grain Refinement

Q4: What's the payment terms?
A4: We accept T/T, L/C, Paypal etc. It can be negotiated when the amount is different.
