Small Alloy 25 Capillary Tube Used For Electrical Equipment Production

  • Small Alloy 25 Capillary Tube Used For Electrical Equipment Production
  • Small Alloy 25 Capillary Tube Used For Electrical Equipment Production
  • Small Alloy 25 Capillary Tube Used For Electrical Equipment Production
Place of Origin China
Brand Name CUBERYLLIUM®
Certification ISO,SGS
Model Number Alloy 25
Minimum Order Quantity 50
Price 28USD
Packaging Details Coil+plywood case
Delivery Time 10~15days
Payment Terms L/C, T/T, Western Union
Supply Ability 200T/Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name Alloy 25 Capillary Tube Prodcut Form Round Tubes, Small Tubes
Standard ASTM STANDARD Safe Handling No Special Health Risk.
Machining Property Good Surface Bright/Polished
High Light

Alloy 25 Capillary Tube

,

Electrical Equipment Beryllium Copper Tube

,

Polished Alloy 25 Capillary Tube
Leave a Message
Product Description

Small Tube Alloy 25 Capillary Tube Used For Electrical Equipment Production

Product Normal Description:

Material Grade Alloy 25
Other Names C172, CuBe2, DIN 2.1247, CW101C
End Product Form Small tubes
Standard ASTM Standard
State of product Hard, 1/2Hard
Application Electrical equipment, 5G Base station



About Cuberyllium:

Cuberyllium is one of the eminent manufacturer and exporter of high Grade Beryllium Copper Alloys, including beryllium copper strips, beryllium copper rods, beryllium copper bars, beryllium copper plates, beryllium copper sheet, beryllium copper wires, beryllium copper tubes and so no.
Cuberyllium offers a commendable range of beryllium copper alloys with competitive price. We offer beryllium copper alloys that are fabricated by our adroit professionals using supreme class raw material as per the set industry norms.
With holding years of experience in manufacturing, we continue to offer robust quality of Beryllium Copper Alloys with very reasonable prices across all over the world.



Introduction of Beryllium Copper Alloy:

Beryllium copper combines the high electrical conductivity, high thermal conductivity, and ease of machining of copper with the high strength and spring properties of beryllium. With the addition of 0.5% to 3.0% beryllium to copper, this alloy offers strength comparable to special steel.



Beryllium Copper Pipes is an age-hardening alloy which attains the highest strength of any copper base alloy. It may be age hardened after forming into springs, intricate forms or complex shapes. It has superb spring properties, corrosion resistance and stability as well as good conductivity and low creep. Beryllium Copper Pipes has excellent metalworking, forming and machining qualities. It has many specialized applications in tools for hazardous environments, musical instruments, precision measurement devices, bullets, and aerospace. Beryllium-containing alloys create an inhalation hazard during manufacturing due to their toxic properties.



Chemical Composition of Beryllium Copper Alloy 25:

Alloy number Be Ni Co Ni Co Fe Be Ni Co Fe Cu
C17200 / Alloy 25 1.8-2.0 ≥0.2 ≤0.6 ≥99.5




Physical Properties of Beryllium Copper Alloy 25:

      Yield Strength   108 cycles Hardness
ksi
Temper Heat Treatment Tensile Strength ksi 0.2% offset ksi Elongation % Fatigue Strength Rockwell B or C Electrical Conductivity % IACS
A Dead Soft (TB00) -- 60-76 28-36 35-65 30-35 B45-78 15-19
A Planished (TB00) -- 60-78 30-55 35-60 30-35 B45-78 15-19
1/4 H (TD01) -- 75-88 60-80 20-45 31-36 B68-90 15-19
1/2 H(TD02) -- 85-100 75-95 12-30 32-38 B88-96 15-19
H (TD04) -- 100-120 90-115 2-18 35-39 B96-102 15-19
AT (TF00) 3 hr. at 600 °F 165-195 140-175 3-15 40-45 C36-42 22-28

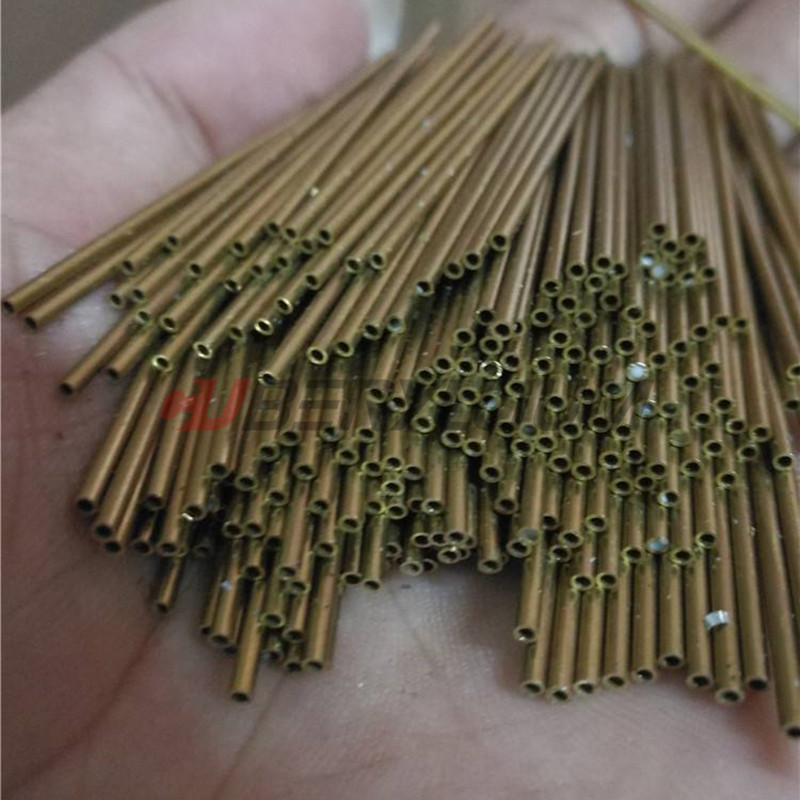

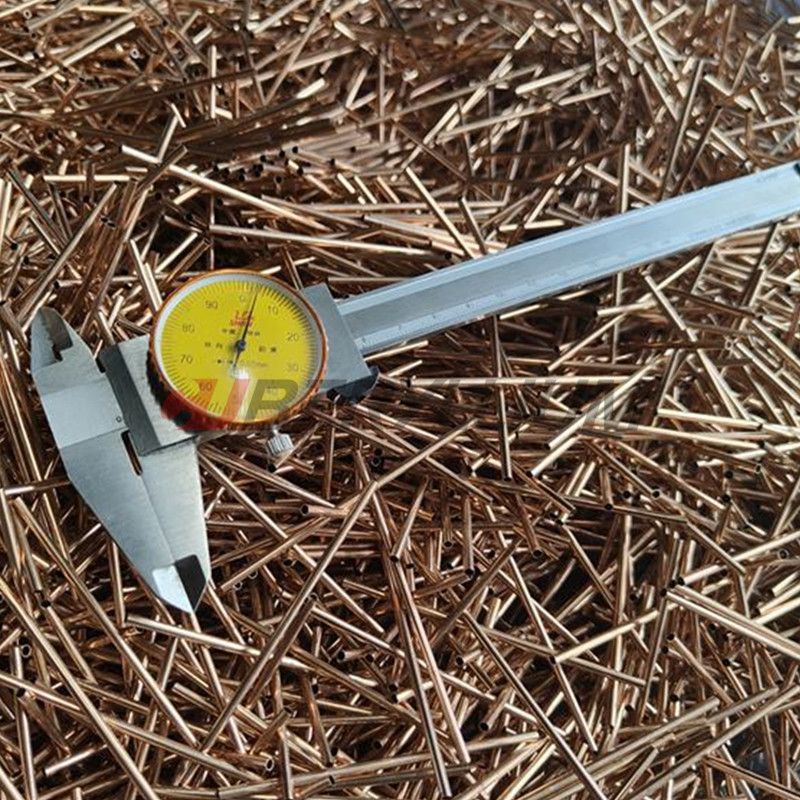

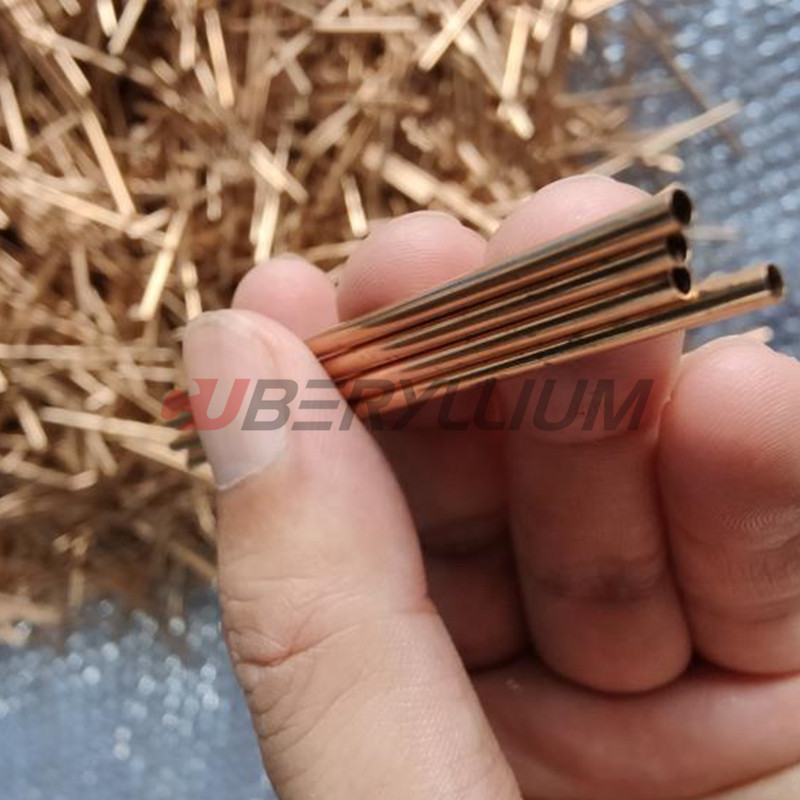

Product Photo of Beryllium Copper Alloy 25 Small Tube:

Small Alloy 25 Capillary Tube Used For Electrical Equipment Production 0



Our Advantages:
Superior quality
Proactive customer service
Innovative solutions
Extremely fast turn around
Technical Support
Together we can achieve substantial amount of productivity for our applications, we can also develop and arrange mechanical properties according to specific requirements.
