C17200 Beryllium Copper Tubes Bright Class Four

  • C17200 Beryllium Copper Tubes Bright Class Four
  • C17200 Beryllium Copper Tubes Bright Class Four
Place of Origin China
Brand Name CUBERYLLIUM®
Certification ISO,SGS
Model Number CLASS FOUR BERYLLIUM COPPER C17200
Minimum Order Quantity 50
Price 28USD
Packaging Details Coil+plywood case
Delivery Time 10~15days
Payment Terms L/C, T/T, Western Union
Supply Ability 200T/Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name C17200 Tubes Prodcut Form Round Tubes
Standard ASTM STANDARD Safe Handling No Special Health Risk.
Machining Property Good Surface Bright/Polished
High Light

Beryllium Copper C17200 Tubes

,

Bright Beryllium Copper Tubes

,

Class Four Beryllium Copper Tubes
Leave a Message
Product Description

Beryllium Copper Tubing CLASS FOUR BERYLLIUM COPPER C17200 Tubes

Product Normal Description:

Material Grade RWMA Class Four, C17200
Other Names C172, CuBe2, DIN 2.1247, CW101C
End Product Form Round Tubes
Standard ASTM Standard
State of product Hard, 1/2Hard
Application Electrical Industry



Introduction of Beryllium Copper (BeCu) Alloy C17200 Alloy 25:

Beryllium copper combines high strength with non-magnetic and non-sparking qualities. It has excellent metalworking, forming, and machining qualities. It has many specialized applications in tools for hazardous environments, musical instruments, precision measurement devices, bullets, and aerospace. Available in small-order quantities, especially for engineering, die trials, and short runs.



Beryllium Copper Pipes is an age-hardening alloy which attains the highest strength of any copper base alloy. It may be age hardened after forming into springs, intricate forms or complex shapes. It has superb spring properties, corrosion resistance and stability as well as good conductivity and low creep. Beryllium Copper Pipes has excellent metalworking, forming and machining qualities. It has many specialized applications in tools for hazardous environments, musical instruments, precision measurement devices, bullets, and aerospace. Beryllium-containing alloys create an inhalation hazard during manufacturing due to their toxic properties.



Fabrication Properties of CLASS FOUR BERYLLIUM COPPER C17200 Alloy:

  • Machining - C17200 copper alloy has a machinability rate of 20%.
  • Welding - Butt welding, seam welding, spot welding, coated metal arc welding, gas-shielded arc welding, brazing and soldering are recommended for C17200 copper alloys.Oxyacetylene welding is not recommended for C17200.
  • Forging - For C17200 occurs at a temperature of 649 to 816 degrees Celsius.
  • Hot working - C17200 copper alloys have good hot working capabilities.
  • Cold working - C17200 copper alloys have excellent cold working properties.
  • Annealing - Is the process of heating metal or glass and allowing it to cool slowly. This process removes internal stresses and strengthens it. C17200 copper alloys are annealed at temperatures from 774 to 802 degrees Celsius

Other fabrication properties include drawing, drilling, blanking, forming and bending, tapping, and turning.



C17200(CuBe2)
EN ASTM AMS DIN RWMA
CW101C C17200 4533 2.1247 RWMA Class 4
    4650
    4651



Chemical Composition of CLASS FOUR BERYLLIUM COPPER C17200 Alloy:

Alloy number Be Ni Co Ni Co Fe Be Ni Co Fe Cu
C17200 / Alloy 25 1.8-2.0 ≥0.2 ≤0.6 ≥99.5

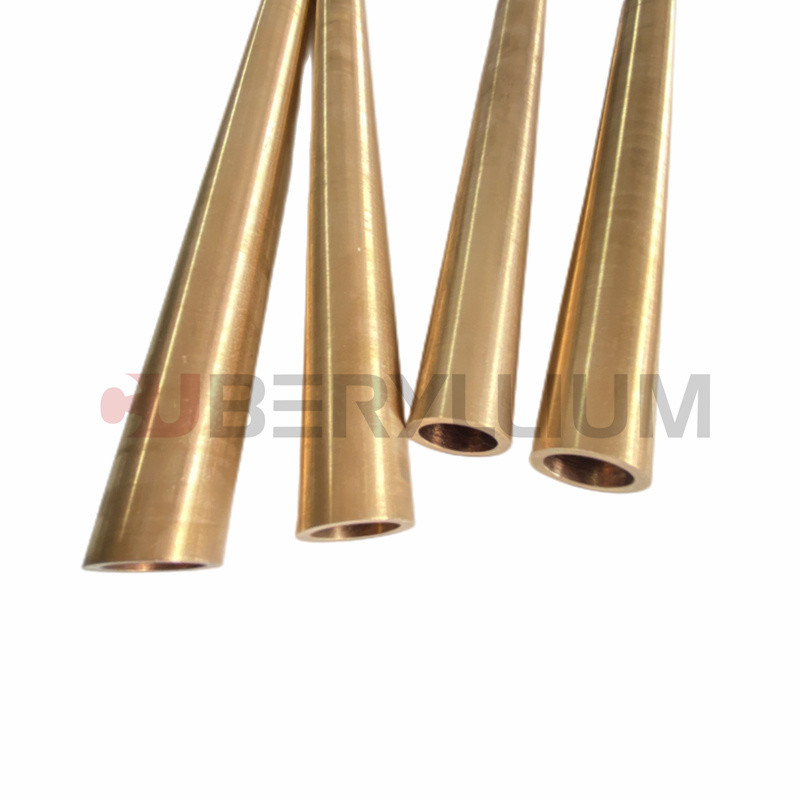

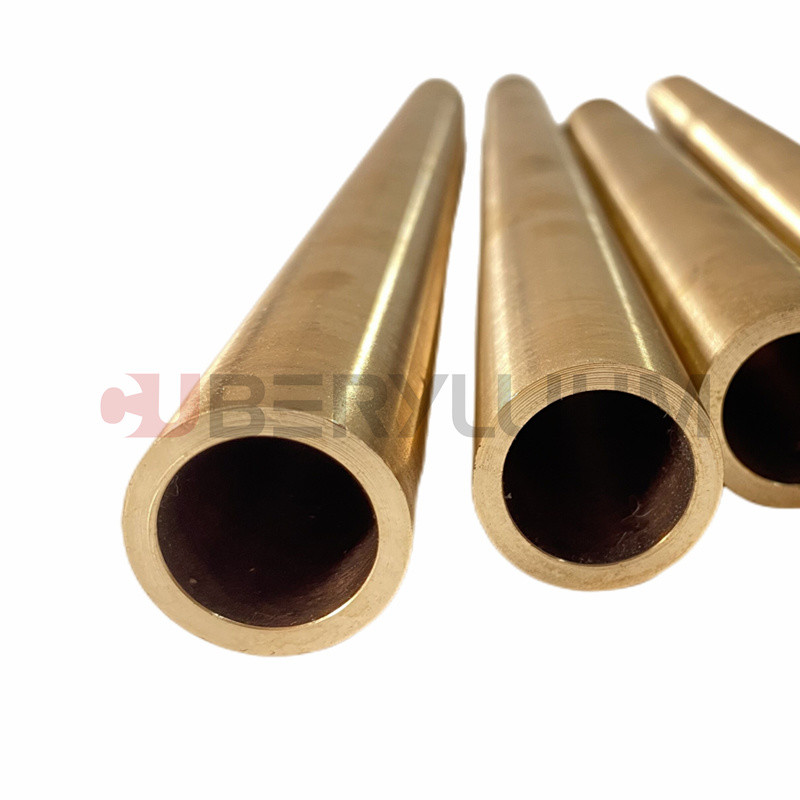

Product Photo of CLASS FOUR BERYLLIUM COPPER C17200 Tubes:

C17200 Beryllium Copper Tubes Bright Class Four 0





Excellent Properties of CLASS FOUR BERYLLIUM COPPER C17200 Alloys:

C17200 Beryllium Copper Tubes Bright Class Four 1
