CuCo2Be UNS C17500 Beryllium Copper Tube Highly Thermal And Electrical Conductivity

  • CuCo2Be UNS C17500 Beryllium Copper Tube Highly Thermal And Electrical Conductivity
  • CuCo2Be UNS C17500 Beryllium Copper Tube Highly Thermal And Electrical Conductivity
Place of Origin China
Brand Name CUBERYLLIUM
Certification ISO ROHS
Model Number CuCo2Be / UNS. C17500
Minimum Order Quantity 30kg
Price USD 30～50/KG
Packaging Details Pack in coil+waterproofing winding film+Drier+Wooden Case
Delivery Time 10～15 Working days
Payment Terms L/C, T/T
Supply Ability 50T/Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name Cobalt Beryllium Copper Tube Grade CuCo2Be / UNS. C17500
ASTM ASTM B 937, SAE J 461, SAE J 463, RWMA Class 3, EN 12163, EN 12165, EN 12167 Temper A(TB00), H(TD04), AT(TF00), HT(TH04)
Surface Bright Typical Application Electrical Industry, Fasteners, Industrial
Shape For Available Round Tube, Hollow Bars, Pipes Size All Size
Brand CUBERYLLIUM® Type Straight Copper Tube
High Light

UNS C17500 Beryllium Copper Tube

,

CuCo2Be Beryllium Copper Tube

,

becu alloy pipe
Leave a Message
Product Description

CuCo2Be / UNS. C17500 Beryllium Copper Tube With Highly Thermal And Electrical Conductivity

Product Description:

Name: Beryllium Copper Tube

Grade: CuCo2Be / UNS. C17500

End Product Form: Pipe, Tube

State: A(TB00), H(TD04), AT(TF00), HT(TH04)

Standard: ASTM B 937, SAE J 461, SAE J 463, RWMA Class 3, EN 12163, EN 12165, EN 12167

Application: Use in products for resistance welding application

Feature: with highly thermal and electrical conductivity

Package: in plywoode cases or wooden cases

Size: Custom Diameter & Sizes, Random Mill Lengths



Introduction of CUBERYLLIUM®:

CUBERYLLIUM® specializing in the production of machining beryllium copper alloys, including copper beryllium sheet/plate, copper beryllium rod, copper beryllium strip, copper beryllium wire, copper beryllium tube/pipe and so on. Various products could be customized according to customers' requirements. We have more than 10 years of metal production export experience.
Our products are exported to Europe, the United States, the Middle East, Africa, Asia and other regions.

Beryllium copper alloys are mainly based on copper with a beryllium addition. High strength beryllium copper alloys contain 0.4-2% of beryllium with about 0.3 to 2.7% of other alloying elements such as nickel, cobalt, iron or Lead. The high mechanical strength is achieved by precipitation hardening or age hardening.



Chemical Composition of CuCo2Be / UNS. C17500 Beryllium Copper Alloy:

CUBERYLLIUM® Brand UNS-Number Beryllium Cobalt Fe Si Copper
Cuberyllium-C750 C17500 0.40-0.70 2.4～2.7 <0.1 <0.2 Balance


Typical Physical Properties of CuCo2Be / UNS. C17500 Beryllium Copper Alloy:

Density 8.83 g/cm3
Density before age hardening 8.75 g/cm3
Elastic Modulus 14.1 kg/mm2 (103)
Thermal Expansion Coefficient 18x10-6 20 °C to 200 °C m/m/°C
Thermal Conductivity 0.48 (cal/(cm-s-°C
Melting Range 1000-1070 °C



Typical Applications for CuCo2Be / UNS. C17500 Beryllium Copper Alloy:

A: Electrical Industry: Switch Parts, Connectors, Spring Connectors, Fuse Clips, Relay Parts;

B: Fasteners: Washers, Fasteners;

C: Industrial: Spring, Resistance Welding Equipment, Resistance and Spot Welding Tips, Seam Welding Dies, Die-Casting Plunger Tips, Tooling for Plastic Moulds.



Temper Designations of CuCo2Be / UNS. C17500 Beryllium Copper Tube (CUBERYLLIUM ®-750):

Cuberyllium Designation ASTM Mechanical and Electrical Properties of Copper Beryllium Tube/Pipe
Temper

Outside Diameter or Distance Between Parallel Surfaces

(mm)

 Tensile Strength
(Mpa)		 Yield Strength 0.2% offset(Mpa) Elongation Percent HARDNESS
(Rockwell B Scale)		 Electrical Conductiviry percent(IACS)
A TB00 All sizes 240～380 70～210 20-35 B20-50 20-30
H TD04 up to 76 440~550 340~520 10-15 B60-80 20-30
AT
 		 TF00 All sizes 680～890 550～690 10-25 B92-100 45-60
HT TH04 up to 76 750 ~ 960 650 ~ 860 5-25 B95-102 48-60

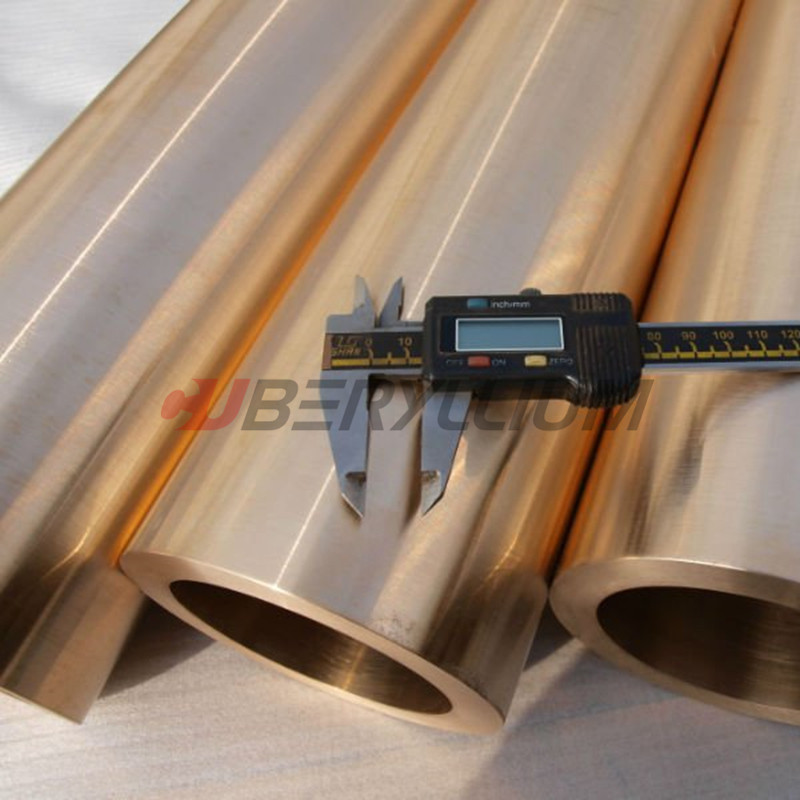

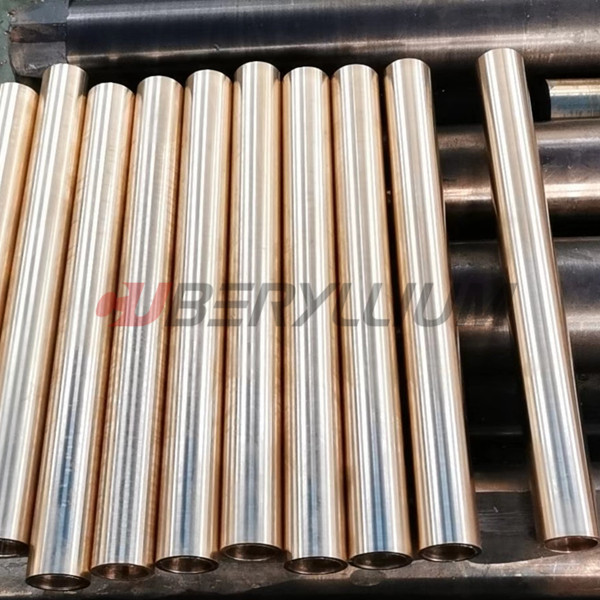

Product Photo:

CuCo2Be UNS C17500 Beryllium Copper Tube Highly Thermal And Electrical Conductivity 0



FAQ:

Q1:What’s the advantages the Beryllium Copper of CUBERYLLIUM®?

A1: 1: The Biggest Coil weight could be reach 1200kg/Coil

2:We are the only one who melting by Vacuum semi-Continuous Furnace.

3:Surface further polishing for top clients.

Q2: How about your payment terms?
A2: Generally, 30% as deposit by T/T, then 70% should be paid before the delivery.

Q3: Why you melting by Vacuum semi-Continuous Furnace?
A3:Could be get the Cast ingot without gas,smaller segregation, Grain Refinement

Q4: What's the payment terms?
A4: We accept T/T, L/C, Paypal etc. It can be negotiated when the amount is different.
