CuNi2Be Nickel Beryllium Copper Tubing C17510 For Industry Application

CuNi2Be Nickel Beryllium Copper Tube C17510 For Industry Application

Product Description:

Name: Nickel Beryllium Copper Tube

Grade: CuNi2Be(CUBERYLLIUM® 751)

End Product Form: Pipe, Tube

State: A(TB00), H(TD04), AT(TF00), HT(TH04)

Standard: ASTM B 937, SAE J 461, SAE J 463, RWMA Class 3, EN 12163, EN 12165, EN 12167

Application: Used for industry application

Feature: with highly conductivity

Package: in plywoode cases or wooden cases

Size: Custom Diameter & Sizes, Random Mill Lengths

Introduction of CuNi2Be (C17510) Beryllium Copper Alloy:

C17510(Class 3) Copper Alloy is specifically recommended for projection welding dies, flash and butt welding dies, current carrying shafts, and bushings. Since they have higher strength than Class 2, C17510 is recommended for highly stressed welder structural current carrying members and heavy duty offset electrode holders.

Cl17510(Class 3) Copper Alloy is generally recommended for spot welding and seam welding steels, such as stainless steel, since it has high electrical resistance. The C17510 alloy is heat treatable.

Chemical Composition of CuNi2Be Nickel Beryllium Copper Alloy C17510:

Related material specifications of CuNi2Be Nickel Beryllium Copper Alloy C17510:

Tubes/Pipes: ASTM B 937, SAE J 461, SAE J 463, RWMA Class 3, EN 12163, EN 12165, EN 12167

European Standards: CuNi2Be, CuNiBe, Alloy 3, DIN. 2.0850, CW110C to EN

Note:

ASTM: American Society for Testing and Materials

SAE: Society of Automotive Engineers

AMS: Aerospace Materials Specification(Published by SEA)

RWMA: Resistance Welder Manufacturers' Association

Note: Unless otherwise specified, material will be produced by ASTM.

Typical Physical Properties of CuNi2Be Nickel Beryllium Copper Alloy C17510:

Temper Designations of CuNi2Be Nickel Beryllium Copper Tube C17510 (CUBERYLLIUM ®-751):

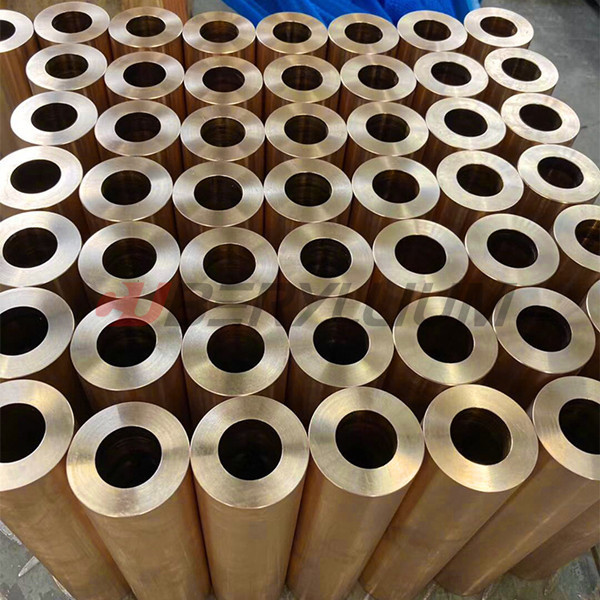

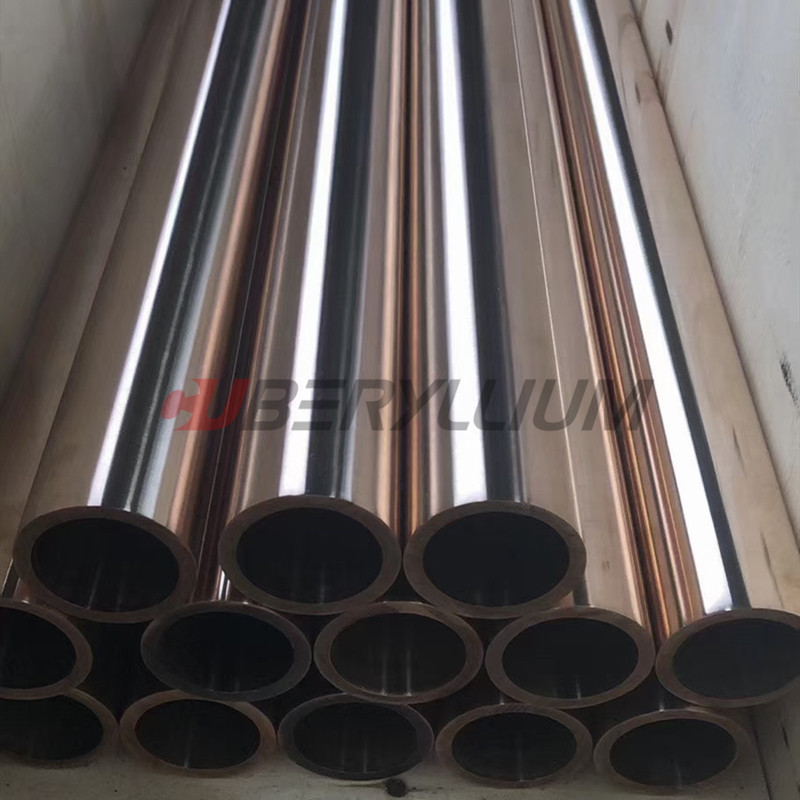

Product Photo:

Weldability

Soldering, brazing, gas shielded arc welding, coated metal arc welding, spot welding, seam welding and butt welding are all recommended

Hot & Cold Workability

Good hot working properties. Excellent cold working properties.

Key Technology of Beryllium Copper(Heat treatment)

Age Hardening

Age hardening significantly enhances the material’s strength. This reaction is generally carried out at temperatures between 260°C and 540°C depending on alloy and desired characteristics. This cycle causes the dissolved beryllium to precipitate as a beryllium rich (gamma) phase in the matrix and at the grain boundaries. It is the formation of this precipitate which causes the large increase in material strength. The level of mechanical properties attained is determined by the temperature and time at temperature. It should be recognized that beryllium copper has no room temperature aging characteristics.

FAQ:

Q1:What’s the advantages the Beryllium Copper of CUBERYLLIUM®?

A1: 1: The Biggest Coil weight could be reach 1200kg/Coil

2:We are the only one who melting by Vacuum semi-Continuous Furnace.

3:Surface further polishing for top clients.

Q2: How about your payment terms?
A2: Generally, 30% as deposit by T/T, then 70% should be paid before the delivery.

Q3: Why you melting by Vacuum semi-Continuous Furnace?
A3:Could be get the Cast ingot without gas,smaller segregation, Grain Refinement

Q4: What's the payment terms?
A4: We accept T/T, L/C, Paypal etc. It can be negotiated when the amount is different.
