Cobalt Beryllium Copper Tubes TF00 C17500 For Resistance Welding Equipments

Cobalt Beryllium Copper Alloys Tubes C17500 With High Conductivity Used For Resistance Welding Equipments

Product Description:

Name: Cobalt Beryllium Copper Alloys Tubes

Grade: C17500

End Product Form: Pipe, Tube

State: A(TB00), H(TD04), AT(TF00), HT(TH04)

Standard: ASTM B 937, SAE J 461, SAE J 463, RWMA Class 3, EN 12163, EN 12165, EN 12167

Application: Used for resistance welding equipments

Feature: with highly conductivity

Package: in plywoode cases or wooden cases

Size: Custom Diameter & Sizes, Random Mill Lengths

CUBERYLLIUM® is a specialized innovative beryllium copper alloy manufacturer with professional research and develpment team, modern production line, and rigorous quality management systerm. Our beryllium copper alloys are of the top quality around China.

CUBERYLLIUM's main products are beryllium copper alloy, including C17200 beryllium copper alloy, C17300 free cutting beryllium copper alloy, C17410 beryllium copper alloy, C17500 cobalt beryllium copper alloy, C17510 nickel beryllium copper alloy, CuCo1Ni1Be cobalt nickel beryllium copper alloy.

CUBERYLLIUM are capable of suppliying you with the shapes of beryllium copper strip, beryllium copper bar/rod, beryllium copper wire, beryllium copper tube, beryllium copper block, beryllium copper sheet/plate, etc.

Chemical Composition of Cobalt Beryllium Copper Alloys C17500:

Related material specifications of Cobalt Beryllium Copper Alloys C17500:

Tubes/Pipes: ASTM B 937, SAE J 461, SAE J 463, RWMA Class 3, EN 12163, EN 12165, EN 12167

European Standards: CuCo2Be, CuCoBe, Alloy 10, DIN 2.2185, CW104C to EN

Note:

ASTM: American Society for Testing and Materials

SAE: Society of Automotive Engineers

AMS: Aerospace Materials Specification(Published by SEA)

RWMA: Resistance Welder Manufacturers' Association

Note: Unless otherwise specified, material will be produced by ASTM.

Typical Physical Properties of Cobalt Beryllium Copper Alloys C17500:

Temper Designations of Cobalt Beryllium Copper Alloys Tubes C17500 (CUBERYLLIUM ®-750):

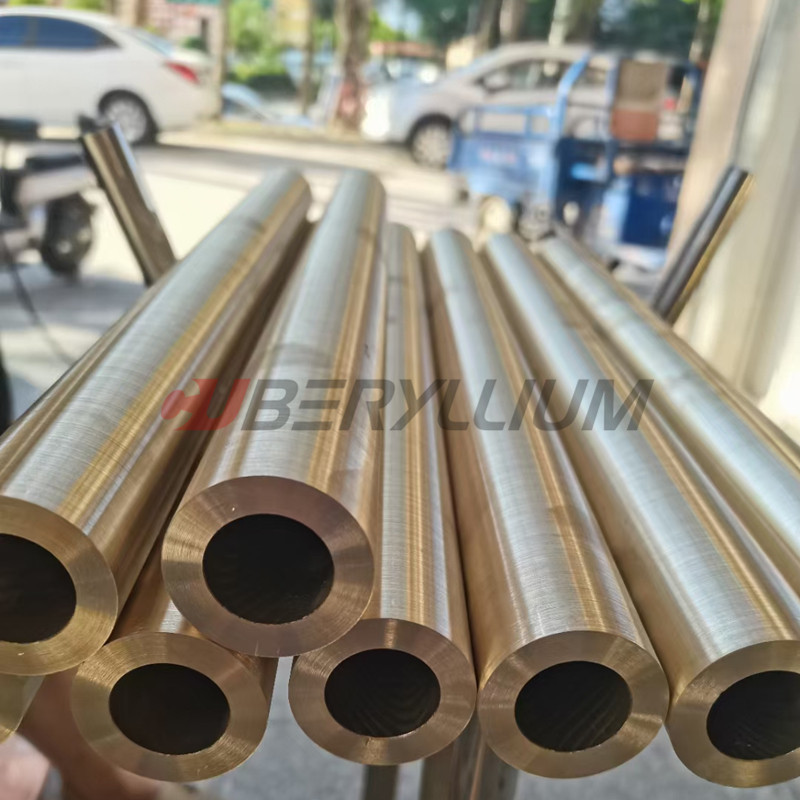

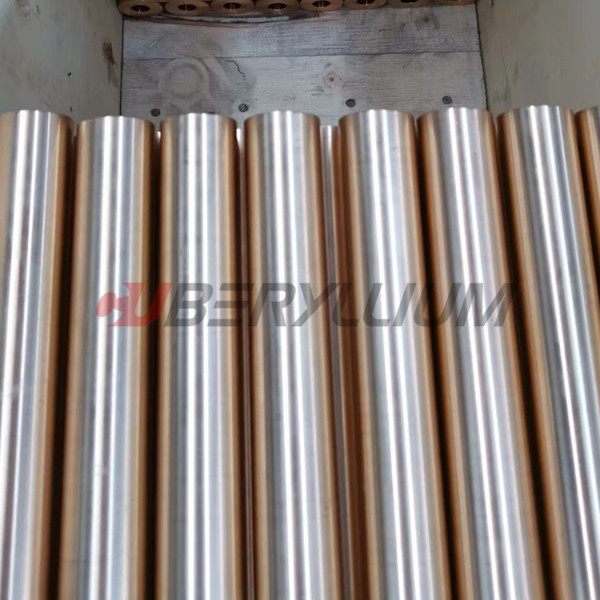

Product Photo:

Key Technology of Beryllium Copper(Heat treatment)

Age Hardening

Age hardening significantly enhances the material’s strength. This reaction is generally carried out at temperatures between 260°C and 540°C depending on alloy and desired characteristics. This cycle causes the dissolved beryllium to precipitate as a beryllium rich (gamma) phase in the matrix and at the grain boundaries. It is the formation of this precipitate which causes the large increase in material strength. The level of mechanical properties attained is determined by the temperature and time at temperature. It should be recognized that beryllium copper has no room temperature aging characteristics.

FAQ:

Q1:What’s the advantages the Beryllium Copper of CUBERYLLIUM®?

A1: 1: The Biggest Coil weight could be reach 1200kg/Coil

2:We are the only one who melting by Vacuum semi-Continuous Furnace.

3:Surface further polishing for top clients.

Q2: How about your payment terms?
A2: Generally, 30% as deposit by T/T, then 70% should be paid before the delivery.

Q3: Why you melting by Vacuum semi-Continuous Furnace?
A3:Could be get the Cast ingot without gas,smaller segregation, Grain Refinement

Q4: What's the payment terms?
A4: We accept T/T, L/C, Paypal etc. It can be negotiated when the amount is different.
