Qbe2 Becu Beryllium Copper Strip 0.8mmx250mm Bright Surface High Strength Good Quality

  • Qbe2 Becu Beryllium Copper Strip 0.8mmx250mm Bright Surface High Strength Good Quality
  • Qbe2 Becu Beryllium Copper Strip 0.8mmx250mm Bright Surface High Strength Good Quality
Place of Origin China
Brand Name CUBERYLLIUM
Certification ISO,SGS
Model Number Qbe2
Minimum Order Quantity 50
Price 30USD
Packaging Details in coil packed into wooden case
Delivery Time 10~15days
Payment Terms L/C, T/T, Western Union
Supply Ability 200T/Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name Beryllium Copper Strip Max Coil Wt. 2T
Thinnest Thick. 0.02mm Standard ГОСТ 1789-70
Heat Treatment Of Aging Age 3 Hrs At 600°F (315 C). Safe Handling No Special Health Risk.
Machining Property Good Surface Bright/Polished
Flatness Good Hardness ＜130HV
Tensile Strength 390~590 Mpa Normal Be% 1.8~2.1%
Elongation Percent >30% Electrical Conductivity 15~19% IACS
Max Width 305mm
High Light

Qbe2 becu Beryllium Copper Strip 0.8mmx250mm

,

becu Beryllium Copper Strip 0.8mmx250mm

,

beryllium copper material Strip
Leave a Message
Product Description

Qbe2 Beryllium Copper Strip 0.8mmx250mm Bright Surface With High Strength and Good Quality

Product Description:

Name: Beryllium Copper Strip

Grade: Qbe2

Specification: 0.8mmx250mm

Tolerance: +/-0.015mm

State: Soft

Surface: Bright



CUBERYLLIUM® manufactures copper beryllium in several distinct compositions. These fall into two categories: alloys selected for high strength (Alloys 172,173,170) and alloys selected for high conductivity (Alloys 751,750,741). And Gost standard QBe2,QBe1.9Ti(БрБ2;БрБНТ1.9) for Russia Market. Also Supply Master alloy : CuBeryllium-200; CuBeryllium-275);CuBeryllium-350 and Cuberyllium-400 to global factory.



Chemical Composition:

CUBERYLLIUM® Brand

Gost-

Number

 Beryllium Al Ni Fe Cu Si
Cuberyllium-Qbe2 Qbe2 1.80-2.10 0.15 max 0.2~0.5

0.15

max

 Rest.

0.15

max


Typical Physical Properties:
Density (g/cm3): 8.36
Density before age hardening (g/cm3): 8.25
Elastic Modulus (kg/mm2 (103)): 13.40
Thermal Expansion Coefficient (20 °C to 200 °C m/m/°C): 17 x 10-6
Thermal Conductivity (cal/(cm-s-°C)): 0.25
Melting Range (°C): 870-980



Mechanical Properties
Name Temper Thickness
(mm)		 Tensile Strength Hardness Elongation (min)
MPa HV Percent
Qbe2 Soft <0.15 >390 <130 >30%
0.15~0.25 390~590
>0.25 390~590
Hard <0.15 >590 >170 >3%
0.15~0.25 590~880
>0.25 640~930
After Ageing
(Soft)		 <0.15 >1080 >330 >2%
0.15~0.25 1080~1470
>0.25 1130~1470
After Ageing
(Hard)		 <0.15 >1080 >360 >1.5%
0.15~0.25 1130~1570
>0.25 1170~1570



Application of Qbe2 Beryllium Cpper Alloy
Electrical Industry
  • Electrical Switch and Relay Blades, Fuse Clips, Switch Parts, Relay parts, Connectors, Spring Connectors, Contact Bridges, Belleville Washers, Navigational Instruments, Clips, EMI Finger Stock.
Industrial
  • Pumps, Springs, Electrochemical, Shafts, Non-Sparking Safety Tools, Flexible Metal Hose, Housings for Instruments, Bearings, Bushings, Valve Seats, Valve Stems, Diaphragms, Springs, Welding Equipment, Rolling Mill Parts, Spline Shafts, Pump Parts, Valves, Bourdon Tubes, Wear Plates on Heavy Equipment, Bellows

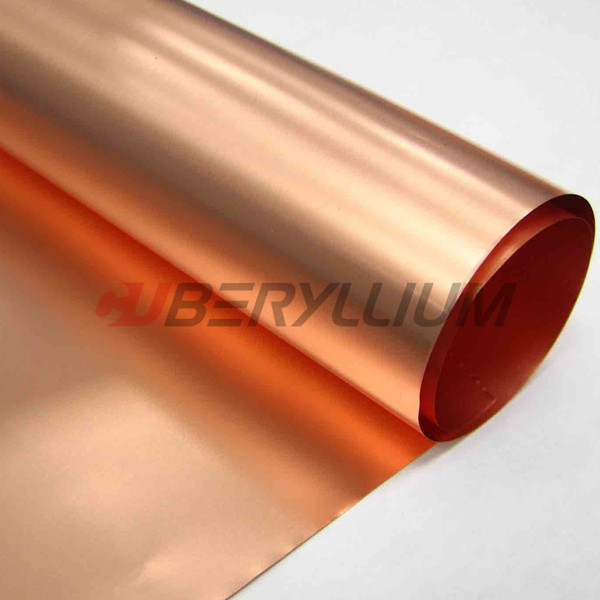

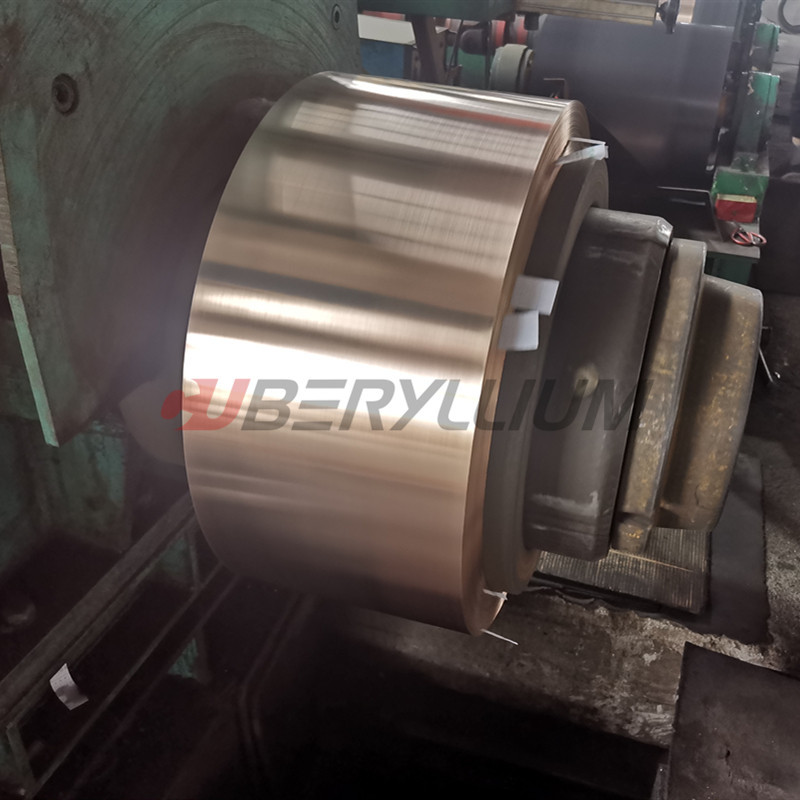

Product Photo:

Qbe2 Becu Beryllium Copper Strip 0.8mmx250mm Bright Surface High Strength Good Quality 0



FAQ:

Q1:Could you produce Beryllium Copper strip by Mill Hardened process.
A1:Yes, we could produce AM(TM00), 1/2HM(TM01).HM(TM04) XHM(TM06) XHMS(TM08).,we are the only factory could do harden strip in China.

Q2: What’s the advantages the Beryllium Copper of CUBERYLLIUM®.
A2: 1: The Biggest Coil weight could be reach 1200kg/Coil

2:We are the only one who melting by Vacuum semi-Continuous Furnace.

3:Surface further polishing for top clients.

Q3: Why you melting by Vacuum semi-Continuous Furnace.
A3:Could be get the Cast ingot without gas,smaller segregation, Grain Refinement

Q4: What's the payment terms?
A4: We accept T/T, L/C, Paypal etc. It can be negotiated when the amount is different.
