Qbe2 Beryllium Copper Strip Spring Tape 0.4mmx250mm Annealing

  • Qbe2 Beryllium Copper Strip Spring Tape 0.4mmx250mm Annealing
  • Qbe2 Beryllium Copper Strip Spring Tape 0.4mmx250mm Annealing
Place of Origin China
Brand Name CUBERYLLIUM
Certification ISO,SGS
Model Number Qbe2
Minimum Order Quantity 50
Price 30USD
Packaging Details in coil packed into wooden case
Delivery Time 10~15days
Payment Terms L/C, T/T, Western Union
Supply Ability 200T/Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name Beryllium Copper Strip Max Coil Wt. 2T
Thinnest Thick. 0.02mm Standard ГОСТ 1789-70
Heat Treatment Of Aging Age 3 Hrs At 600°F (315 C). Safe Handling No Special Health Risk.
Machining Property Good Surface Bright/Polished
Flatness Good Hardness ＜130HV
Tensile Strength 390~590 Mpa Normal Be% 1.8~2.1%
Elongation Percent >30% Electrical Conductivity 15~19% IACS
Max Width 305mm
High Light

Qbe2 Beryllium Copper Strip 0.4mmx250mm

,

Beryllium Copper Strip Spring 0.4mmx250mm

,

beryllium oxide alloy Strip
Leave a Message
Product Description

High Stength Beryllium Bronze Strip Tape Qbe2 Strip 0.4mmx250mm Annealing Strip for Spring

Product Description:

Name: Beryllium Bronze Strip

Tape: Qbe2

Specification: 0.4mmx250mm

Tolerance: +/-0.008mm

State: Soft

Surface: Bright/Polished

Application: for Spring



CUBERYLLIUM® manufactures copper beryllium in several distinct compositions. These fall into two categories: alloys selected for high strength (Alloys 172,173,170) and alloys selected for high conductivity (Alloys 751,750,741). And Gost standard QBe2,QBe1.9Ti(БрБ2;БрБНТ1.9) for Russia Market. Also Supply Master alloy : CuBeryllium-200; CuBeryllium-275);CuBeryllium-350 and Cuberyllium-400 to global factory.



CUBERYLLIUM ®-Qbe2 also named Cube2 Beryllium Copper is the most commonly utilized Copper Beryllium alloy and is notable for its highest strength and hardness compared to commercial copper alloys. Qbe2 alloy contains appr. 2% of beryllium and achieves its ultimate tensile strength can exceed 1360Mpa, while the hardness approaches Rockwell C45. Meanwhile, the electrical conductivity is a minimum of 22% IACS in the fully aged condition. Qbe2 also exhibits exceptional resistance to stress relaxation at elevated temperatures.



Chemical Composition of Beryllium Bronze Alloy Qbe2:

Be: 1.80-2.10%

Al: 0.15% Max
Ni: 0.20-0.50%
Fe: 0.15% Max.
Cu: Rest
Note: Copper plus additions equal 99.5% minimum.



Available Product Forms of Beryllium Bronze Alloy Qbe2 Round Strips, Round Rods, Bars, Coils, Sheets, Plates
Custom shapes are available upon request.


Typical Physical Properties:
Density (g/cm3): 8.36
Density before age hardening (g/cm3): 8.25
Elastic Modulus (kg/mm2 (103)): 13.40
Thermal Expansion Coefficient (20 °C to 200 °C m/m/°C): 17 x 10-6
Thermal Conductivity (cal/(cm-s-°C)): 0.25
Melting Range (°C): 870-980



Mechanical Properties
Name Temper Thickness
(mm)		 Tensile Strength Hardness Elongation (min)
MPa HV Percent
Qbe2 Soft <0.15 >390 <130 >30%
0.15~0.25 390~590
>0.25 390~590
Hard <0.15 >590 >170 >3%
0.15~0.25 590~880
>0.25 640~930
After Ageing
(Soft)		 <0.15 >1080 >330 >2%
0.15~0.25 1080~1470
>0.25 1130~1470
After Ageing
(Hard)		 <0.15 >1080 >360 >1.5%
0.15~0.25 1130~1570
>0.25 1170~1570



Standard Tolerance of QBe2 Strip:

Tolerance Sheet
(MM)
Strip
Thickness		 CuBeryllium®
Standard Tolerance
over incl. plus or minus
0.03 0.08 0.003
0.08 0.1 0.004
0.1 0.15 0.005
0.15 0.2 0.006
0.2 0.25 0.007
0.25 0.4 0.008
0.4 0.55 0.009
0.55 0.7 0.01
0.7 0.9 0.015
0.9 1.5 0.025
Note: Tolerances apply to rolled and mill hardened strip.

New information plz contact info&cuberyllium.com

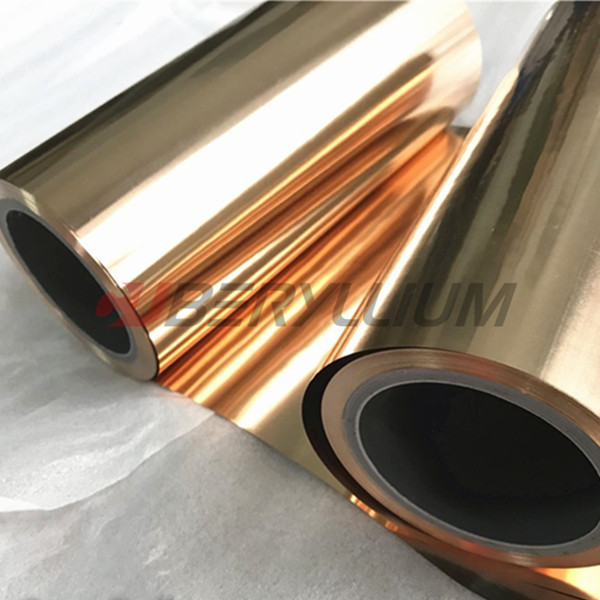

Product Photo:

Qbe2 Beryllium Copper Strip Spring Tape 0.4mmx250mm Annealing 0



FAQ:

Q1:Could you produce Beryllium Copper strip by Mill Hardened process.
A1:Yes, we could produce AM(TM00), 1/2HM(TM01).HM(TM04) XHM(TM06) XHMS(TM08).,we are the only factory could do harden strip in China.

Q2: What’s the advantages the Beryllium Copper of CUBERYLLIUM®.
A2: 1: The Biggest Coil weight could be reach 1200kg/Coil

2:We are the only one who melting by Vacuum semi-Continuous Furnace.

3:Surface further polishing for top clients.

Q3: Why you melting by Vacuum semi-Continuous Furnace.
A3:Could be get the Cast ingot without gas,smaller segregation, Grain Refinement

Q4: What's the payment terms?
A4: We accept T/T, L/C, Paypal etc. It can be negotiated when the amount is different.
