C17410 Beryllium Copper Strip ASTM B768 0.35x200mm For Spring Contacts

  • C17410 Beryllium Copper Strip ASTM B768 0.35x200mm For Spring Contacts
  • C17410 Beryllium Copper Strip ASTM B768 0.35x200mm For Spring Contacts
Place of Origin China
Brand Name CUBERYLLIUM
Certification ISO,SGS
Model Number C17410
Minimum Order Quantity 200
Price 30USD
Packaging Details in coil packed into wooden case
Delivery Time 10~15days
Payment Terms L/C, T/T, Western Union
Supply Ability 200T/Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name CUBERYLLIUM Brand 741 C17410 Strip CUBERYLLIUM® Grade CUBERYLLIUM® 741
Max Width 305mm Max Coil Wt. 2T
Thinest Thick. 0.05mm Length 500mm, 1000mm Or As Required
Standard ASTM B768, B888 State 1/2 HT(TH02), HT(TH04)
Safe Handling No Special Health Risk. Machining Property Good
Surface Bright, Polished Typical Application Electrical Applications Or Engineering Applications
Available Shapes Strip, Sheet
High Light

C17410 Beryllium Copper Strip 0.35x200mm

,

beryllium copper strip astm b768 0.35

,

c17410 beryllium copper 0.35x200mm
Leave a Message
Product Description

CUBERYLLIUM Brand 741 C17410 Strip Size 0.35x200mm by ASTM B768 for spring contacts

Product Name: CUBERYLLIUM Brand Strip

Grade: C17410

Size: 0.35mmx200mm, Or as customers' requirement

State: 1/2 HT(TH02), HT(TH04)





Product Informance of CUBERYLLIUM® Company:

CUBERYLLIUM® manufactures copper beryllium in several distinct compositions. These fall into two categories: alloys selected for high strength (Alloys 172,173,170) and alloys selected for high conductivity (Alloys 751,750,741). And Gost standard QBe2,QBe1.9Ti for Russia Market. Also Supply Master alloy : CuBeryllium-200; CuBeryllium-275);CuBeryllium-350 and Cuberyllium-400 to global factory.



CUBERYLLIUM ®-741 also named -C17410 Copper alloy with low beryllium content. It contains only few alloy elements: Beryllium and cobalt. Alloy 741, C17410 combines outstanding electric conductivity with high mechanical strength (typical values: 50% et 750N/mm2 .

Alloy 741 is supplied hardened so that a later heat treatment of the products is not necessary. This reduces production costs and prevents the deformation of the finished products. Although alloy 741 is supplied in hardened condition, it shows excellent bending behavior. This alloy distinguishes by excellent bending behavior in connection with mechanical strength and conductivity, which outperforms any other copper alloy of this price level.



Chemical Composition of CUBERYLLIUM Brand C17410 Copper Alloy:

Cuberyllium Brand UNS-Number Beryllium Cobalt Nickel Cobalt
+ Nickel		 +Cobalt
+ Nickel
+ Iron		 Lead Copper
Cuberyllium-C741 C17410 0.15-0.50 0.35-0.60 _ _ _ _ Balance



Forms Available

Alloy 174 mill hardened strip is available in widths ranging from 1mm~300mm and in thicknesses ranging from 0.02 to 2.5mm.



Typical application of CUBERYLLIUM Brand C17410 Copper Strips:

Bearings

Plastic molds

Welding electrodes

Current-carrying springs

Corrosioin resistant components

Precision screw machined parts

Connectors for appliances and consumer electronics



Related material specifications of CUBERYLLIUM Brand C17410 Copper Alloy
Strips ASTM B768, B888
Sheets ASTM B768, B888




Typical Physical Properties of CUBERYLLIUM Brand C17410 Copper Alloy:

Elastic Modulus Melting Point (Solidus) Electrical Conductivity/ Resistivity

　

Density

 Thermal Expansion Coefficient Thermal Conductivity (25 °C)
138 GPa 1020 °C 2.9-3.8 μΩcm 8.80 g/cm3 17.6 x 10-6 m/m °C 230 W/ m K





MECHANICAL PROPERTIES of CUBERYLLIUM Brand C17410 Copper Strips:

　 0.2% Offset Yield Strength (min) Ultimate Tensile Strength (min) Elongation (min) 　
Temper Hardness
　 ksi MPa ksi MPa % HV

1/2HT(TH02)

 80 - 100 550 - 690 95 - 115 665 - 790 10~20 180 - 230
HT(TH04) 100 - 120 690 - 830 110 - 130 760 - 895 7~17 210 - 278



Fabrication Properties:

Technique Suitability
Soldering Good
Brazing Good
Oxyacetylene Welding Not Recommended
Gas Shielded Arc Welding Fair
Coated Metal Arc Welding Fair
Spot Weld Good
Seam Weld Fair
Butt Weld Fair
Capacity for Being Cold Worked Excellent
Capacity for Being Hot Worked Excellent

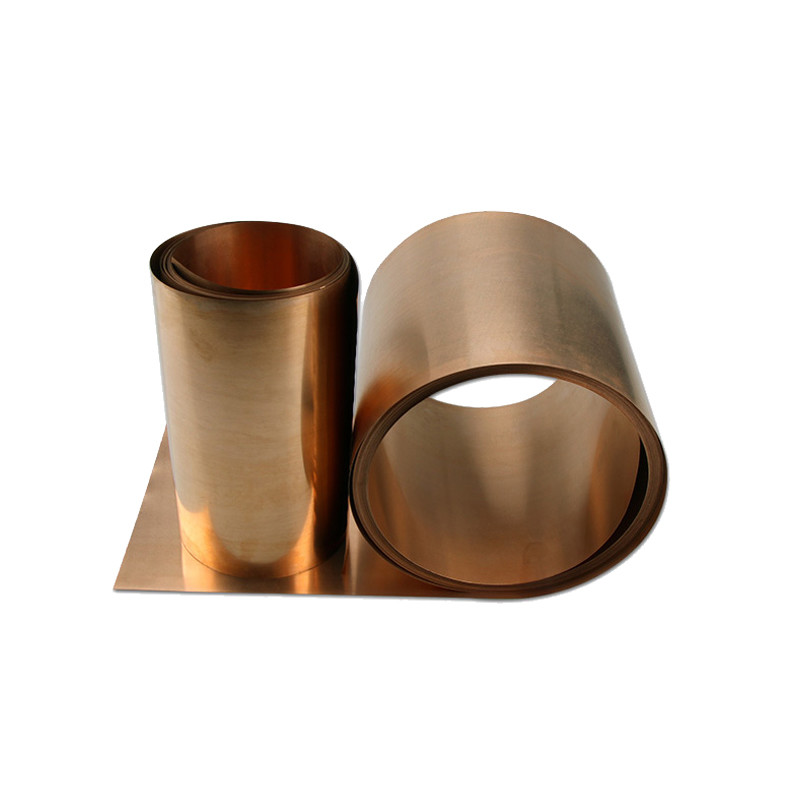

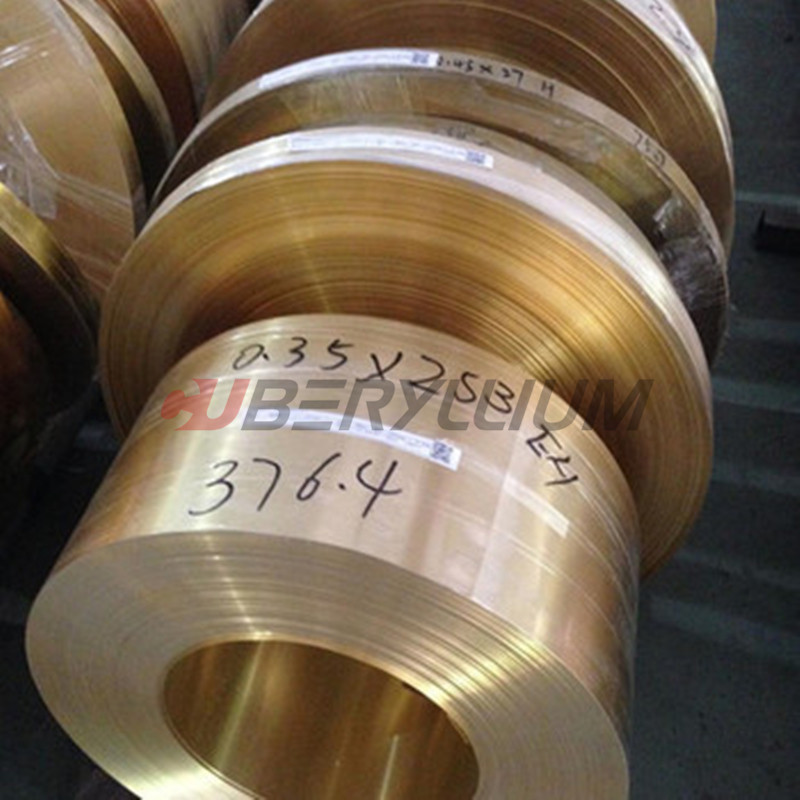

Product Photo:

C17410 Beryllium Copper Strip ASTM B768 0.35x200mm For Spring Contacts 0





FAQ:

Q1:Could you produce Beryllium Copper strip by Mill Hardened process.
A1:Yes, we could produce AM(TM00), 1/2HM(TM01).HM(TM04) XHM(TM06) XHMS(TM08).,we are the only factory could do mill harden strip in China.

Q2: What’s the advantages the Beryllium Copper of CUBERYLLIUM®.
A2: 1: The Biggest Coil weight could be reach 1200kg/Coil

2:We are the only one who melting by Vacuum semi-Continuous Furnace.

3:Surface further polishing for top clients.

Q3: Why you melting by Vacuum semi-Continuous Furnace.
A3:Could be get the Cast ingot without gas,smaller segregation, Grain Refinement

Q4: What's the payment terms?
A4: We accept T/T, L/C, Paypal etc. It can be negotiated when the amount is different.
