Tempers Rwma Class 4 Beryllium Copper Alloys Astm Standard Bright Polished

Place of Origin China
Brand Name CUBERYLLIUM®
Certification ISO,SGS
Model Number RWMA Class 4,C17200
Minimum Order Quantity 10
Price 28USD
Packaging Details Coil+plywood case
Delivery Time 10~15days
Payment Terms L/C, T/T, Western Union
Supply Ability 200T/Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name RWMA Class 4 Beryllium Copper Alloys Prodcut Form Strip, Rod, Plate, Tube, Wire
Standard ASTM STANDARD Safe Handling No Special Health Risk.
Machining Property Good Surface Bright/Polished
High Light

Class 4 Beryllium Copper Alloys

,

Polished Beryllium Copper Alloys

,

Astm Standard Beryllium Copper Alloys

Leave a Message
Product Description

Range of Sizes and Tempers RWMA Class 4 Beryllium Copper Alloys

Product Normal Description:

Grade of material: RWMA Class 4

Other name: C17200, Alloy 25, C172, CDA172, CuBe2

Available Product Form: Round rod, flat bar, plate, strip, wire, tube

Standard: ASTM Standard

Application: Electrical industry, Industrial



Cuberyllium Metal Tech. Co.,Ltd. provide beryllium copper alloy products in a range of sizes and tempers.

We can support quantites to accommodate both high-volume and low-volume needs.

When you're in need of beryllium copper products, plz contact with us.



Beryllium is a silver gray mettalic element that occurs naturally in about 30 minerals. It is lighter than Aluminum yet stiffer than steel. Beryllium gives Copper the strength of steel with the conductivity of a Copper Alloy.Because of the excellent fatigue resistance, beryllium copper is widely used for springs, pressure responsive diaphragms, flexible bellows, connectors, contacts and relays, which are all subject to cyclic loading. The anti-galling, strength and good corrosion resistance led to the widespread use of beryllium copper for down hole drilling tools for the oil and gas industry.



Introduction of RWMA Class 4 Beryllium Copper Alloys:

C17200 Beryllium Copper is an excellent material for a number of applications. C172 has excellent bearing properties with extremly high compressive strengths. C17200 also has siginificant non corrosive properties when exposed to harsh conditions. This alloy also has great galling resisitance. C17200 has a relative magnetic permability very close to 1.00, making it transparent to the effect of magnetic fields. This alloy is non sparking.



Chemical Composition of RWMA Class 4 Beryllium Copper Alloys:

Be 1.80-2.00%
Co+Ni 0.20% Min.
Co+Ni+Fe 0.60% Max.
Others 0.50% Max.
Cu Balance
Note Cu+Be+Co+Ni+Fe:99.50% Min



Applications of RWMA Class 4 Beryllium Copper Alloys:

  • Landing Gear Bushings
  • Directional Drilling Equipment
  • Bushings
  • Spring Connectors
  • Flex shafts
  • Pressure Housings
  • Bearings

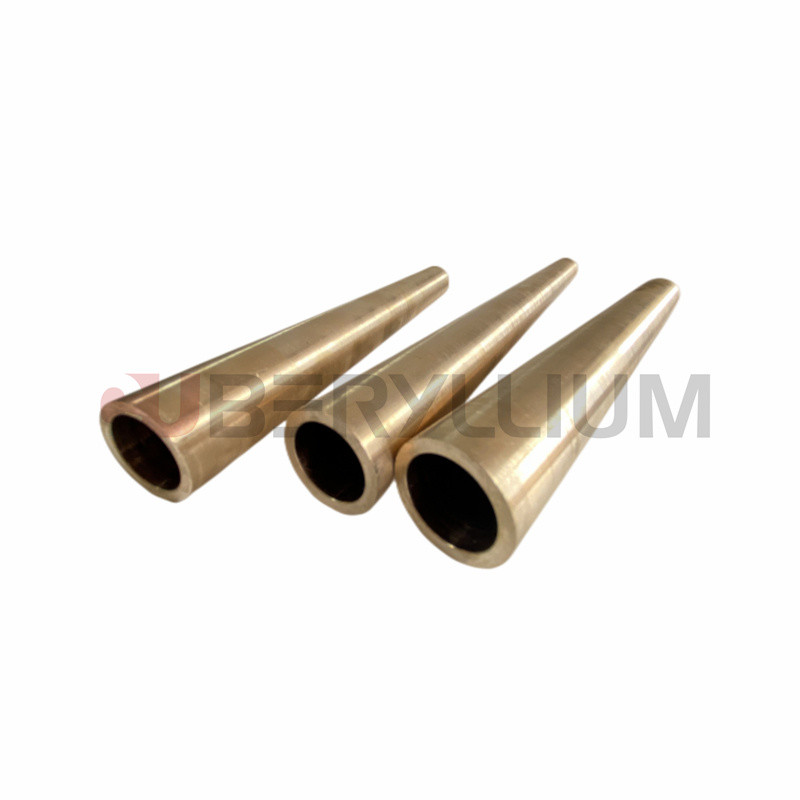

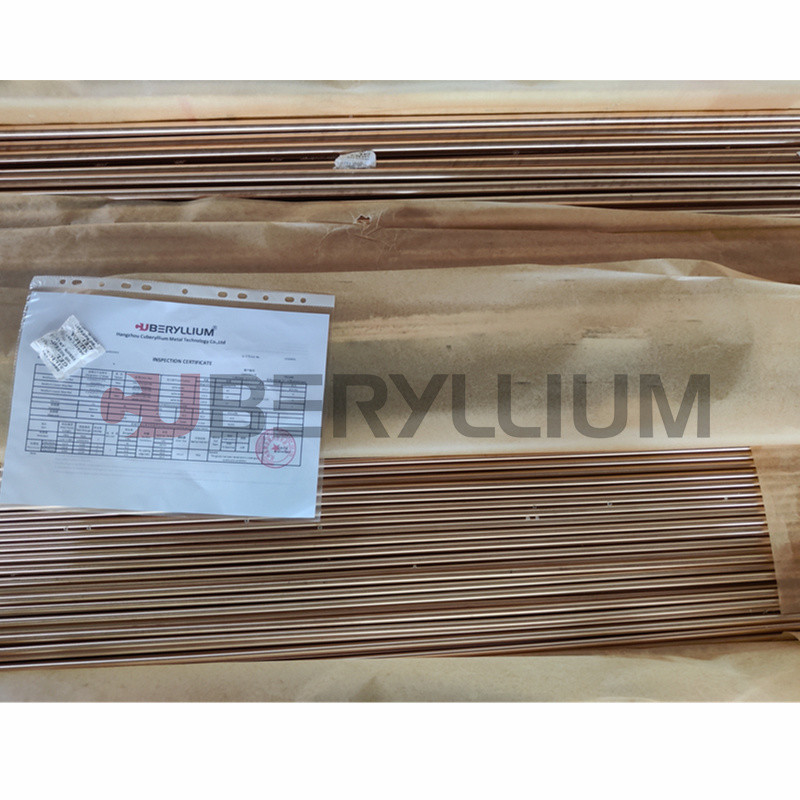

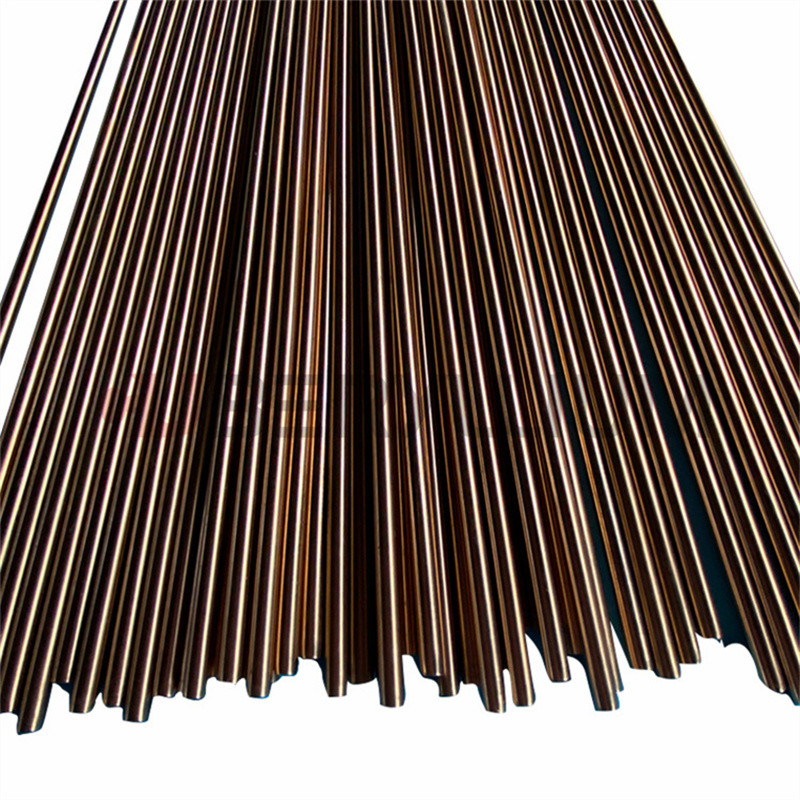

Product Shapes and Photo of RWMA Class 4 Beryllium Copper Alloys:

Material Grade Strip Rod Plate Wire Tube Disc
RWMA Class 4, C17200



Tempers Rwma Class 4 Beryllium Copper Alloys Astm Standard Bright Polished 0Tempers Rwma Class 4 Beryllium Copper Alloys Astm Standard Bright Polished 1



Age Hardenable Tempers
This term means the material can be strengthened by simple heat treatment after stamping or forming. The strength level will be roughly doubled by optimum heat treatment.


ASTM Designation Description Name
TB00 Annealed A
TD01 Quarter Hard 1/4 H
TD02 Half Hard 1/2 H
TD04 Hard H



Heat Treated Tempers
These tempers describe the resulting strength after optimum heat treatment of their age hardenable counter parts.

ASTM Designation Description Name
TF00 Annealed & Heat Treated AT
TH01 Quarter Hard & Heat Treated 1/4 HT
TH02 Half Hard & Heat Treated 1/2 HT
TH04 Hard & Heat Treated HT
