C17200 BrB2 Alloy 25 Beryllium Copper Billet For Wire Rod Production

  • C17200 BrB2 Alloy 25 Beryllium Copper Billet For Wire Rod Production
  • C17200 BrB2 Alloy 25 Beryllium Copper Billet For Wire Rod Production
Place of Origin China
Brand Name CUBERYLLIUM®
Certification ISO,SGS
Model Number CuBe2 C17200 BrB2 Alloy 25
Minimum Order Quantity 50
Price 30USD
Packaging Details Pack in coil+waterproofing winding film+Drier+Wooden Case
Delivery Time 10~15days
Payment Terms L/C, T/T, Western Union
Supply Ability 200T/Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name Beryllium Copper Billet CUBERYLLIUM® Grade CUBERYLLIUM® 172
Safe Handling No Special Health Risk. Machining Property Good
Flatness Good State A(TB00)
Dia. 100~200mm Length 500~600mm
Tensile Strength <590Mpa Production Rod, Wire
High Light

Alloy 25 Beryllium Copper Billet

,

Rod Production C17200 Beryllium Copper

,

Wire Production C17200 Beryllium Copper
Leave a Message
Product Description

CuBe2 C17200 BrB2 Alloy 25 Beryllium Copper Billet For Wire Rod Production

Product Normal Description:

Product Name: Beryllium copper Billet

Grade: CuBe2 C17200 BrB2 Alloy 25

Dia.: 100~200mm

Length:  500~600mm

State: A(TB00)

Product Brand: CUBERYLLIUM®



Introduction of CuBe2 C17200 BrB2 Alloy 25 Beryllium Copper Billet:

We could provide C17200, also called CuBe2, BrB2, Alloy 25, beryllium copper billet.

With diameter 100~200mm, and the length 500~600mm.

The beryllium copper billet could be used for the production of rods and wires.

We also could provide C17300, C17500, C17510 beryllium copper billet.

If you have any requirement on the beryllium copper alloys, plz feel free to contact with us.



CuBe2 C17200 BrB2 Alloy 25 Beryllium Copper Alloy Chemical Composition:

Grade Be Co+Ni Co+Ni+Fe Cu
C17200 1.80-2.00% 0.20% Min 0.60% Max Balance



Note: Copper plus additions equal 99.5% Minimum.



Typical Physical Properties of CuBe2 C17200 BrB2 Alloy 25 Beryllium Copper Alloy:



Grade Density (g/cm3) Density before age hardening (g/cm3) Elastic Modulus (kg/mm2 (103)) Thermal Expansion Coefficient (20 °C to 200 °C m/m/°C) Thermal Conductivity (cal/(cm-s-°C)) Melting Range (°C)
C17200 8.36 8.25 13.40 17 x 10-6 0.25 870-980



Typical Application for CuBe2 C17200 BrB2 Alloy 25 Beryllium Copper Alloy:
Electrical Industry: Electrical Switch and Relay Blades, Fuse Clips, Switch Parts, Relay parts, Connectors, Spring Connectors, Contact Bridges, Belleville Washers, Navigational Instruments, Clips
Fasteners: Washers, Fasteners, Lock Washers, Retaining Rings, Roll Pins, Screws, Bolts
Industrial: Pumps, Springs, Electrochemical, Shafts, Non-Sparking Safety Tools, Flexible Metal Hose, Housings for Instruments, Bearings, Bushings, Valve Seats, Valve Stems, Diaphragms, Springs, Welding Equipment, Rolling Mill Parts, Spline Shafts, Pump Parts, Valves, Bourdon Tubes, Wear Plates on Heavy Equipment, Bellows.

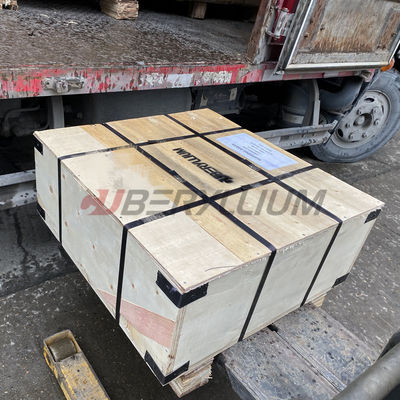

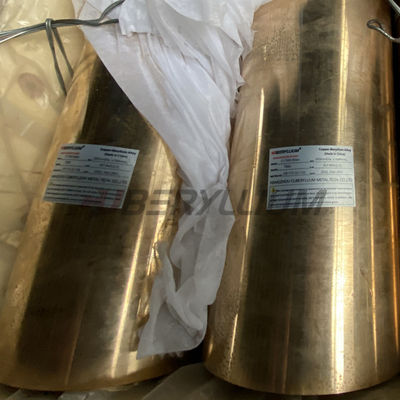

Product Photos:

C17200 BrB2 Alloy 25 Beryllium Copper Billet For Wire Rod Production 0



International Specification of CuBe2 C17200 BrB2 Alloy 25 Beryllium Copper Billet:

Rods/Bars/Tubes:  ASTM B196,251,463; SAE J461,463; AMS 4533,4534,4535; AMS 4650,4651; RWMA Class 4

European Standards: CuBe2, Alloy 25, QBe2, BrB2, DIN.2.1247, CW101C to EN



Note:

ASTM: American Society for Testing and Materials

SAE: Society of Automotive Engineers

AMS: Aerospace Materials Specification(Published by SEA)

RWMA: Resistance Welder Manufacturers' Association

Note: Unless otherwise specified, material will be produced by ASTM.



FAQ:

Q1: Could you produce Beryllium Copper strip by Mill Hardened process.
A1: Yes, we could produce AM(TM00), 1/2HM(TM01).HM(TM04) XHM(TM06) XHMS(TM08).,we are the only factory could do harden strip in China.

Q2: What’s the advantages the Beryllium Copper of CUBERYLLIUM®.
A2: 1: The Biggest Coil weight could be reach 1200kg/Coil

2: We are the only one who melting by Vacuum semi-Continuous Furnace.

3: Surface further polishing for top clients.

Q3: Why you melting by Vacuum semi-Continuous Furnace.
A3: Could be get the Cast ingot without gas,smaller segregation, Grain Refinement

Q4: What's the payment terms?
A4: We accept T/T, L/C, Paypal etc. It can be negotiated when the amount is different.
