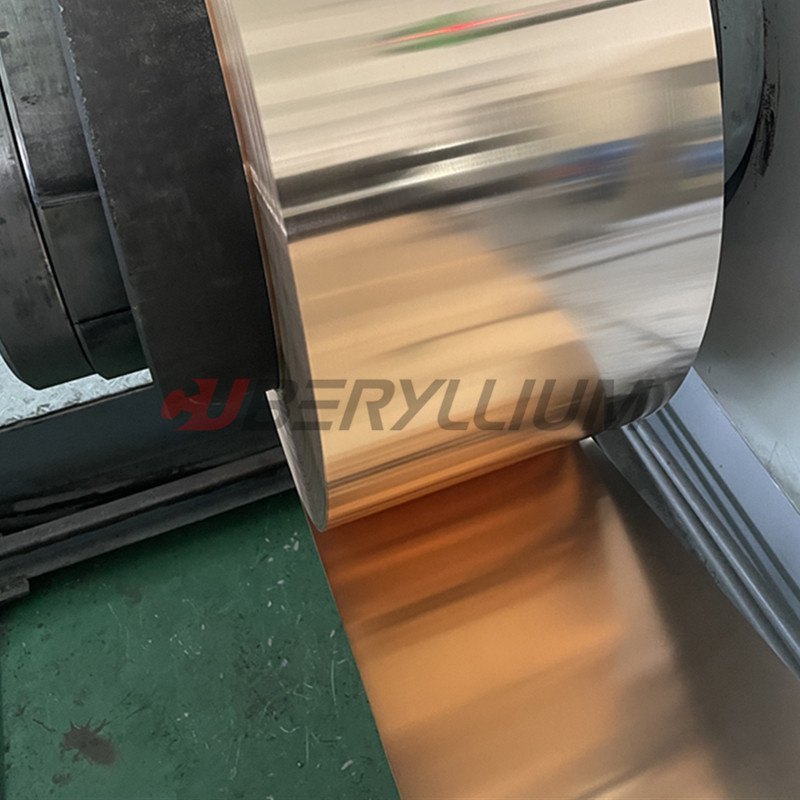

Copper Beryllium Strip UNS C17200 CuBe2 0.28mm X 100mm State XHM

Place of Origin China
Certification ISO,SGS
Model Number UNS. C17200 (CuBe2)
Minimum Order Quantity 50
Price 30USD
Packaging Details Coil+plywood case
Delivery Time 10~15days
Payment Terms L/C, T/T, Western Union
Supply Ability 200T/Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571


If you have any concern, we provide 24-hour online help.

Product Details
Name Copper Beryllium Strip UNS. C17200 (CuBe2) Max Coil Wt. 2T
Thinnest Thick. 0.28mm Width 100mm
Standard ASTM B194, SAE J463, J461 Hardness 300-360HV
Safe Handling No Special Health Risk. Machining Property Good
Surface Bright/Polished Flatness Good
State XHM
High Light

Strip Beryllium Copper Uns C17200


Copper Beryllium UNS C17200


100mm Width Copper Beryllium Strip

Leave a Message
Product Description

Copper Beryllium Strip UNS. C17200 (CuBe2) 0.28mm x 100mm State XHM
Product Normal Description:
Product Name: Copper beryllium strip
Grade: UNS. C17200 (CuBe2)
Standard: ASTM B194, SAE J463, J461
Product Specification: 0.28mmx100mm
State: XHM
Product Brand: CUBERYLLIUM®
Chemical Composition of Copper Beryllium Alloys UNS. C17200 (CuBe2):
Beryllium(Be): 1.80-2.00%
Cobalt(Co) + Nickel(Ni): 0.20% Min
Cobalt(Co) + Nickel(Ni) + Iron(Fe): 0.60% Max
Lead: 0.02% Max
Copper(Cu): Balance
Note: Copper plus additions equal 99.5% Minimum.
The principle characteristics of alloy 172 are an excellent response to precipitation-hardening treatments, excellent thermal conductivity, and resistance to stress relaxation. The high strength beryllium coppers C172 can be purchased in the solution annealed or cold worked tempers and can be easily formed or machined. A low-temperature heat treatment (600 degrees for 2-3 hours) produces maximum strength and hardness. C17200, also commonly known as Alloy 25, CuBe2, is available in round rod, bar, tube, strip, and wire.

CuBe2(C17200) Strip Application:Electrical
Connectors, contacts
Bushings/bearings for aerospace industry
Oilfield drilling collars and instrument housing
Rugged resistance welding gun structural components
Plastic injection molding and metal diecastings

Typical Physical Properties of Copper Beryllium Alloys UNS. C17200 (CuBe2):

Density (g/cm3):8.36
Density before age hardening (g/cm3): 8.25
Elastic Modulus (kg/mm2 (103)):13.4
Thermal Expansion Coefficient (20 °C to 200 °C m/m/°C):17 x 10-6
Thermal Conductivity (cal/(cm-s-°C)): 0.25
Melting Range (°C): 870-980

Fabrication Properties of Copper Beryllium Alloy UNS. C17200 (CuBe2):

Oxyacetylene WeldingNot Recommended
Gas Shielded Arc WeldingGood
Coated Metal Arc WeldingGood
Spot WeldGood
Seam WeldFair
Butt WeldFair
Capacity for Being Cold FormedGood

Product Package of Copper Beryllium Alloys:

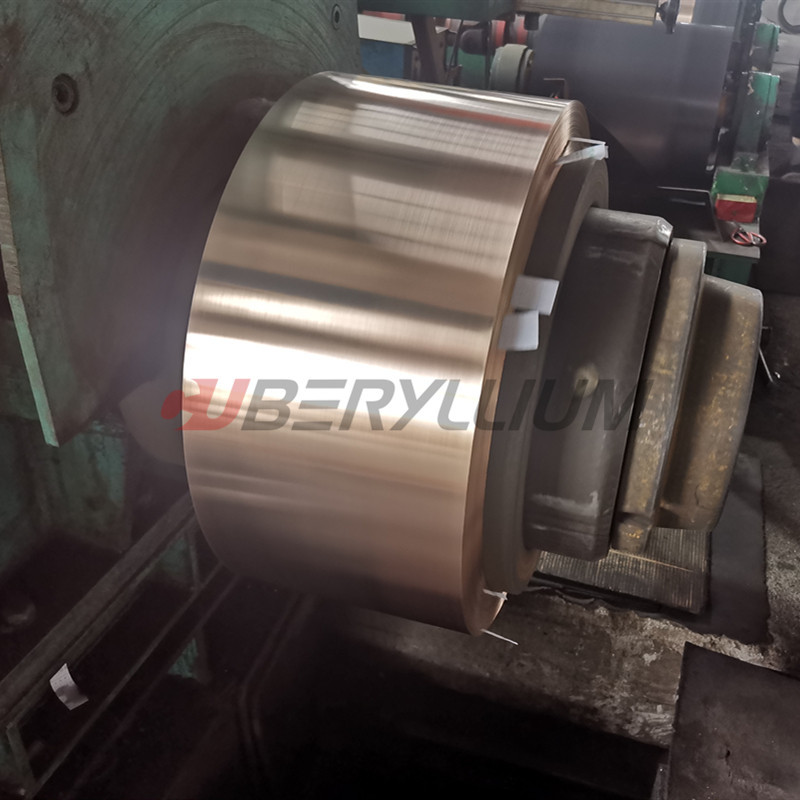

Usually we pack the beryllium copper strips on coil, outside is plywood case.
 Copper Beryllium Strip UNS C17200 CuBe2 0.28mm X 100mm State XHM 0
Key Technology of Beryllium Copper(Heat treatment)
Age Hardening
Age hardening significantly enhances the material’s strength. This reaction is generally carried out at temperatures between 260°C and 540°C depending on alloy and desired characteristics. This cycle causes the dissolved beryllium to precipitate as a beryllium rich (gamma) phase in the matrix and at the grain boundaries. It is the formation of this precipitate which causes the large increase in material strength. The level of mechanical properties attained is determined by the temperature and time at temperature. It should be recognized that beryllium copper has no room temperature aging characteristics.
