Berylco 25 Material Beryllium Copper Plates 12x41x1000mm Formats

  • Berylco 25 Material Beryllium Copper Plates 12x41x1000mm Formats
  • Berylco 25 Material Beryllium Copper Plates 12x41x1000mm Formats
Place of Origin China
Brand Name CUBERYLLIUM
Certification ISO,SGS
Model Number BERYLCO 25
Minimum Order Quantity 50
Price USD 25～50
Packaging Details in coil packed into wooden case
Delivery Time 10~15 work days
Payment Terms L/C, T/T, Western Union
Supply Ability 200T/Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name Beryllium Copper Plates Grade BERYLCO 25
Shape Sheet/Plate Production Process Hot Rolling Plates
Typical Application Housings For Instruments, Bearings, Bushings Size 12x41x1000mm
Thermal Expansion Coefficient 17.5×10-6m/m℃ Thermal Conductivity 105W/m℃
Flatness Good Safe Handling No Special Health Risk.
Density 8.83g/cm3 Melting Point(solidus) 870℃
High Light

Beryllium Copper Plates

,

Berylco 25 Beryllium Copper Plates

,

12 x 41 x 1000 mm Beryllium Copper Plates
Leave a Message
Product Description

BERYLCO 25 Material Beryllium Copper Plates 12x41x1000mm Formats

Product Description
Material Grade BERYLCO 25
Other Material Names C17200, BeCu2, CW101C, C172, RWMA Class 4
End Product Form Plate, sheet
Size 12x41x1000mm
State TB00, TF00
MOQ 30kgs
Delivery Time Normally within 15 working days
Ship Port Shanghai, Ningbo
Chemical Compositions of BERYLCO 25 Beryllium Copper Alloy
RWMA Class UNS Number Description Cu¹ Fe Co Ni Si Be Al
4 C17200 Beryllium Copper Balance - Ni + Co = 0.20% min. 0.20% max. 1.8-2.0% 0.20% max.

Ni + Co + Fe = 0.6% max.

Cu¹:Copper plus additions equal 99.5% Min.



Physical Properties of BERYLCO 25 Beryllium Copper Alloy:

Density (g/cm3): 8.36
Elastic Modulus (GPa): 131
Thermal Expansion Coefficient (20 °C to 200 °C m/m/°C): 17.5×10-6
Thermal Conductivity (cal/(cm-s-°C)): 0.25
Melting Range (°C): 870-980 °C



About Cuberyllium:
Cuberyllium, has a team of highly qualified, motivated and experienced staff in production and sales to meet customers ever growing quality and service expectation.

We offer the best quality beryllium copper alloys which are used widely and are demanded all over the world.We are professional supplier in the industry engaged in manufacturing and exporting wide assortment of beryllium copper alloys in the market. These are available in different grades and dimensions and can be customized as per the clients' specification and requirement. We closely coordinate with our customers and design as per their specification.

The product ranges fall into two categories: high strength beryllium copper alloys 172(UNS. C17200),173(UNS. C17300),170(UNS. C17000), and copper alloys selected for high conductivity 751(UNS. 17510),750(UNS. 17500),741(UNS. 17410).

We also Supply Master alloy : CuBeryllium-200, CuBeryllium-275, CuBeryllium-350 and Cuberyllium-400 to global factory.



Physical Properties of BERYLCO 25 Beryllium Copper Alloy:

      Yield Strength   108 cycles Hardness
ksi
Temper Heat Treatment Tensile Strength ksi 0.2% offset ksi Elongation % Fatigue Strength Rockwell B or C Electrical Conductivity % IACS
A Dead Soft (TB00) -- 60-76 28-36 35-65 30-35 B45-78 15-19
A Planished (TB00) -- 60-78 30-55 35-60 30-35 B45-78 15-19
1/4 H (TD01) -- 75-88 60-80 20-45 31-36 B68-90 15-19
1/2 H(TD02) -- 85-100 75-95 12-30 32-38 B88-96 15-19
H (TD04) -- 100-120 90-115 2-18 35-39 B96-102 15-19
AT (TF00) 3 hr. at 600 °F 165-195 140-175 3-15 40-45 C36-42 22-28

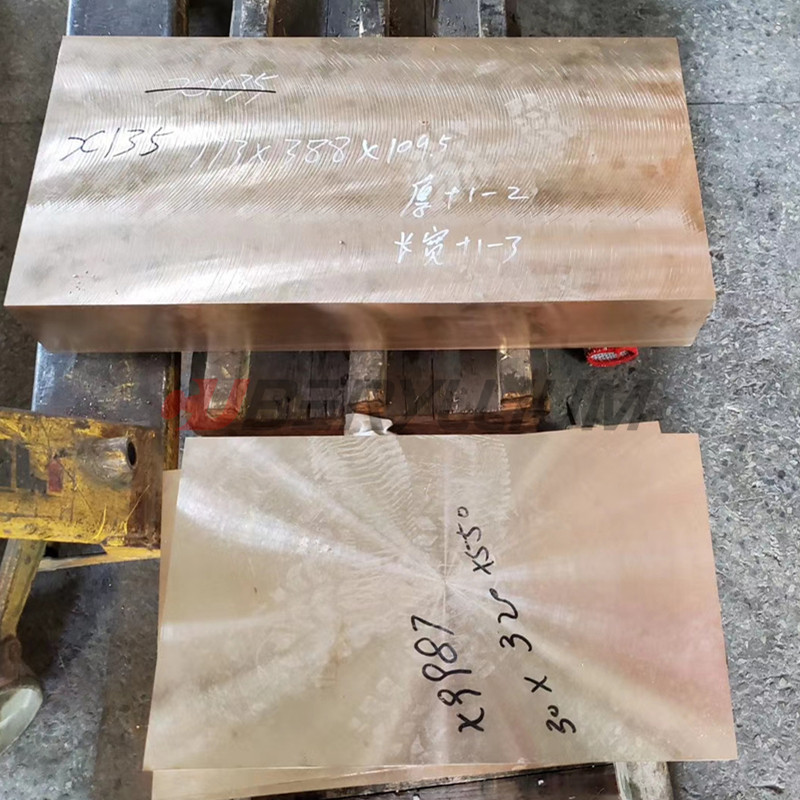

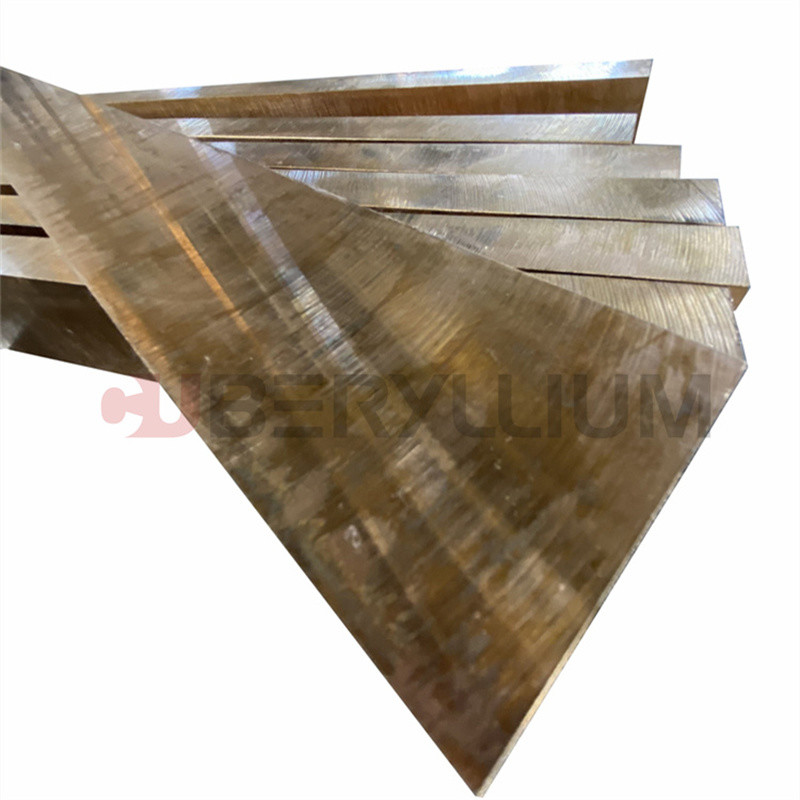

Product Photos:

Berylco 25 Material Beryllium Copper Plates 12x41x1000mm Formats 0



FAQ:

Q1:What’s the advantages the Beryllium Copper of CUBERYLLIUM®?

A1: 1: The Biggest Coil weight could be reach 1200kg/Coil

2:We are the only one who melting by Vacuum semi-Continuous Furnace.

3:Surface further polishing for top clients.

Q2: Why you melting by Vacuum semi-Continuous Furnace?
A2:Could be get the Cast ingot without gas,smaller segregation, Grain Refinement.

Q3:Could you produce Beryllium Copper strip by Mill Hardened process?
A3:Yes, we could produce AM(TM00), 1/2HM(TM01).HM(TM04) XHM(TM06) XHMS(TM08).,we are the only factory could do harden strip in China.

Q4: What's the payment terms?
A4: We accept T/T, L/C, Paypal etc. It can be negotiated when the amount is different.
