C17200 CuBe2 CW101C C172 Beryllium Copper Big Round Ingot

Place of Origin China
Certification ISO,SGS
Model Number C17200 CuBe2 CW101C C172
Minimum Order Quantity 50
Price 30USD
Packaging Details Pack in coil+waterproofing winding film+Drier+Wooden Case
Delivery Time 10~15days
Payment Terms L/C, T/T, Western Union
Supply Ability 200T/Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Name Beryllium Copper Ingot CUBERYLLIUM® Grade CUBERYLLIUM® 172
Safe Handling No Special Health Risk. Machining Property Good
Flatness Good State A(TB00)
Dia. 100~200mm Length 500~600mm
Tensile Strength <590Mpa
High Light

Big Ingot C172 Beryllium Copper


Round Ingot C172 Beryllium Copper


Round Ingot C17200 Beryllium Copper

Leave a Message
Product Description

C17200 CuBe2 CW101C C172 Beryllium copper ingot Big Round Ingot For Sale

Product Normal Description:

Product Details of C17200 CuBe2 CW101C C172 Beryllium copper ingot
Usage/Application Industrial, Electrical Industry
Alloy With Alloy
Pack Type Round Rod
Grade C17200 CuBe2 CW101C C172
Storage Temperature 0-25 degree C
Diameter 100~200mm
Cu Content Rem.
Customisation Customised


Introduction of C17200 CuBe2 CW101C C172 Beryllium copper alloy:

Beryllium Copper is an alloy that is machinable, weldable and ductile. Alloy 25 copper rod is highly resistant to abrasive wear, plastic decomposition products, galling and to non-oxidizing acids like carbonic acid and hydrochloric acid. Beryllium Copper C17200 bar is the strongest and the most widely used of all the Beryllium Copper materials. Beryllium Copper C172 round bars consists of 1.8 - 2% Beryllium. In Europe, Beryllium Copper C172 Bar is known as CuBe2 Bar. C17200 beryllium copper round bar is used in many application areas such as aerospace bushings, drilling tool components in the oil and gas industry, cavities and cores in injection mold tooling and bushings and plates in heavy equipment wear.


We have marked a distinct and dynamic position in the market by supplying a high quality of beryllium copper ingots. We can offer the ingots in various specifications keeping in sync with our customers' requirements. This ingot is checked on various quality parameters for dispatching a flawless range. Our given range of ingot can be used in a wide range of temperatures and has excellent properties at elevated temperatures.

Features of Beryllium Copper Ingot:
1, With high material strength
2, With high fatigue strength
3, Superior abrasion resistance


C17200 CuBe2 CW101C C172 Beryllium copper ingot Chemical Composition:

Cu/ Copper Be/ Beryllium Ni + Co/ Nickel + Cobalt Ni + Co +Fe/ Nickel +Cobalt + Iron
% rem % 1.8-2.0 0.2% Min. 0.6% Max.

Note: Copper plus additions equal 99.5% Minimum.


Physical properties of C17200 CuBe2 CW101C C172 Beryllium copper alloy:


Physical properties
Thermal Conductivity BTU/(ft hr F) 60
Specific Heat BTU/lb/ F 0.1
Thermal Expansion in/in/F 9.7 x 10 -6
Density lb/cu in 0.298
Hot Forming 1350-1500 Air or Water Cooled
Heat Treatment Anneal 1425-1475 in apporx.HB 150

Hardened 600
to approx. HB 370
1/2 hr. & Water Quench

3 hr. Air Cool
Class IV beryllium copper is pre-tempered to the correct strength. Hot forming and further heat treatment are not needed or recommended. Direct machining to desired confituration is preferred.

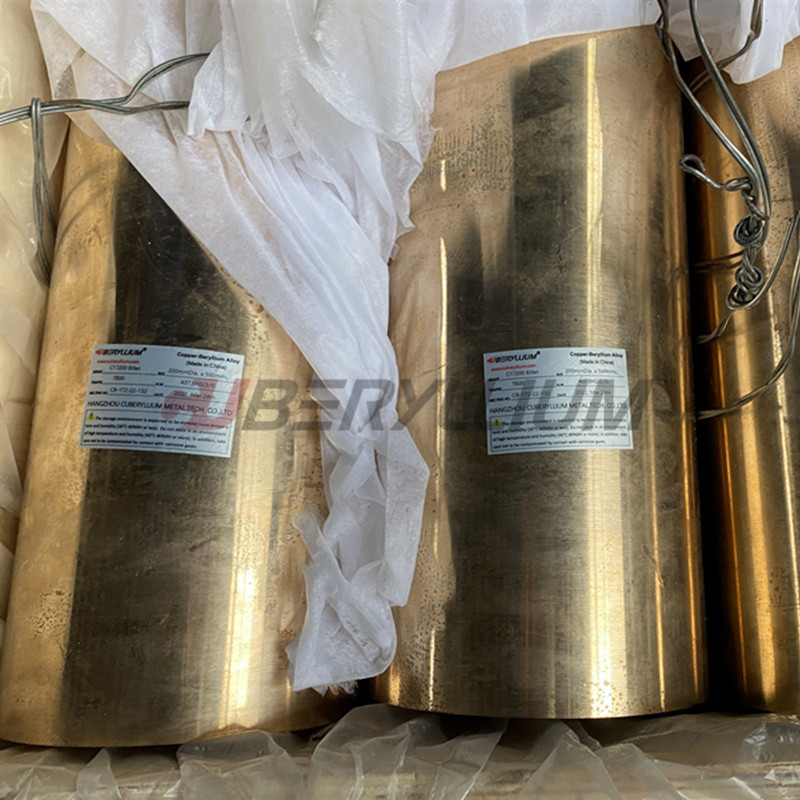

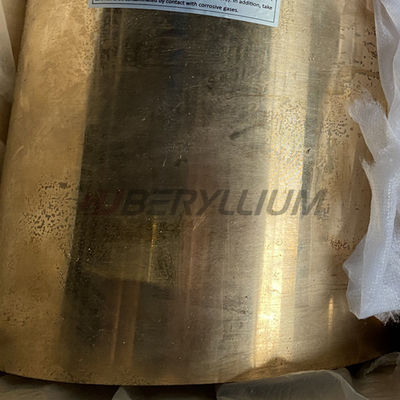

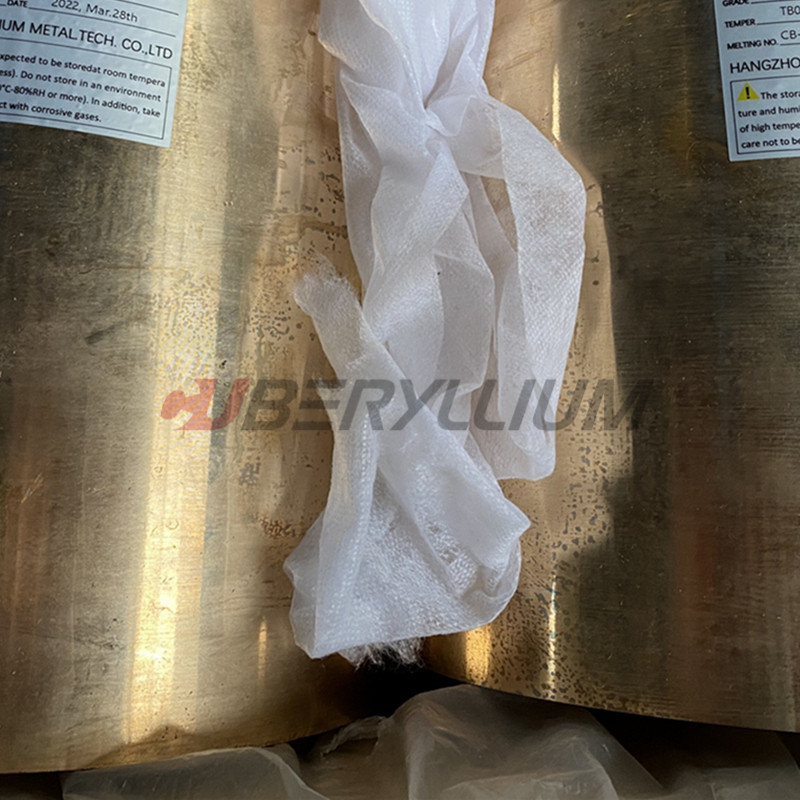

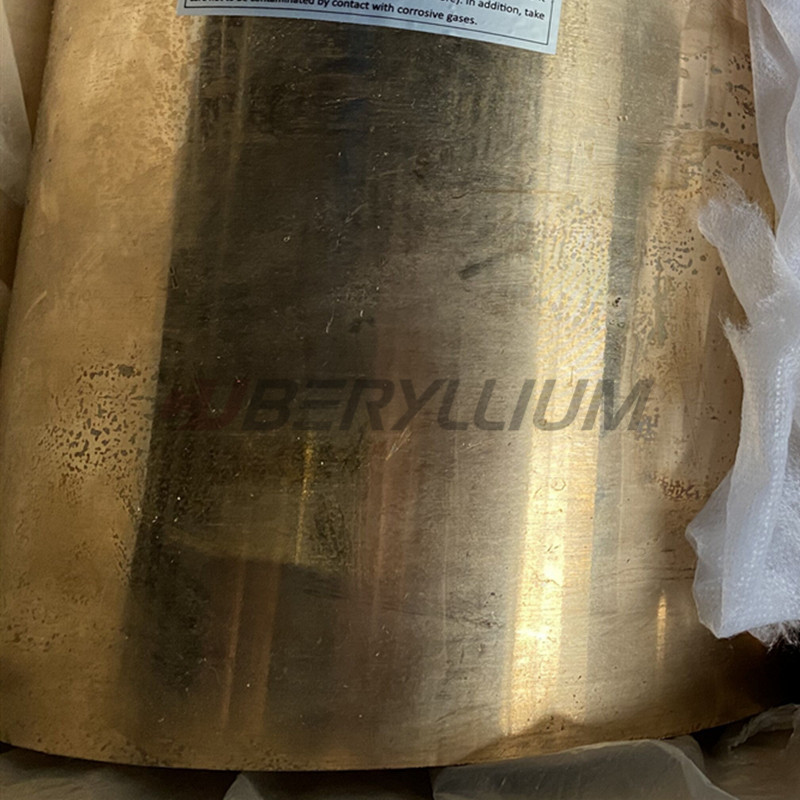

Product Photos:

C17200 CuBe2 CW101C C172 Beryllium Copper Big Round Ingot 0C17200 CuBe2 CW101C C172 Beryllium Copper Big Round Ingot 1


More range of copper and copper alloys, in full series of shapes: Sheet, Bar, Tubes, Strips and Wire list as below:

C17000/170 (CuBe1.7, 2.1245, Alloy165)
C17200/172 (CuBe2, 2.1247, Alloy25)
C17300/173 (CuBe2Pb, 2.1248, AlloyM25)
C17500/175 (CuCo2Be, 2.1285, Alloy10)
C17510/1751 (CuNi2Be, 2.0850, Alloy3)
