M25 C17300 Beryllium Copper Rod By ASTM B 196/B

Place of Origin China
Certification ISO ROHS
Model Number Alloy M25 Be-Cu C1730
Minimum Order Quantity 30kg
Price USD 30~50/KG
Packaging Details Pack in coil+waterproofing winding film+Drier+Wooden Case
Delivery Time 10~15 Working days
Payment Terms L/C, T/T
Supply Ability 50T/Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Product Name Alloy M25 Be-Cu C17300H (TD04) Copper Beryllium Rods CUBERYLLIUM® Grade CUBERYLLIUM®-173
Standard ASTM B196 Surface Bright, Polish
State Hard/TD04 Typical Application Electrical And Industrial
Shape For Available Rod&Bar Brand CUBERYLLIUM®
Density 8.36g/cm3 Length Clients' Requirement
Diameter Customized
High Light

ASTM B 196/B Beryllium Rods


M25 C17300 Beryllium Copper Rod


Alloy M25 Copper Beryllium Rods

Leave a Message
Product Description

Alloy M25 Be-Cu C17300H (TD04) Copper Beryllium Rods by ASTM B 196/B

Product Details of Copper Beryllium Rods
Tipical Application Used for Electrical Industry
Alloy With Alloy
Pack Type In Woodencase
Grade Alloy M25, C17300
Storage Temperature 0-25 degree C
Thickness 1mm, 2mm, 3mm and others
Cu Content Rem.
Customisation Customised


About Beryllium Copper Alloys:

Beryllium Copper Pipes is an age-hardening alloy which attains the highest strength of any copper base alloy. It may be age hardened after forming into springs, intricate forms or complex shapes. It has superb spring properties, corrosion resistance and stability as well as good conductivity and low creep. Beryllium Copper Pipes has excellent metalworking, forming and machining qualities. It has many specialized applications in tools for hazardous environments, musical instruments, precision measurement devices, bullets, and aerospace. Beryllium-containing alloys create an inhalation hazard during manufacturing due to their toxic properties


Alloy M25 Be-Cu C17300H (TD04) Copper Beryllium Alloy Chemical Composition:
Be Co+Ni Co+Ni+Fe Pb Others Cu
1.80-2.00% 0.20 Min. 0.60 Max. 0.2-0.6Max. 0.05 Max. balance


Typical Physical Properties of Alloy M25 Be-Cu C17300H (TD04) Copper Beryllium Alloy:

Density: 8.36g/cm3

Density before age hardening: 8.25g/cm3

Melting Range: 870~980℃

Elastic Modulus((kg/mm2 (103)): 13.4

Thermal Expansion Coefficient(20 °C to 200 °C m/m/°C): 17 x 10 -6

Thermal Conductivity(cal/(cm-s-°C)): 0.25


The Forms for Beryllium Copper Alloys that Cuberyllium Could Provide:

Available forms are beryllium copper welding rod, beryllium copper wire, beryllium copper bar, beryllium copper bushings, beryllium copper coil, beryllium copper drill bits, beryllium copper electrodes, beryllium copper flat bar, beryllium copper fasteners, beryllium copper gasket, beryllium copper ingot, beryllium copper nuts, beryllium copper round bar, beryllium copper sheet.

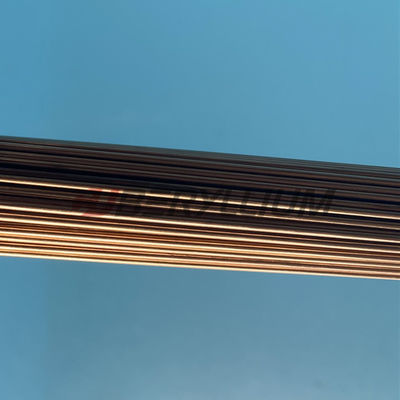

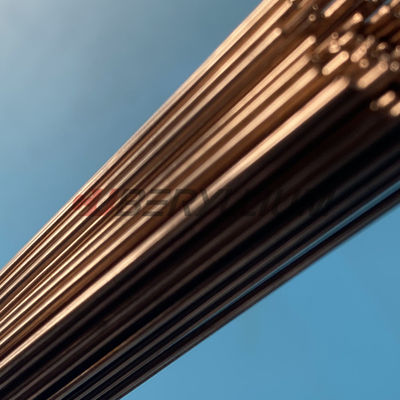

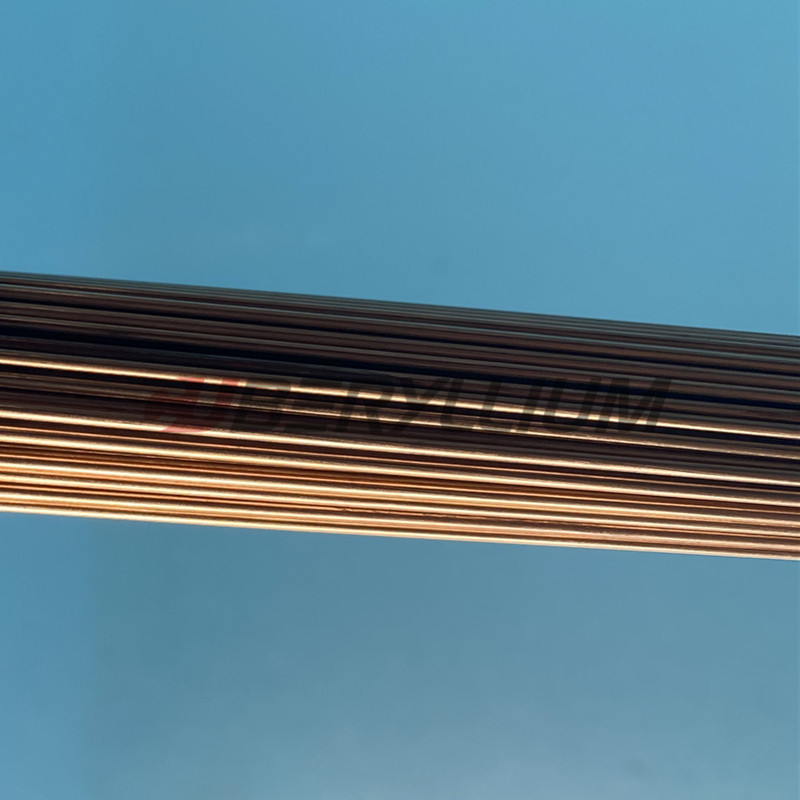

Beryllium Copper Bar Photo:

M25 C17300 Beryllium Copper Rod By ASTM B 196/B 0




  • How can I identify high-quality copper alloy products?

By the physical shape, the proper analysis, and the correct mechanical values.


  • Is there a possibility to order customized copper alloys?

Different copper alloys are tested for a very long time and always applicable to individual demands.
We have the experience to help customers producing customized products as per the customers' drawings.


  • What is the delivery time of copper alloys from Cuberyllium?

Usually with 7-10 working days, it will depend on the final qty requested by customers.


  • What are the benefits of using Copper Alloys?

Copper Alloys offer many manufacturing benefits including strength, conductivity, corrosion resistance, machinability and ductility. With superior electrical and thermal conductivity, and an attractive appearance, Copper Alloys are suitable for a wide range of applications.


  • What are the disadvantages of using Copper Alloys?

Copper Alloys can be more susceptible to corrosion, particularly oxidation. which can impact it suitability for some applications.
