Rectangle C17300 Beryllium Copper Rod Temper TD04 For Navigational Instruments
| Place of Origin | China |
|---|---|
| Brand Name | CUBERYLLIUM |
| Certification | ISO ROHS |
| Model Number | C17300 |
| Minimum Order Quantity | 30kg |
| Price | USD 30～50/KG |
| Packaging Details | Packed with waterproof paper or woven bag, then put it into wooden box or pallets. |
| Delivery Time | 10~15days |
| Payment Terms | L/C, T/T |
| Supply Ability | 50T/Month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | C17300 Rectangle Beryllium Copper Rod With Temper TD04 For Navigational Instruments | Grade | C17300 |
|---|---|---|---|
| Standard | ASTM B194,B196 | Diameter | 1mm~6mm |
| Typical Application | Electrical Switch And Relay Blades | Safe Handling | No Special Health Risk. |
| Machining Property | Good | Temper | TD04,TH04 |
| Modulus Of Elasticity Tension | 131Gpa | Shape For Available | Rod, Bars, Round Bars, Rectangle Bars |
| Surface | Bright,Polished,Mill | Length | 2000mm |
| High Light | Rectangle C17300 Beryllium Copper Rod,Navigational Instruments C17300 Beryllium Copper Rod,TD04 Beryllium Copper Rod |
||
Product Description
C17300 Rectangle Beryllium Copper Rod With Temper TD04 For Navigational Instruments
Chemical Composition:
Be: 1.85-2.10%
Co+Ni: 0.20% Min.
Co+Ni+Fe: 0.60% Max.
Lead: 0.20-0.60%
Cu: Balance
Note: Copper plus additions equal 99.5% minimum.
Product Description:
| Material | Beryllium Copper |
| Size | Diameter: 6-80mm Length:500-5000mm |
| Technics | Drawing |
| Application | Industry, fireproof cable, electric vacuum industry |
| Sample | Free |
| Certification | ISO,ROHS |
| capacity | 50 ton/tons per month |
Typical Applications:
| 1. Copper bar can be made as all kindsof deeping drawing and bending str-ess components,Such as pin, rivetswashers, nuts, ducts, air gauge, screenmesh, radiator parts, etc. |
| 2. Parts with medium strength and high conductivity, such as fuse links, springs, connectors, resistance spot welding heads, seam welding rollers, die casting machines, plastic molding molds, etc |
| 3. Electrical Industry: Switch Parts, Relay parts, Electrical Connectors, Fuse Clips, Contact Bridges, Electrical Motor Components, Navigational Instruments, Electrical Switch and Relay Blades. |
Advantages:
1. The surface of the product is smooth and flat without rust, scratch, delamination, pinhole and bubble.
2. We have professional production equipment and use vacuum Semi- Continuous Furnace for melting, which can obtain the Cast ingot without gas,smaller segregation, Grain Refinement.
3. Various Types of Specifications. Multiple specifications optional, support customized.
Detailed Specifications:
| Bar/Rod | Diameter:1.0-200mm Length:1000-6000mm |
| Sheet/Plate | Thickness:0.2-100mm Width:100-1000mm Length:1000-2000mm |
| Strip/Tape | Thickness:0.01-2.0mm Width:4-1000mm |
| Pipe/Tube | Thickness:0.1-100mm OD:1-600mm |
Lead Time:
| Quantity(kilograms) | 1 - 50 | 51 - 100 | >100 |
| Est. Time(days) | 7 | 15 | To be negotiated |

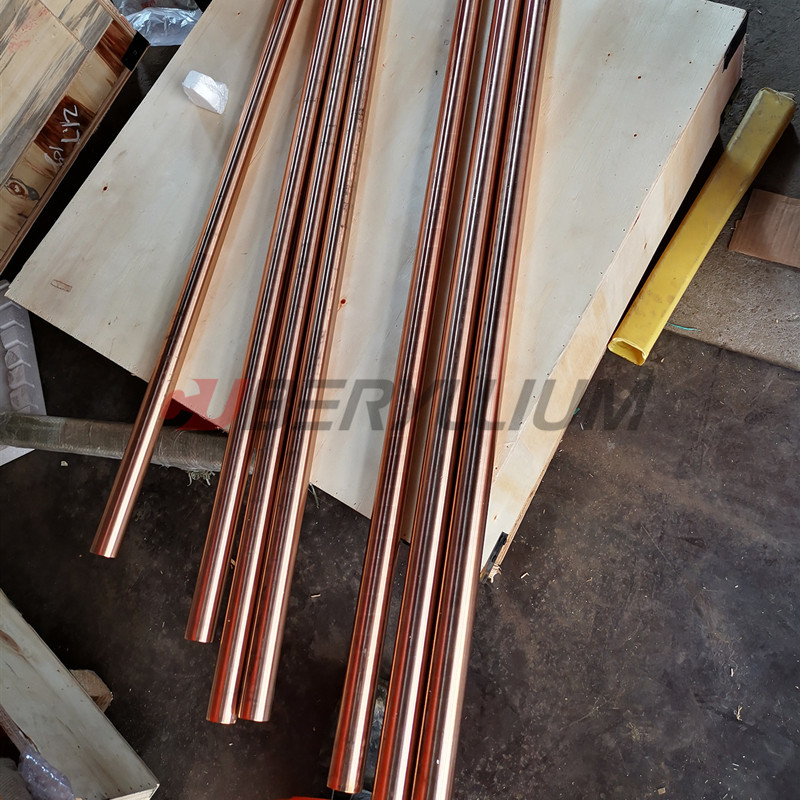

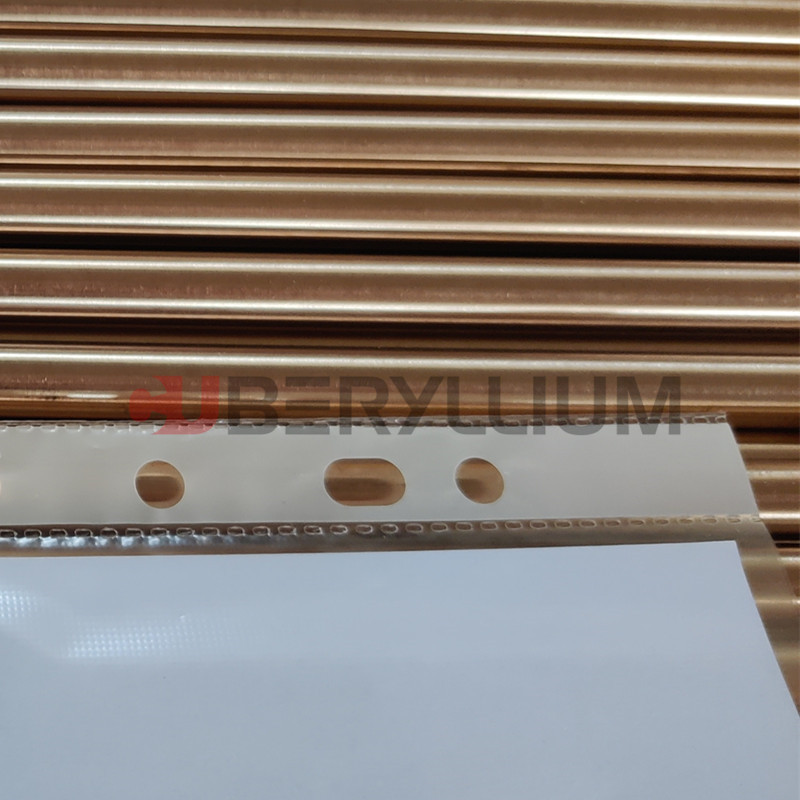

Product Photos:
Alloy M25 can be supplied in the form of bar or wire based on different design needs. Also there are different supply states for customers to choose according to different needs. C17300 also has good welding performance, wear resistance and adhesion resistance. It can be forged into parts of various shapes. Beryllium copper c17300 has better strength and wear resistance than chromium zirconium copper alloy.
FAQ:
Q1:What’s the advantages the Beryllium Copper of CUBERYLLIUM®?
A1: 1: The Biggest Coil weight could be reach 1200kg/Coil
2:We are the only one who melting by Vacuum semi-Continuous Furnace.
3:Surface further polishing for top clients.
Q2: Why you melting by Vacuum semi-Continuous Furnace?
A2:Could be get the Cast ingot without gas,smaller segregation, Grain Refinement.
Q3:Could you produce Beryllium Copper strip by Mill Hardened process?
A3:Yes, we could produce AM(TM00), 1/2HM(TM01).HM(TM04) XHM(TM06) XHMS(TM08).,we are the only factory could do harden strip in China.
Q4: What's the payment terms?
A4: We accept T/T, L/C, Paypal etc. It can be negotiated when the amount is different.
