Rod Form C17300 Beryllium Copper 2.1mmx3000mm With Temper TD04
| Place of Origin | China |
|---|---|
| Brand Name | CUBERYLLIUM® |
| Certification | ISO ROHS |
| Model Number | C17300(CuBe2Pb) |
| Minimum Order Quantity | 30kg |
| Price | USD 30～50/KG |
| Packaging Details | Pack in coil+waterproofing winding film+Drier+Wooden Case |
| Delivery Time | 10～15 Working days |
| Payment Terms | L/C, T/T |
| Supply Ability | 50T/Month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | C17300(CuBe2Pb) Beryllium Copper Rod | CUBERYLLIUM® Grade | CUBERYLLIUM®-173 |
|---|---|---|---|
| Standard | ASTM B196 | Surface | Bright, Polish |
| Temper | TD04 | Typical Application | Electrical And Industrial |
| Shape For Available | Rod&Bar | Brand | CUBERYLLIUM® |
| Diameter | 2.1mm | Length | 3000mm |
| Highlight | Temper TD04 C17300 Beryllium Copper Rod,Bright C17300 Beryllium Copper Rod,Rod Form C17300 Beryllium Copper |
||
Product Description
C17300(CuBe2Pb) Beryllium Copper Rod 2.1mmx3000mm With Temper TD04
Product Description:
| Product Name | Beryllium Copper Rod |
| Grade | C17300(CuBe2Pb) |
| End Product Form | Rods/ Bars |
| Standard | ASTM B196 |
| State of product | TD04 |
| Processing | Seamless / Welding |
| Feature | With high strength and high conductivity |
| Specification |
Dia 2.1mm; Length 3000mm or according customers' requirement |
CUBERYLLIUM® maintains an inventory of beryllium copper alloys, including beryllium copper strips, beryllium copper rods/bars, beryllium copper wires and so on.
The normal grades of beryllium copper alloy are C17200 and C17300, with high strength and moderate conductivity. C17200 & C17300 can be purchased in the solution annealed or cold worked tempers and can be easily formed or machined. A low-temperature heat treatment (600 degrees for 2-3 hours ) produces additional maximum strenght and hardness.
Chemical Composition of C17300(CuBe2Pb) Beryllium Copper Alloys:
| CUBERYLLIUM® Brand | UNS-Number | Beryllium | Cobalt + Nickel |
+Cobalt + Nickel + Iron |
Pb | Copper |
| Cuberyllium-C173 | C17300 | 1.80-2.00 | 0.20 min | 0.6 max | 0.2～0.6 | Balance |
Note: Copper plus additions equal 99.5% minimum.
Mechanical and Electrical Properties of C17300(CuBe2Pb) Beryllium Copper Rod:
| Temper(*) | Diameter | Heat Treatment | Tensile Strength ksi |
Elogation Percent (Min) |
Electrical Conductivity Percent IACS |
Hardness Rockwell B or C Scale |
|---|---|---|---|---|---|---|
| A(TB00) | ALL SIZE | / | 400~600 | 30 | 15~19 | B45~85 |
H(TD04) |
5~10 | / | 660~900 | 5 | 15~19 | ＞B88 |
| ＞10~25 | / | 620~860 | 5 | 15~19 | ||
| ＞25 | / | 590~830 | 5 | 15~19 | ||
| AT(TF00) | ALL SIZE | 3 hr 320°C | 1100~1380 | 2 | 22~28 | C35~42 |
| HT(TH04) | 5~10 | 2 hr 320°C | 1200~1550 | 1 | 22~28 | C37~45 |
| ＞10~25 | 1150~1520 | 1 | 22~28 | C36~44 | ||
| ＞25 | 1120~1480 | 1 | 22~28 | C35~44 |

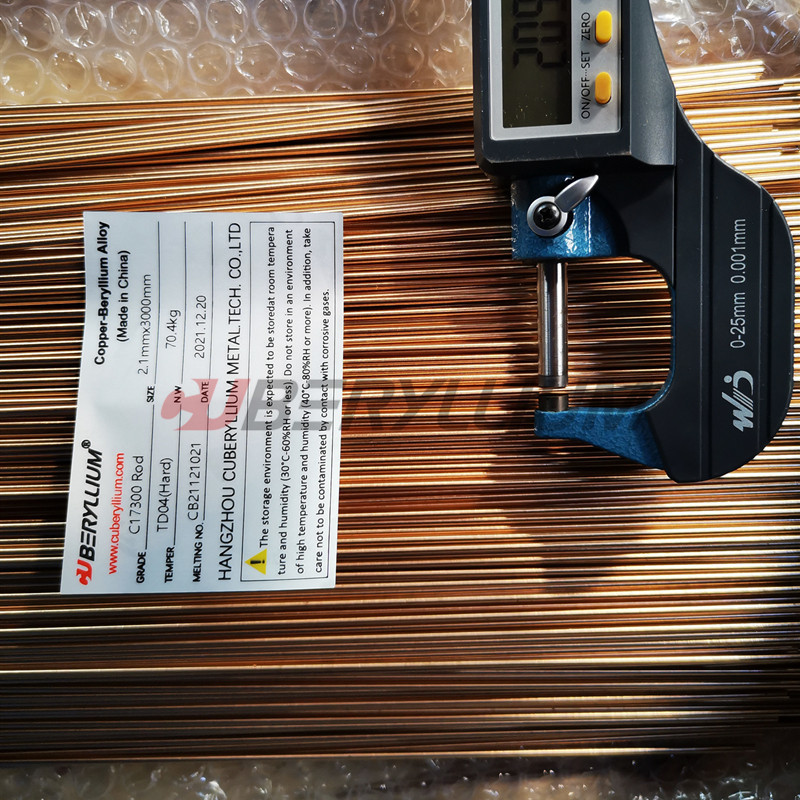

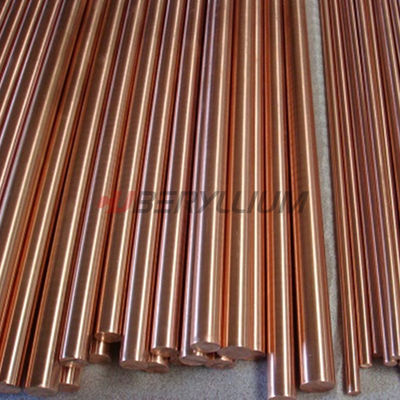

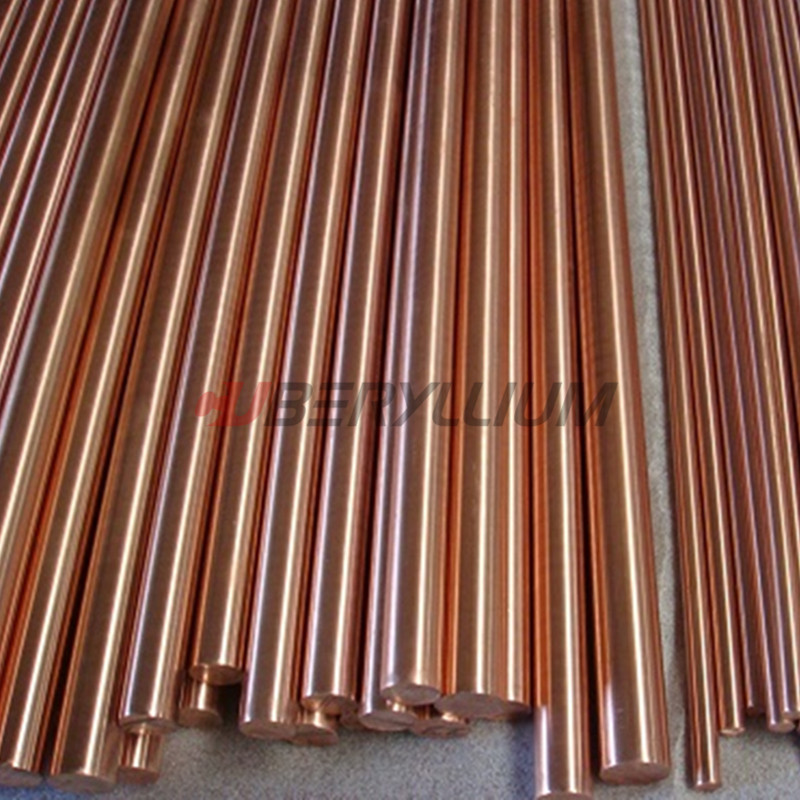

Product Photo:
Benefits of CuBe2Pb / C17300 (CDA173) Beryllium Copper Alloys:
- High stiffness for insertion applications
- Excellent in for anti-galling concerns
- Excellent machinability
- Good electrical and thermal conductivity
- Low friction properties
- Excellent corrosion and erosion resistance
- Non-magnetic
FAQ:
Q1: What’s the advantages the Beryllium Copper of CUBERYLLIUM®?
A1: 1: The Biggest Coil weight could be reach 1200kg/Coil.
2: We are the only one who melting by Vacuum semi-Continuous Furnace.
3: Surface further polishing for top clients.
Q2: How about your payment terms?
A2: Generally, 30% as deposit by T/T, then 70% should be paid before the delivery.
Q3: Why you melting by Vacuum semi-Continuous Furnace?
A3: Could be get the Cast ingot without gas,smaller segregation, Grain Refinement
Q4: What's the payment terms?
A4: We accept T/T, L/C, Paypal etc. It can be negotiated when the amount is different.
