Becu C17300 Td04 Beryllium Copper Wire

Place of Origin China
Brand Name CUBERYLLIUM®
Certification ISO ROHS
Model Number C17300
Minimum Order Quantity 30kg
Price USD 30~50/KG
Packaging Details Pack in coil+waterproofing winding film+Drier+Wooden Case
Delivery Time 10~15 Working days
Payment Terms L/C, T/T
Supply Ability 50T/Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name C17300 Beryllium Copper Wire Diameter 0.3mm-2mm
Standard ASTM B197, QQ-C-530 State A(TB00),1/4 H(TD01),1/2 H(TD02),3/4H(TD03),H(TD04)
Surface Bright Machining Property Good
Typical Application Electrical And Industrial Shape For Available Rod Or Coil Wire
Brand CUBERYLLIUM® Safe Handling No Special Health Risk
High Light

C17300 beryllium copper wire

,

C17300 Td04 Beryllium Copper Wire

,

beryllium copper td04

Leave a Message
Product Description

C17300 Beryllium Copper Wire Temper A(TB00),1/4 H(TD01),1/2 H(TD02),3/4H(TD03),H(TD04)

Product Description:

Product Name: Beryllium copper wire

Grade: C17300

State: A(TB00),1/4 H(TD01),1/2 H(TD02),3/4H(TD03),H(TD04)

Available Products(Forms): round wires, flat wires, coils

Diameter: 0.3mm-2mm

Brand: CUBERYLLIUM®



C17300 Beryllium Copper Wire International Specification:

Wires: ASTM B197, QQ-C-530

European Standards: CuBe2Pb, Alloy M25, UNS.C17300, DIN.2.1248, CW102C to EN





CUBERYLLIUM® manufactures copper beryllium in several distinct compositions. These fall into two categories: alloys selected for high strength (Alloys 172,173,170) and alloys selected for high conductivity (Alloys 751,750,741). And Gost standard QBe2,QBe1.9Ti for Russia Market. Also Supply Master alloy : CuBeryllium-200; CuBeryllium-275);CuBeryllium-350 and Cuberyllium-400 to global factory.



Introduction of C17300 Copper Alloy:

Cube2Pb--C17300 (CDA 173) The Leaded Beryllium Copper is identical to a version of lead-containing alloy C17200 and achieves the same exceptional strength after hardening.The performance of C17300 high-strength beryllium bronze is equivalent to C17200. But C17300 contains 0.2%-0.6% of lead, which increases the alloy's cutting coefficient from 20% to 50% (100% for free-cutting brass), which greatly improves the machining performance of the alloy and better adaptability precision requirements for precision parts.



Chemical Composition of C17300 Beryllium Copper Alloys:

CUBERYLLIUM® Brand UNS-Number Beryllium Cobalt
+ Nickel
+Cobalt
+ Nickel
+ Iron
Pb Copper
Cuberyllium-C173 C17300 1.80-2.00 0.20 min 0.6 max 0.2~0.6 Balance

Note: Copper plus additions equal 99.5% minimum.


Typical Physical Properties of C17300 Beryllium Copper Alloys:

CUBERYLLIUM® US Customary Metric
Melting Point - Liquidus 1800 F 982 C
Melting Point - Solidus 1590 F 866 C
Density 0.298 lb/in3 at 68 F 8.25 gm/cm3 @ 20 C
Specific Gravity 8.26 8.26
Electrical Resistivity 46.20 ohms-cmil/ft @ 68 F 7.68 microhm-cm @ 20 C
Electrical Conductivity 22 %IACS @ 68 F 0.129 MegaSiemens/cm @ 20 C
Thermal Conductivity 62 Btu . ft/(hr . ft2 . oF)at 68F 107.3 W/m . oK at 20 C
Modulas of Elasticity in Tension 18500 ksi 128000 MPa
Modulus of Rigidity 7300 ksi 50330 MPa
Specific Heat Capacity 0.090 Btu/lb/å¡F at 68 F 377.1 J/kg . å¡K at 293 K





Mechanical and Electrical Properties of C17300 Beryllium Copper Wires:

Alloy Temper (*) Heat Treatment Tensile Strength ksi Elongation percent Electrical Conductivity percent IACS
CUBERYLLIUM
173
A / 400~580 30-60 15-19
(TB00)
1/4 H / 570~795 3~25 15-19
(TD01)
1/2 H / 710~930 2~15 15-19
(TD02)
3/4 H / 840~1070 2~8 15-19
(TD03)
H / 915~1140 1~6 15-19
(TD04)
CUBERYLLIUM
173
AT 3 hr 315 1050~1380 3 min 22-28
(TF00)
1/4 HT 2 hr 315 1150~1450 2 min 22-28
(TH01)
1/2 HT 1.5hr 315 1200~1480 2 min 22-28
(TH02)
3/4 HT 1.0 hr 315 1250~1585 2 min 22-28
(TH03)
HT 1.0hr 315 1300~1585 1 min 22-28
(TH04)





Key Technology of Beryllium Copper(Heat treatment)

Heat treatment is the most important process for this alloy system. While all copper alloys are hardenable by cold working, beryllium copper is unique in being hardenable by a simple low temperature thermal treatment. It involves two basic steps. The first is called solution annealing and the second, precipitation or age hardening.

Solution Annealing

For the typical alloy CuBe2Pb) the alloy is heated between 720°C and 860°C. At this point the contained beryllium is essentially “dissolved” in the copper matrix (alpha phase). By rapidly quenching to room temperature this solid solution structure is retained. The material at this stage is very soft and ductile and can be readily cold worked by drawing, forming rolling, or cold heading. The solution annealing operation is part of the process at the mill and is not typically used by the customer. Temperature, time at temperature, quench rate, grain size, and hardness are all very critical parameters and are tightly controlled by ohmalloy.

Age Hardening

Age hardening significantly enhances the material’s strength. This reaction is generally carried out at temperatures between 260°C and 540°C depending on alloy and desired characteristics. This cycle causes the dissolved beryllium to precipitate as a beryllium rich (gamma) phase in the matrix and at the grain boundaries. It is the formation of this precipitate which causes the large increase in material strength. The level of mechanical properties attained is determined by the temperature and time at temperature. It should be recognized that beryllium copper has no room temperature aging characteristics.



Fabrication

JOINING TECHNIQUE SUITABILITY
Brazing Good
Butt Weld Fair
Capacity for Being Cold Worked Excellent
Capacity for Being Hot Formed Good
Coated Metal Arc Welding Good
Gas Sheilded Arc Welding Good
Machinability rating 50
Oxyacetylene Welding Not Recommended
Seam Weld Fair
Soldering Good
Spot Weld Good

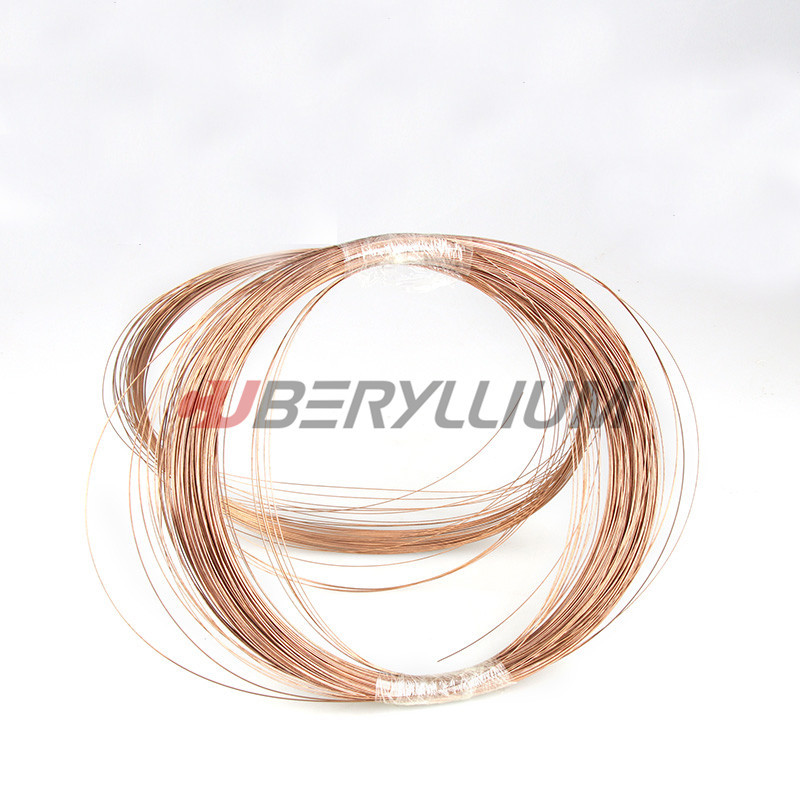

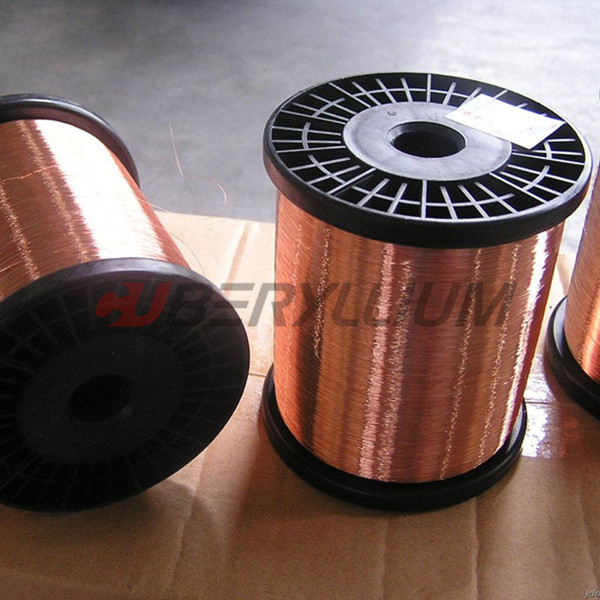

Product Photo:

Becu C17300 Td04 Beryllium Copper Wire 0



Application

Our alloys combine a range of properties particularly suited to meet the exacting requirements of many applications in the automotive, electronic, aeronautical, Oil&Gas, watch, electro-chemical industries, etc. Beryllium Copper is widely used in those fields as contact springs in various applications like connectors, switches, relays, etc



FAQ:

Q1:Could you produce Beryllium Copper strip by Mill Hardened process.
A1:Yes, we could produce AM(TM00), 1/2HM(TM01).HM(TM04) XHM(TM06) XHMS(TM08).,we are the only factory could do harden strip in China.

Q2: What’s the advantages the Beryllium Copper of CUBERYLLIUM®.
A2: 1: The Biggest Coil weight could be reach 1200kg/Coil

2:We are the only one who melting by Vacuum semi-Continuous Furnace.

3:Surface further polishing for top clients.

Q3: Why you melting by Vacuum semi-Continuous Furnace.
A3:Could be get the Cast ingot without gas,smaller segregation, Grain Refinement

Q4: What's the payment terms?
A4: We accept T/T, L/C, Paypal etc. It can be negotiated when the amount is different.
