RWMA Class 4 Beryllium Copper Alloys Strip

Place of Origin China
Brand Name CUBERYLLIUM®
Certification ISO,SGS
Model Number RWMA Class 4/Alloy 25
Minimum Order Quantity 50
Price 29USD

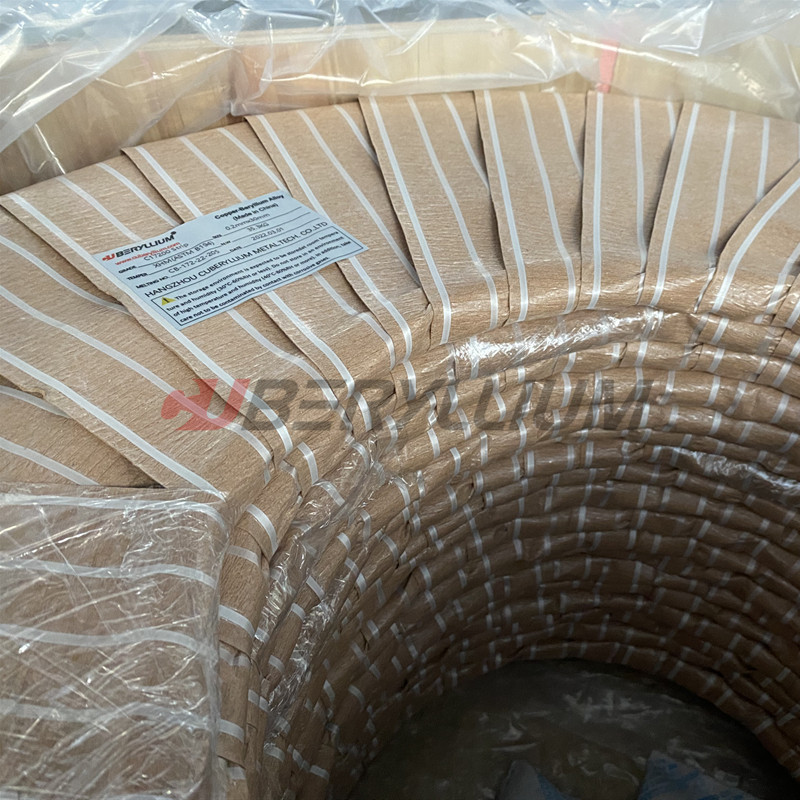

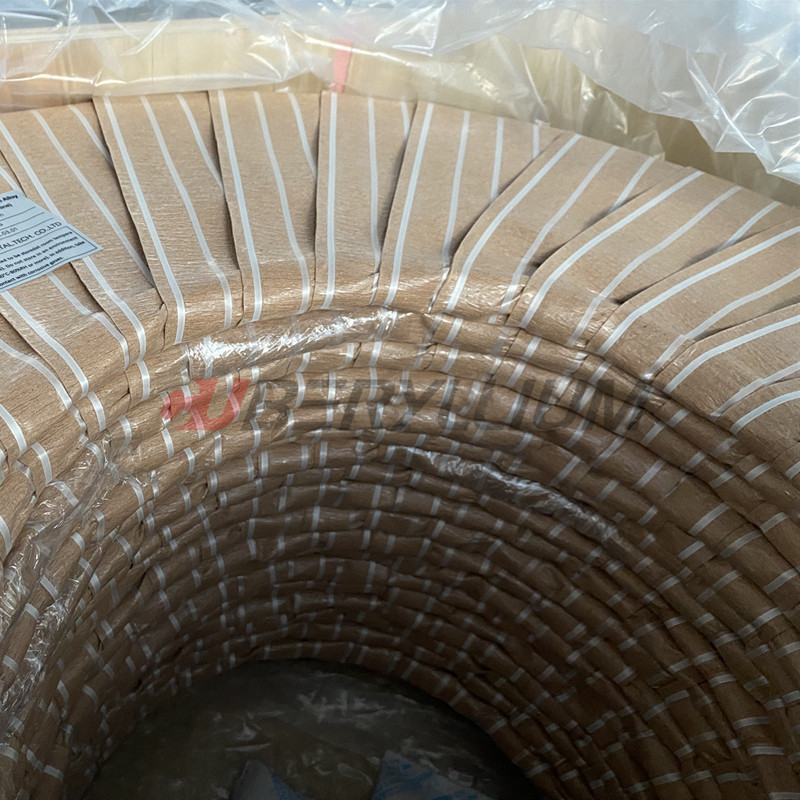

Packaging Details Coil+plywood case
Delivery Time 10~15days
Payment Terms L/C, T/T, Western Union
Supply Ability 200T/Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name WMA Class 4 Beryllium Copper Alloys Max Coil Wt. 2T
Thinnest Thick. 0.25mm Width 200mm
Standard ASTM B194, SAE J463, J461 Safe Handling No Special Health Risk.
Machining Property Good Surface Bright/Polished
Flatness Good Temper 1/2H
Coil Weight Material Can Be Coiled In Apporximately 12kg Coils.
High Light

RWMA Class 4 Beryllium Copper Alloys

,

Beryllium Copper Strip Polished Surface

,

Beryllium Copper Alloys 0.25mm

Leave a Message
Product Description

 RWMA Class 4 Beryllium Copper Alloys With 1.8% Be/Cu Alloy 25 Strip
Mateial Introduction of RWMA Class 4 Beryllium Copper Alloys/Alloy 25:
RWMA Class 4, BERYLLIUM-COPPER has extremely high hardness, and is recommended for projection, flash and butt-welding dies. It has lower conductivity than Class 3 alloy but it is harder and more wear resistant. It should be considered where there is concern with high-pressure density and severe wear, but where heating, due to its low conductivity, is no excessive.
It is used frequently in the form of inserts, die facings, and seam welder bushings. It is available in the annealed condition, which is more readily machined, and then subsequently heat-treated.
It is also Known as CuBe2, UNS. C17200.

More Details About RWMA Class 4 Material:

Product Name Beryllium copper strip
Grade RWMA Class 4, Alloy 25
End Product Form Strip, Foil, Coil
Standard ASTM B194
State of product Half Hard(TD02)
Specification

Thickness:1mm; Width: 200mm

Application Industrial, Electrical Industry
MOQ 30kgs


Cuberyllium's Product Range:
Cuberyllium is one of the eminent manufacturer and exporter of high Grade Beryllium Copper Alloy.
Our product range includes a wide range of beryllium copper alloys, rwma beryllum copper alloys, such as beryllium copper strip, beryllium copper rod, beryllium copper plate, beryllium copper tube, beryllium copper wire, C17200 copper alloy, C17300 copper alloy, C17500 copper alloy, C17510 copper alloy, rwma class 3 copper alloy, rwma class 4 copper alloy. Our valued clients can avail from us an approved quality range of beryllium copper alloys.

Physical Properties of RWMA Class 4/Alloy 25 Beryllium Copper Alloy:
Density (g/cm3): 8.36
Density before age hardening (g/cm3): 8.25
Elastic Modulus (kg/mm2 (103)): 13.40
Thermal Expansion Coefficient (20 °C to 200 °C m/m/°C): 17 x 10-6
Thermal Conductivity (cal/(cm-s-°C)): 0.25
Melting Range (°C): 870-980


Chemical Composition of RWMA Class 4/Alloy 25 Beryllium Copper Alloy:

Alloy number Be Ni Co Ni Co Fe Be Ni Co Fe Cu
RWMA Class 4 / Alloy 25 1.8-2.0 ≥0.2 ≤0.6 ≥99.5


International Specification of RWMA Class 4/Alloy 25 Beryllium Copper Alloy:
C17200 Beryllium Copper Alloys Rods/Bars/Tubes: ASTM B196,251,463; SAE J461,463; AMS 4533,4534,4535; AMS4650,4651;
RWMA Class 4
C17200 Beryllium Copper Alloys Strips: ASTM B194, AMS4530,4532; SAE J461,463
C17200 Beryllium Copper Alloys Sheets: ASTM B194
C17200 Beryllium Copper Alloys Wires: ASTM B197, AMS4725, SAE J461,463
C17200 Beryllium Copper Alloys Wires: ASTM B194, SAE J461,463; AMS4530,4533,4534,AMS4650,4651; RWMA Class 4.
European Standards: CuBe2, DIN 2.1247, CW101C to EN

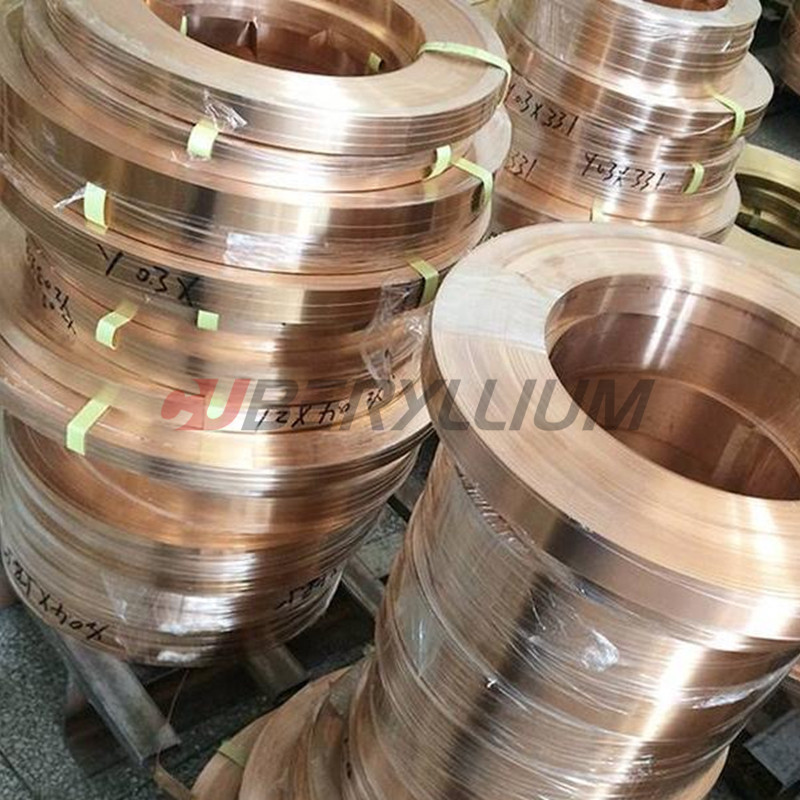

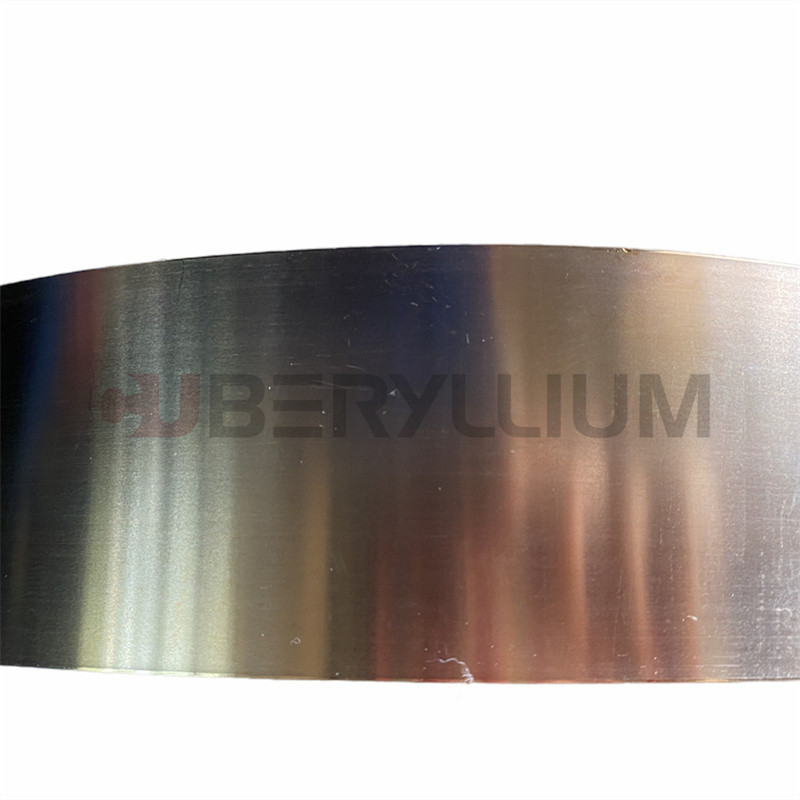

Product Photo of RWMA Class 4/Alloy 25 Beryllium Copper Alloy Strips:
RWMA Class 4 Beryllium Copper Alloys Strip 0

Application of RWMA Class 4/Alloy 25 Beryllium Copper Alloy:
Alloy 25(C17200) is used to make oil drilling components such as MWD/LWD tools, drill collars and subs, flex subs and shafts, drill rods, drill bit bushings, valve components, pump shafts and fasteners. Alloy 25 strip is used to make essential parts in consumer electronics like pressure sensor bellows, burn-in and test socket contacts, computer processor socket contacts and electromagnetic shielding gaskets.
