Sheet Beryllium Copper C172 TF00 Temper By ASTM B194 Standard

Place of Origin China
Certification ISO,SGS
Model Number C17200
Minimum Order Quantity 50
Price 30
Packaging Details in coil packed into wooden case
Delivery Time 10~15days
Payment Terms L/C, T/T, Western Union
Supply Ability 200T/Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571


If you have any concern, we provide 24-hour online help.

Product Details
Thickness Customized Standard ASTM B194
Safe Handling No Special Health Risk. Machining Property Good
Surface Bright/Polished Flatness Good
State TF00 Application For Oil Process Platform
High Light

Sheet Beryllium Copper C172


TF00 Temper C17200 Beryllium Copper


Polished C17200 Data Sheet

Leave a Message
Product Description

Sheet Beryllium Copper C172 TF00 Temper By ASTM B194 Standard

Normal Production Description
Name Sheet beryllium copper C172
Product Type Thin Sheet
Thickness Customized
Temper TF00, Aging Heat Treatment
Application For industrial
Material Copoer Alloy, Bronze Alloy



At Cuberyllium, we use extensive knowledge to determine the best method of manufacture for your products. We create the perfect product flow dependent on our customers demanding needs. This allows for us to insure all metallurgical, mechanical & physical properties are met. And of course, the quality is second to none. Contact with us to allow our process engineers the opportunity to create product that exceeds your needs.


C17200 Beryllium copper alloy, also named Class 4 Beryllium Copper, RWMA C17200, CDA 172 copper. C17200 beryllium copper has extremely high hardness and ultimate tensile strength although the electrical conductivity is lower than the Class 3 copper. It is generally recommended as electrode material for special flash, flash butt and projection welding applications where pressures are extremely high and wear is severe but where heating is not excessive. It is available as wrought material for highest quality dies and electrodes and may also be obtained as high strength castings. It is used frequently in the forms of inserts and die facings, and may also be used for seam welder bushings. Class 4 copper is available in the annealed condition, in this state it can be more readily machined and may be subsequently heat treated to maximum hardness.
Copper Beryllium alloys derives their high strength through heat treament and,in the case of small cross section wroght forms, cold working. The amount of cold work and the type of heat treatment determine the alloy's properties. The combination of cold work and heat treatment define the alloy's temper.


Beryllium Copper Alloy C172 Standard:

CW101C C17200 4533 2.1247 RWMA Class 4


Typical Applications of Beryllium Copper Alloy C172 :

Beryllium Copper Bar and Strip Application
Electrical & Electronic Conductors
Superconductor matrixes
Vacuum tubes
Glass-to-metal seals
Power Substations
Bus Systems


Chemical composition % by Weight of C172
Be Ni + Co Ni+Co+Fe Cu
1.80 - 2.00 .02 min. .06max. Balance


Typical Physical Properties of Beryllium Copper Alloy C172 :

Density Specific Heat Electrical Conductivity (I.A.C.S) Thermal Conductivity
8.36g/cm³ 0.42 J/g.K Min. 24% 106 W/m.K

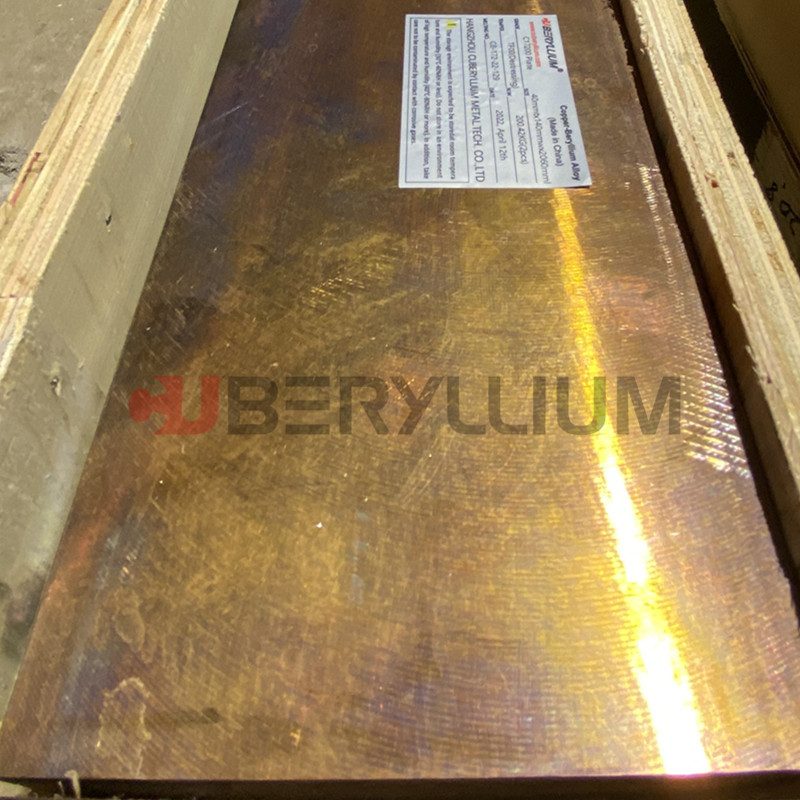

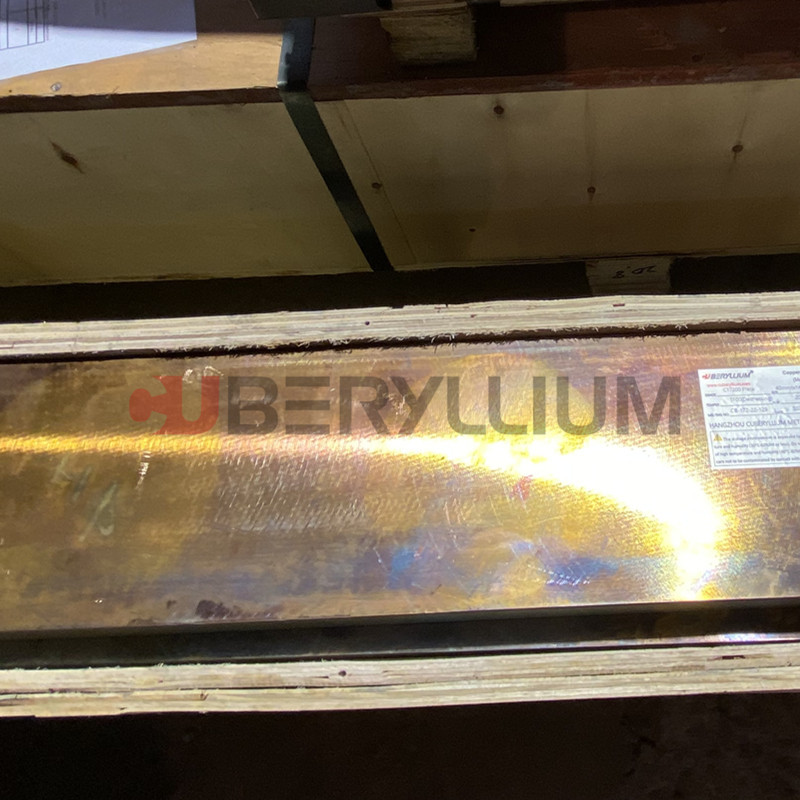

Product Photos:

Sheet Beryllium Copper C172 TF00 Temper By ASTM B194 Standard 0


Type of Beryllium Copper Alloys We Could Provide:
C17200 Copper
C17300 Copper
C17500 Copper
C17510 Copper
C17410 Copper
CuBe2 Copper
