Industry Product Alloy C17200 Beryllium Copper Strips / Tapes For Spring Contact

  • Industry Product Alloy C17200 Beryllium Copper Strips / Tapes For Spring Contact
  • Industry Product Alloy C17200 Beryllium Copper Strips / Tapes For Spring Contact
Place of Origin China
Brand Name CUBERYLLIUM®
Certification ISO,SGS
Model Number Material C17200
Minimum Order Quantity 50
Price 35USD
Packaging Details in coil packed into wooden case
Delivery Time 10~15days
Payment Terms L/C, T/T, Western Union
Supply Ability 200T/Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name C17200 Beryllium Copper Strips Max Coil Wt. 2T
Thickness 0.254mm Standard ASTM B194, SAE J463, J461
Heat Treatment Of Aging Age 3 Hrs At 600°F (315 C). Safe Handling No Special Health Risk.
Machining Property Good Surface Bright/Polished
Flatness Good Width 200mm
State TD02 Application Spring Contact
High Light

Spring Contact C17200 Beryllium Copper

,

Alloy C17200 Beryllium Copper

,

Tapes C17200 Beryllium Copper
Leave a Message
Product Description

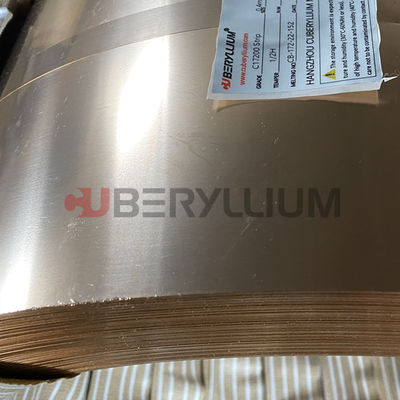

Industry Prodcut Alloy C17200 Beryllium Copper Strips/Tapes For Spring Contact

Product Normal Description:

Name Industry Product Alloy
Grade C17200
End Product Form Strip/tape
Size 0.254mm x 200mm
Application For Spring Contact
Temper 1/2H
Product Brand CUBERYLLIUM®



                                            Alloy C17200 Beryllium Copper Chemical Composition

                                                                (% Max., unless shown as range or Min.)

Chemical Name % by Weight
Be 1.00-2.00
Co+Ni 0.20% Min
Co+Ni+Fe 0.60% Max
Pb 0.02% Max
Cu Rem.
Note: Copper plus additions equal 99.5% Minimum.



Typical Physical Properties of Alloy C17200 Beryllium Copper

Mechanical Properties
Hardness Brinell 255-297 RC 25-32
Tensile Strength KSI 130
Yield Strength KSI 110
Elongation % 7
Elastic Modules KSI 18500



Advantages of CUBERYLLIUM:

  • Superior quality
  • Proactive customer service
  • Innovative solutions
  • Extremely fast turn around
  • Technical Support
  • Together we can achieve substantial amount of productivity for our applications, we can also develop and arrange mechanical properties according to specific requirements.

Introduction & Application of Alloy C17200 Beryllium Copper:

Introduction AMS 4533 Copper C17200
ASTM B196, AMS 4533, RWMA CLASS IV
Most commonly utilized beryllium copper and is notable for exhibiting the highest strength and hardness compared to commercial copper alloys. Its strength and hardness is similar to that of steel. AMS4533 ultimate tensile and Rockwell hardness properties in a peak aged condition are in the 200 ksi range and RC 45 respectively (electrical conductivity 22% IACS minimum).
Application Electrical & Electronic Conductors
Superconductor matrixes
Vacuum tubes
Glass-to-metal seals
Power Substations
Connectors
Switches
Bus Systems

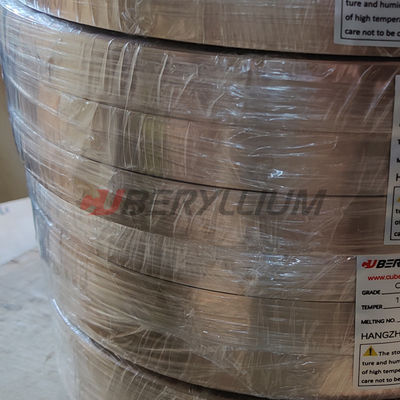

Packing Details:

Special Features:
Each bundle covered with plastic for protection against extreme weather.
End of Beryllium Copper Bar and Strip protected by plastic caps.
Bundles strapped with plastic strips.

Industry Product Alloy C17200 Beryllium Copper Strips / Tapes For Spring Contact 0



More Products

More range of copper and copper alloys, in full series of shapes: Sheet, Bar, Tubes, Strips and Wire list as below:

C17000/170 (CuBe1.7, 2.1245, Alloy165)
C17200/172 (CuBe2, 2.1247, Alloy25)
C17300/173 (CuBe2Pb, 2.1248, AlloyM25)
C17500/175 (CuCo2Be, 2.1285, Alloy10)
C17510/751 (CuNi2Be, 2.0850, Alloy3)
