C17200 Strip Thickness 0.4 - 1.0mm Width 50mm For Electrical Industry

Place of Origin China
Brand Name CUBERYLLIUM®
Certification ISO,SGS
Model Number Material C17200
Minimum Order Quantity 50
Price 43USD
Packaging Details in coil packed into wooden case
Delivery Time 10~15days
Payment Terms L/C, T/T, Western Union
Supply Ability 200T/Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name Material C17200-1/2H Strip Max Coil Wt. 2T
Thickness 0.4~1.0mm Standard ASTM B194, SAE J463, J461
Heat Treatment Of Aging Age 3 Hrs At 600°F (315 C). Safe Handling No Special Health Risk.
Machining Property Good Surface Bright/Polished
Flatness Good Width 50mm
State TD02 Specification 0.4mmx50mm, 1.0mmx50mm
Application Electrical Industry
High Light

Metal Strip C17200 Beryllium Copper

,

Copper C17200 Strip

,

Electrical Industry C17200 Strip

Leave a Message
Product Description

Material C17200-1/2H Strip Thickness 0.4~1.0mm Width 50mm For Electrical Industry

Product Normal Description:

Product Name: Metal Strip

Grade: C17200

Standard: ASTM B194, SAE J463, J461

Product Specification: 0.4mm~1.0mmt x 50mmw

State: 1/2H(TD02)

Typical Application: used for electrical industry

Product Brand: CUBERYLLIUM®



Range of Material C17200 Copper Alloy:

Exceptional production range
C17200 copper rod
C17200 copper strip
C17200 copper wire
C17200 copper plate
C17200 copper billet
C17200 copper disc
C17200 copper tube



Chemical Composition of CuBe2/C17200 Copper Alloys (CUBERYLLIUM ®-172):

Product Grade: CUBERYLLIUM ®-172(UNS. C17200)

Beryllium(Be): 1.80-2.00%

Cobalt(Co) + Nickel(Ni): 0.20% Min

Cobalt(Co) + Nickel(Ni) + Iron(Fe): 0.60% Max

Lead: 0.02% Max

Copper(Cu): Balance

Note: Copper plus additions equal 99.5% Minimum.



Typical Physical Properties of CuBe2/C17200 Copper Alloys (CUBERYLLIUM ®-172):

Density (g/cm3): 8.36
Density before age hardening (g/cm3): 8.25
Elastic Modulus (kg/mm2 (103)): 13.4
Thermal Expansion Coefficient (20 °C to 200 °C m/m/°C): 17 x 10-6
Thermal Conductivity (cal/(cm-s-°C)): 0.25
Melting Range (°C): 870-980



Advantages of CUBERYLLIUM:

  • Superior quality
  • Proactive customer service
  • Innovative solutions
  • Extremely fast turn around
  • Technical Support
  • Together we can achieve substantial amount of productivity for our applications, we can also develop and arrange mechanical properties according to specific requirements.
Applicatons of Material C17200 Copper Alloy: Non-sparking and Non-Magnetic Tools
Hard-Wearing Parts
Bushings and Liners for Oil&Gas Industry
Molds for Plastic Injection and Low Gravity Die-Casting
Downhole Applications in Oil Industry
Chilling for Casting Molds
Drilling Technology
Die-Casting Plunger Tips
Bushings for Landing Gear

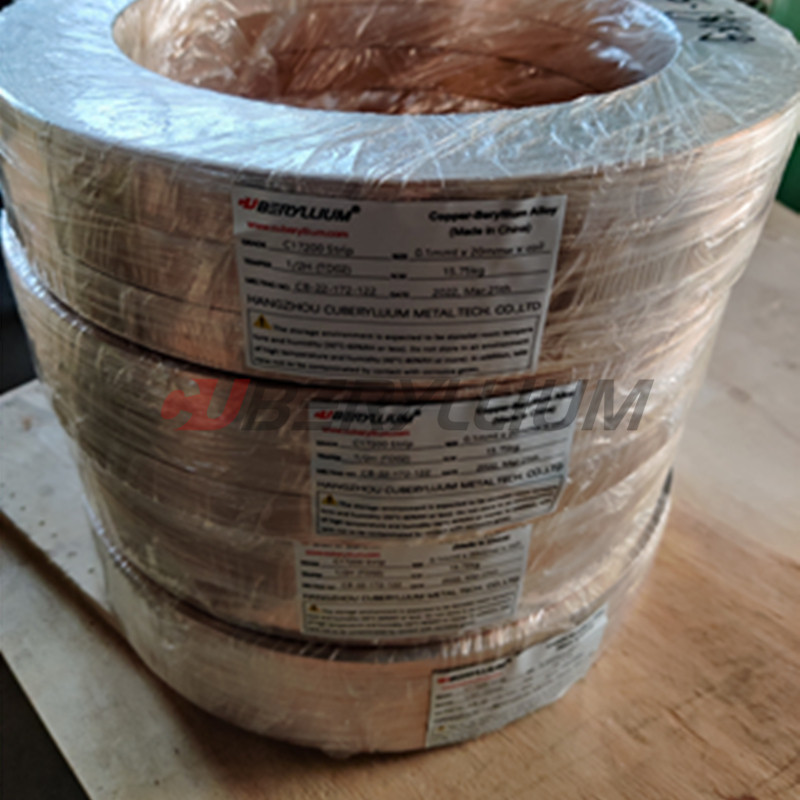

Packing Details:

Specific Marking and Packaging:
Each item or part has a unique identifier and is specifically packaged to meet the customer’s needs. We also could adapt to customers’ request.
For example, our clients from India need every coil strips in one woodencase, every woodencase should be around 50~60kg
.

C17200 Strip Thickness 0.4 - 1.0mm Width 50mm For Electrical Industry 0





FAQ:

Q1: Could you produce Beryllium Copper strip by Mill Hardened process.
A1: Yes, we could produce AM(TM00), 1/2HM(TM01).HM(TM04) XHM(TM06) XHMS(TM08).,we are the only factory could do harden strip in China.

Q2: What’s the advantages the Beryllium Copper of CUBERYLLIUM®.
A2: 1: The Biggest Coil weight could be reach 1200kg/Coil

2: We are the only one who melting by Vacuum semi-Continuous Furnace.

3: Surface further polishing for top clients.

Q3: Why you melting by Vacuum semi-Continuous Furnace.
A3: Could be get the Cast ingot without gas,smaller segregation, Grain Refinement

Q4: What's the payment terms?
A4: We accept T/T, L/C, Paypal etc. It can be negotiated when the amount is different.
