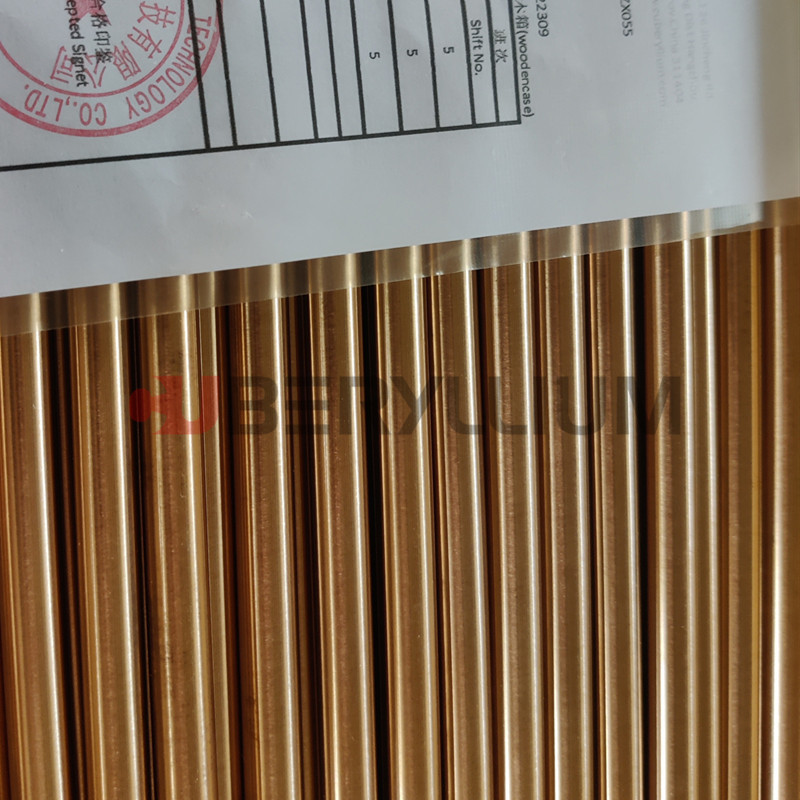

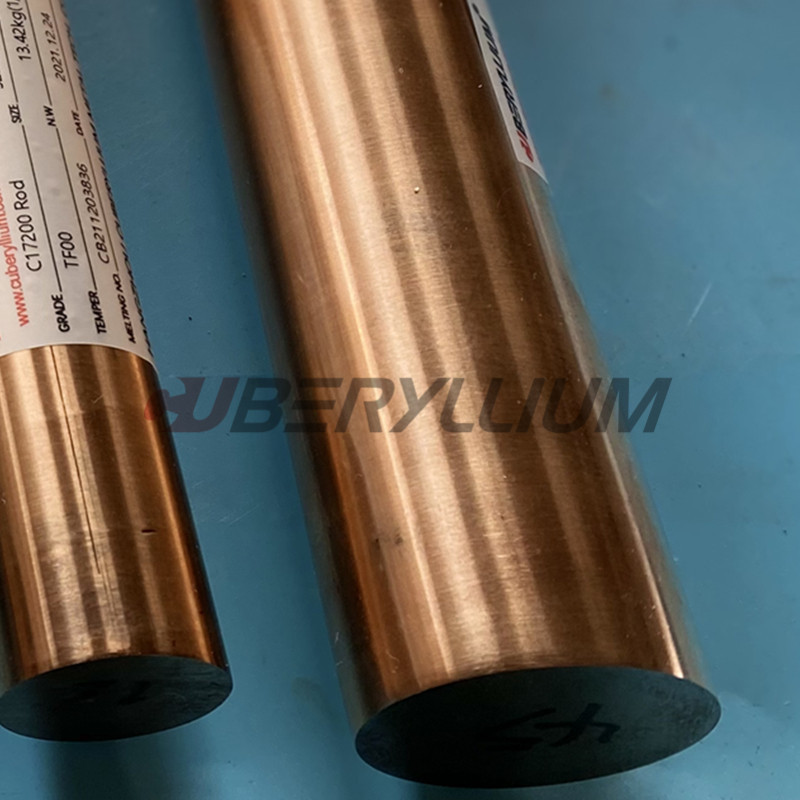

CuBe2 CW101C C17200 Round Bar Dia. 10mm 12mm 16mm 30mm With 3m Length

  • CuBe2 CW101C C17200 Round Bar Dia. 10mm 12mm 16mm 30mm With 3m Length
  • CuBe2 CW101C C17200 Round Bar Dia. 10mm 12mm 16mm 30mm With 3m Length
Place of Origin China
Brand Name CUBERYLLIUM®
Certification ISO,SGS
Model Number CuBe2 (CW101C, C17200)
Minimum Order Quantity 50
Price 30USD
Packaging Details Pack in coil+waterproofing winding film+Drier+Wooden Case
Delivery Time 10~15days
Payment Terms L/C, T/T, Western Union
Supply Ability 200T/Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name CuBe2 (CW101C, C17200) ROUND BAR CUBERYLLIUM® Grade CUBERYLLIUM® 172
Standard ASTM B196 Safe Handling No Special Health Risk.
Machining Property Good Surface Bright/Polished
Flatness Good State A(TB00),1/2H (TD02), H(TD04),AT(TF00),HT(TH04)
Size Custom Diameter, Random Mill Lengths Application For Low Maintenance Bearings And Bushings
Elestic Modulus 131Gpa Melting Point(solidus) 870℃
Electrical Conductivity 22-28% IACS
High Light

CuBe2 Round Bar

,

C17200 Round Bar

,

Round Bar C17200 Beryllium Copper
Leave a Message
Product Description

Product Normal Description:

CuBe2 (CW101C, C17200) ROUND BAR Dia. 10mm 12mm 14mm 16mm 25mm 30mm With 3m Length
Product Shape Round Bar
Product Grade CuBe2 (CW101C, C17200)
Product Standard ASTM B196
Round Bar Dia. 10mm 12mm 14mm 16mm 25mm 30mm
Round Bar Length 3m
Product State (TB00),1/2H (TD02), H(TD04),AT(TF00),HT(TH04)
Product Brand CUBERYLLIUM®



International Specification of CuBe2 (CW101C, C17200) Copper Alloy:

Rods/Bars/Tubes:  ASTM B196,251,463; SAE J461,463; AMS 4533,4534,4535; AMS 4650,4651; RWMA Class 4

European Standards: CuBe2, Alloy 25, QBe2, BrB2, DIN.2.1247, CW101C to EN



Note:

ASTM: American Society for Testing and Materials

SAE: Society of Automotive Engineers

AMS: Aerospace Materials Specification(Published by SEA)

RWMA: Resistance Welder Manufacturers' Association

Note: Unless otherwise specified, material will be produced by ASTM.



CuBe2 (CW101C, C17200) Copper Alloy Chemical Composition:

Cu/ Copper Be/ Beryllium Ni + Co/ Nickel + Cobalt Ni + Co +Fe/ Nickel +Cobalt + Iron
% rem % 1.8-2.0 0.2% Min. 0.6% Max.

Note: Copper plus additions equal 99.5% Minimum.



Typical Physical Properties of CuBe2 (CW101C, C17200) Copper Alloy:

Mechanical Properties
Hardness Brinell 255-297 RC 25-32
Tensile Strength KSI 130
Yield Strength KSI 110
Elongation % 7
Elastic Modules KSI 18500



Mechanical and Electrical Properties of ASTM B-196(C17200) Beryllium Copper Rod:

Temper(*) Diameter Heat Treatment Tensile Strength ksi

Elogation Percent

(Min)

Electrical Conductivity Percent

IACS

 Hardness Rockwell B or C Scale
A(TB00) ALL SIZE / 400~600 30 15~19 B45~85
1/2H(TB04) 5~40 / 550~700 10 15~19 ＞B78

H(TD04)
 		 5~10 / 660~900 5 15~19
＞B88

＞10~25 / 620~860 5 15~19
＞25 / 590~830 5 15~19
AT(TF00) ALL SIZE 3 hr 320°C 1100~1380 2 22~28 C35~42
HT(TH04) 5~10 2 hr 320°C 1200~1550 1 22~28 C37~45
＞10~25 1150~1520 1 22~28 C36~44
＞25 1120~1480 1 22~28 C35~44




About Cuberyllium
Cuberyllium is an industry-leading manufacturer of beryllium copper alloys. Our inventory is manufactured to ASTM specifications. Our beryllium copper alloys could be custom manufactured to your specific size and shape need, whether is be strips, rods, bars, sheets, plates, wires or tubes. Our production lines have been developed to produce exceptional, consistent quality in every copper alloy we produce.



Product Packing:

Specific Marking and Packaging:
Each item or part has a unique identifier and is specifically packaged to meet the customer’s needs. We also could adapt to customers’ request.
