JIS C172 BeCu Beryllium Copper Wire TD01 TB00 For Springs Automobile

  • JIS C172 BeCu Beryllium Copper Wire TD01 TB00 For Springs Automobile
  • JIS C172 BeCu Beryllium Copper Wire TD01 TB00 For Springs Automobile
Place of Origin China
Brand Name CUBERYLLIUM
Certification ISO ROHS
Model Number C17200
Minimum Order Quantity 30kg
Price USD 30～50/KG
Packaging Details Pack in coil+waterproofing winding film+Drier+Wooden Case
Delivery Time 10~15days
Payment Terms L/C, T/T
Supply Ability 50T/Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name JIS C172 BeCu Beryllium Copper Wire TD01 TB00 For Springs,Automobile Grade C17200
Surface Bright Diameters 0.1-0.8mm
State A(TB00),1/4 H(TD01),1/2 H(TD02),3/4H(TD03),H(TD04) Typical Application Coil Springs,Automobile
Size As Requirement Safe Handling No Special Health Risk.
Flatness Good Heat Treatment 3 Hr 315C-330C
Tensile Strength 915~1140Mpa Package In Coils
High Light

Bright Beryllium Copper Wire

,

Bright Beryllium Copper Spring Wire

,

C17200 Beryllium Copper Spring Wire
Leave a Message
Product Description

JIS C172 BeCu Beryllium Copper Wire TD01 TB00 For Springs,Automobile

Physical Properties:

Density (g/cm3): 8.36
Elastic Modulus (GPa): 131

Thermal Expansion Coefficient (20 °C to 200 °C m/m/°C): 17.5×10-6
Thermal Conductivity (cal/(cm-s-°C)): 0.25
Melting Range (°C): 870-980 °C



Typical Applications:

1)Relay Blades, Fuse Clips, Switch Parts, Relay parts

2)Connectors, Spring Connectors, Contact Bridges
3)Washers, Fasteners, Lock Washers, Retaining Rings, Roll Pins, Screws, Bolts
4)Pumps, Springs, Electrochemical, Shafts, Non Sparking Safety Tools

5)Flexible Metal Hose, Housings for Instruments, Bearings, Bushings, Valve Seats, Valve Stems, Diaphragms, Springs, Welding Equipment

6)Spline Shafts, Pump Parts, Valves, Bourdon Tubes, Wear Plates on Heavy Equipment, Bellows



Chemical Composition:

Be: 1.85-2.10%
Co+Ni: 0.20% Min.
Co+Ni+Fe: 0.60% Max.
Cu: Balance
Note: Copper plus additions equal 99.5% minimum.



International Specification of C17200 Beryllium Copper Alloy:

Product Type Temper Type
Bar ASTM B196
Military Mil-C-21657
Rod ASTM B196
Military Mil-C-21657
Wire ASTM B197, AMS4725, SAE J461,463, RWMA Class 4
European Standards CuBe2, Alloy 25, BrB2, DIN.2.1247, CW101C to EN

Note:

ASTM: American Society for Testing and Materials

SAE: Society of Automotive Engineers

AMS: Aerospace Materials Specification(Published by SEA)

RWMA: Resistance Welder Manufacturers' Association

Note: Unless otherwise specified, material will be produced by ASTM.



Mechanical and Electrical Properties of C17200 Beryllium Copper Wire:

Alloy Temper (*) Heat Treatment Tensile Strength Mpa Elongation percent Electrical Conductivity percent IACS
CUBERYLLIUM
172		 A / 400～580 30-60 15-19
(TB00)
1/4 H / 570～795 3~25 15-19
(TD01)
1/2 H / 710～930 2~15 15-19
(TD02)
3/4 H / 840～1070 2~8 15-19
(TD03)
H / 915～1140 1~6 15-19
(TD04)
CUBERYLLIUM
172		 AT 3 hr 315℃ 1050~1380 3 min 22-28
(TF00)
1/4 HT 2 hr 315℃ 1150~1450 2 min 22-28
(TH01)
1/2 HT 1.5hr 315℃ 1200~1480 2 min 22-28
(TH02)
3/4 HT 1.0 hr 315℃ 1250~1585 2 min 22-28
(TH03)
HT 1.0hr 315℃ 1300~1585 1 min 22-28
(TH04)

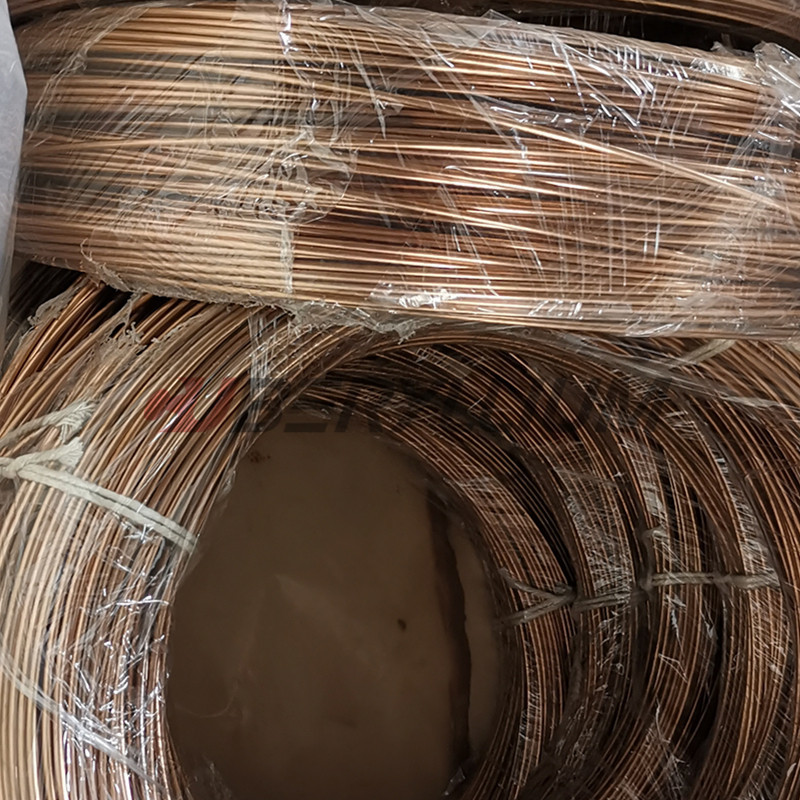

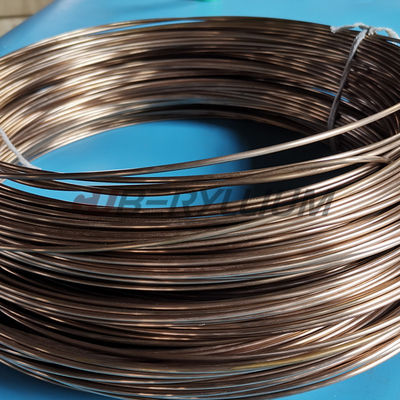

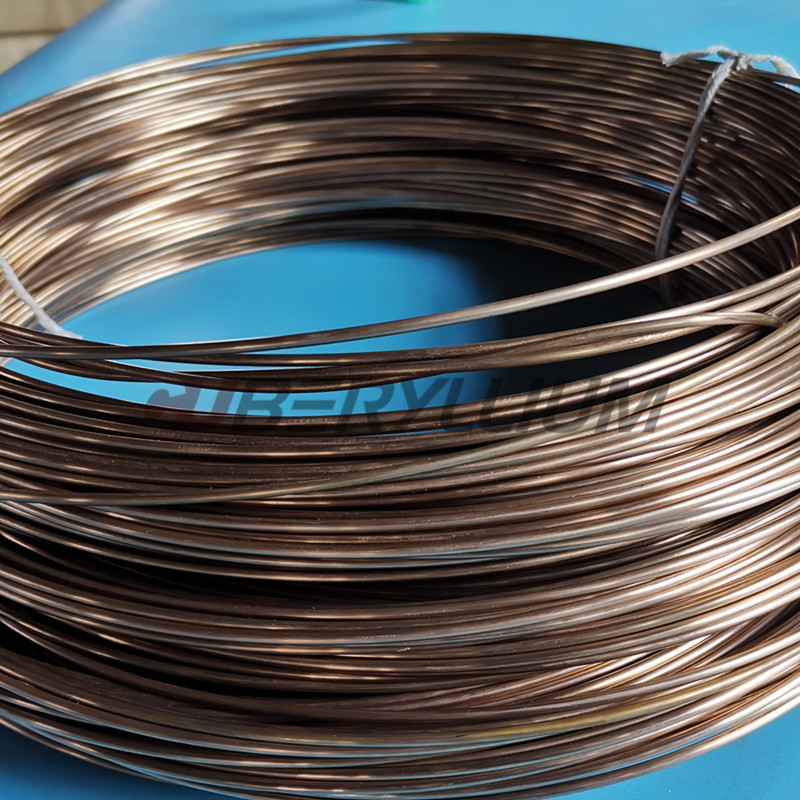

Product Photos:

JIS C172 BeCu Beryllium Copper Wire TD01 TB00 For Springs Automobile 0



CUBERYLLIUM®-172 is the most commonly specified copper beryllium ,In its age hardened condition, CUBERYLLIUM®-172 attains the highest strength and hardness of any commercial copper base alloy. The ultimate tensile strength can exceed 1360Mpa(200 ksi), while the hardness approaches Rockwell C45. Also, in the fully aged condition, the electrical conductivity is a minimum of 22% IACS (International Annealed Copper Standard). Alloy 172 also exhibits exceptional resistance to stress relaxation at elevated temperatures.



More Products:

More range of copper and copper alloys, in full series of shapes: Sheet, Bar, Tubes, Strips and Wire list as below:

C17000/170 (CuBe1.7, 2.1245, Alloy165)
C17200/172 (CuBe2, 2.1247, Alloy25)
C17300/173 (CuBe2Pb, 2.1248, AlloyM25)
C17500/175 (CuCo2Be, 2.1285, Alloy10)
C17510/1751 (CuNi2Be, 2.0850, Alloy3)



FAQ:

Q1:What’s the advantages the Beryllium Copper of CUBERYLLIUM®?

A1: 1: The Biggest Coil weight could be reach 1200kg/Coil

2:We are the only one who melting by Vacuum semi-Continuous Furnace.

3:Surface further polishing for top clients.

Q2: Why you melting by Vacuum semi-Continuous Furnace?
A2:Could be get the Cast ingot without gas,smaller segregation, Grain Refinement.

Q3:Could you produce Beryllium Copper strip by Mill Hardened process?
A3:Yes, we could produce AM(TM00), 1/2HM(TM01).HM(TM04) XHM(TM06) XHMS(TM08).,we are the only factory could do harden strip in China.

Q4: What's the payment terms?
A4: We accept T/T, L/C, Paypal etc. It can be negotiated when the amount is different.
