Alloy 25 Beryllium Copper Sheet 0.1mm - 200mm For Flexible Metal Hose

Place of Origin China
Brand Name CUBERYLLIUM
Certification ISO,SGS
Model Number C17200
Minimum Order Quantity 50
Price USD 30~50
Packaging Details in coil packed into wooden case
Delivery Time 10~15 work days
Payment Terms L/C, T/T, Western Union
Supply Ability 200T/Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name Factory Provide Alloy 25 Beryllium Copper Sheet 0.1mm~200mm For Industrial Grade C17200
Shape Sheet State A(TB00), H(TD04), AT(TF00), HT(TH04)
Typical Application Housings For Instruments, Bearings, Bushings Max Width 300mm
Max Length 2m Thickness Range 1mm-5mm
Thermal Expansion Coefficient 17.5×10-6m/m℃ Thermal Conductivity 105W/m℃
Flatness Good Safe Handling No Special Health Risk.
Density 8.83g/cm3 Melting Point(solidus) 870℃
High Light

Alloy 25 Beryllium Copper Sheet

,

Metal Hose C17200 Beryllium Copper Sheet

,

300mm Width C17200 Beryllium Copper Sheet

Leave a Message
Product Description

Alloy 25 Beryllium Copper Sheet 0.1mm~200mm For Flexible Metal Hose

Physical Properties:

Density (g/cm3): 8.36
Elastic Modulus (GPa): 131

Thermal Expansion Coefficient (20 °C to 200 °C m/m/°C): 17.5×10-6
Thermal Conductivity (cal/(cm-s-°C)): 0.25
Melting Range (°C): 870-980 °C



Typical Application:

1)Further making utensil
2)Solar reflective film
3)The appearance of the building
4)Interior decorating:ceilings,walls,etc.
5)Furniture cabinets
6)Elevator decoraction
7)Signs,nameplate,bags making
8)Decorated inside and outside the car
9)Household appliances:refrigerators,microwave ovens,audio equipment,etc.
10)The consumer electronics:mobile phones,digital cameras,MP3,U disk,etc.



Chemical Composition:
Be: 1.85-2.10%
Co+Ni: 0.20% Min.
Co+Ni+Fe: 0.60% Max.
Cu: Balance
Note: Copper plus additions equal 99.5% minimum.



Product Informance of CUBERYLLIUM® Company:

CUBERYLLIUM® manufactures copper beryllium in several distinct compositions.

These fall into two categories: high strength beryllium copper alloys 172(UNS. C17200),173(UNS. C17300),170(UNS. C17000), and copper alloys selected for high conductivity 751(UNS. 17510),750(UNS. 17500),741(UNS. 17410).

We also Supply Master alloy : CuBeryllium-200, CuBeryllium-275, CuBeryllium-350 and Cuberyllium-400 to global factory.



Temper Designations of C17200(CDA172) Beryllium Bronze Copper Sheet/Plate:

Mechanical and Electrical Properties of C17200 Sheet/Plate
CUBERYLLIUM ASTM Heat Treatment

Thickness

(mm)

Tensile Strength

(Mpa)

Elongation Percent

HARDNESS

Rockwell B or C Scale

Electrical Conductivity
(% IACS)
Designation Designation
A TB00   All Size 400~580 20~60 B45-85 15~19
H TD04 <10 600~880 8~20 B91-103 15~19
10~25 600~850 8~20 B90-102 15 ~ 19
25~50 580~820 8~20 B88-102 15 ~19
>50 580~820 8~20 B88-102 15 ~19
AT TF00
3 hr 315℃
All Size 1120~1358 3~10 C36-41 22 ~ 28
HT TH04 2 hr 315℃ <10 1200~1450 1~5 C38-45 22 ~ 28
10~25 1200~1500 1~5 C38-44 22 ~ 28
25~50 1200~1450 2~5 C37-43 22 ~ 28
>50 1100~1350 2~5 C36-42 22 ~ 28

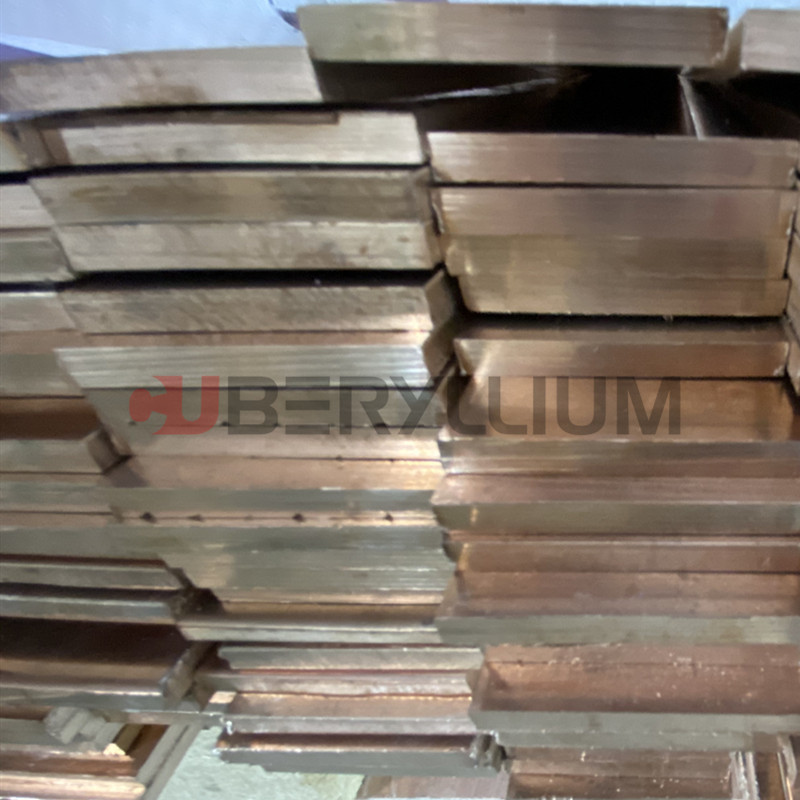

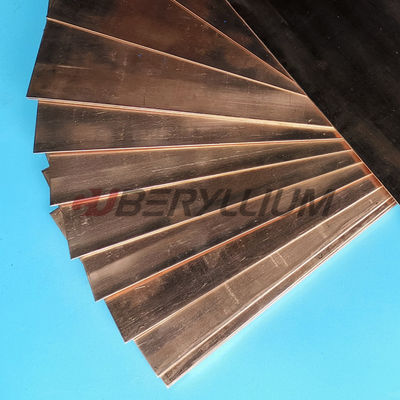

Product Photos:

Alloy 25 Beryllium Copper Sheet 0.1mm - 200mm For Flexible Metal Hose 0



CUBERYLLIUM®-172 is the most commonly specified copper beryllium ,In its age hardened condition, CUBERYLLIUM®-172 attains the highest strength and hardness of any commercial copper base alloy. The ultimate tensile strength can exceed 1360Mpa(200 ksi), while the hardness approaches Rockwell C45. Also, in the fully aged condition, the electrical conductivity is a minimum of 22% IACS (International Annealed Copper Standard). Alloy 172 also exhibits exceptional resistance to stress relaxation at elevated temperatures.



The most important Technology of CUBERYLLIUM ®:

A: Heat treatment

Heat treatment is the most important process for this alloy system. While all copper alloys are hardenable by cold working, beryllium copper is unique in being hardenable by a simple low temperature thermal treatment. It involves two basic steps. The first is called solution annealing and the second, precipitation or age hardening.

B: Solution Annealing

For the typical alloy CuBe1.9 (1.8- 2%) the alloy is heated between 720°C and 860°C. At this point the contained beryllium is essentially “dissolved” in the copper matrix (alpha phase). By rapidly quenching to room temperature this solid solution structure is retained. The material at this stage is very soft and ductile and can be readily cold worked by drawing, forming rolling, or cold heading. The solution annealing operation is part of the process at the mill and is not typically used by the customer. Temperature, time at temperature, quench rate, grain size, and hardness are all very critical parameters and are tightly controlled by ohmalloy.

C: Age Hardening

Age hardening significantly enhances the material’s strength. This reaction is generally carried out at temperatures between 260°C and 540°C depending on alloy and desired characteristics. This cycle causes the dissolved beryllium to precipitate as a beryllium rich (gamma) phase in the matrix and at the grain boundaries. It is the formation of this precipitate which causes the large increase in material strength. The level of mechanical properties attained is determined by the temperature and time at temperature. It should be recognized that beryllium copper has no room temperature aging characteristics.



FAQ:

Q1:What’s the advantages the Beryllium Copper of CUBERYLLIUM®?

A1: 1: The Biggest Coil weight could be reach 1200kg/Coil

2:We are the only one who melting by Vacuum semi-Continuous Furnace.

3:Surface further polishing for top clients.

Q2: Why you melting by Vacuum semi-Continuous Furnace?
A2:Could be get the Cast ingot without gas,smaller segregation, Grain Refinement.

Q3:Could you produce Beryllium Copper strip by Mill Hardened process?
A3:Yes, we could produce AM(TM00), 1/2HM(TM01).HM(TM04) XHM(TM06) XHMS(TM08).,we are the only factory could do harden strip in China.

Q4: What's the payment terms?
A4: We accept T/T, L/C, Paypal etc. It can be negotiated when the amount is different.
