C17200 Beryllium Copper Rod For Electrical Industry ASTM B196

  • C17200 Beryllium Copper Rod For Electrical Industry ASTM B196
  • C17200 Beryllium Copper Rod For Electrical Industry ASTM B196
Place of Origin China
Brand Name CUBERYLLIUM
Certification ISO ROHS
Model Number C17200
Minimum Order Quantity 30kg
Price USD 30～50/KG
Packaging Details Pack in coil+waterproofing winding film+Drier+Wooden Case
Delivery Time 10~15days
Payment Terms L/C, T/T, Western Union
Supply Ability 50T/Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name C17200 Beryllium Copper Rod For Electrical Industry ASTM B196 Grade C17200
Surface Bright/Polished Diameters 1-150mm
State A(TB00),1/2H (TD02), H(TD04),AT(TF00),HT(TH04);MILITARY. MIL-C-21657 Typical Application Used For Welding Equipment, Rolling Mill Parts
Thermal Expansion Coefficient 17.5×10-6m/m℃ Thermal Conductivity 105W/m℃
Flatness Good Safe Handling No Special Health Risk.
Density 8.83g/cm3 Melting Point(solidus) 870℃
High Light

Electrical Industry C17200 Beryllium Copper Rod

,

ASTM B196 C17200 Beryllium Copper Rod

,

Polished C17200 Beryllium Copper Rod
Leave a Message
Product Description

C17200 Beryllium copper rod for electrical industry ASTM B196

Physical Properties:

Density (g/cm3): 8.36
Elastic Modulus (GPa): 131

Thermal Expansion Coefficient (20 °C to 200 °C m/m/°C): 17.5×10-6
Thermal Conductivity (cal/(cm-s-°C)): 0.25
Melting Range (°C): 870-980 °C



Application:

1)Electrical Industry: Electrical Switch and Relay Blades, Fuse Clips, Switch Parts, Relay parts

2)Connectors, Spring Connectors, Contact Bridges, Belleville Washers, Navigational Instruments, Clips
3)Fasteners: Washers, Fasteners, Lock Washers, Retaining Rings, Roll Pins, Screws, Bolts
4)Industrial: Pumps, Springs, Electrochemical, Shafts, Non Sparking Safety Tools

5)Flexible Metal Hose, Housings for Instruments, Bearings, Bushings, Valve Seats, Valve Stems, Diaphragms, Springs, Welding Equipment

6)Rolling Mill Parts, Spline Shafts, Pump Parts, Valves, Bourdon Tubes, Wear Plates on Heavy Equipment, Bellows



Chemical Composition:
Be: 1.85-2.10%
Co+Ni: 0.20% Min.
Co+Ni+Fe: 0.60% Max.
Cu: Balance
Note: Copper plus additions equal 99.5% minimum.



Specification:

Rods/Bars:AMS 4650, 4651, 4533, ASTM B194, B196,MILITARY MIL-C-21657, SAE J463, J461



Note:

ASTM: American Society for Testing and Materials

SAE: Society of Automotive Engineers

AMS: Aerospace Materials Specification(Published by SEA)

RWMA: Resistance Welder Manufacturers' Association

Note: Unless otherwise specified, material will be produced by ASTM.



Mechanical and Electrical Properties of Copper Beryllium Rod&Bar and Tube of CUBERYLLIUM®-172

Temper(*) Diameter Heat Treatment Tensile Strength ksi

Elogation Percent

(Min)

Electrical Conductivity Percent

IACS

 Hardness Rockwell B or C Scale
A(TB00) ALL SIZE / 400~600 30 15~19 B45~85
1/2H(TB04) 5~40 / 550~700 10 15~19 ＞B78

H(TD04)		 5~10 / 660~900 5 15~19
＞B88
＞10~25 / 620~860 5 15~19
＞25 / 590~830 5 15~19
AT(TF00) ALL SIZE 3 hr 320°C 1100~1380 2 22~28 C35~42
HT(TH04) 5~10 2 hr 320°C 1200~1550 1 22~28 C37~45
＞10~25 1150~1520 1 22~28 C36~44
＞25 1120~1480 1 22~28 C35~44

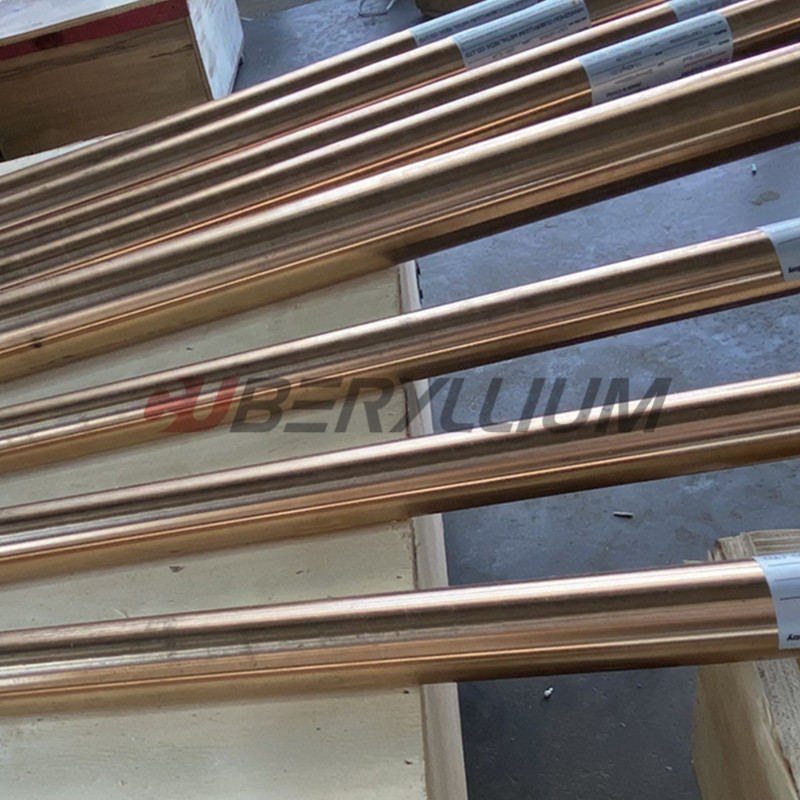

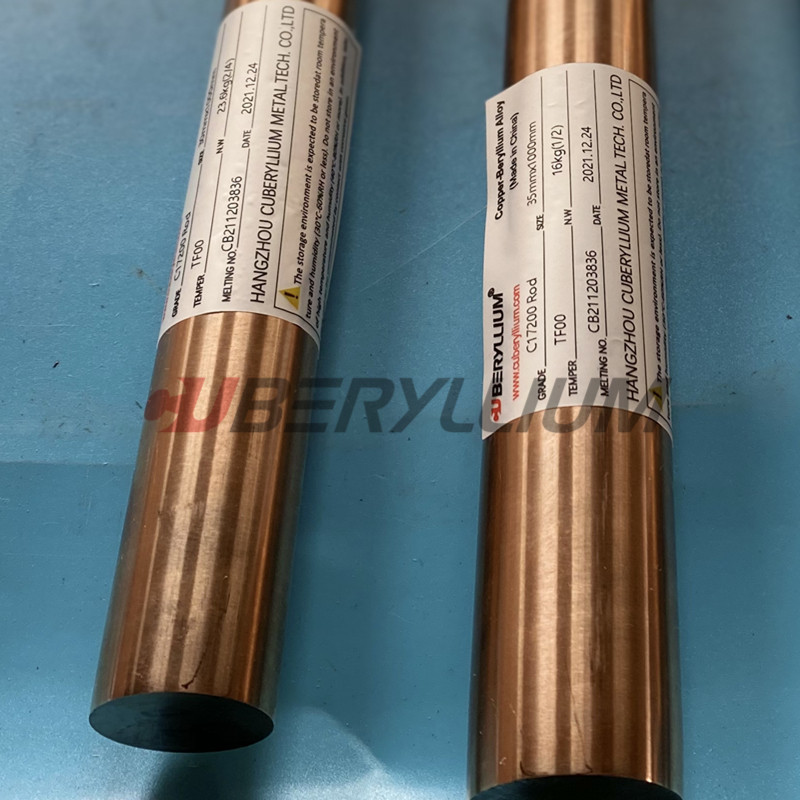

Product Photos:

C17200 Beryllium Copper Rod For Electrical Industry ASTM B196 0



CUBERYLLIUM®-172 is the most commonly specified copper beryllium ,In its age hardened condition, CUBERYLLIUM®-172 attains the highest strength and hardness of any commercial copper base alloy. The ultimate tensile strength can exceed 1360Mpa(200 ksi), while the hardness approaches Rockwell C45. Also, in the fully aged condition, the electrical conductivity is a minimum of 22% IACS (International Annealed Copper Standard). Alloy 172 also exhibits exceptional resistance to stress relaxation at elevated temperatures.



More Products:

More range of copper and copper alloys, in full series of shapes: Sheet, Bar, Tubes, Strips and Wire list as below:

C17000/170 (CuBe1.7, 2.1245, Alloy165)
C17200/172 (CuBe2, 2.1247, Alloy25)
C17300/173 (CuBe2Pb, 2.1248, AlloyM25)
C17500/175 (CuCo2Be, 2.1285, Alloy10)
C17510/1751 (CuNi2Be, 2.0850, Alloy3)



Available Sizes:
Custom Diameter & Sizes, Random Mill lengths



Available Products (forms):
Rod, Bar, Round bars, Flat bars, Square bars, Rectangular bars, Hexagon bars, Solid bars, Hollow bar, Pipes
Custom shapes are available upon request.



FAQ:

Q1:What’s the advantages the Beryllium Copper of CUBERYLLIUM®?

A1: 1: The Biggest Coil weight could be reach 1200kg/Coil

2:We are the only one who melting by Vacuum semi-Continuous Furnace.

3:Surface further polishing for top clients.

Q2: Why you melting by Vacuum semi-Continuous Furnace?
A2:Could be get the Cast ingot without gas,smaller segregation, Grain Refinement.

Q3:Could you produce Beryllium Copper strip by Mill Hardened process?
A3:Yes, we could produce AM(TM00), 1/2HM(TM01).HM(TM04) XHM(TM06) XHMS(TM08).,we are the only factory could do harden strip in China.

Q4: What's the payment terms?
A4: We accept T/T, L/C, Paypal etc. It can be negotiated when the amount is different..
