Beryllium Copper Alloys CuBe2 C17200 Plate 40mm X 140mm X 2000mml

  • Beryllium Copper Alloys CuBe2 C17200 Plate 40mm X 140mm X 2000mml
  • Beryllium Copper Alloys CuBe2 C17200 Plate 40mm X 140mm X 2000mml
Place of Origin China
Brand Name CUBERYLLIUM®
Certification ISO,SGS
Model Number C17200
Minimum Order Quantity 50
Price 30
Packaging Details in coil packed into wooden case
Delivery Time 10~15days
Payment Terms L/C, T/T, Western Union
Supply Ability 200T/Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name Beryllium Copper Plate CUBERYLLIUM® Grade CUBERYLLIUM® 172
Size 40mmt * 140mmw *2000mml Standard ASTM B194
Heat Treatment 3 Hr 315°C Or 2 Hr 315°C Safe Handling No Special Health Risk.
Machining Property Good Surface Bright/Polished
Flatness Good State TD02
Application For Oil Process Platform
High Light

Beryllium Copper Alloys C17200 Plate

,

CuBe2 Plate Beryllium Copper Alloys

,

CuBe2 Plate C17200 Beryllium Copper
Leave a Message
Product Description

Beryllium Copper Alloys C17200 Plate 40mmt * 140mmw *2000mml CuBe2 Plate

Product Normal Description:

Product Name: Beryllum copper plate

Grade: C17200 CuBe2

Standard: ASTM B194

Product Size: 40mmt x 140mmw x 2000mml

State: TD02(1/2H)

Typical Application: For oil process platform

Product Brand: CUBERYLLIUM®



Chemical Composition of Beryllium Copper Alloys C17200 Copper Alloy:

Product Grade: CUBERYLLIUM ®-172(UNS. C17200)

Numbering Be Co+Ni Cu Fe Pb Si Al
C17200 1.8-2.0 ≥0.2 Margin 0.15 - 0.15 0.15

Note: Copper plus additions equal 99.5% Minimum.



Typical Physical Properties of Beryllium Copper Alloys C17200 Copper Alloy:

Density (g/cm3): 8.36
Density before age hardening (g/cm3): 8.25
Elastic Modulus (kg/mm2 (103)): 13.4
Thermal Expansion Coefficient (20 °C to 200 °C m/m/°C): 17 x 10-6
Thermal Conductivity (cal/(cm-s-°C)): 0.25
Melting Range (°C): 870-980



Temper Designations of Beryllium Copper Alloys C17200 Copper Plate:

Mechanical and Electrical Properties of C17200 Sheet/Plate
CUBERYLLIUM ASTM Heat Treatment

Thickness

(mm)

Tensile Strength

(Mpa)

 Elongation Percent

HARDNESS

Rockwell B or C Scale

 Electrical Conductivity
(% IACS)
Designation Designation
A TB00   All Size 400~580 20~60 B45-85 15～19
H TD04 ＜10 600~880 8~20 B91-103 15～19
10~25 600~850 8~20 B90-102 15 ~ 19
25~50 580~820 8~20 B88-102 15 ~19
＞50 580~820 8~20 B88-102 15 ~19
AT TF00
3 hr 315℃
 		 All Size 1120~1358 3~10 C36-41 22 ~ 28
HT TH04 2 hr 315℃ ＜10 1200~1450 1~5 C38-45 22 ~ 28
10~25 1200~1500 1~5 C38-44 22 ~ 28
25~50 1200~1450 2~5 C37-43 22 ~ 28
＞50 1100~1350 2~5 C36-42 22 ~ 28

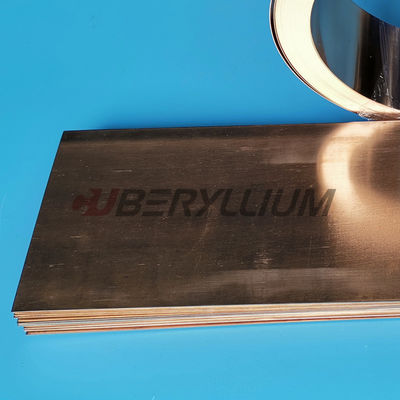

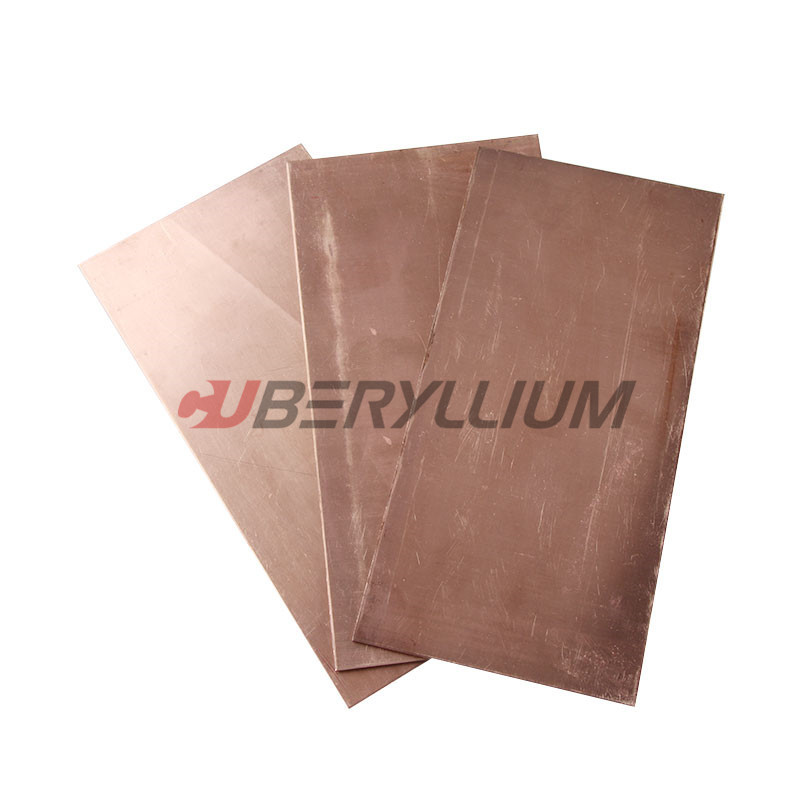

Product Photos:

Beryllium Copper Alloys CuBe2 C17200 Plate 40mm X 140mm X 2000mml 0



What is Beryllium Copper?
Beryllium copper (BeCu), also known as copper beryllium (CuBe), beryllium bronze and spring copper, is a copper alloy with 0.5—3% beryllium and sometimes other elements. It has superb metalworking, framing and machining properties. It has many specialized applications in electrical industry, industrail and aviation.

The small proportion of beryllium to copper makes a group of high copper amalgams with quality as high as compound steel. The first of the two families, C17200 and C17300, incorporates high quality with moderate conductivity, while the subsequent family, C17500 and C17510, offers high conductivity with moderate quality.



Where is Beryllium Copper used?
Beryllium copper is a non-ferrous composite utilized in springs, spring wire, load cells, and different parts that must hold their shape under rehashed anxiety. It has high electrical conductivity and is utilized in low-flow contacts for batteries and electrical connectors.

Other Uses:
Ultra-low temperature cryogenic equipment, such as dilution refrigerators, because of its mechanical strength and relatively high thermal conductivity in this temperature range
Servicing magnetic resonance imaging (MRI) machines, where high strength magnetic fields make use of ferrous tools dangerous, and where magnetic materials in the field can disturb the image.
It has important applications in oilfield tools, aerospace landing gears, robotic welding, and mold making applications.



Excellent Properties of CuBe2 Copper Alloys:

Beryllium Copper Alloys CuBe2 C17200 Plate 40mm X 140mm X 2000mml 1
