Strip Form Beryllium Copper 0.25mm X 15mm 260 - 310HV RWMA Class 4

Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xName | RWMA Class 4 In Form Strip | Max Coil Wt. | 2T |
---|---|---|---|
Thinnest Thick. | 0.25mm | Width | 15mm |
Standard | ASTM B194, SAE J463, J461 | Hardness | 260~310HV |
Safe Handling | No Special Health Risk. | Machining Property | Good |
Surface | Bright/Polished | Flatness | Good |
Temper | 1/2H | ||
High Light | RWMA Class 4 Beryllium Copper Alloy,Strip Form Beryllium Copper Alloy,Strip Form C17200 Beryllium Copper |
RWMA Class 4 In Form Strip Size 0.25mm x 15mm Hardness 260-310HV
Product Normal Description:
Product Name | Beryllium Copper Alloy |
Grade | RWMA Class 4 |
End Product Form | in form strip |
Standard | ASTM B194 |
State of product | 1/2H |
Specification |
Thickness: 0.25mm Width: 15mm |
Application | Electrical industry |
What are the Properties of Beryllium Copper?
Properties of BeCu:
Beryllium copper is a ductile, machinable, and weldable alloy.
BeCu has an excellent response to precipitation-hardening treatments.
BeCu has excellent thermal conductivity (62 Btu/ft-deg.F-H), and it is about 3-5 times more conducting than Tool steel.
It shows resistance to stress relaxation.
It is resistant to non-oxidizing acids such as hydrochloric acid (HCl) and carbonic acid (H2CO3), to plastic decomposition products, to abrasive wear, and galling.
It can be heat-treated for increased strength, durability, and electrical conductivity.
Beryllium copper displays the maximum strength (up to 1,400 MPa (200,000 psi)) of any copper-based alloy.
Chemical Composition of RWMA Class 4 Copper Alloy:
Numbering | Be | Co+Ni | Cu | Fe | Pb | Si | Al |
C17200 | 1.8-2.0 | ≥0.2 | Margin | 0.15 | - | 0.15 | 0.15 |
Temper Designations of RWMA Class 4 Beryllium Copper Strip:
Cuberyllium Designation | ASTM | Mechanical and Electrical Properties of RWMA Class 4 Copper Beryllium Strip | ||||||
Designation | Description | Tensile Strength (Mpa) |
Yield Strength 0.2% offset | Elongation Percent | HARDNESS (HV) |
HARDNESS Rockwell B or C Scale |
Electrical Conductivity (% IACS) |
|
A | TB00 | Solution Annealed | 410~530 | 190~380 | 35~60 | <130 | 45~78HRB | 15~19 |
1/2 H | TD02 | Half Hard | 580~690 | 510~660 | 12~30 | 180~220 | 88~96HRB | 15~19 |
H | TD04 | Hard | 680~830 | 620~800 | 2~18 | 220~240 | 96~102HRB | 15~19 |
HM | TM04 | Mill hardened |
930~1040 | 750~940 | 9~20 | 270~325 | 28~35HRC | 17~28 |
SHM | TM05 | 1030~1110 | 860~970 | 9~18 | 295~350 | 31~37HRC | 17~28 | |
XHM | TM06 | 1060~1210 | 930~1180 | 4~15 | 300~360 | 32~38HRC | 17~28 |
Standard Tolerance of RWMA Class 4 Beryllium Copper Strip:
Tolerance Sheet | ||
(MM) | ||
Strip Thickness |
CuBeryllium® Standard Tolerance |
|
over | incl. | plus or minus |
0.03 | 0.08 | 0.003 |
0.08 | 0.1 | 0.004 |
0.1 | 0.15 | 0.005 |
0.15 | 0.2 | 0.006 |
0.2 | 0.25 | 0.007 |
0.25 | 0.4 | 0.008 |
0.4 | 0.55 | 0.009 |
0.55 | 0.7 | 0.01 |
0.7 | 0.9 | 0.015 |
0.9 | 1.5 | 0.025 |
Note: Tolerances apply to rolled and mill hardened strip. |

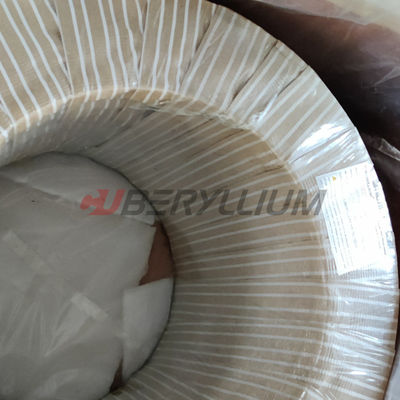

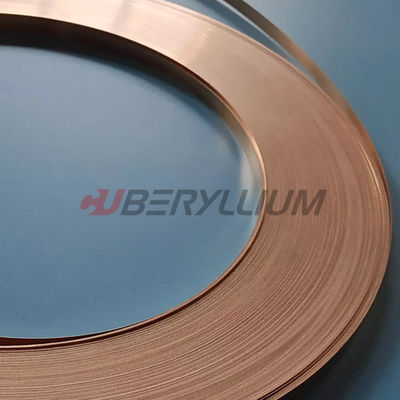

Product Photo of RWMA Class 4 Beryllium Copper Strips:
Key Technology of Beryllium Copper(Heat treatment)
Age Hardening
Age hardening significantly enhances the material’s strength. This reaction is generally carried out at temperatures between 260°C and 540°C depending on alloy and desired characteristics. This cycle causes the dissolved beryllium to precipitate as a beryllium rich (gamma) phase in the matrix and at the grain boundaries. It is the formation of this precipitate which causes the large increase in material strength. The level of mechanical properties attained is determined by the temperature and time at temperature. It should be recognized that beryllium copper has no room temperature aging characteristics.
