Capillary Tube CuBe2 1.0x0.8 For ZTE 5g Base Station DIN.2.1247

Place of Origin China
Certification ISO,SGS
Model Number CuBe2 (UNS.C17200)
Minimum Order Quantity 5
Price 300USD
Packaging Details packed into wooden case
Delivery Time 20~35days
Payment Terms L/C, T/T, Western Union
Supply Ability 200Kg/Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571


If you have any concern, we provide 24-hour online help.

Product Details
Name Beryllium Copper Alloy Grade UNS. C17200/CuBe2
Product Form Capillary Tube Specification According Customers' Requirement
Surface Bright/ Polished OD 0.2mm~8mm
Wall 0.015~0.5 Safe Handling No Special Health Risk
Machining Property Good Min Tolerance 0.005
High Light

DIN.2.1247 Capillary Tube


ZTE 5g Base Station Capillary Tube


1.0x0.8 Capillary Tube

Leave a Message
Product Description

Capillary Tube CuBe2 DIN.2.1247 Size:1.0*0.8 for ZTE 5g Base Station Equipment

Product Normal Description:

Product Name: Beryllium copper alloy

Grade: Cube2/C17200/DIN.2.1247

Standard: ASTM, AMS, SAE

Product Specification: we could provide beryllium copper alloy according customers' requirement.

Delivery Time: Usually within 10-15 days

Package: Packed into wooden case

Product Brand: CUBERYLLIUM®


CUBERYLLIUM® manufactures copper beryllium in several distinct compositions.

These fall into two categories: high strength beryllium copper alloys 172(UNS. C17200),173(UNS. C17300),170(UNS. C17000), and copper alloys selected for high conductivity 751(UNS. 17510),750(UNS. 17500),741(UNS. 17410).

We also Supply Master alloy : CuBeryllium-200, CuBeryllium-275, CuBeryllium-350 and Cuberyllium-400 to global factory.


Fetures of Beryllium copper alloy:

Beryllium copper alloy is an alloy with good mechanical, physical and chemical properties. After quenching, it has high strength, elasticity, wear resistance, fatigue resistance and heat resistance, with feature of high conductivity, thermal conductivity, cold resistance and non-magnetic, no sparks when hitting, easy to weld and excellent corrosion resistance in the atmosphere, fresh water and seawater.


End Produdct Standard of Cuberyllium Copper Alloy Cube2/C17200:

End Product Specification


AMS 4650, 4651, 4533, ASTM B194, B196, MILITARY MIL-C-21657, SAE J463, J461
Extrusions ASTM B570
Forgings AMS 4650, ASTM B570
Plate ASTM B194
Rod AMS 4650, 4534, 4533, 4651, ASTM B196, MILITARY MIL-C-21657, SAE J463, J461
Rod, Forging AMS 4650


Strip ASTM B194, SAE J463, J461
Tube, Seamless AMS 4535, ASTM B643


AMS 4725, ASTM B197, SAE J463, J461


Chemical Composition of CUBERYLLIUM ®-172 Beryllium Copper Alloys:

Product Grade: CUBERYLLIUM ®-172(UNS. C17200)

Beryllium(Be): 1.80-2.00%

Cobalt(Co) + Nickel(Ni): 0.20% Min

Cobalt(Co) + Nickel(Ni) + Iron(Fe): 0.60% Max

Lead: 0.02% Max

Copper(Cu): Balance

Note: Copper plus additions equal 99.5% Minimum.



It is a manufacturer of high-precision beryllium copper seamless capillary tubes and beryllium copper capillaries that can be supplied in batches. The outer diameter can reach 0.2~8mm, the wall thickness is 0.08~6mm, and the tolerance can be accurate to ± 0.005mm. The1*0.5, 2.0 * 1.6, 2.0 * 1.8, 3.5 * 3.2 3.95 * 3.65 and other high-precision beryllium copper seamless capillary tubes regularly supplied by the company have been widely used in 5g base station equipment such as Huawei, ZTE and Nokia.



Typical Physical Properties of CUBERYLLIUM ®-172(Beryllium Copper Strip C17200):

Density (g/cm3): 8.36
Density before age hardening (g/cm3): 8.25
Elastic Modulus (kg/mm2 (103)): 13.4
Thermal Expansion Coefficient (20 °C to 200 °C m/m/°C): 17 x 10-6
Thermal Conductivity (cal/(cm-s-°C)): 0.25
Melting Range (°C): 870-980



Temper Designations of CUBERYLLIUM ®-172: State Solution Annealed (TB00):


CuBeryllium Designation ASTM Mechanical and Electrical Properties of Copper Beryllium Strip
Designation Description Tensile Strength
Yield Strength 0.2% offset Elongation Percent HARDNESS
B or C Scale
Electrical Conductivity
(% IACS)
A TB00 Solution Annealed 410~530 190~380 35~60 <130 45~78HRB 15~19
1/2 H TD02 Half Hard 580~690 510~660 12~30 180~220 88~96HRB 15~19
H TD04 Hard 680~830 620~800 2~18 220~240 96~102HRB 15~19

Mill hardened
930~1040 750~940 9~20 270~325 28~35HRC 17~28
SHM TM05 1030~1110 860~970 9~18 295~350 31~37HRC 17~28
XHM TM06 1060~1210 930~1180 4~15 300~360 32~38HRC 17~28



The most important Technology of CUBERYLLIUM ®

A: Heat treatment

Heat treatment is the most important process for this alloy system. While all copper alloys are hardenable by cold working, beryllium copper is unique in being hardenable by a simple low temperature thermal treatment. It involves two basic steps. The first is called solution annealing and the second, precipitation or age hardening.

B: Solution Annealing

For the typical alloy CuBe1.9 (1.8- 2%) the alloy is heated between 720°C and 860°C. At this point the contained beryllium is essentially “dissolved” in the copper matrix (alpha phase). By rapidly quenching to room temperature this solid solution structure is retained. The material at this stage is very soft and ductile and can be readily cold worked by drawing, forming rolling, or cold heading. The solution annealing operation is part of the process at the mill and is not typically used by the customer. Temperature, time at temperature, quench rate, grain size, and hardness are all very critical parameters and are tightly controlled by ohmalloy.

C: Age Hardening

Age hardening significantly enhances the material’s strength. This reaction is generally carried out at temperatures between 260°C and 540°C depending on alloy and desired characteristics. This cycle causes the dissolved beryllium to precipitate as a beryllium rich (gamma) phase in the matrix and at the grain boundaries. It is the formation of this precipitate which causes the large increase in material strength. The level of mechanical properties attained is determined by the temperature and time at temperature. It should be recognized that beryllium copper has no room temperature aging characteristics.

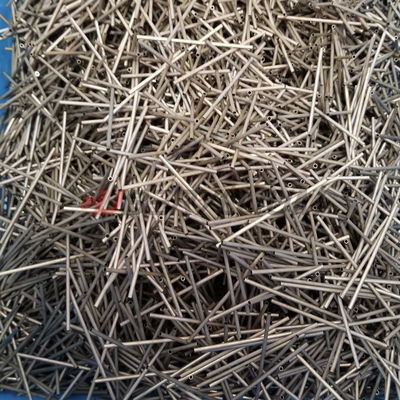

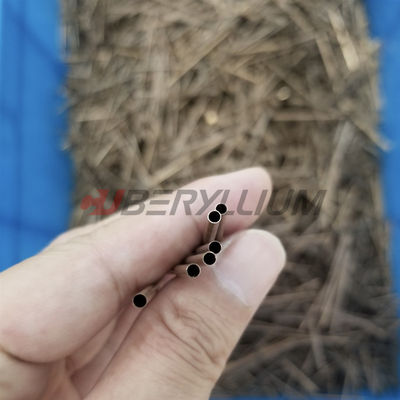

Product Photos:

Capillary Tube CuBe2 1.0x0.8 For ZTE 5g Base Station DIN.2.1247 0


Beryllium copper capillary tube characteristics:

1. Tensile strength, yield strength and hardness are moderate values, so it has good processability and can be used optionally

2. High annealing resistance and wear resistance, as well as good thermal conductivity and electrical conductivity

3. Excellent mechanical and physical properties, high annealing resistance and excellent wear resistance

4. High hardness and wear resistance, which can further prolong the service life

5. High annealing resistance, very high thermal conductivity and conductivity, excellent corrosion resistance at high temperature
