Beryllium Copper Billet C17200 Dia 100 - 200 Length 500 - 600 A TB00 State

Place of Origin China
Certification ISO,SGS
Model Number C17200
Minimum Order Quantity 50
Price 30USD
Packaging Details Pack in coil+waterproofing winding film+Drier+Wooden Case
Delivery Time 10~15days
Payment Terms L/C, T/T, Western Union
Supply Ability 200T/Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571


If you have any concern, we provide 24-hour online help.

Product Details
Name Beryllium Copper Billet CUBERYLLIUM® Grade CUBERYLLIUM® 172
Safe Handling No Special Health Risk. Machining Property Good
Flatness Good State A(TB00)
Dia. 100~200mm Length 500~600mm
Tensile Strength <590Mpa
High Light

Beryllium Copper Billet C17200


TB00 State Beryllium Copper Billet


TB00 State C17200 Beryllium Copper

Leave a Message
Product Description

Beryllium Copper Billet C17200 Billet Dia 100~200 Length 500~600 A(TB00) State

Product Normal Description:

Product Name: Beryllium copper Billet

Grade: C17200

Dia.: 100~200mm

Length:  500~600mm

State: A(TB00)

Product Brand: CUBERYLLIUM®


Introduction of C17200 (CuBe2) Beryllium copper alloy:

C17200(CuBe2) Beryllium copper alloy is the most regularly used Copper Beryllium compound and is remarkable for its most astounding quality and hardness contrasted with business copper amalgams.

C17200 combination contains appr. 2% of beryllium and accomplishes its definitive elasticity can surpass 200 ksi, while the hardness approaches Rockwell C45. In the interim, the electrical conductivity is at least 22% IACS in the completely matured condition. C17200 likewise displays uncommon protection from stress unwinding at raised temperatures.


International Specification of Beryllium Copper Billet C17200 Billet:

Rods/Bars/Tubes:  ASTM B196,251,463; SAE J461,463; AMS 4533,4534,4535; AMS 4650,4651; RWMA Class 4

European Standards: CuBe2, Alloy 25, QBe2, BrB2, DIN.2.1247, CW101C to EN



ASTM: American Society for Testing and Materials

SAE: Society of Automotive Engineers

AMS: Aerospace Materials Specification(Published by SEA)

RWMA: Resistance Welder Manufacturers' Association

Note: Unless otherwise specified, material will be produced by ASTM.


Beryllium Copper Billet C17200 Alloy Chemical Composition:

Grade Be Co+Ni Co+Ni+Fe Cu
C17200 1.80-2.00% 0.20% Min 0.60% Max Balance


Note: Copper plus additions equal 99.5% Minimum.


Typical Physical Properties of Beryllium Copper Billet C17200 Alloy:


Grade Density (g/cm3) Density before age hardening (g/cm3) Elastic Modulus (kg/mm2 (103)) Thermal Expansion Coefficient (20 °C to 200 °C m/m/°C) Thermal Conductivity (cal/(cm-s-°C)) Melting Range (°C)
C17200 8.36 8.25 13.40 17 x 10-6 0.25 870-980


Typical Application for Beryllium Copper Billet C17200 Alloy:
Electrical Industry: Electrical Switch and Relay Blades, Fuse Clips, Switch Parts, Relay parts, Connectors, Spring Connectors, Contact Bridges, Belleville Washers, Navigational Instruments, Clips
Fasteners: Washers, Fasteners, Lock Washers, Retaining Rings, Roll Pins, Screws, Bolts
Industrial: Pumps, Springs, Electrochemical, Shafts, Non-Sparking Safety Tools, Flexible Metal Hose, Housings for Instruments, Bearings, Bushings, Valve Seats, Valve Stems, Diaphragms, Springs, Welding Equipment, Rolling Mill Parts, Spline Shafts, Pump Parts, Valves, Bourdon Tubes, Wear Plates on Heavy Equipment, Bellows.

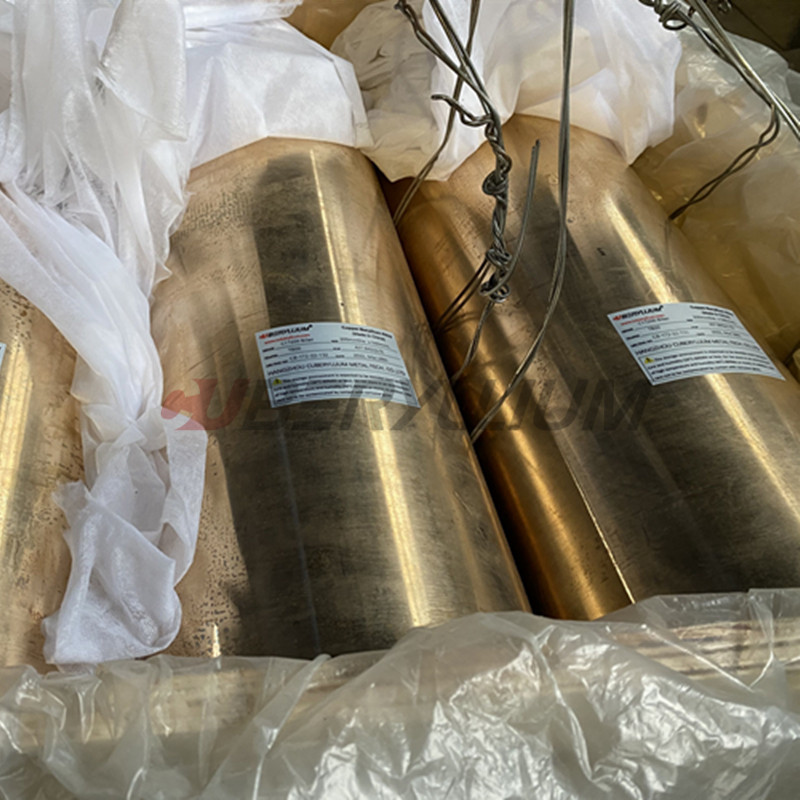

Product Photos:

Beryllium Copper Billet C17200 Dia 100 - 200 Length 500 - 600 A TB00 State 0




Q1: Could you produce Beryllium Copper strip by Mill Hardened process.
A1: Yes, we could produce AM(TM00), 1/2HM(TM01).HM(TM04) XHM(TM06) XHMS(TM08).,we are the only factory could do harden strip in China.

Q2: What’s the advantages the Beryllium Copper of CUBERYLLIUM®.
A2: 1: The Biggest Coil weight could be reach 1200kg/Coil

2: We are the only one who melting by Vacuum semi-Continuous Furnace.

3: Surface further polishing for top clients.

Q3: Why you melting by Vacuum semi-Continuous Furnace.
A3: Could be get the Cast ingot without gas,smaller segregation, Grain Refinement

Q4: What's the payment terms?
A4: We accept T/T, L/C, Paypal etc. It can be negotiated when the amount is different.
