C17200 CuBe2 Beryllium Copper Billet 200mm Dia 500mm L With Temper TB00

  • C17200 CuBe2 Beryllium Copper Billet 200mm Dia 500mm L With Temper TB00
  • C17200 CuBe2 Beryllium Copper Billet 200mm Dia 500mm L With Temper TB00
Place of Origin China
Brand Name CUBERYLLIUM®
Certification ISO,SGS
Model Number C17200(CuBe2)
Minimum Order Quantity 50
Price 30USD
Packaging Details Pack in coil+waterproofing winding film+Drier+Wooden Case
Delivery Time 10~15days
Payment Terms L/C, T/T, Western Union
Supply Ability 200T/Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name Beryllium Copper Billet CUBERYLLIUM® Grade CUBERYLLIUM® 172
Safe Handling No Special Health Risk. Machining Property Good
Flatness Good State A(TB00)
Dia. 200mm Length 500~600mm
Tensile Strength <590Mpa
High Light

C17200 Beryllium Copper Billet

,

200mm Dia C17200 Beryllium Copper

,

Temper TB00 C17200 Beryllium Copper
Leave a Message
Product Description

C17200(CuBe2) Beryllium Copper Billet 200mmdia x 500mmL With Temper TB00

Product Normal Description:

Product Name: Beryllium copper Billet

Grade: C17200 (CuBe2)

Product Size: 200mmdia. x 500mmL

State: A(TB00)

Product Brand: CUBERYLLIUM®



Introduction of C17200 (CuBe2) Beryllium copper alloy:

C17200(CuBe2) Beryllium copper alloy is the most regularly used Copper Beryllium compound and is remarkable for its most astounding quality and hardness contrasted with business copper amalgams.

C17200 combination contains appr. 2% of beryllium and accomplishes its definitive elasticity can surpass 200 ksi, while the hardness approaches Rockwell C45. In the interim, the electrical conductivity is at least 22% IACS in the completely matured condition. C17200 likewise displays uncommon protection from stress unwinding at raised temperatures.



International Specification of C17200(CuBe2) Beryllium Copper Billet:

Rods/Bars/Tubes:  ASTM B196,251,463; SAE J461,463; AMS 4533,4534,4535; AMS 4650,4651; RWMA Class 4

European Standards: CuBe2, Alloy 25, QBe2, BrB2, DIN.2.1247, CW101C to EN



Note:

ASTM: American Society for Testing and Materials

SAE: Society of Automotive Engineers

AMS: Aerospace Materials Specification(Published by SEA)

RWMA: Resistance Welder Manufacturers' Association

Note: Unless otherwise specified, material will be produced by ASTM.



C17200(CuBe2) Beryllium Copper Alloy Chemical Composition:

Grade Be Co+Ni Co+Ni+Fe Cu
C17200 1.80-2.00% 0.20% Min 0.60% Max Balance



Note: Copper plus additions equal 99.5% Minimum.



Typical Physical Properties of C17200(CuBe2) Beryllium Copper Alloy:



Grade Density (g/cm3) Density before age hardening (g/cm3) Elastic Modulus (kg/mm2 (103)) Thermal Expansion Coefficient (20 °C to 200 °C m/m/°C) Thermal Conductivity (cal/(cm-s-°C)) Melting Range (°C)
C17200 8.36 8.25 13.40 17 x 10-6 0.25 870-980



Fasterners Applications of C17200(CuBe2) Beryllium Copper Alloy:

Product Category Product Reason Category Reason
Fasteners Roll Pins Corrosion Resistance Corrosion Resistance
Roll Pins Mechanical Properties Fatigue Resistance
Roll Pins Mechanical Properties Very High Strength
Screws Corrosion Resistance Corrosion Resistance
Screws Creep Properties Creep Resistant
Screws Mechanical Properties Very High Strength
Screws Softening Resistance Resistance to Thermal Softening
Washers Corrosion Resistance Corrosion Resistance
Washers Mechanical Properties Very High Strength

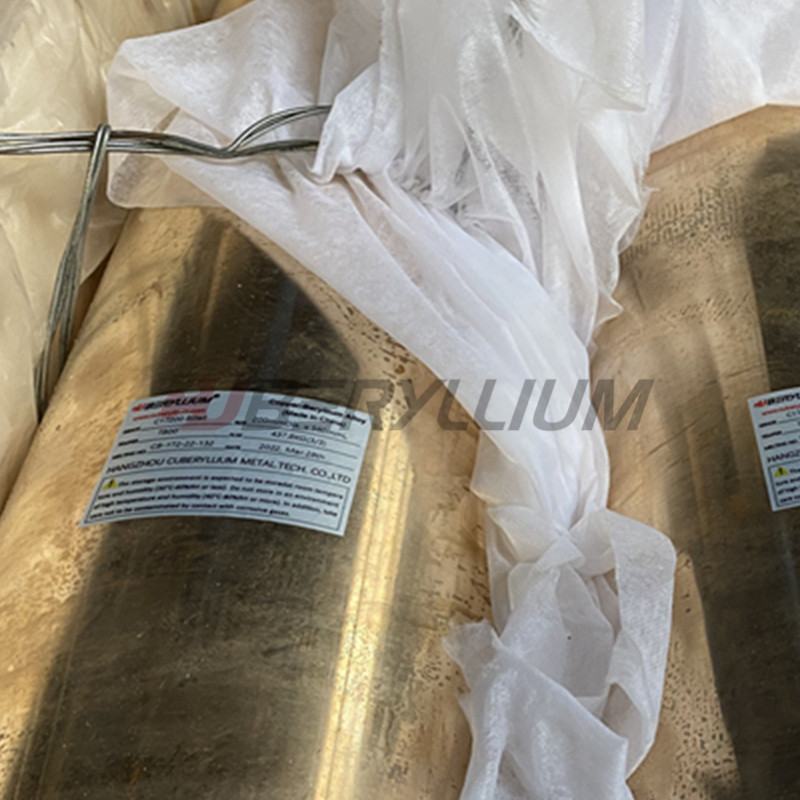

Product Photos:

C17200 CuBe2 Beryllium Copper Billet 200mm Dia 500mm L With Temper TB00 0





FAQ:

Q1: Could you produce Beryllium Copper strip by Mill Hardened process.
A1: Yes, we could produce AM(TM00), 1/2HM(TM01).HM(TM04) XHM(TM06) XHMS(TM08).,we are the only factory could do harden strip in China.

Q2: What’s the advantages the Beryllium Copper of CUBERYLLIUM®.
A2: 1: The Biggest Coil weight could be reach 1200kg/Coil

2: We are the only one who melting by Vacuum semi-Continuous Furnace.

3: Surface further polishing for top clients.

Q3: Why you melting by Vacuum semi-Continuous Furnace.
A3: Could be get the Cast ingot without gas,smaller segregation, Grain Refinement

Q4: What's the payment terms?
A4: We accept T/T, L/C, Paypal etc. It can be negotiated when the amount is different.
