Bright Surface C17200 Beryllium Copper Rod 25mmx1m ASTM B196 Grade

  • Bright Surface C17200 Beryllium Copper Rod 25mmx1m ASTM B196 Grade
  • Bright Surface C17200 Beryllium Copper Rod 25mmx1m ASTM B196 Grade
Place of Origin China
Brand Name CUBERYLLIUM®
Certification ISO,SGS
Model Number ASTM B196 Grade( C17200)
Minimum Order Quantity 50
Price 30USD
Packaging Details Pack in coil+waterproofing winding film+Drier+Wooden Case
Delivery Time 10~15days
Payment Terms L/C, T/T, Western Union
Supply Ability 200T/Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name Beryllium Copper Rod CUBERYLLIUM® Grade CUBERYLLIUM® 172
Standard ASTM B196 Safe Handling No Special Health Risk.
Machining Property Good Surface Bright/Polished
Flatness Good State A(TB00),1/2H (TD02), H(TD04),AT(TF00),HT(TH04)
Size Custom Diameter, Random Mill Lengths Application For Low Maintenance Bearings And Bushings
Elestic Modulus 131Gpa Melting Point(solidus) 870℃
Electrical Conductivity 22-28% IACS
High Light

Bright C17200 Beryllium Copper Rod

,

ASTM B196 Grade Beryllium Copper Rod

,

25mmx1m C17200 Beryllium Copper
Leave a Message
Product Description

ASTM B196 Grade( C17200) Beryllium Copper Rod 25mmx1m With Bright Surface

Product Normal Description:

Product Name: Beryllium copper rod

Grade: ASTM B 196 (C17200)

Standard:  ASTM B196,251,463; SAE J461,463; AMS 4533,4534,4535; AMS 4650,4651; RWMA Class 4

Product Size: 25mmx1m

State: A(TB00),1/2H (TD02), H(TD04),AT(TF00),HT(TH04)

Typical Application: used for low maintenance bearings and bushings

Product Brand: CUBERYLLIUM®



International Specification of C17200 Beryllium Copper Rods:

Rods/Bars/Tubes:  ASTM B196,251,463; SAE J461,463; AMS 4533,4534,4535; AMS 4650,4651; RWMA Class 4

European Standards: CuBe2, Alloy 25, QBe2, BrB2, DIN.2.1247, CW101C to EN



Note:

ASTM: American Society for Testing and Materials

SAE: Society of Automotive Engineers

AMS: Aerospace Materials Specification(Published by SEA)

RWMA: Resistance Welder Manufacturers' Association

Note: Unless otherwise specified, material will be produced by ASTM.



ASTM B-196(C17200) Beryllium Copper Alloy Chemical Composition:

Grade Be Co+Ni Co+Ni+Fe Cu
C17200 1.80-2.00% 0.20% Min 0.60% Max Balance



Note: Copper plus additions equal 99.5% Minimum.



Typical Physical Properties of ASTM B-196(C17200) Beryllium Copper Alloy:



Grade Density (g/cm3) Density before age hardening (g/cm3) Elastic Modulus (kg/mm2 (103)) Thermal Expansion Coefficient (20 °C to 200 °C m/m/°C) Thermal Conductivity (cal/(cm-s-°C)) Melting Range (°C)
C17200 8.36 8.25 13.40 17 x 10-6 0.25 870-980



Mechanical and Electrical Properties of ASTM B-196(C17200) Beryllium Copper Rod:

Temper(*) Diameter Heat Treatment Tensile Strength ksi

Elogation Percent

(Min)

Electrical Conductivity Percent

IACS

 Hardness Rockwell B or C Scale
A(TB00) ALL SIZE / 400~600 30 15~19 B45~85
1/2H(TB04) 5~40 / 550~700 10 15~19 ＞B78

H(TD04)
 		 5~10 / 660~900 5 15~19
＞B88

＞10~25 / 620~860 5 15~19
＞25 / 590~830 5 15~19
AT(TF00) ALL SIZE 3 hr 320°C 1100~1380 2 22~28 C35~42
HT(TH04) 5~10 2 hr 320°C 1200~1550 1 22~28 C37~45
＞10~25 1150~1520 1 22~28 C36~44
＞25 1120~1480 1 22~28 C35~44






Fasterners Applications of ASTM B-196(C17200) Beryllium Copper Alloy:

Product Category Product Reason Category Reason
Fasteners Roll Pins Corrosion Resistance Corrosion Resistance
Roll Pins Mechanical Properties Fatigue Resistance
Roll Pins Mechanical Properties Very High Strength
Screws Corrosion Resistance Corrosion Resistance
Screws Creep Properties Creep Resistant
Screws Mechanical Properties Very High Strength
Screws Softening Resistance Resistance to Thermal Softening
Washers Corrosion Resistance Corrosion Resistance
Washers Mechanical Properties Very High Strength

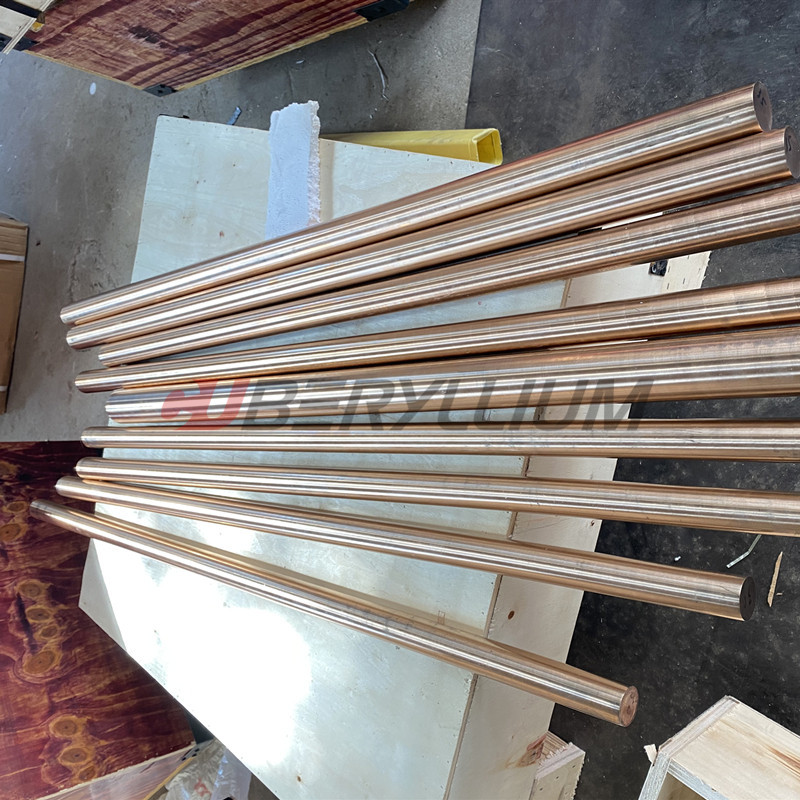

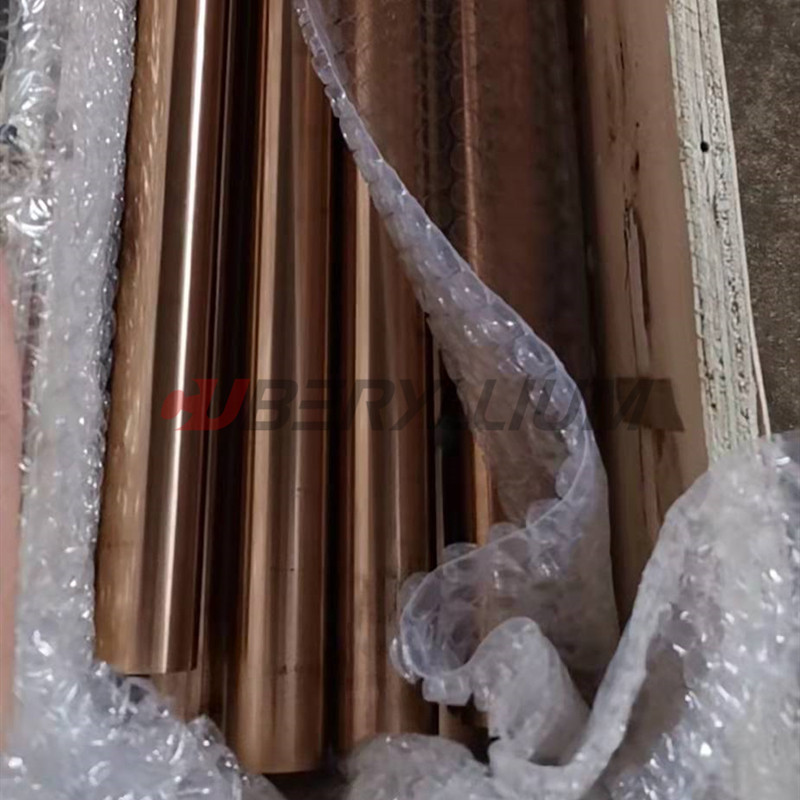

Product Photos:

Bright Surface C17200 Beryllium Copper Rod 25mmx1m ASTM B196 Grade 0





FAQ:

Q1: Could you produce Beryllium Copper strip by Mill Hardened process.
A1: Yes, we could produce AM(TM00), 1/2HM(TM01).HM(TM04) XHM(TM06) XHMS(TM08).,we are the only factory could do harden strip in China.

Q2: What’s the advantages the Beryllium Copper of CUBERYLLIUM®.
A2: 1: The Biggest Coil weight could be reach 1200kg/Coil

2: We are the only one who melting by Vacuum semi-Continuous Furnace.

3: Surface further polishing for top clients.

Q3: Why you melting by Vacuum semi-Continuous Furnace.
A3: Could be get the Cast ingot without gas,smaller segregation, Grain Refinement

Q4: What's the payment terms?
A4: We accept T/T, L/C, Paypal etc. It can be negotiated when the amount is different.
