Beryllium Copper Rod C17200 (Alloy 25) Length 1000mm ASTM B196

  • Beryllium Copper Rod C17200 (Alloy 25) Length 1000mm ASTM B196
  • Beryllium Copper Rod C17200 (Alloy 25) Length 1000mm ASTM B196
Place of Origin China
Brand Name CUBERYLLIUM®
Certification ISO,SGS
Model Number C17200 (Alloy 25)
Minimum Order Quantity 50
Price 43USD
Packaging Details Pack in coil+waterproofing winding film+Drier+Wooden Case
Delivery Time 10~15days
Payment Terms L/C, T/T, Western Union
Supply Ability 200T/Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name Beryllium Copper Rod C17200 (Alloy 25) CUBERYLLIUM® Grade CUBERYLLIUM® 172
Quality ASTM B196 Length 1000mm
Dia. 6.5mm, 16mm, 18mm, 19mm, 20mm, 25mm Surface Bright/Polished
Flatness Good State A(TB00),1/2H (TD02), H(TD04),AT(TF00),HT(TH04)
Size Custom Diameter, Random Mill Lengths Application For Low Maintenance Bearings And Bushings
Elestic Modulus 131Gpa Melting Point(solidus) 870℃
Electrical Conductivity 22-28% IACS
High Light

Alloy 25 C17200 Beryllium Copper Rod

,

1000mm C17200 Beryllium Copper Rod

,

ASTM B196 Beryllium Copper Rod
Leave a Message
Product Description

Beryllium Copper Rod C17200 (Alloy 25) Length 1000mm By Quality ASTM B196

Product Normal Description:

Product Name: Beryllium copper rod

Grade: C17200 (Alloy 25)

Standard:  ASTM B196

State: A(TB00),1/2H (TD02), H(TD04),AT(TF00),HT(TH04)

Typical Application: used for low maintenance bearings and bushings

Product Brand: CUBERYLLIUM®



Beryllium Copper Rods
Description Size(mm)

C17200 Beryllium Copper Rods

Alloy 25

ASTM B196 Quality

 Dia. Length
6.5 1000
16 1000
18 1000
19 1000
20 1000
25 1000



Chemical Composition of CuBe2 (UNS.C17200) Beryllium Copper Alloys (CUBERYLLIUM ®-172):

Product Grade: CUBERYLLIUM ®-172(UNS. C17200)

Beryllium(Be): 1.80-2.00%

Cobalt(Co) + Nickel(Ni): 0.20% Min

Cobalt(Co) + Nickel(Ni) + Iron(Fe): 0.60% Max

Lead: 0.02% Max

Copper(Cu): Balance

Note: Copper plus additions equal 99.5% Minimum.



Beryllium copper alloy C17200 is a material with good corrosion resistance, rich in ductility before age hardening treatment, and increased in fatigue resistance and conductivity after age hardening treatment.



Typical Physical Properties of CuBe2 (UNS.C17200) Beryllium Copper Alloys (CUBERYLLIUM ®-172):

Density (g/cm3): 8.36
Density before age hardening (g/cm3): 8.25
Elastic Modulus (kg/mm2 (103)): 13.4
Thermal Expansion Coefficient (20 °C to 200 °C m/m/°C): 17 x 10-6
Thermal Conductivity (cal/(cm-s-°C)): 0.25
Melting Range (°C): 870-980



Mechanical and Electrical Properties of CuBe2 (UNS.C17200) Beryllium Copper Rod:

Temper(*) Diameter Heat Treatment Tensile Strength ksi

Elogation Percent

(Min)

Electrical Conductivity Percent

IACS

 Hardness Rockwell B or C Scale
A(TB00) ALL SIZE / 400~600 30 15~19 B45~85
1/2H(TB04) 5~40 / 550~700 10 15~19 ＞B78

H(TD04)
 		 5~10 / 660~900 5 15~19
＞B88

＞10~25 / 620~860 5 15~19
＞25 / 590~830 5 15~19
AT(TF00) ALL SIZE 3 hr 320°C 1100~1380 2 22~28 C35~42
HT(TH04) 5~10 2 hr 320°C 1200~1550 1 22~28 C37~45
＞10~25 1150~1520 1 22~28 C36~44
＞25 1120~1480 1 22~28 C35~44




Fasterners Applications of CuBe2 (UNS.C17200) Beryllium Copper Alloy (CUBERYLLIUM ®-172):

Product Category Product Reason Category Reason
Fasteners Roll Pins Corrosion Resistance Corrosion Resistance
Roll Pins Mechanical Properties Fatigue Resistance
Roll Pins Mechanical Properties Very High Strength
Screws Corrosion Resistance Corrosion Resistance
Screws Creep Properties Creep Resistant
Screws Mechanical Properties Very High Strength
Screws Softening Resistance Resistance to Thermal Softening
Washers Corrosion Resistance Corrosion Resistance
Washers Mechanical Properties Very High Strength

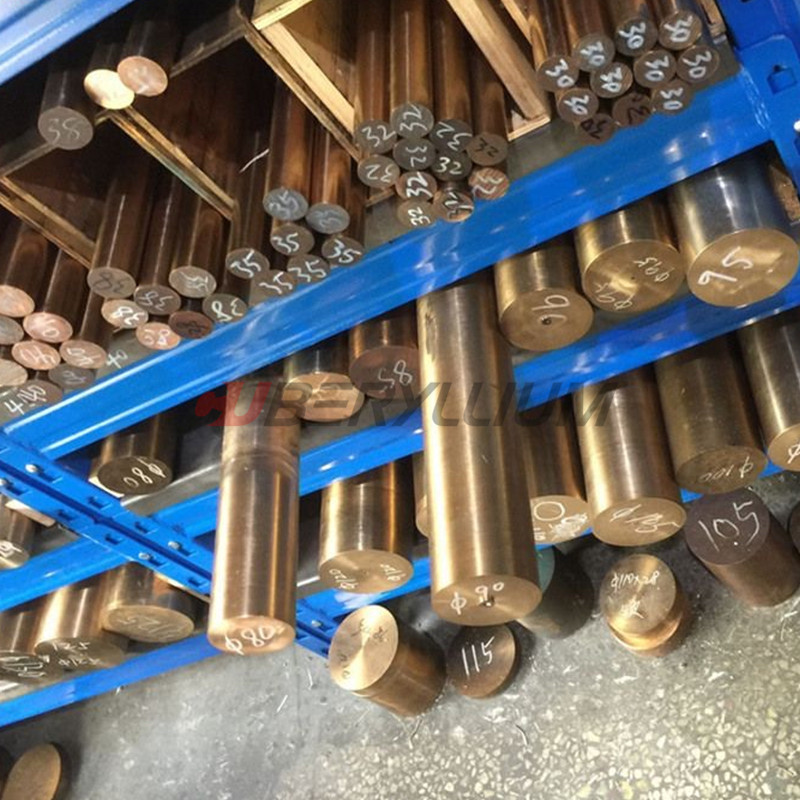

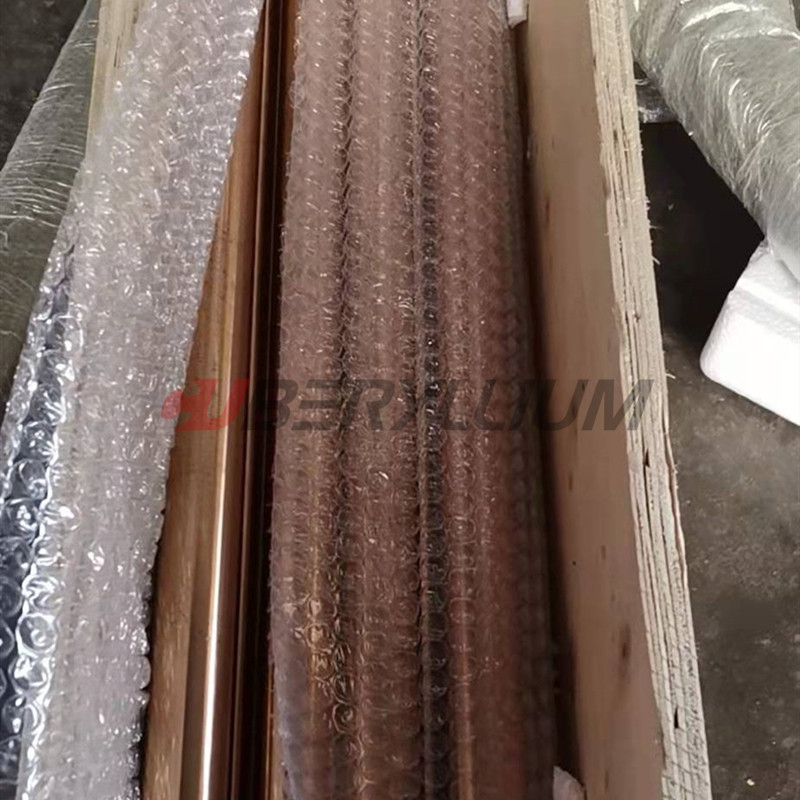

Product Photos:

Beryllium Copper Rod C17200 (Alloy 25) Length 1000mm ASTM B196 0



FAQ:

Q1: Could you produce Beryllium Copper strip by Mill Hardened process.
A1: Yes, we could produce AM(TM00), 1/2HM(TM01).HM(TM04) XHM(TM06) XHMS(TM08).,we are the only factory could do harden strip in China.

Q2: What’s the advantages the Beryllium Copper of CUBERYLLIUM®.
A2: 1: The Biggest Coil weight could be reach 1200kg/Coil

2: We are the only one who melting by Vacuum semi-Continuous Furnace.

3: Surface further polishing for top clients.

Q3: Why you melting by Vacuum semi-Continuous Furnace.
A3: Could be get the Cast ingot without gas,smaller segregation, Grain Refinement

Q4: What's the payment terms?
A4: We accept T/T, L/C, Paypal etc. It can be negotiated when the amount is different.
