Polished CuBe2 Strips On Coil 0.10x8mm 0.35x8mm MTC 3.1 Certificate

  • Polished CuBe2 Strips On Coil 0.10x8mm 0.35x8mm MTC 3.1 Certificate
  • Polished CuBe2 Strips On Coil 0.10x8mm 0.35x8mm MTC 3.1 Certificate
Place of Origin China
Brand Name CUBERYLLIUM®
Certification ISO,SGS
Model Number CuBe2
Minimum Order Quantity 50
Price 30USD
Packaging Details Coil+plywood case
Delivery Time 10~15days
Payment Terms L/C, T/T, Western Union
Supply Ability 200T/Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name CuBe2 Strips Max Coil Wt. 2T
Thinnest Thick. 0.1, 0.35mm Width 8mm
Standard ASTM B194, SAE J463, J461 Hardness 300-360HV
Safe Handling No Special Health Risk. Machining Property Good
Surface Bright/Polished Flatness Good
State Half Hard Rolled
High Light

8mm Width Beryllium Copper Strips

,

MTC 3.1 C17200 Beryllium Copper

,

Polished Beryllium Copper Strips
Leave a Message
Product Description

CuBe2 Strips on Coil 0.10x8mm, 0.35x8mm With MTC 3.1 Certificate

Product Normal Description:

Product Name: Strips

Quality: CuBe2, DIN. 2.1247

Certificate: MTC 3.1

Product Specification: 0.1x8mm, 0.35mmx8mm

State: Half hard rolled

Product Brand: CUBERYLLIUM®



Chemical Composition of CuBe2 Alloys:

Numbering Be Co+Ni Cu Fe Pb Si Al
C17200 1.8-2.0 ≥0.2 Margin 0.15 - 0.15 0.15



Temper Designations of CuBe2 Strip:

Cuberyllium Designation ASTM Mechanical and Electrical Properties of Copper Beryllium Strip
Designation Description Tensile Strength
(Mpa)		 Yield Strength 0.2% offset Elongation Percent HARDNESS
(HV)		 HARDNESS
Rockwell
B or C Scale		 Electrical Conductivity
(% IACS)
A TB00 Solution Annealed 410～530 190～380 35~60 <130 45~78HRB 15～19
1/2 H TD02 Half Hard 580～690 510～660 12~30 180~220 88~96HRB 15～19
H TD04 Hard 680~830 620~800 2~18 220~240 96~102HRB 15～19
HM TM04

Mill hardened		 930～1040 750～940 9～20 270～325 28～35HRC 17～28
SHM TM05 1030～1110 860～970 9～18 295～350 31～37HRC 17～28
XHM TM06 1060～1210 930～1180 4～15 300～360 32～38HRC 17～28



Tipical Uses of CuBe2 Alloys:

Oil & Gas - Instrument Housings, Flex Shafts, MWD & LWD Components, Bearings, Bushings, Valve Components, Pump Shafts

Automotive - Plastic Molds, Electronic Components, RWMA Tooling

Electrical - Spring Connectors, Current Carring Navigational Instruments, Contact Bridges, Clips, Relay Parts, Electrical Switch and Relay Blades

Aerospace - Landing Gear Bushings, Aircraft Components, Cryogenics

Fasteners - Bolts, Screws, Retaining Rings, Lock Washers, Belleville Washers, Roll Pins, Fasteners, Washers

Other Industrial - Flexible Metal Hose, Non Sparking Safety Tools, Shafts, Pump Parts, Rolling Mill Parts, Bearings, Bushings, Valve Seats, Valve Stems, Wear Plates on Heavy Equipment, Springs, Electrochemical



Specifications of CuBe2 Alloys:

Strip ASTM B194
Bar ASTM B196
Wire ASTM B197
Plate ASTM B194
Sheet ASTM B194
Tube ASTM B643

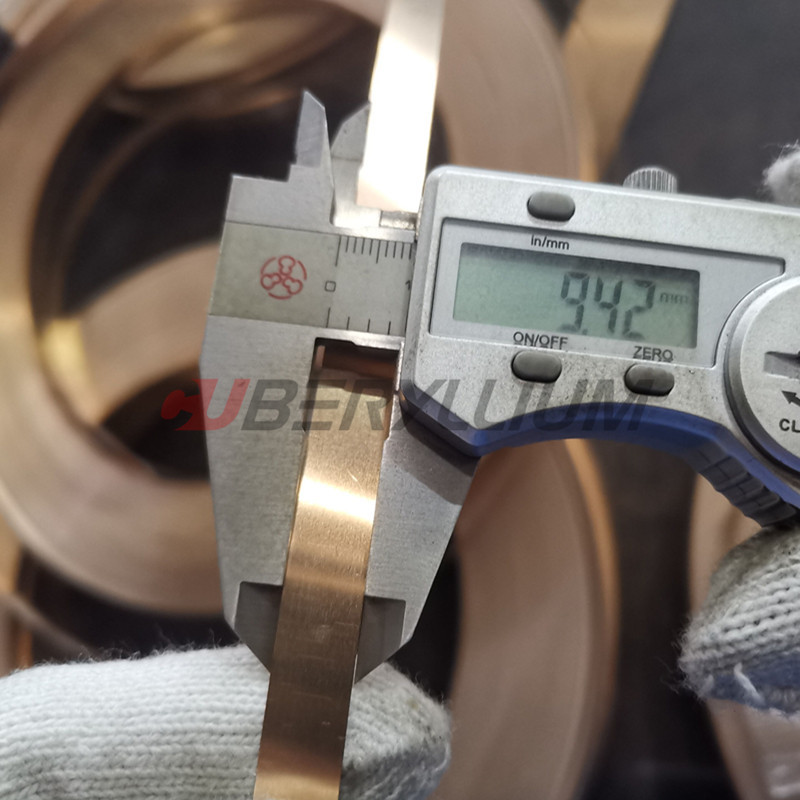

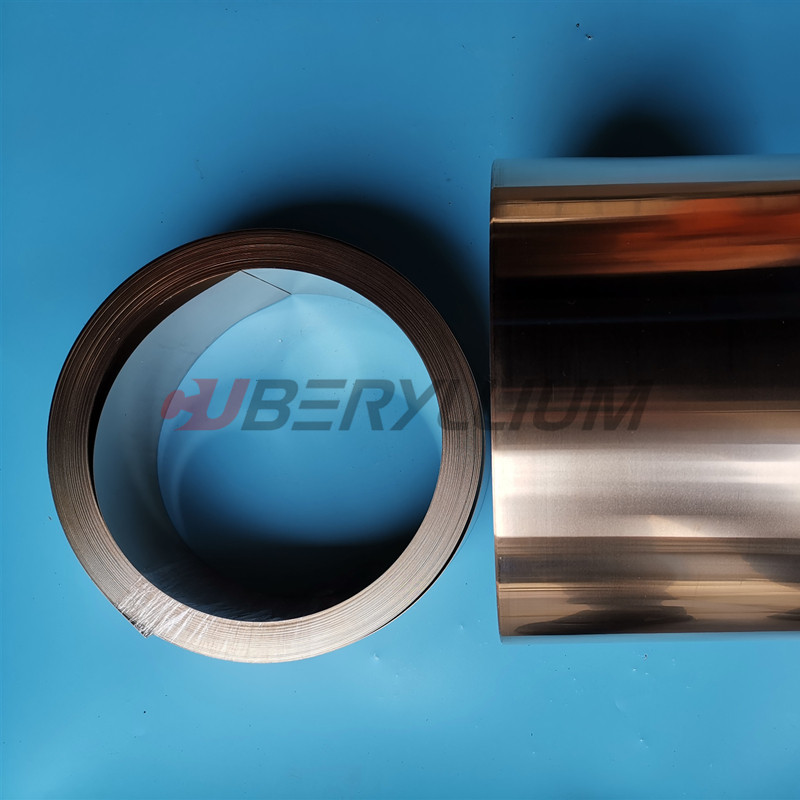

Product Photo of CuBe2 Strips:

Polished CuBe2 Strips On Coil 0.10x8mm 0.35x8mm MTC 3.1 Certificate 0



Excellent Properties of CuBe2 Alloys:

Polished CuBe2 Strips On Coil 0.10x8mm 0.35x8mm MTC 3.1 Certificate 1

Key Technology of Beryllium Copper(Heat treatment)

Age Hardening

Age hardening significantly enhances the material’s strength. This reaction is generally carried out at temperatures between 260°C and 540°C depending on alloy and desired characteristics. This cycle causes the dissolved beryllium to precipitate as a beryllium rich (gamma) phase in the matrix and at the grain boundaries. It is the formation of this precipitate which causes the large increase in material strength. The level of mechanical properties attained is determined by the temperature and time at temperature. It should be recognized that beryllium copper has no room temperature aging characteristics.
