0.35mm CuBe2 Beryllium Copper Strips On Coil Half Hard Rolled State

  • 0.35mm CuBe2 Beryllium Copper Strips On Coil Half Hard Rolled State
  • 0.35mm CuBe2 Beryllium Copper Strips On Coil Half Hard Rolled State
Place of Origin China
Brand Name CUBERYLLIUM®
Certification ISO,SGS
Model Number CuBe2
Minimum Order Quantity 50
Price 30USD
Packaging Details Coil+plywood case
Delivery Time 10~15days
Payment Terms L/C, T/T, Western Union
Supply Ability 200T/Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name CuBe2 Strips Max Coil Wt. 2T
Thinnest Thick. 0,35mm Width 8mm
Standard ASTM B194, SAE J463, J461 Hardness 300-360HV
Safe Handling No Special Health Risk. Machining Property Good
Surface Bright/Polished Flatness Good
State Half Hard Rolled
High Light

0.35mm Beryllium Copper Strips

,

Half Hard Rolled Beryllium Copper Strips

,

CuBe2 Rolled Strips
Leave a Message
Product Description

CuBe2 Strips On Coil 0,35x8mm With High Strength Half Hard Rolled State

Product Normal Description:

Product Name: Strips

Grade: CuBe2

Standard: ASTM B194, SAE J463, J461

Product Specification: 0,35mmx8mm

State: Half hard rolled

Product Brand: CUBERYLLIUM®



Chemical Composition of CuBe2 Alloys:

Beryllium(Be): 1.80-2.00%

Cobalt(Co) + Nickel(Ni): 0.20% Min

Cobalt(Co) + Nickel(Ni) + Iron(Fe): 0.60% Max

Lead: 0.02% Max

Copper(Cu): Balance

Note: Copper plus additions equal 99.5% Minimum.



Temper Designations of CuBe2 Strip:

Cuberyllium Designation ASTM Mechanical and Electrical Properties of Copper Beryllium Strip
Designation Description Tensile Strength
(Mpa)		 Yield Strength 0.2% offset Elongation Percent HARDNESS
(HV)		 HARDNESS
Rockwell
B or C Scale		 Electrical Conductivity
(% IACS)
A TB00 Solution Annealed 410～530 190～380 35~60 <130 45~78HRB 15～19
1/2 H TD02 Half Hard 580～690 510～660 12~30 180~220 88~96HRB 15～19
H TD04 Hard 680~830 620~800 2~18 220~240 96~102HRB 15～19
HM TM04

Mill hardened		 930～1040 750～940 9～20 270～325 28～35HRC 17～28
SHM TM05 1030～1110 860～970 9～18 295～350 31～37HRC 17～28
XHM TM06 1060～1210 930～1180 4～15 300～360 32～38HRC 17～28



Tipical Uses of CuBe2 Alloys:

Oil & Gas - Instrument Housings, Flex Shafts, MWD & LWD Components, Bearings, Bushings, Valve Components, Pump Shafts

Automotive - Plastic Molds, Electronic Components, RWMA Tooling

Electrical - Spring Connectors, Current Carring Navigational Instruments, Contact Bridges, Clips, Relay Parts, Electrical Switch and Relay Blades

Aerospace - Landing Gear Bushings, Aircraft Components, Cryogenics

Fasteners - Bolts, Screws, Retaining Rings, Lock Washers, Belleville Washers, Roll Pins, Fasteners, Washers

Other Industrial - Flexible Metal Hose, Non Sparking Safety Tools, Shafts, Pump Parts, Rolling Mill Parts, Bearings, Bushings, Valve Seats, Valve Stems, Wear Plates on Heavy Equipment, Springs, Electrochemical



Specifications of CuBe2 Alloys:

Strip ASTM B194
Bar ASTM B196
Wire ASTM B197
Plate ASTM B194
Sheet ASTM B194
Tube ASTM B643

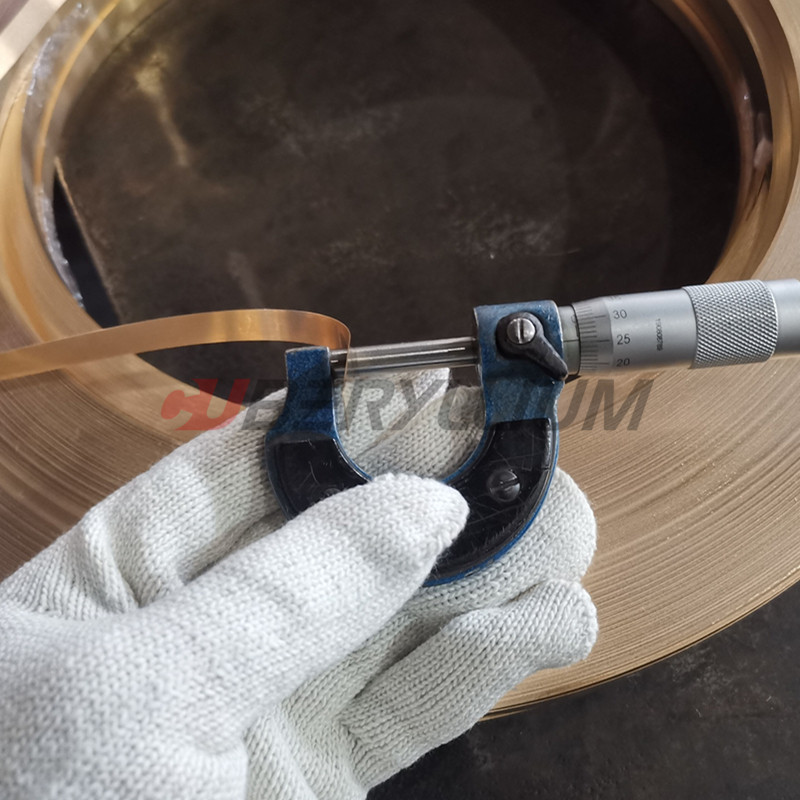

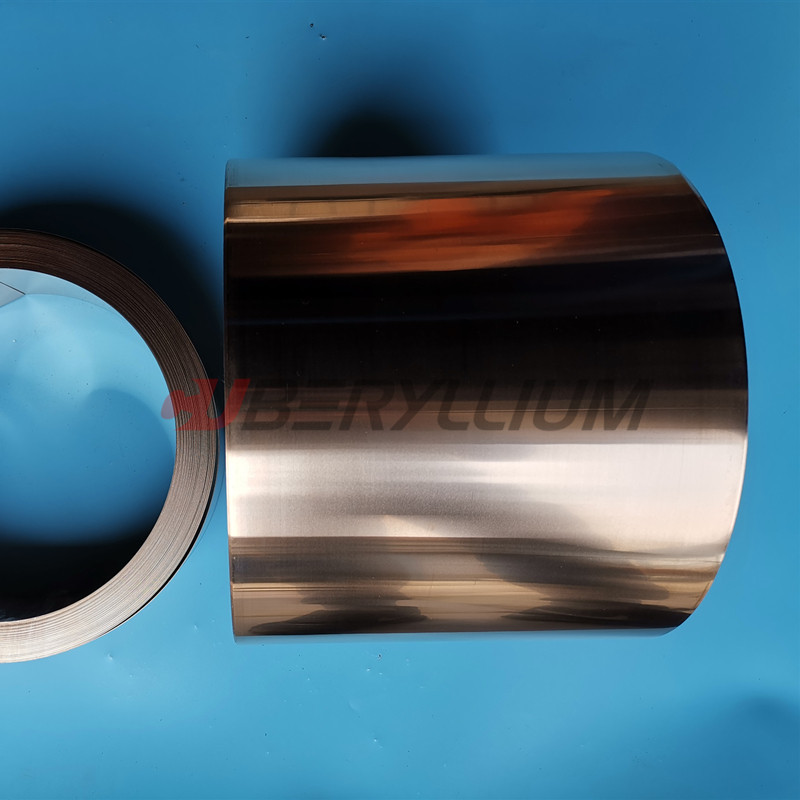

Product Photo of CuBe2 Strips:

0.35mm CuBe2 Beryllium Copper Strips On Coil Half Hard Rolled State 0



Production Technology Advantage

  • All products of the company are made of high-quality new materials, advanced production equipment, and vacuum melting furnaces. The metal materials are smelted under vacuum conditions, which can achieve the effect of high-temperature smelting and avoid oxidation of metal and oxygen in the air. Function, quality is more quaranteed;
  • 20MN double-action reverse extruder;
  • Equipped with comprehensive testing equipment such as universal testing machine, direct reading spectrometer, etc., to strictly control the quality and inspect layer by layer.

Why Choose Us?

1, We are a professional beryllium copper alloy manufacturer, with more than 20 years' experience.

2, With various types of beryllium copper alloy, such as beryllium rods, bars, strips, wires and so on.

3, Good quality.

4, Competitive offers.

5, After-sale service.
