TD02 UNS C17200 Beryllium Copper Strip BeCu 0.2x200mm

UNS C17200 Beryllium Copper Strip BeCu 0.2x200mm TD02 for EMI Finger strip

Product Normal Description:

Product Name: Coil copper

Grade: Cube2/C17200

Standard: ASTM B194, SAE J463, J461

Product Specification: 0.8-2mm Thickness

State: 1/2 H(TD02), H(TD04), A(TB00)

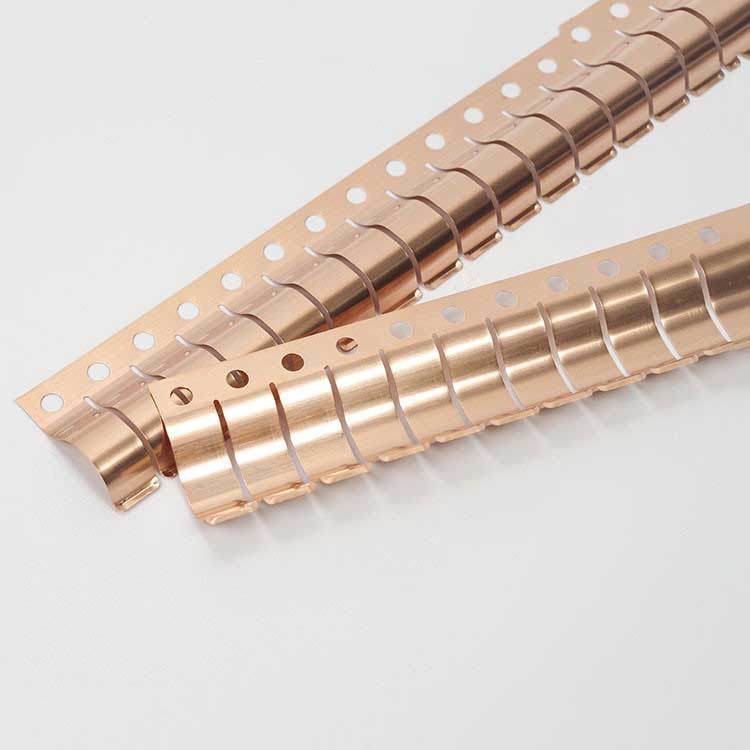

Typical Application: used for EMI shielding finger

Product Brand: CUBERYLLIUM®

CUBERYLLIUM® manufactures copper beryllium in several distinct compositions.

These fall into two categories: high strength beryllium copper alloys 172(UNS. C17200),173(UNS. C17300),170(UNS. C17000), and copper alloys selected for high conductivity 751(UNS. 17510),750(UNS. 17500),741(UNS. 17410).

We also Supply Master alloy : CuBeryllium-200, CuBeryllium-275, CuBeryllium-350 and Cuberyllium-400 to global factory.

CUBERYLLIUM ®-172 also named Cube2--UNS. C17200 (CDA 172) Beryllium Copper is the most commonly utilized Copper Beryllium alloy and is notable for its highest strength and hardness compared to commercial copper alloys. C17200 alloy contains appr. 2% of beryllium and achieves its ultimate tensile strength can exceed 1360Mpa, while the hardness approaches Rockwell C45. Meanwhile, the electrical conductivity is a minimum of 22% IACS in the fully aged condition.C17200 also exhibits exceptional resistance to stress relaxation at elevated temperatures.

Chemical Composition of CUBERYLLIUM ®-172 Beryllium Copper Alloys:

Product Grade: CUBERYLLIUM ®-172(UNS. C17200)

Beryllium(Be): 1.80-2.00%

Cobalt(Co) + Nickel(Ni): 0.20% Min

Cobalt(Co) + Nickel(Ni) + Iron(Fe): 0.60% Max

Lead: 0.02% Max

Copper(Cu): Balance

Note: Copper plus additions equal 99.5% Minimum.

Typical Physical Properties of CUBERYLLIUM ®-172(Beryllium Copper Strip C17200):

Temper Designations of CUBERYLLIUM ®-172:

Fabrication and Heat Treatment of CUBERYLLIUM ®-172 Beryllium Copper Alloys:

Machinability

The machinability rate of C17200 copper alloys is 20%.

Welding

Welding procedures such as butt welding, seam welding, spot welding, coated metal arc welding, gas shielded arc welding, brazing and soldering are recommended for C17200 copper alloys. For this type of alloys, oxyacetylene welding is not recommended.

Forging

Forging of C17200 copper alloys is carried out at temperature ranging from 649 to 816°C (1200 to 1500°F).

Hot Working

C17200 copper alloys have good hot working property.

Cold Working

C17200 copper alloys have excellent cold working property.

Annealing

C17200 copper alloys are annealed at temperature ranging from 774 to 802°C (1425 to 1475°F).

Standard Tolerance

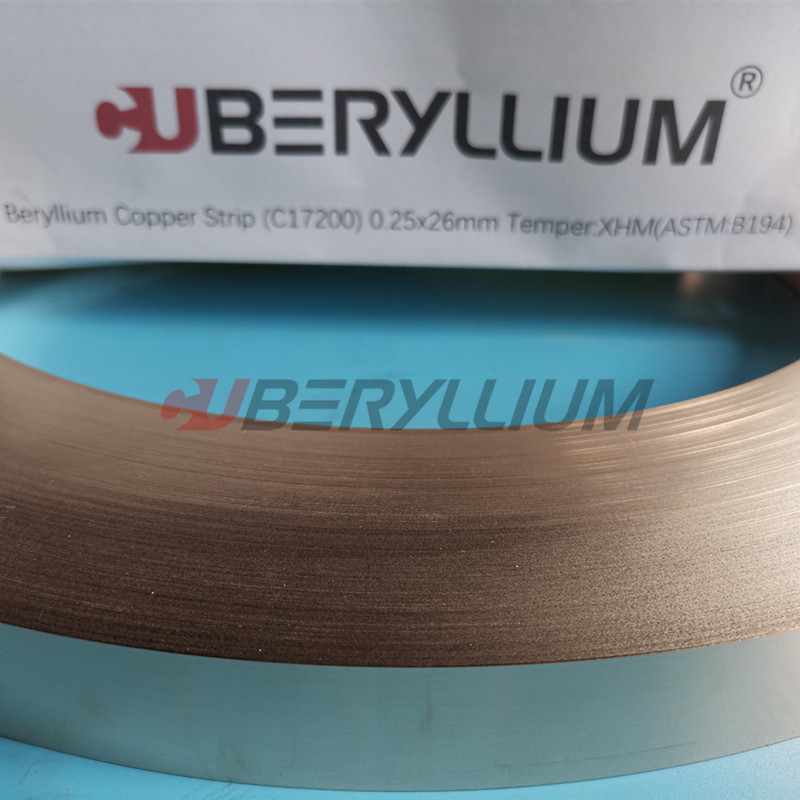

Product Photos:

Applications of CUBERYLLIUM ®-172:

CUBERYLLIUM ®-172 is usually used for electrical industry, fasteners and industrial.

Electrical Industry: electrical switch and relay blades(switch parts, relay parts), clips, fuse clips, connectors, spring connectors, navigational indstruments, contact bridges, belleville washers;

Fasteners: washers, lock washers, fasteners, retaining rings, roll pins, screws, bolts;

Industrial: pump parts, springs, electrochemical, spline shafts, non sparking safety tools, flexible metal hose, housings for indtruments, bearings, bushings, valve seats, valve stems, disphragms, springs, welding equipment, rolling mill parts, valves, bourdon tubes, wear plates on heavy equipment, bellows.

FAQ:

Q1: Could you produce Beryllium Copper strip by Mill Hardened process.
A1: Yes, we could produce AM(TM00), 1/2HM(TM01).HM(TM04) XHM(TM06) XHMS(TM08).,we are the only factory could do harden strip in China.

Q2: What’s the advantages the Beryllium Copper of CUBERYLLIUM®.
A2: 1: The Biggest Coil weight could be reach 1200kg/Coil

2: We are the only one who melting by Vacuum semi-Continuous Furnace.

3: Surface further polishing for top clients.

Q3: Why you melting by Vacuum semi-Continuous Furnace.
A3: Could be get the Cast ingot without gas,smaller segregation, Grain Refinement

Q4: What's the payment terms?
A4: We accept T/T, L/C, Paypal etc. It can be negotiated when the amount is different.
