Becu Alloy Bar Beryllium Copper C17200 Hardness 38-42HRC 5mm-100mm
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xName | Beryllium Copper C17200 Bar | CUBERYLLIUM® Grade | CUBERYLLIUM® 172 |
---|---|---|---|
Standard | ASTM B196,251,463; SAE J461,463; AMS 4533,4534,4535; AMS 4650,4651; RWMA Class 4 | Safe Handling | No Special Health Risk. |
Machining Property | Good | Surface | Bright/Polished |
Flatness | Good | State | A(TB00),1/2H (TD02), H(TD04),AT(TF00),HT(TH04) |
Diameter | 5mm-100mm | Application | For Electrical Industry And Industrial |
Elestic Modulus | 131Gpa | Melting Point(solidus) | 870℃ |
Electrical Conductivity | 22-28% IACS | ||
High Light | Becu Alloy Bar 5mm-100mm,Beryllium Copper C17200 Hardness 38-42HRC,c17200 hardness 5mm-100mm |
Hardness 38~42HRC Diameter 5mm-100mm Beryllium Copper C17200 Bar
Product Normal Description:
Product Name: Beryllium copper bar
Grade: C17200
Standard: ASTM B196,251,463; SAE J461,463; AMS 4533,4534,4535; AMS 4650,4651; RWMA Class 4
Product Diameter: 5mm-100mm
State: A(TB00),1/2H (TD02), H(TD04),AT(TF00),HT(TH04)
Typical Application: for electrical industry and industrial
Product Brand: CUBERYLLIUM®
Beryllium Copper C17200 Alloys International Specification:
Rods/Bars/Tubes: ASTM B196,251,463; SAE J461,463; AMS 4533,4534,4535; AMS 4650,4651; RWMA Class 4
European Standards: CuBe2, Alloy 25, QBe2, BrB2, DIN.2.1247, CW101C to EN
Note:
ASTM: American Society for Testing and Materials
SAE: Society of Automotive Engineers
AMS: Aerospace Materials Specification(Published by SEA)
RWMA: Resistance Welder Manufacturers' Association
Note: Unless otherwise specified, material will be produced by ASTM.
CUBERYLLIUM® manufactures copper beryllium in several distinct compositions.
These fall into two categories: high strength beryllium copper alloys 172(UNS. C17200),173(UNS. C17300),170(UNS. C17000), and copper alloys selected for high conductivity 751(UNS. 17510),750(UNS. 17500),741(UNS. 17410).
We also Supply Master alloy : CuBeryllium-200, CuBeryllium-275, CuBeryllium-350 and Cuberyllium-400 to global factory.
CUBERYLLIUM ®-172 also named Cube2--UNS. C17200 (CDA 172) Beryllium Copper is the most commonly utilized Copper Beryllium alloy and is notable for its highest strength and hardness compared to commercial copper alloys. C17200 alloy contains appr. 2% of beryllium and achieves its ultimate tensile strength can exceed 1360Mpa, while the hardness approaches Rockwell C45. Meanwhile, the electrical conductivity is a minimum of 22% IACS in the fully aged condition.C17200 also exhibits exceptional resistance to stress relaxation at elevated temperatures.
Chemical Composition of Beryllium Copper C17200 Alloys (CUBERYLLIUM ®-172):
Product Grade: CUBERYLLIUM ®-172(UNS. C17200)
Beryllium(Be): 1.80-2.00%
Cobalt(Co) + Nickel(Ni): 0.20% Min
Cobalt(Co) + Nickel(Ni) + Iron(Fe): 0.60% Max
Lead: 0.02% Max
Copper(Cu): Balance
Note: Copper plus additions equal 99.5% Minimum.
Typical Physical Properties of Beryllium Copper C17200 Alloys (CUBERYLLIUM ®-172):
Density (g/cm3): | 8.36 |
Density before age hardening (g/cm3): | 8.25 |
Elastic Modulus (kg/mm2 (103)): | 13.4 |
Thermal Expansion Coefficient (20 °C to 200 °C m/m/°C): | 17 x 10-6 |
Thermal Conductivity (cal/(cm-s-°C)): | 0.25 |
Melting Range (°C): | 870-980 |
Mechanical and Electrical Properties of Beryllium Copper C17200 Bar:
Temper(*) | Diameter | Heat Treatment | Tensile Strength ksi |
Elogation Percent (Min) |
Electrical Conductivity Percent IACS |
Hardness Rockwell B or C Scale |
---|---|---|---|---|---|---|
A(TB00) | ALL SIZE | / | 400~600 | 30 | 15~19 | B45~85 |
1/2H(TB04) | 5~40 | / | 550~700 | 10 | 15~19 | >B78 |
H(TD04) |
5~10 | / | 660~900 | 5 | 15~19 | >B88 |
>10~25 | / | 620~860 | 5 | 15~19 | ||
>25 | / | 590~830 | 5 | 15~19 | ||
AT(TF00) | ALL SIZE | 3 hr 320°C | 1100~1380 | 2 | 22~28 | C35~42 |
HT(TH04) | 5~10 | 2 hr 320°C | 1200~1550 | 1 | 22~28 | C37~45 |
>10~25 | 1150~1520 | 1 | 22~28 | C36~44 | ||
>25 | 1120~1480 | 1 | 22~28 | C35~44 |
Typical Application of Beryllium Copper Alloy C17200:
Product Category | Product | Reason Category | Reason |
Fasteners | Lock Washers | Corrosion Resistance | Corrosion Resistance |
Lock Washers | Mechanical Properties | Ductility | |
Lock Washers | Mechanical Properties | Very High Strength | |
Retaining Rings | Corrosion Resistance | Corrosion Resistance | |
Retaining Rings | Forming Characteristics | Formability | |
Retaining Rings | Mechanical Properties | Very High Strength |

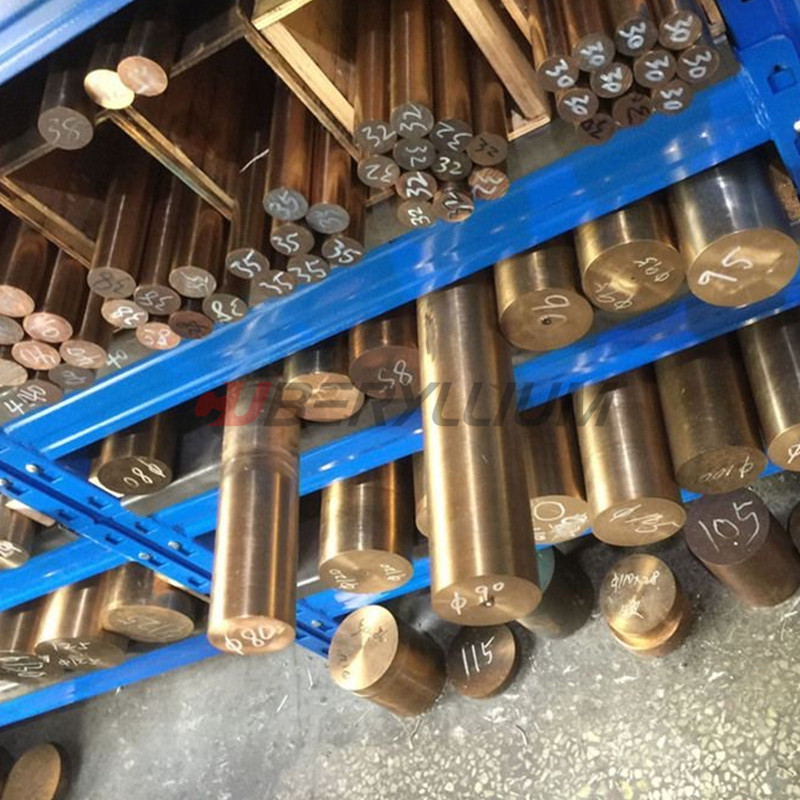

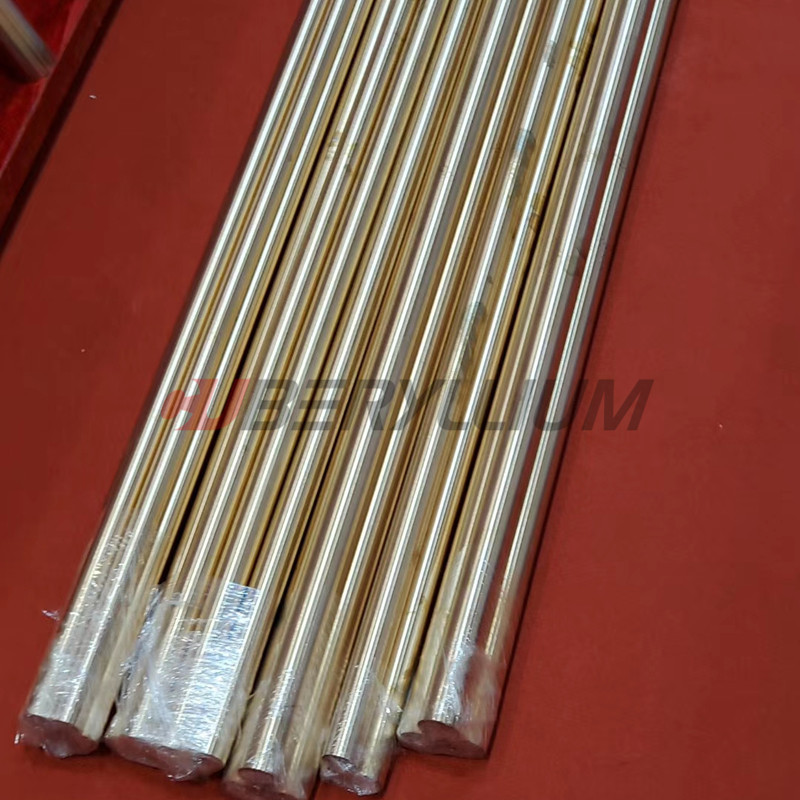

Product Photos:
Applications of Beryllium Copper C17200 Alloy (CUBERYLLIUM ®-172):
CUBERYLLIUM ®-172 is usually used for electrical industry, fasteners and industrial.
Electrical Industry: electrical switch and relay blades(switch parts, relay parts), clips, fuse clips, connectors, spring connectors, navigational indstruments, contact bridges, belleville washers;
Fasteners: washers, lock washers, fasteners, retaining rings, roll pins, screws, bolts;
Industrial: pump parts, springs, electrochemical, spline shafts, non sparking safety tools, flexible metal hose, housings for indtruments, bearings, bushings, valve seats, valve stems, disphragms, springs, welding equipment, rolling mill parts, valves, bourdon tubes, wear plates on heavy equipment, bellows.
FAQ:
Q1:Could you produce Beryllium Copper strip by Mill Hardened process.
A1:Yes, we could produce AM(TM00), 1/2HM(TM01).HM(TM04) XHM(TM06) XHMS(TM08).,we are the only factory could do harden strip in China.
Q2: What’s the advantages the Beryllium Copper of CUBERYLLIUM®.
A2: 1: The Biggest Coil weight could be reach 1200kg/Coil
2:We are the only one who melting by Vacuum semi-Continuous Furnace.
3:Surface further polishing for top clients.
Q3: Why you melting by Vacuum semi-Continuous Furnace.
A3:Could be get the Cast ingot without gas,smaller segregation, Grain Refinement
Q4: What's the payment terms?
A4: We accept T/T, L/C, Paypal etc. It can be negotiated when the amount is different..
