CuBe2 Strip Thickness 0.05mm Width 50-150mm Hard State For Microswitch

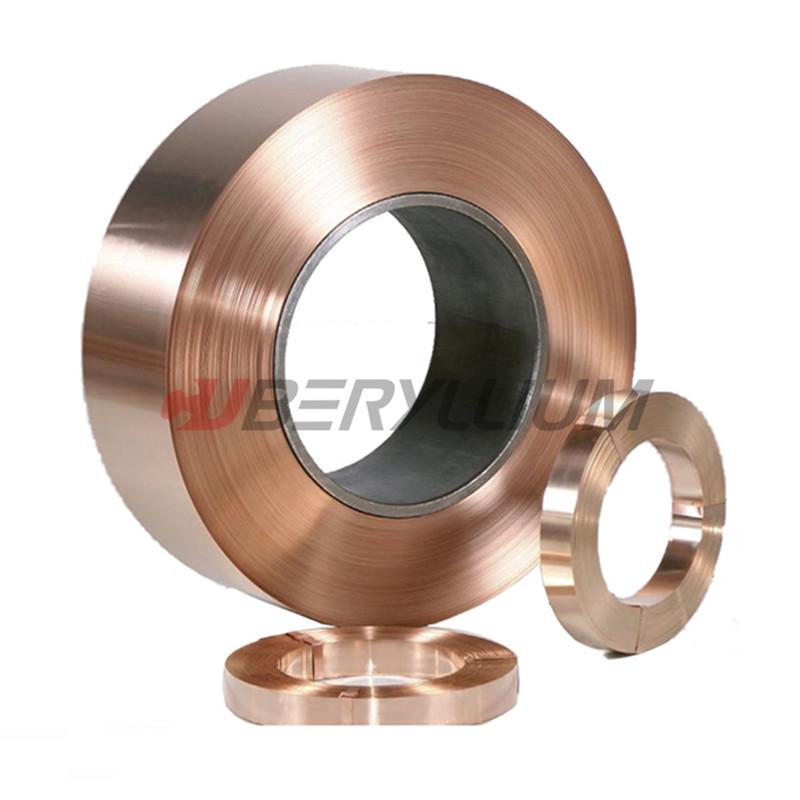

  • CuBe2 Strip Thickness 0.05mm Width 50-150mm Hard State For Microswitch
  • CuBe2 Strip Thickness 0.05mm Width 50-150mm Hard State For Microswitch
Place of Origin China
Brand Name CUBERYLLIUM®
Certification ISO,SGS
Model Number C17200 (CuBe2)
Minimum Order Quantity 50
Price 43USD
Packaging Details in coil packed into wooden case
Delivery Time 10~15days
Payment Terms L/C, T/T, Western Union
Supply Ability 200T/Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name CuBe2 Strip C17200 Max Coil Wt. 2T
Thinnest Thick. 0.02mm Standard ASTM B194, SAE J463, J461
Heat Treatment Of Aging Age 3 Hrs At 600°F (315 C). Safe Handling No Special Health Risk.
Machining Property Good Surface Bright/Polished
Flatness Good Max Width 305mm
State Hard Specification 0.05mmx50mm, 0.05mmx100mm,0.05mmx150mm
Application Microswitch Production
High Light

C17200 Beryllium Copper Sheet CuBe2

,

CuBe2 Strip Thickness 0.05mm

,

CuBe2 Strip Width 50-150mm
Leave a Message
Product Description

CuBe2 Strip C17200 Thickness 0.05mm Width 50-150mm Hard State For Microswitch

Product Normal Description:

Product Name: CuBe2 Strip

Grade: C17200

Standard: ASTM B194, SAE J463, J461

Product Specification: 0.05mmx50mm, 0.05mmx100mm,0.05mmx150mm

State: H(TD04)

Typical Application: used for microswitch production

Product Brand: CUBERYLLIUM®





CUBERYLLIUM® manufactures copper beryllium in several distinct compositions.

These fall into two categories: high strength beryllium copper alloys 172(UNS. C17200),173(UNS. C17300),170(UNS. C17000), and copper alloys selected for high conductivity 751(UNS. 17510),750(UNS. 17500),741(UNS. 17410).

We also Supply Master alloy : CuBeryllium-200, CuBeryllium-275, CuBeryllium-350 and Cuberyllium-400 to global factory.



CUBERYLLIUM ®-172 also named Cube2--UNS. C17200 (CDA 172) Beryllium Copper is the most commonly utilized Copper Beryllium alloy and is notable for its highest strength and hardness compared to commercial copper alloys. C17200 alloy contains appr. 2% of beryllium and achieves its ultimate tensile strength can exceed 1360Mpa, while the hardness approaches Rockwell C45. Meanwhile, the electrical conductivity is a minimum of 22% IACS in the fully aged condition.C17200 also exhibits exceptional resistance to stress relaxation at elevated temperatures.



Chemical Composition of CuBe2/C17200 Copper Alloys (CUBERYLLIUM ®-172):

Product Grade: CUBERYLLIUM ®-172(UNS. C17200)

Beryllium(Be): 1.80-2.00%

Cobalt(Co) + Nickel(Ni): 0.20% Min

Cobalt(Co) + Nickel(Ni) + Iron(Fe): 0.60% Max

Lead: 0.02% Max

Copper(Cu): Balance

Note: Copper plus additions equal 99.5% Minimum.





Typical Physical Properties of CuBe2/C17200 Copper Alloys (CUBERYLLIUM ®-172):

Density (g/cm3): 8.36
Density before age hardening (g/cm3): 8.25
Elastic Modulus (kg/mm2 (103)): 13.4
Thermal Expansion Coefficient (20 °C to 200 °C m/m/°C): 17 x 10-6
Thermal Conductivity (cal/(cm-s-°C)): 0.25
Melting Range (°C): 870-980





Temper Designations of CuBe2/C17200 Copper Alloys (CUBERYLLIUM ®-172):

CuBeryllium Designation ASTM Mechanical and Electrical Properties of Copper Beryllium Strip
Designation Description Tensile Strength
(Mpa)		 Yield Strength 0.2% offset Elongation Percent HARDNESS
(HV)		 HARDNESS
Rockwell
B or C Scale		 Electrical Conductivity
(% IACS)
A TB00 Solution Annealed 410～530 190～380 35~60 <130 45~78HRB 15～19
1/2 H TD02 Half Hard 580～690 510～660 12~30 180~220 88~96HRB 15～19
H TD04 Hard 680~830 620~800 2~18 220~240 96~102HRB 15～19
HM TM04

Mill hardened		 930～1040 750～940 9～20 270～325 28～35HRC 17～28
SHM TM05 1030～1110 860～970 9～18 295～350 31～37HRC 17～28
XHM TM06 1060～1210 930～1180 4～15 300～360 32～38HRC 17～28





Applications of C17200 (CuBe2) Alloy (CUBERYLLIUM ®-172):

Product Category Product Reason Category Reason
Industrial Housings for Instruments Corrosion Resistance Corrosion Resistance
Housings for Instruments Machining Characteristics Machinability
Housings for Instruments Magnetic Properties Non-Magnetic
Housings for Instruments Mechanical Properties High Strength
Non Sparking Safety Tools Mechanical Properties Very High Strength
Non Sparking Safety Tools Non-Sparking Non-Sparking





Standard Tolerance of CuBe2 Strip C17200 (CUBERYLLIUM ®-172):

Tolerance Sheet
(MM)
Strip
Thickness		 CuBeryllium®
Standard Tolerance
over incl. plus or minus
0.03 0.08 0.003
0.08 0.1 0.004
0.1 0.15 0.005
0.15 0.2 0.006
0.2 0.25 0.007
0.25 0.4 0.008
0.4 0.55 0.009
0.55 0.7 0.01
0.7 0.9 0.015
0.9 1.5 0.025
Note: Tolerances apply to rolled and mill hardened strip.

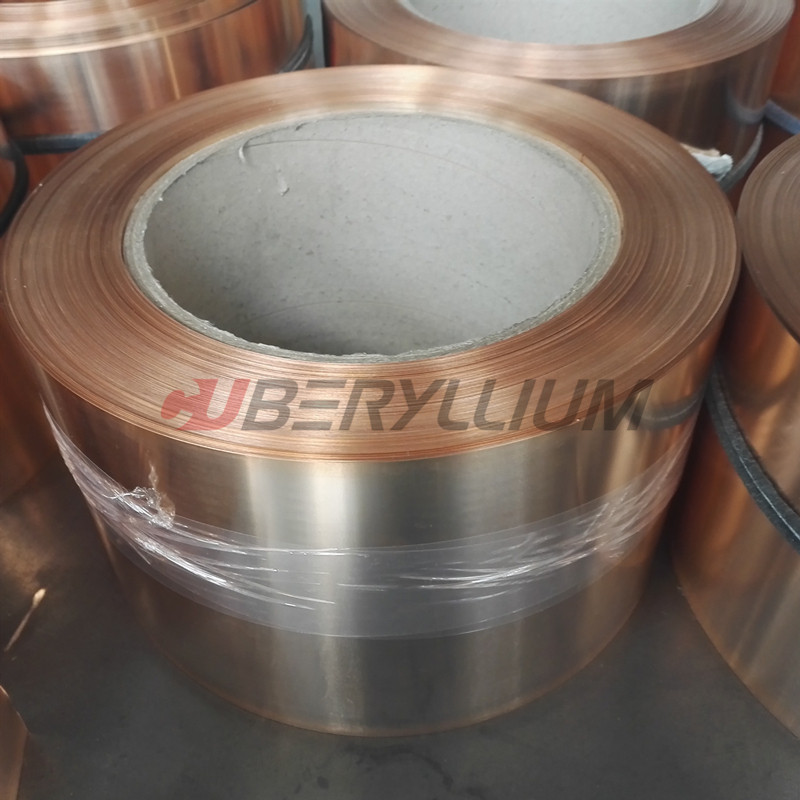

Product Photos:

CuBe2 Strip Thickness 0.05mm Width 50-150mm Hard State For Microswitch 0





FAQ:

Q1:Could you produce Beryllium Copper strip by Mill Hardened process.
A1:Yes, we could produce AM(TM00), 1/2HM(TM01).HM(TM04) XHM(TM06) XHMS(TM08).,we are the only factory could do harden strip in China.

Q2: What’s the advantages the Beryllium Copper of CUBERYLLIUM®.
A2: 1: The Biggest Coil weight could be reach 1200kg/Coil

2:We are the only one who melting by Vacuum semi-Continuous Furnace.

3:Surface further polishing for top clients.

Q3: Why you melting by Vacuum semi-Continuous Furnace.
A3:Could be get the Cast ingot without gas,smaller segregation, Grain Refinement

Q4: What's the payment terms?
A4: We accept T/T, L/C, Paypal etc. It can be negotiated when the amount is different.
