ASTM B196 Grade C17200 TB00 Beryllium Copper Alloy 172 Strip 0.25mmx100mm
| Place of Origin | China |
|---|---|
| Brand Name | CUBERYLLIUM |
| Certification | ISO,SGS |
| Model Number | C17200 |
| Minimum Order Quantity | 50 |
| Price | 30USD |
| Packaging Details | in coil packed into wooden case |
| Delivery Time | 10~15days |
| Payment Terms | L/C, T/T, Western Union |
| Supply Ability | 200T/Month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | Beryllium Copper Strip | Max Coil Wt. | 2T |
|---|---|---|---|
| Thinest Thick. | 0.02mm | Standard | ASTM B194 |
| Heat Treatment Of Aging | Age 3 Hrs At 600°F (315 C). | Safe Handling | No Special Health Risk. |
| Machining Property | Good | Surface | Bright/Polished |
| Flatness | Good | Hardness | <130HV |
| Tensile Strength | 410-530 Mpa | Yield Strength 0.2% Offset | 190-380 |
| Elongation Percent | 35~60 | Electrical Conductivity | 15~19% IACS |
| Max Width | 305mm | ||
| High Light | ASTM B196 Grade C17200 TB00 0.25mmx100mm,TB00 beryllium copper alloy 172 strip 0.25mmx100mm,TB00 Temper Strip |
||
Product Description
Beryllium copper strip C17200 with high strength 0.25mmx100mm state TB00
Product Normal Description:
Product Name: Beryllium copper strip
Grade: C17200
Product Specification: 0.25mmx100mm
State: Solution Annealed(TB00)
Product Brand: CUBERYLLIUM®
CUBERYLLIUM® manufactures copper beryllium in several distinct compositions. These fall into two categories: alloys selected for high strength (Alloys 172,173,170) and alloys selected for high conductivity (Alloys 751,750,741). Also Supply Master alloy : CuBeryllium-200; CuBeryllium-275);CuBeryllium-350 and Cuberyllium-400 to global factory.
CUBERYLLIUM ®-172 also named Cube2--C17200 (CDA 172) Beryllium Copper is the most commonly utilized Copper Beryllium alloy and is notable for its highest strength and hardness compared to commercial copper alloys. C17200 alloy contains appr. 2% of beryllium and achieves its ultimate tensile strength can exceed 1360Mpa, while the hardness approaches Rockwell C45. Meanwhile, the electrical conductivity is a minimum of 22% IACS in the fully aged condition.C17200 also exhibits exceptional resistance to stress relaxation at elevated temperatures.
Chemical Composition:
| CUBERYLLIUM® Brand | UNS-Number | Beryllium | Cobalt + Nickel |
+Cobalt + Nickel + Iron |
Lead | Copper |
| Cuberyllium-C172 | C17200 | 1.80-2.00 | 0.20 min | 0.6 max | 0.02 max | Balance |
Remark: Copper plus additions equal 99.5% Min.
Typical Physical Properties of CUBERYLLIUM 172:
Density (g/cm3): 8.36
Density before age hardening (g/cm3): 8.25
Elastic Modulus (kg/mm2 (103)): 13.40
Thermal Expansion Coefficient (20 °C to 200 °C m/m/°C): 17 x 10-6
Thermal Conductivity (cal/(cm-s-°C)): 0.25
Melting Range (°C): 870-980
Common Temper we supply:
| CuBeryllium Designation | ASTM | Mechanical and Electrical Properties of Copper Beryllium Strip | ||||||
| Designation | Description | Tensile Strength (Mpa) |
Yield Strength 0.2% offset | Elongation Percent | HARDNESS (HV) |
HARDNESS Rockwell B or C Scale |
Electrical Conductivity (% IACS) |
|
| A | TB00 | Solution Annealed | 410～530 | 190～380 | 35~60 | <130 | 45~78HRB | 15～19 |
| 1/2 H | TD02 | Half Hard | 580～690 | 510～660 | 12~30 | 180~220 | 88~96HRB | 15～19 |
| H | TD04 | Hard | 680~830 | 620~800 | 2~18 | 220~240 | 96~102HRB | 15～19 |
| HM | TM04 | Mill hardened |
930～1040 | 750～940 | 9～20 | 270～325 | 28～35HRC | 17～28 |
| SHM | TM05 | 1030～1110 | 860～970 | 9～18 | 295～350 | 31～37HRC | 17～28 | |
| XHM | TM06 | 1060～1210 | 930～1180 | 4～15 | 300～360 | 32～38HRC | 17～28 | |
Typical Uses For Beryllium Copper C17200:
| ELECTRICAL: | ||
|---|---|---|
| Electrical Switch / Relay Blades | Fuse Clips | Switch Parts |
| Relay Parts | Connectors | Spring Connectors |
| Current Carrying | Contact Bridges | Belleville Washers |
| Navigational Instruments | Clips | |
| FASTENERS: | ||
| Washers | Fasteners | Lock Washers |
| Retaining Rings | Roll Pins | Screws |
| Bolts | ||
Standard Tolerance
| Tolerance Sheet | ||
| (MM) | ||
| Strip Thickness |
CuBeryllium® Standard Tolerance |
|
| over | incl. | plus or minus |
| 0.03 | 0.08 | 0.003 |
| 0.08 | 0.1 | 0.004 |
| 0.1 | 0.15 | 0.005 |
| 0.15 | 0.2 | 0.006 |
| 0.2 | 0.25 | 0.007 |
| 0.25 | 0.4 | 0.008 |
| 0.4 | 0.55 | 0.009 |
| 0.55 | 0.7 | 0.01 |
| 0.7 | 0.9 | 0.015 |
| 0.9 | 1.5 | 0.025 |
| Note: Tolerances apply to rolled and mill hardened strip. | ||

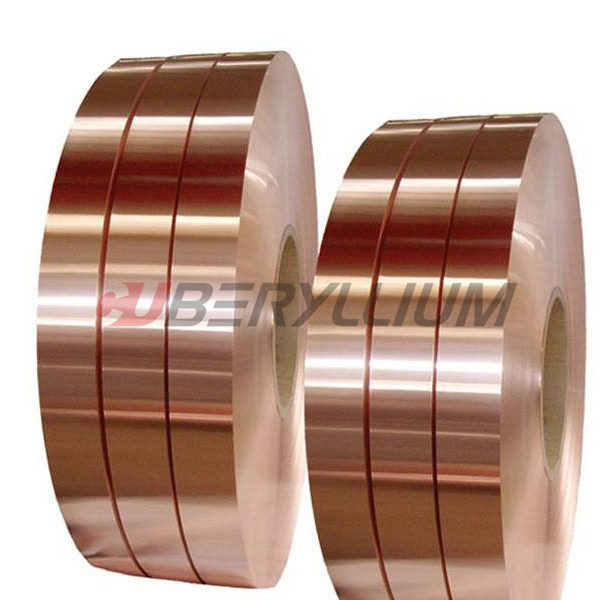

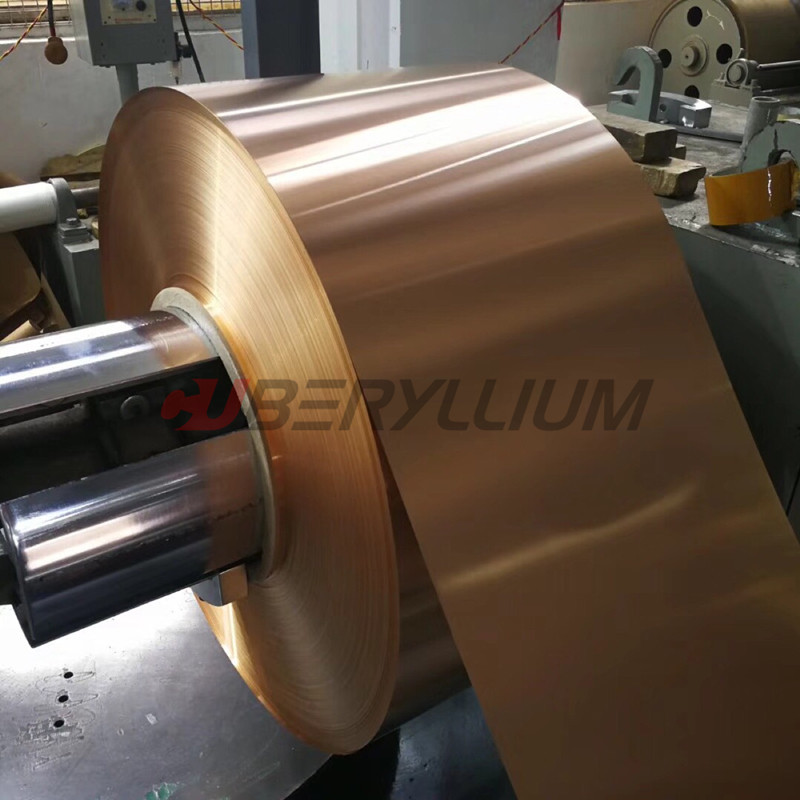

Product Photos:
FAQ:
Q1:Could you produce Beryllium Copper strip by Mill Hardened process.
A1:Yes, we could produce AM(TM00), 1/2HM(TM01).HM(TM04) XHM(TM06) XHMS(TM08).,we are the only factory could do harden strip in China.
Q2: What’s the advantages the Beryllium Copper of CUBERYLLIUM®.
A2: 1: The Biggest Coil weight could be reach 1200kg/Coil
2:We are the only one who melting by Vacuum semi-Continuous Furnace.
3:Surface further polishing for top clients.
Q3: Why you melting by Vacuum semi-Continuous Furnace.
A3:Could be get the Cast ingot without gas,smaller segregation, Grain Refinement
Q4: What's the payment terms?
A4: We accept T/T, L/C, Paypal etc. It can be negotiated when the amount is different.
