Astm B194 Uns C17200 Beryllium Copper Sheet Strip Hard For Emi Spring 0.2mmx25mm

Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xName | Beryllium Copper Strip | Max Coil Wt. | 2T |
---|---|---|---|
Thinest Thick. | 0.02mm | Standard | ASTM B194 |
Heat Treatment Of Aging | Age 3 Hrs At 600°F (315 C). | Safe Handling | No Special Health Risk. |
Machining Property | Good | Surface | Bright/Polished |
Flatness | Good | Hardness | 220~240 HV |
Tensile Strength | 680~830 Mpa | Yield Strength 0.2% Offset | 620~800 |
Elongation Percent | 2~18 | Electrical Conductivity | 15~19% IACS |
Max Width | 305mm | ||
High Light | astm b194 uns c17200 beryllium copper sheet,c17200 beryllium copper sheet 0.2mmx25mm,c17200 copper sheet 0.2mmx25mm |
CUBERYLLIUM Brand 0.2mmx25mm C17200 Hard Strip For EMI Spring made by ASTM B194
CUBERYLLIUM® manufactures copper beryllium in several distinct compositions. These fall into two categories: alloys selected for high strength (Alloys 172,173,170) and alloys selected for high conductivity (Alloys 751,750,741). Also Supply Master alloy : CuBeryllium-200; CuBeryllium-275);CuBeryllium-350 and Cuberyllium-400 to global factory.
CUBERYLLIUM ®-172 also named Cube2--C17200 (CDA 172) Beryllium Copper is the most commonly utilized Copper Beryllium alloy and is notable for its highest strength and hardness compared to commercial copper alloys. C17200 alloy contains appr. 2% of beryllium and achieves its ultimate tensile strength can exceed 1360Mpa, while the hardness approaches Rockwell C45. Meanwhile, the electrical conductivity is a minimum of 22% IACS in the fully aged condition.C17200 also exhibits exceptional resistance to stress relaxation at elevated temperatures.
Chemical Composition:
CUBERYLLIUM® Brand | UNS-Number | Beryllium | Cobalt + Nickel |
+Cobalt + Nickel + Iron |
Lead | Copper |
Cuberyllium-C172 | C17200 | 1.80-2.00 | 0.20 min | 0.6 max | 0.02 max | Balance |
Remark: Copper plus additions equal 99.5% Min.
Typical Physical Properties of CUBERYLLIUM 172:
Density (g/cm3): 8.36
Density before age hardening (g/cm3): 8.25
Elastic Modulus (kg/mm2 (103)): 13.40
Thermal Expansion Coefficient (20 °C to 200 °C m/m/°C): 17 x 10-6
Thermal Conductivity (cal/(cm-s-°C)): 0.25
Melting Range (°C): 870-980
Common Temper we supply:
CuBeryllium Designation | ASTM | Mechanical and Electrical Properties of Copper Beryllium Strip | ||||||
Designation | Description | Tensile Strength (Mpa) |
Yield Strength 0.2% offset | Elongation Percent | HARDNESS (HV) |
HARDNESS Rockwell B or C Scale |
Electrical Conductivity (% IACS) |
|
A | TB00 | Solution Annealed | 410~530 | 190~380 | 35~60 | <130 | 45~78HRB | 15~19 |
1/2 H | TD02 | Half Hard | 580~690 | 510~660 | 12~30 | 180~220 | 88~96HRB | 15~19 |
H | TD04 | Hard | 680~830 | 620~800 | 2~18 | 220~240 | 96~102HRB | 15~19 |
HM | TM04 | Mill hardened |
930~1040 | 750~940 | 9~20 | 270~325 | 28~35HRC | 17~28 |
SHM | TM05 | 1030~1110 | 860~970 | 9~18 | 295~350 | 31~37HRC | 17~28 | |
XHM | TM06 | 1060~1210 | 930~1180 | 4~15 | 300~360 | 32~38HRC | 17~28 |
Normal Industrial Applications of Beryllium Copper Alloy C17200:
Pumps | Springs | Electrochemical |
Shafts | Non Sparking Safety Tools | Flexible Metal Hose |
Housings for Instruments | Bearings | Bushings |
Valve Seats | Valve Stems | Diaphragms |
Springs | Welding Equipment | Rolling Mill Parts |
Spline Shafts | Pump Parts | Valves |
Bourdon Tubes | Wear Plates on Heavy Equipment |
Standard Tolerance
Tolerance Sheet | ||
(MM) | ||
Strip Thickness |
CuBeryllium® Standard Tolerance |
|
over | incl. | plus or minus |
0.03 | 0.08 | 0.003 |
0.08 | 0.1 | 0.004 |
0.1 | 0.15 | 0.005 |
0.15 | 0.2 | 0.006 |
0.2 | 0.25 | 0.007 |
0.25 | 0.4 | 0.008 |
0.4 | 0.55 | 0.009 |
0.55 | 0.7 | 0.01 |
0.7 | 0.9 | 0.015 |
0.9 | 1.5 | 0.025 |
Note: Tolerances apply to rolled and mill hardened strip. |

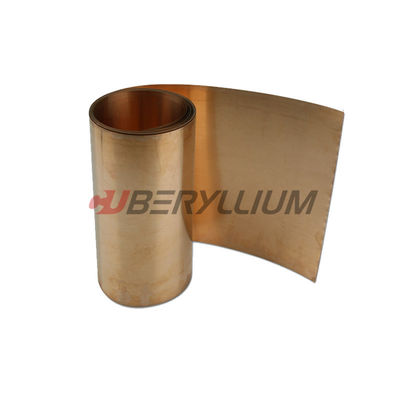

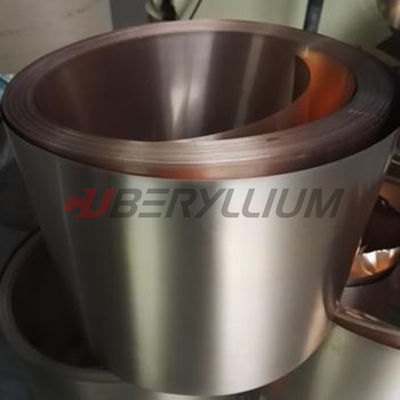

Product Photo:
FAQ:
Q1:Could you produce Beryllium Copper strip by Mill Hardened process.
A1:Yes, we could produce AM(TM00), 1/2HM(TM01).HM(TM04) XHM(TM06) XHMS(TM08).,we are the only factory could do harden strip in China.
Q2: What’s the advantages the Beryllium Copper of CUBERYLLIUM®.
A2: 1: The Biggest Coil weight could be reach 1200kg/Coil
2:We are the only one who melting by Vacuum semi-Continuous Furnace.
3:Surface further polishing for top clients.
Q3: Why you melting by Vacuum semi-Continuous Furnace.
A3:Could be get the Cast ingot without gas,smaller segregation, Grain Refinement
Q4: What's the payment terms?
A4: We accept T/T, L/C, Paypal etc. It can be negotiated when the amount is different.
