Beryllium Strips БрБ2 Soft Strips And Hard Strips Acoording Standard ГОСТ 1789

  • Beryllium Strips БрБ2 Soft Strips And Hard Strips Acoording Standard ГОСТ 1789
  • Beryllium Strips БрБ2 Soft Strips And Hard Strips Acoording Standard ГОСТ 1789
  • Beryllium Strips БрБ2 Soft Strips And Hard Strips Acoording Standard ГОСТ 1789
  • Beryllium Strips БрБ2 Soft Strips And Hard Strips Acoording Standard ГОСТ 1789
  • Beryllium Strips БрБ2 Soft Strips And Hard Strips Acoording Standard ГОСТ 1789
Place of Origin China
Brand Name CUBERYLLIUM
Certification SGS
Model Number БрБ2, Cube2
Minimum Order Quantity 50
Price 35USD
Packaging Details in coil packed into wooden case
Delivery Time 10~15days
Payment Terms L/C, T/T, Western Union
Supply Ability 200T/Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name Beryllium Strips БрБ2 Coil Weight 10kgs, 50kgs,100kgs Or According Custmers' Requirement
Thinnest Thick. 0.1mm, 0.15mm, 0.2mm, 0.3mm, 0.4mm,0.6mm, Ect. Width 200mm, 250mm, 300mm
Standard ГОСТ 1789 Machining Property Good
Surface Bright/Polished State Soft, Hard
Hardness Soft ＜130HV， Hard ＞170HV Normal Be% 1.8~2.1%
Leave a Message
Product Description

Beryllium Strips БрБ2 Soft Strips And Hard Strips Acoording Standard ГОСТ 1789



Product Description:

Material Grade БрБ2, Qbe2.0 Cube2, C17200, Alloy 25
End product Strip, Tape
Thickness 0.1mm, 0.15mm, 0.12mm,. 0.2mm, 0.25mm, 0.3mm, 0.4mm, 0.5mm, 0.6mm, 0.8mm and so on
Width 200mm, 250mm or 300mm
Coil Weight We could do it as per customers' requirement, normal is 100kgs
Temper Soft, Hardness ＜130HV
Hard Hardness ＞170HV



Chemical Composition of Beryllium БрБ2:

CUBERYLLIUM® Brand

Gost-

Number

 Be Al Ni Fe Cu Si
Cuberyllium-Qbe2 БрБ2/Qbe2 1.80-2.10 ≤0.15 0.2~0.5

≤0.15

 Rest.

≤0.15



Properties of Beryllium БрБ2:

Beryllium БрБ2(Cube2) is called high-alloy beryllium bronze, because it contains about 2% beryllium.

Beryllium БрБ2(Cube2) is the most commonly used alloy of the Cu-Be system, the end products includes strips, foils, tapes, wires, rods, tubes and plates.

Beryllium strip, beryllium foil, beryllium tapes, beryllium tube and beryllium rods are the most popular products in the Russian Market.



We have sales experience to Russian Market, and have the bank account to receive the payment from Russia, we could get it around 1~2 working days.

So it will rush the production arrangment and the delivery time.

We have own forwarder for Russian Market, could provide CIF Terms to Russia.

Any inquiry, just feel free to contact with us:

By Email: sales@cuberyllium.com

By What'sApp: +86 15868495251

By Skype: +86 15868495251



Beryllium is a lightweight and strong metal that has a range of special characteristics:

  • With low density around 8.36g/cm3
  • High thermal conductivity
  • High strength
  • Excellent dimensional stability
  • High electrical conductivity
  • High corrosion resistance
  • High modulus of elasticity
  • High resistance to fatigue

All these good properties, make the beryllium copper alloys ideal for use in a variety of areas.

The largest application area of beryllium copper alloys is electrical and electronic parts, but also it is used in automotive industry, drilling&Oil production equipment, Resistance welding, Casting of metals and alloys, Aviation Engineering and so on.



Some Applications of Copper Beryllium БрБ2
Spring contacts Switches
Drilling equipment Oil production equipment
Electro-mechanics Connectors
Aeronautics Injuected plastics
Mechanics

Seam weldind discs (wheels)



FAQ:

Q1:Could you accept small coil wight for the strips and foils?
A1:Yes, sure. The normal coil weight is 100kgs, but we could help to divided it to 50~70kgs according customers' requirement. Also some customer requests 5kg/10kg, we could help to slit it.
Q2: What’s the advantages the Beryllium Copper of CUBERYLLIUM®.

A2: 1: Quick production schedule;

2:With wide range of the product, including БрБ2 strips, foils, tapes, tubes, wires, rods and plates. We also provide BrBNT1.9 strips, tapes and foils;

3:Service for customers before the purchase and after the purchas;

4: Small qty acceptable.
Q3: Can you ship the material by your forwarder?
A3:Yes, sure. We have the russian market forwarder, could provide the CIF term to train station in Russia.
Q4: Do you have the account to accept the payment from Russia?

A4: Yes, we have the bank account, can receive the payment quickly, around 1~2 days.

So that we could arrange the production earlier for our customers, and delivery the material immediately.

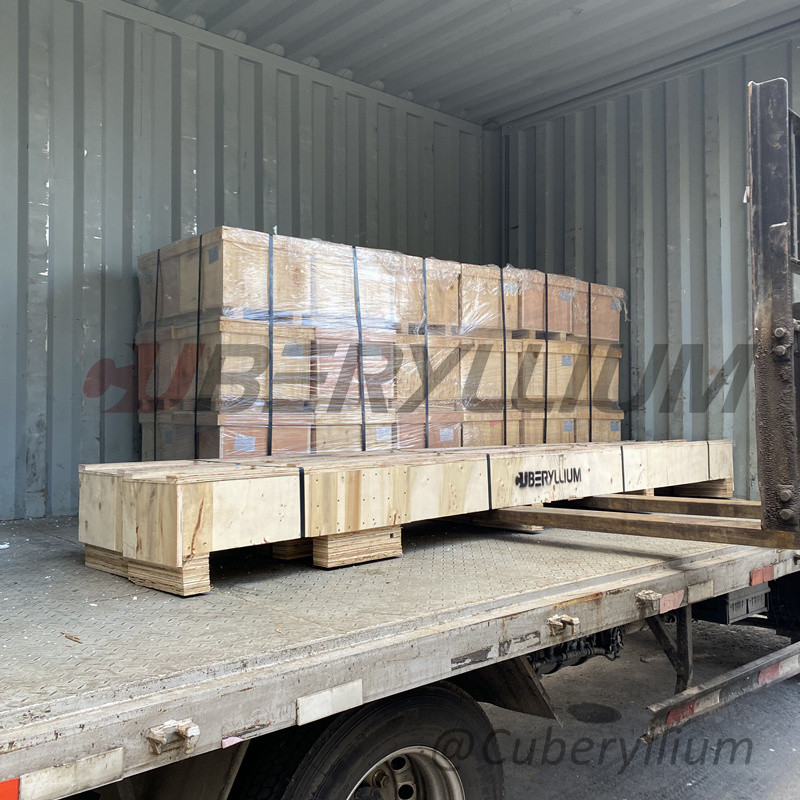

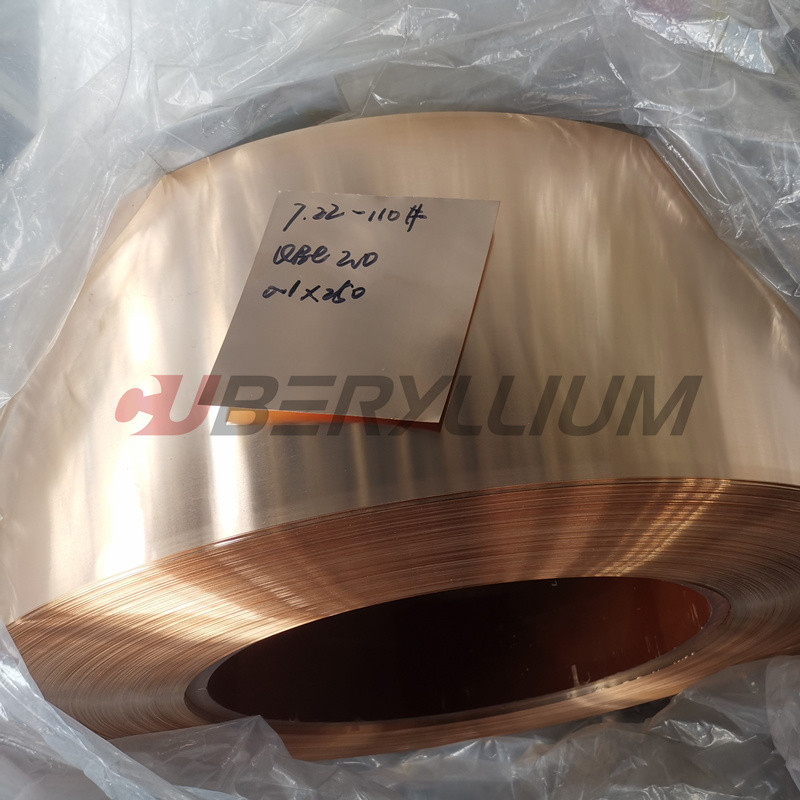

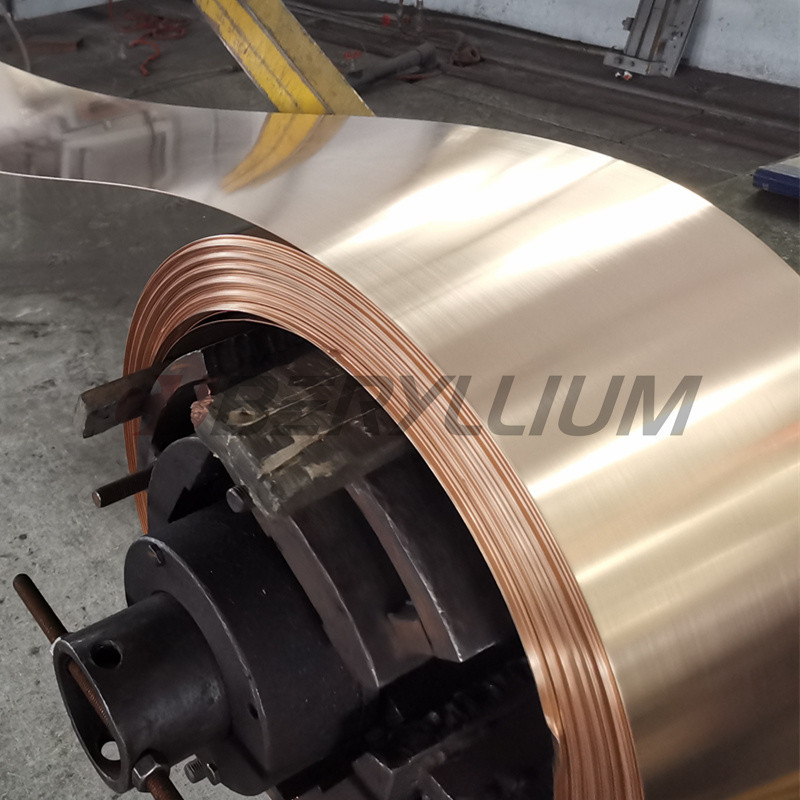

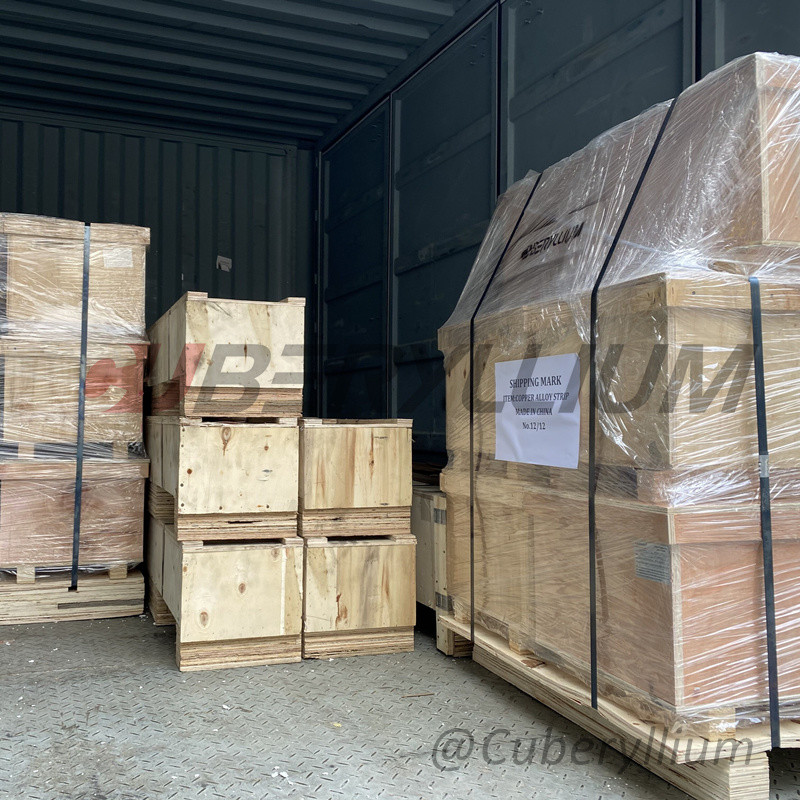

Product Photo:

Beryllium Strips БрБ2 Soft Strips And Hard Strips Acoording Standard ГОСТ 1789 0Beryllium Strips БрБ2 Soft Strips And Hard Strips Acoording Standard ГОСТ 1789 1
