Qbe2.0 Beryllium Copper Alloy Round Bar Wire Strip Plate Standard ГОСТ 1789-70

Place of Origin China
Certification ISO,SGS
Model Number Qbe2
Minimum Order Quantity 50
Price 30USD
Packaging Details in coil packed into wooden case
Delivery Time 10~15days
Payment Terms L/C, T/T, Western Union
Supply Ability 200T/Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Name Beryllium Copper Alloy Max Coil Wt. 2T
Standard ГОСТ 1789-70, ГОСТ 15835-70, ГОСТ 15834 – 77 Safe Handling No Special Health Risk.
Machining Property Good Surface Bright/Polished
Flatness Good Beryllium 1.8~2.1%
High Light

Qbe2.0 Beryllium Copper alloy Round Bar 1789-70


Beryllium Copper alloy 1789-70


becu alloy 1789-70

Leave a Message
Product Description

Qbe2.0 Beryllium Copper alloy (Round Bar Wire Strip Plate) by Standard ГОСТ 1789-70

Product Description:

Name: Beryllium copper alloy

Grade: Qbe2.0

End products form: round rod, bar, wire, strip, plate

Specification: according customers' requirement

Surface: Bright/Polished

Standard: ГОСТ 1789-70, ГОСТ 15835-70, ГОСТ 15834 – 77

Delivery Time: Usually within 10-15 days

Payment Term: we could accept T/T, L/C, Western Union



CUBERYLLIUM® manufactures copper beryllium in several distinct compositions. These fall into two categories: alloys selected for high strength (Alloys 172,173,170) and alloys selected for high conductivity (Alloys 751,750,741). And Gost standard QBe2,QBe1.9Ti(БрБ2;БрБНТ1.9) for Russia Market. Also Supply Master alloy : CuBeryllium-200; CuBeryllium-275);CuBeryllium-350 and Cuberyllium-400 to global factory.



Introduction of CUBERYLLIUM ®-Qbe2:

CUBERYLLIUM ®-Qbe2 also named Cube2. QBe2.0 beryllium bronze contains a small amount of nickel, which is a high-performance copper alloy with good mechanical, physical and chemical comprehensive properties. After solid solution and time hardening treatment (quenching and tempering), it has high strength, hardness, elasticity and wear resistance, corrosion resistance, heat resistance, explosion resistance, yield and fatigue limit. At the same time, it also has high thermal conductivity, electrical conductivity and cold resistance, non-magnetic, no sparks when hit, easy to weld and braze, easy to process, excellent cooling effect, excellent corrosion resistance in air, fresh water and sea water.



Chemical Composition of Beryllium Copper Alloy Qbe2.0:




Beryllium Al Ni Fe Cu Si
Cuberyllium-Qbe2 Qbe2 1.80-2.10 0.15 max 0.2~0.5








Typical Physical Properties of Beryllium Copper Alloy Qbe2.0:

Density (g/cm3): 8.36
Density before age hardening (g/cm3): 8.25
Elastic Modulus (kg/mm2 (103)): 13.4
Thermal Expansion Coefficient (20 °C to 200 °C m/m/°C): 17 x 10-6
Thermal Conductivity (cal/(cm-s-°C)): 0.25
Melting Range (°C): 870-980

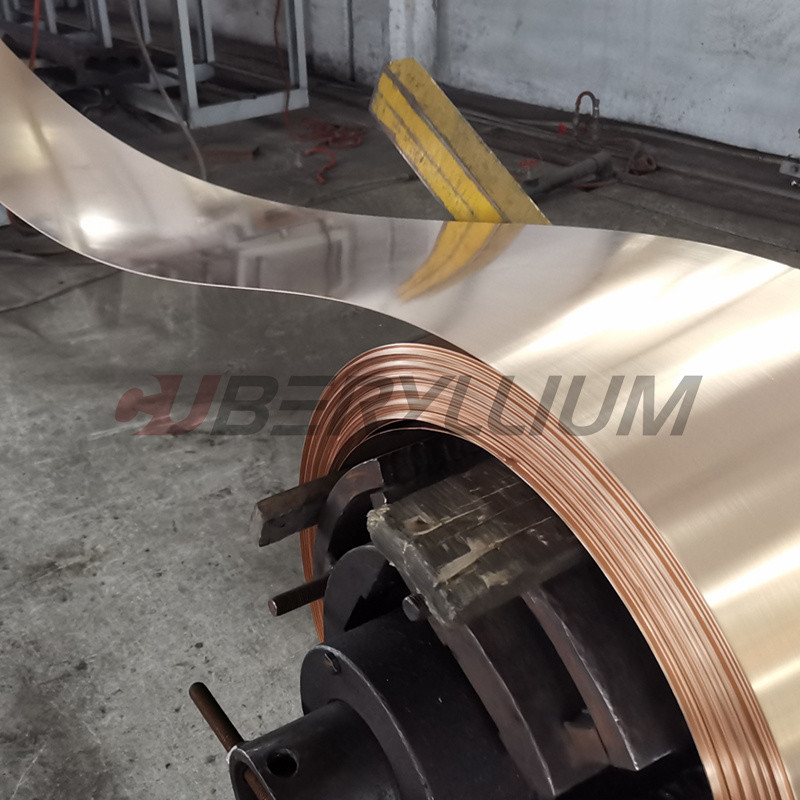

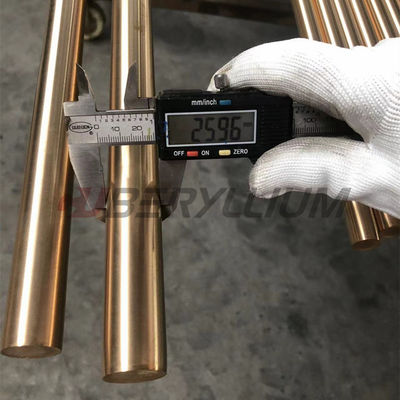

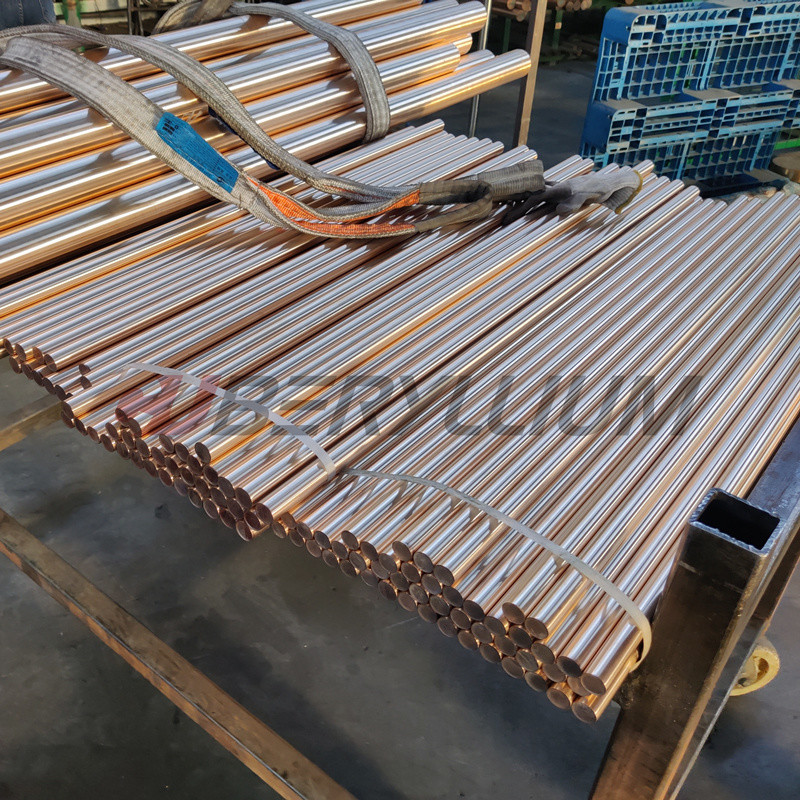

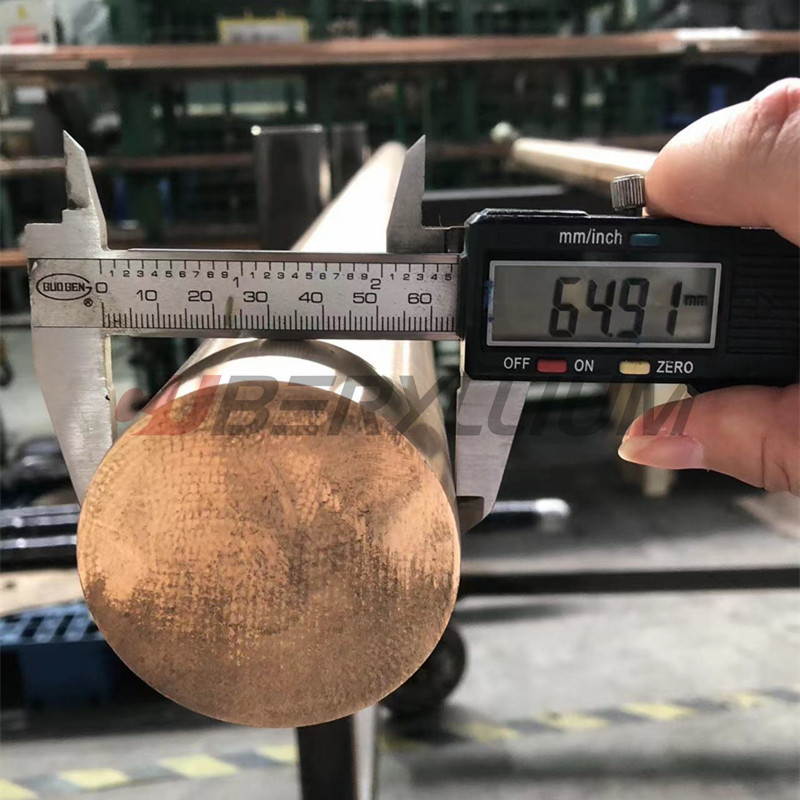

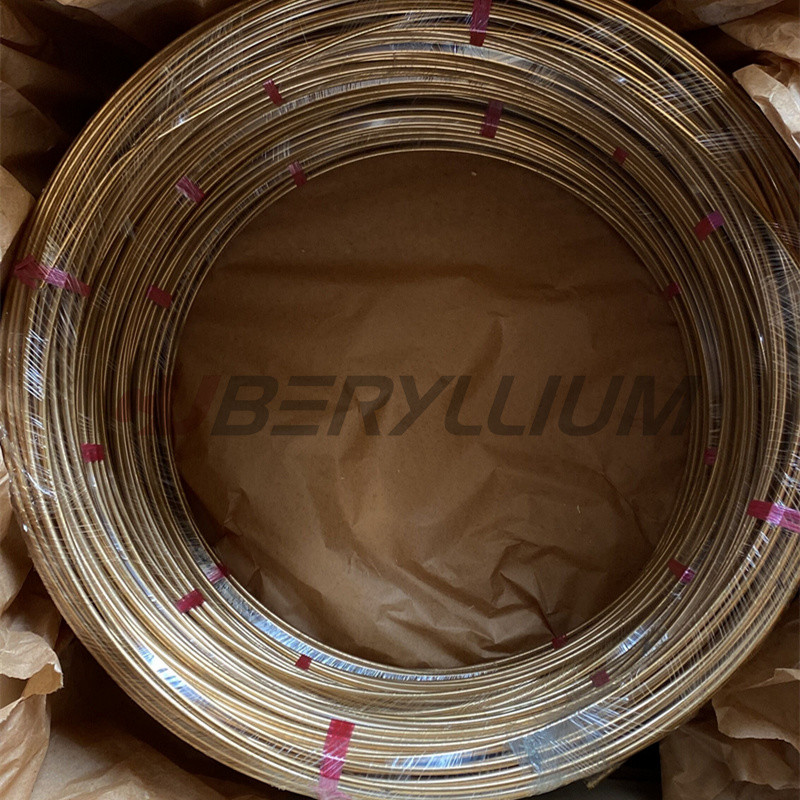

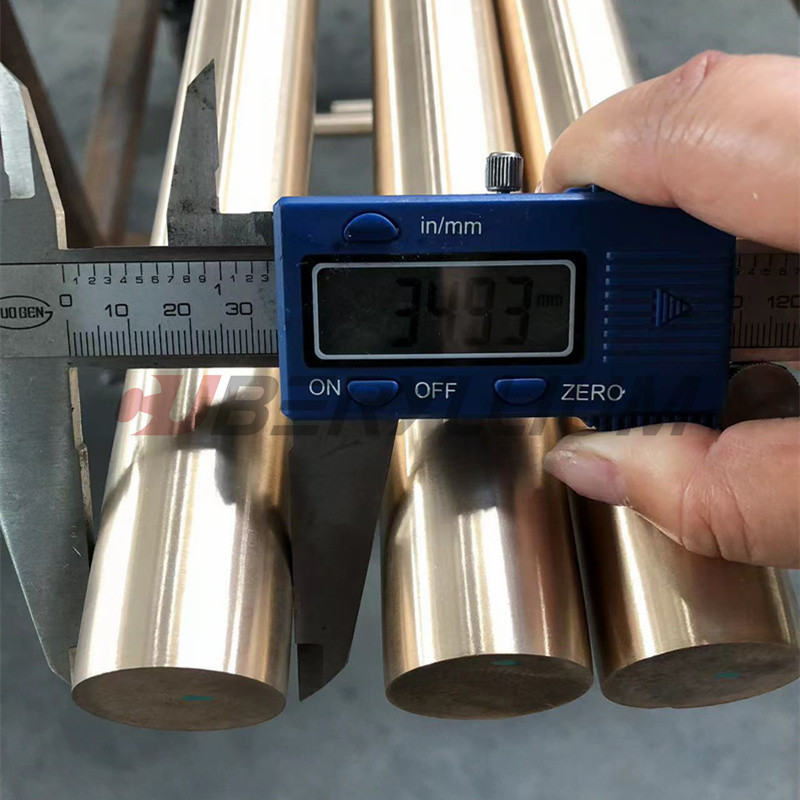

Product Photo:

Qbe2.0 Beryllium Copper Alloy Round Bar Wire Strip Plate Standard ГОСТ 1789-70 0Qbe2.0 Beryllium Copper Alloy Round Bar Wire Strip Plate Standard ГОСТ 1789-70 1

Qbe2.0 Beryllium Copper Alloy Round Bar Wire Strip Plate Standard ГОСТ 1789-70 2


Key Technology of Beryllium Copper(Heat treatment)

Heat treatment is the most important process for this alloy system. While all copper alloys are hardenable by cold working, beryllium copper is unique in being hardenable by a simple low temperature thermal treatment. It involves two basic steps. The first is called solution annealing and the second, precipitation or age hardening.

Solution Annealing

For the typical alloy CuBe2 (1.85- 2%) the alloy is heated between 720°C and 860°C. At this point the contained beryllium is essentially “dissolved” in the copper matrix (alpha phase). By rapidly quenching to room temperature this solid solution structure is retained. The material at this stage is very soft and ductile and can be readily cold worked by drawing, forming rolling, or cold heading. The solution annealing operation is part of the process at the mill and is not typically used by the customer. Temperature, time at temperature, quench rate, grain size, and hardness are all very critical parameters and are tightly controlled by Cuberyllium.

Age Hardening

Age hardening significantly enhances the material’s strength. This reaction is generally carried out at temperatures between 260°C and 540°C depending on alloy and desired characteristics. This cycle causes the dissolved beryllium to precipitate as a beryllium rich (gamma) phase in the matrix and at the grain boundaries. It is the formation of this precipitate which causes the large increase in material strength. The level of mechanical properties attained is determined by the temperature and time at temperature. It should be recognized that beryllium copper has no room temperature aging characteristics.
