BrBNT1.9 Qbe1.9 Becu Beryllium Copper Strap In Coil 0.3mmx200mm For Relay Parts

Place of Origin China
Certification ISO,SGS
Model Number BrBNT1.9 (Qbe1.9)
Minimum Order Quantity 50
Price 30USD
Packaging Details in coil packed into wooden case
Delivery Time 10~15days
Payment Terms L/C, T/T, Western Union
Supply Ability 200T/Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571


If you have any concern, we provide 24-hour online help.

Product Details
Name BrBNT1.9 (Qbe1.9) Beryllium Bronze Strap In Coil Max Coil Wt. 2T
Thinnest Thick. 0.02mm Max Width 305mm
Length 200mm, 500mm, 1000mm Or As Required Standard ГОСТ 1789-70
Safe Handling No Special Health Risk. Machining Property Good
Surface Bright/Polished Flatness Good
State Soft, Hard, Ageing(Soft), Ageing(Hard) Typical Application For Relay Parts
Available Shapes Strip, Sheet
High Light

BrBNT1.9 becu beryllium copper


BrBNT1.9 becu beryllium copper Strap


BrBNT1.9 beryllium gold alloy

Leave a Message
Product Description

BrBNT1.9 (Qbe1.9) Beryllium Bronze Strap In Coil 0.3mmx200mm For Relay Parts

Product Description:

Name: Beryllium bronze strap in coil

Tape: BrBNT1.9 (Qbe1.9)

Specification: 0.3mmx200mm

Tolerance: +/-0.008mm

State: Soft, Hard, Ageing(Soft), Ageing(Hard)

Surface: Bright/Polished

Application: For relay parts



CUBERYLLIUM ®-Qbe1.9 also named Cube1.9Ti Beryllium Copper is the most commonly utilized Copper Beryllium alloy and is notable for its highest strength and hardness compared to commercial copper alloys. Qbe1.9 alloy contains appr.Ti 0.1~0.25% of Ti,and1.85~2.1% of Be achieves its ultimate tensile strength can exceed 1360Mpa, while the hardness approaches Rockwell C45. Meanwhile, the electrical conductivity is a minimum of 22% IACS in the fully aged condition. Qbe1.9also exhibits exceptional resistance to stress relaxation at elevated temperatures.


Introduction of Beryllium Copper Alloy:

Beryllium bronze is divided into two categories. According to the alloy composition, the beryllium bronze with a beryllium content of 0.2% to 0.6% is high-conductivity (electrical and thermal) beryllium bronze; the beryllium bronze with a beryllium content of 1.6% to 2.0% is a high-strength beryllium bronze.

High strength beryllium bronze includes: C17200 (Cuberyllium-172), C17300 (Cuberyllium-173), C17000 (Cuberyllium-170);

High conductivity beryllium bronze includes: C17510 (Cuberyllium-751), C17500 (Cuberyllium-750), C17410 (Cuberyllium-174).

We could provide all these beryllium copper alloy products.



Chemical Composition of BrBNT1.9 (Qbe1.9) Beryllium Bronze Alloy:




Be Al Ni Fe Cu Si Ti
Qbe1.9Ti БрБНТ1.9 1.87-2.10 0.15 max 0.2~0.5








Typical Physical Properties of BrBNT1.9 (Qbe1.9) Beryllium Bronze Alloy:
Density (g/cm3): 8.25
Elastic Modulus(Gpa): 130
Electrical Conductivity: 22-28% IACS
Thermal Expansion Coefficient(m/m℃): 17.5x10-6

Thermal Conductivity(25℃): 105W/m℃
Melting Point (°C): 870



Mechanical And Electrical Properties of BrBNT1.9 (Qbe1.9) Beryllium Bronze Strip:

Name Temper Thickness
Tensile Strength Hardness Elongation (min)
MPa HV Percent
Qbe1.9 Soft <0.15 >390 <120 >30%
0.15~0.25 390~590
>0.25 390~590
Hard <0.15 >590 >160 >3%
0.15~0.25 590~880
>0.25 640~930
After Ageing
<0.15 >1080 >330 >2%
0.15~0.25 1080~1470
>0.25 1130~1470
After Ageing
<0.15 >1080 >360 >1.5%
0.15~0.25 1130~1570
>0.25 1170~1570


Standard of BrBNT1.9 (Qbe1.9) Beryllium Bronze Alloy:

End Product Specification
Chemistry ГОСТ 18175 – 78
Wire ГОСТ 15834 – 77
Rod ГОСТ 15835-70
Strip&Sheet ГОСТ 1789-70


Key Technology of Beryllium Copper(Heat treatment)

Heat treatment is the most important process for this alloy system. While all copper alloys are hardenable by cold working, beryllium copper is unique in being hardenable by a simple low temperature thermal treatment. It involves two basic steps. The first is called solution annealing and the second, precipitation or age hardening.

Solution Annealing

For the typical alloy CuBe1.9 Ti(1.85- 2.1%) the alloy is heated between 720°C and 860°C. At this point the contained beryllium is essentially “dissolved” in the copper matrix (alpha phase). By rapidly quenching to room temperature this solid solution structure is retained. The material at this stage is very soft and ductile and can be readily cold worked by drawing, forming rolling, or cold heading. The solution annealing operation is part of the process at the mill and is not typically used by the customer. Temperature, time at temperature, quench rate, grain size, and hardness are all very critical parameters and are tightly controlled by Cuberyllium.

Age Hardening

Age hardening significantly enhances the material’s strength. This reaction is generally carried out at temperatures between 260°C and 540°C depending on alloy and desired characteristics. This cycle causes the dissolved beryllium to precipitate as a beryllium rich (gamma) phase in the matrix and at the grain boundaries. It is the formation of this precipitate which causes the large increase in material strength. The level of mechanical properties attained is determined by the temperature and time at temperature. It should be recognized that beryllium copper has no room temperature aging characteristics.



Standard Tolerance of BrBNT1.9 (Qbe1.9) Beryllium Bronze Strip:

Tolerance Sheet
Standard Tolerance
over incl. minus
0.03 0.08 0.003
0.08 0.1 0.004
0.1 0.15 0.005
0.15 0.2 0.006
0.2 0.25 0.007
0.25 0.4 0.008
0.4 0.55 0.009
0.55 0.7 0.01
0.7 0.9 0.015
0.9 1.5 0.025
Note: Tolerances apply to rolled and mill hardened strip.

New information plz contact to info&

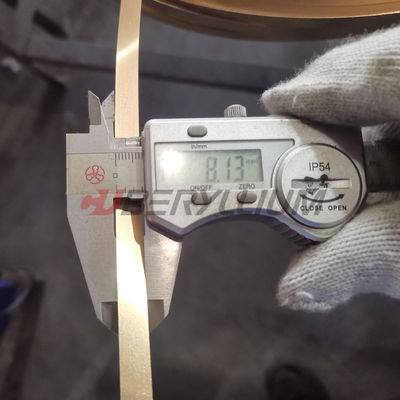

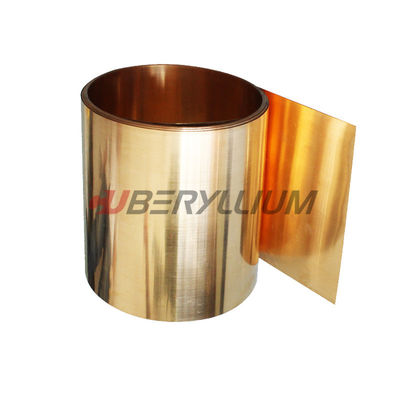

Product Photo:

BrBNT1.9 Qbe1.9 Becu Beryllium Copper Strap In Coil 0.3mmx200mm For Relay Parts 0



Our alloys combine a range of properties particularly suited to meet the exacting requirements of many applications in the automotive, electronic, aeronautical, Oil&Gas, watch, electro-chemical industries, etc. Beryllium Copper is widely used in those fields as contact springs in various applications like connectors, switches, relays, etc



Q1:Could you produce Beryllium Copper strip by Mill Hardened process.
A1:Yes, we could produce AM(TM00), 1/2HM(TM01).HM(TM04) XHM(TM06) XHMS(TM08).,we are the only factory could do harden strip in China.

Q2: What’s the advantages the Beryllium Copper of CUBERYLLIUM®.
A2: 1: The Biggest Coil weight could be reach 1200kg/Coil

2:We are the only one who melting by Vacuum semi-Continuous Furnace.

3:Surface further polishing for top clients.

Q3: Why you melting by Vacuum semi-Continuous Furnace.
A3:Could be get the Cast ingot without gas,smaller segregation, Grain Refinement

Q4: What's the payment terms?
A4: We accept T/T, L/C, Paypal etc. It can be negotiated when the amount is different.
