Qbe1.9 Copper Strip Thickness 0.1mm 0.12mm 0.15mm 0.2mm For Electrical Industry

Place of Origin China
Certification ISO,SGS
Model Number Qbe1.9
Minimum Order Quantity 50
Price 30USD
Packaging Details in coil packed into wooden case
Delivery Time 10~15days
Payment Terms L/C, T/T, Western Union
Supply Ability 200T/Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Name Qbe1.9 Copper Strip Max Coil Wt. 2T
Thinnest Thick. 0.1mm 0.12mm 0.15mm 0.2mm Max Width 305mm
Length 200mm, 500mm, 1000mm Or As Required Standard ГОСТ 1789-70
Safe Handling No Special Health Risk. Machining Property Good
Surface Bright/Polished State Soft, Hard
Typical Application For Current-carrying Springs Available Shapes Strip, Sheet
High Light

0.12mm Beryllium Copper Strip


Qbe1.9 Copper Strip


Electrical Industry Beryllium Copper Strip

Leave a Message
Product Description

Qbe1.9 Copper Strip With Thickness 0.1mm 0.12mm 0.15mm 0.2mm For Electrical Industry


Qbe1.9 Copper Strip With Thickness 0.1mm 0.12mm 0.15mm 0.2mm
Product Type Is Alloy
Material Copper
Grade Qbe1.9
Product Shape Strip/Tape
Product Thickness 0.1mm 0.12mm 0.15mm 0.2mm
Temper Soft, Hard, Ageing(Soft), Ageing(Hard)
Available Width 8mm~300mm


Chemical Composition of Qbe1.9 Copper Alloy:
(% Max., Unless shown as range or Min.)
  Copper Cu Aluminum Al Beryllium Be Iron Fe Nickel Ni Silicon Si Titanium Ti
Min./Max. Rem. 0.15 1.87-2.1 0.15 0.2-0.5 0.15 0.1-0.25


Typical Physical Properties of Qbe1.9Ti Beryllium Copper Alloy:
Density (g/cm3): 8.25
Elastic Modulus(Gpa): 130
Electrical Conductivity: 22-28% IACS
Thermal Expansion Coefficient(m/m℃): 17.5x10-6

Thermal Conductivity(25℃): 105W/m℃
Melting Point (°C): 870


Standard Tolerance of Qbe1.9Ti Beryllium Copper Strip:

Tolerance Sheet
Standard Tolerance
over incl. minus
0.03 0.08 0.003
0.08 0.1 0.004
0.1 0.15 0.005
0.15 0.2 0.006
0.2 0.25 0.007
0.25 0.4 0.008
0.4 0.55 0.009
0.55 0.7 0.01
0.7 0.9 0.015
0.9 1.5 0.025
Note: Tolerances apply to rolled and mill hardened strip.

New information plz contact to sales@cuberyllium.com.


CUBERYLLIUM® Company Profile:

CUBERYLLIUM® is one of the eminent manufacturer and exporter of high Grade Beryllium Copper Alloys, including beryllium copper strips, beryllium copper rods, beryllium copper bars, beryllium copper plates, beryllium copper sheet, beryllium copper wires, beryllium copper tubes and so no.
CUBERYLLIUM® offers a commendable range of beryllium copper alloys with competitive price. We offer beryllium copper alloys that are fabricated by our adroit professionals using supreme class raw material as per the set industry norms.
With holding years of experience in manufacturing, we continue to offer robust quality of Beryllium Copper Alloys with very reasonable prices across all over the world.


Introduction of Qbe1.9 Copper Alloys:

CUBERYLLIUM ®-Qbe1.9 also named Cube1.9Ti Beryllium Copper is the most commonly utilized Copper Beryllium alloy and is notable for its highest strength and hardness compared to commercial copper alloys. Qbe1.9 alloy contains appr.Ti 0.1~0.25% of Ti,and1.85~2.1% of Be achieves its ultimate tensile strength can exceed 1360Mpa, while the hardness approaches Rockwell C45. Meanwhile, the electrical conductivity is a minimum of 22% IACS in the fully aged condition. Qbe1.9also exhibits exceptional resistance to stress relaxation at elevated temperatures.

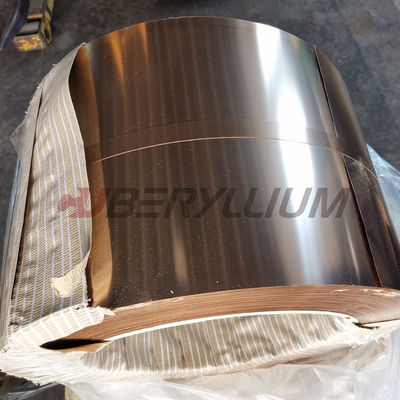

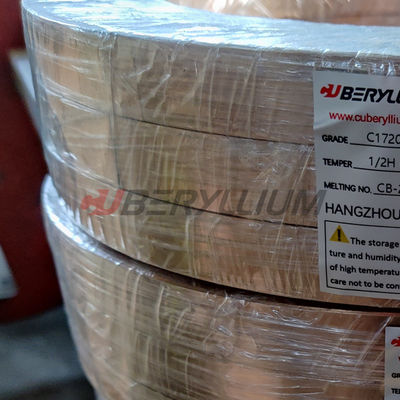

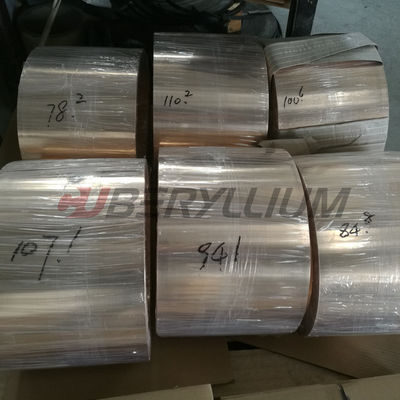

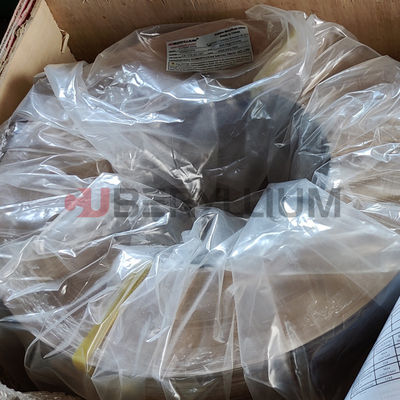

Package of Qbe1.9 Copper Strip:

Special Features:
Each bundle covered with plastic for protection against extreme weather.
End of Beryllium Copper Bar and Strip protected by plastic caps.
Bundles strapped with plastic strips.

Qbe1.9 Copper Strip Thickness 0.1mm 0.12mm 0.15mm 0.2mm For Electrical Industry 0

Qbe1.9 Copper Strip Thickness 0.1mm 0.12mm 0.15mm 0.2mm For Electrical Industry 1



Q1: Could you produce Beryllium Copper strip by Mill Hardened process.
A1: Yes, we could produce AM(TM00), 1/2HM(TM01).HM(TM04) XHM(TM06) XHMS(TM08).,we are the only factory could do harden strip in China.

Q2: What’s the advantages the Beryllium Copper of CUBERYLLIUM®.
A2: 1: The Biggest Coil weight could be reach 1200kg/Coil

2: We are the only one who melting by Vacuum semi-Continuous Furnace.

3: Surface further polishing for top clients.

Q3: Why you melting by Vacuum semi-Continuous Furnace.
A3: Could be get the Cast ingot without gas,smaller segregation, Grain Refinement

Q4: What's the payment terms?
A4: We accept T/T, L/C, Paypal etc. It can be negotiated when the amount is different.
