CUBE2-UNS.C17200 Beryllium Copper Rods Dia.12mm 15mm 20mm 25mm 30mm

  • CUBE2-UNS.C17200 Beryllium Copper Rods Dia.12mm 15mm 20mm 25mm 30mm
  • CUBE2-UNS.C17200 Beryllium Copper Rods Dia.12mm 15mm 20mm 25mm 30mm
  • CUBE2-UNS.C17200 Beryllium Copper Rods Dia.12mm 15mm 20mm 25mm 30mm
  • CUBE2-UNS.C17200 Beryllium Copper Rods Dia.12mm 15mm 20mm 25mm 30mm
Place of Origin China
Brand Name CUBERYLLIUM®
Certification ISO,SGS
Model Number CUBE2-UNS.C17200
Minimum Order Quantity 10
Price 32USD
Packaging Details Pack in coil+waterproofing winding film+Drier+Wooden Case
Delivery Time 10~15days
Payment Terms L/C, T/T, Western Union
Supply Ability 200T/Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name CUBE2-UNS.C17200 BERYLLIUM COPPER RODS CUBERYLLIUM® Grade CUBERYLLIUM® 172
Standard ASTM Standard Safe Handling No Special Health Risk.
Machining Property Good Surface Bright/Polished
Flatness Good State TF00
Dia. 12MM 15MM 20MM 25MM 30MM Application For Industry
High Light

Bright C17200 Beryllium Copper Rods

,

15mm Beryllium Copper Round Bar

,

Industry C17200 Beryllium Copper Rods
Leave a Message
Product Description

CUBE2-UNS.C17200 BERYLLIUM COPPER RODS DIA.12MM 15MM 20MM 25MM 30MM



Introduction of CuBe2-UNS.C17200 Grade Mateial:

  • Chemical Coposition of CuBe2:

Be: 1.80-2.00;  Ni + Co: 0.20 Min; Ni +Co +Fe: 0.60 Max; Al: 0.20 Max; Si: 0.20 Max; Cu: Balance

  • Other properties of CuBe2:

High hardness
High explosion resistance
Good corrosion resistance
High electrical conductivity
Excellent heat dissipation performance
High yield limit and fatigue limit



  • Corrosion Resistance of CuBe2:

The alloy has high chemical stability in the atmosphere, fresh water and sea water, has a small intergranular corrosion tendency and is resistant to impact corrosion. It also has good corrosion resistance in media such as dilute hydrochloric acid, acetic acid and phosphoric acid, but the corrosion speed is faster in wet ammonia, nitric acid and chromate solutions.

  • Common application of CuBe2:

As Cube2 beryllium copper is easy to process and with its cooling effect, it is used in various fields:

Electromic and electrical equipment
Aerospace
Automobile manufacturing
Hot runner cooling systems
Communication preparation equipment
Instrumentation
High electronics
Plastic and optical molds
Mold cores
Punches



Material Standard of CuBe2:

DIN ASTM RWMA
w.nr.2.1247 C17200 Class IV



Technical parameters of CuBe2:

Density 8.36g/cm³
Hardness 36-46HRC
Tempere TB00, TF00, TH04, TD04
Thermal Expansion Coefficient 17.5×10-6m/m℃
Thermal Conductivity 105W/m℃
Melting Point(solidus) 870℃

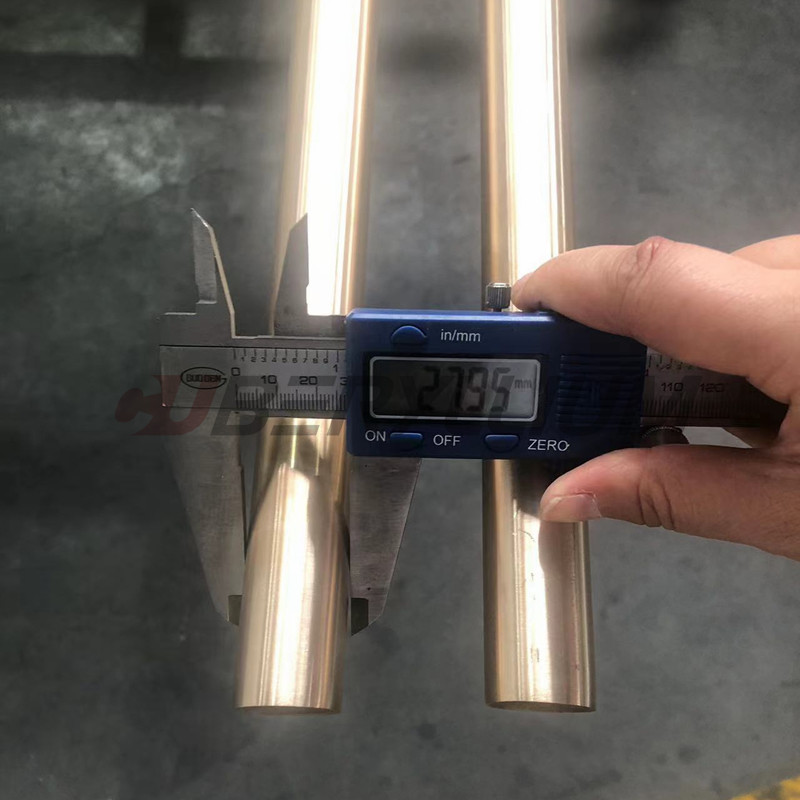

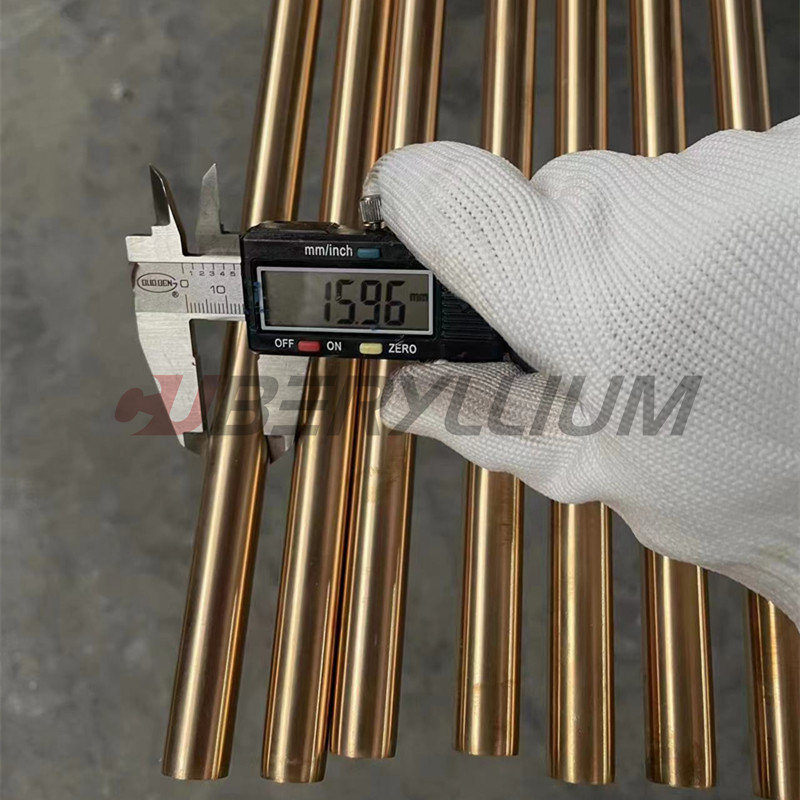

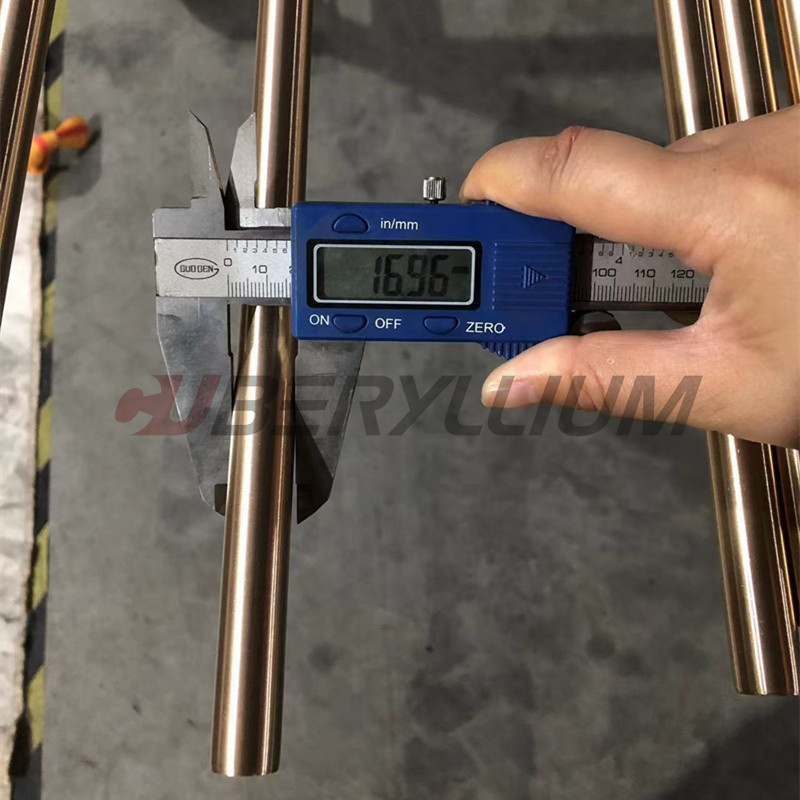

Product Photos:

CUBE2-UNS.C17200 Beryllium Copper Rods Dia.12mm 15mm 20mm 25mm 30mm 0

CUBE2-UNS.C17200 Beryllium Copper Rods Dia.12mm 15mm 20mm 25mm 30mm 1

CuBe2-UNS.C17200 Grade Mateial Aging

The aging of the parts should be carried out in a special fixture to prevent warping, deformation and ensure the dimensional accuracy of the parts. When bright treatment is required, a controlled atmosphere or vacuum furnace should be used. When the surface quality is not high or surface oxides are to be removed in subsequent processes, neutral salt furnaces or air circulation furnaces are allowed.



Surface treatment process

Soak in aqueous sodium hydroxide solution



Surface finish

To loosen the oxide film, then pre-corrode in aqueous hydrochloric acid solution, and finally perform bright treatment in a mixture of sulfuric acid and nitric acid.



Passivation treatment

Weakly corrode in dilute sulfuric acid solution first, then impregnate in a mixture of tyrosine (90g/L) and sulfuric acid (30g/L) at room temperature.

Machining and Grinding Performance The machinability of the alloy is 20% of that of the free-cutting brass HPb63-3.



FAQ:

1. How can I contact with your company?

We are always ready to serve you via Email, Telephone, Fax, Whatsapp or Mobile telephone.
Mobile/Wechat/Whatsapp: +86-17376550856

Email:info@cuberyllium.com

2. What is the lead time?

Usually 7 days after payment has been confirmed.

3. What is your payment terms?

T/T,L/C,Western Union,MoneyGram,Paypal.

4. What’s your advantage?

1) Professional production equipment.

2)Smooth surface.

3) Complete specification
