CuBe2 W.Nr.2.1247 Copper Beryllium Rod With Diameter 10mm 16mm 20mm

  • CuBe2 W.Nr.2.1247 Copper Beryllium Rod With Diameter 10mm 16mm 20mm
  • CuBe2 W.Nr.2.1247 Copper Beryllium Rod With Diameter 10mm 16mm 20mm
  • CuBe2 W.Nr.2.1247 Copper Beryllium Rod With Diameter 10mm 16mm 20mm
  • CuBe2 W.Nr.2.1247 Copper Beryllium Rod With Diameter 10mm 16mm 20mm
  • CuBe2 W.Nr.2.1247 Copper Beryllium Rod With Diameter 10mm 16mm 20mm
Place of Origin China
Brand Name CUBERYLLIUM®
Certification ISO,SGS
Model Number CuBe2 W.Nr.2.1247
Minimum Order Quantity 10
Price 30USD
Packaging Details Pack in coil+waterproofing winding film+Drier+Wooden Case
Delivery Time 10~15days
Payment Terms L/C, T/T, Western Union
Supply Ability 200T/Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name Copper Beryllium Rod CuBe2 W.Nr.2.1247 CUBERYLLIUM® Grade CUBERYLLIUM® 172
Standard ASTM Standard Safe Handling No Special Health Risk.
Machining Property Good Surface Bright/Polished
Flatness Good State TD02, TD04, TF00
Dia. 10mm 16mm 20mm Application For Electrical Industry
High Light

Polished Beryllium Copper Round Bar

,

CuBe2 Copper Beryllium Rod

,

20mm Copper Beryllium Rod
Leave a Message
Product Description

Copper Beryllium Rod CuBe2 W.Nr.2.1247 With Diameter 10mm 16mm 20mm

Product Normal Description:

Product Name Copper Beryllium Rod
Material Alloy CuBe2
End Product Form Round rods, bars
Other Forms  Strips, flat bars, sheet, wire, tube
Product Brand CUBERYLLIUM®
Product Size(Dia.) 10mm 16mm 20mm
Product Size(Length) 1m, 2m, 2.5m or customized length



Chemical Coposition of Material CuBe2:

Element Composition %
Be 1.80-2.00
Ni + Co Min. 0.20
Ni +Co +Fe Max. 0.6
Al Max. 0.20
Si Max. 0.20
Cu Remainder



Introduction of Material CuBe2:

Cube2--W.Nr.2.1247, CW101C,has great hardness, very good strength, high electrical and thermal conductivity. It can be used in some applications which needs very high hardness. Additionally it is non-sparking material for using in combustible atmosphereBeryllium Copper is the most commonly utilized Copper Beryllium alloy and is notable for its highest strength and hardness compared to commercial copper alloys. C17200 alloy contains appr. 2% of beryllium and achieves its ultimate tensile strength can exceed 1360Mpa, while the hardness approaches Rockwell C45. Meanwhile, the electrical conductivity is a minimum of 22% IACS in the fully aged condition.C17200 also exhibits exceptional resistance to stress relaxation at elevated temperatures.



Material Standard of CuBe2:

DIN ASTM RWMA
w.nr.2.1247 C17200 Class IV



Application of Material CuBe2:

Alloy 25(C17200) is used to make oil drilling components such as MWD/LWD tools, drill collars and subs, flex subs and shafts, drill rods, drill bit bushings, valve components, pump shafts and fasteners. Alloy 25 strip is used to make essential parts in consumer electronics like pressure sensor bellows, burn-in and test socket contacts, computer processor socket contacts and electromagnetic shielding gaskets.

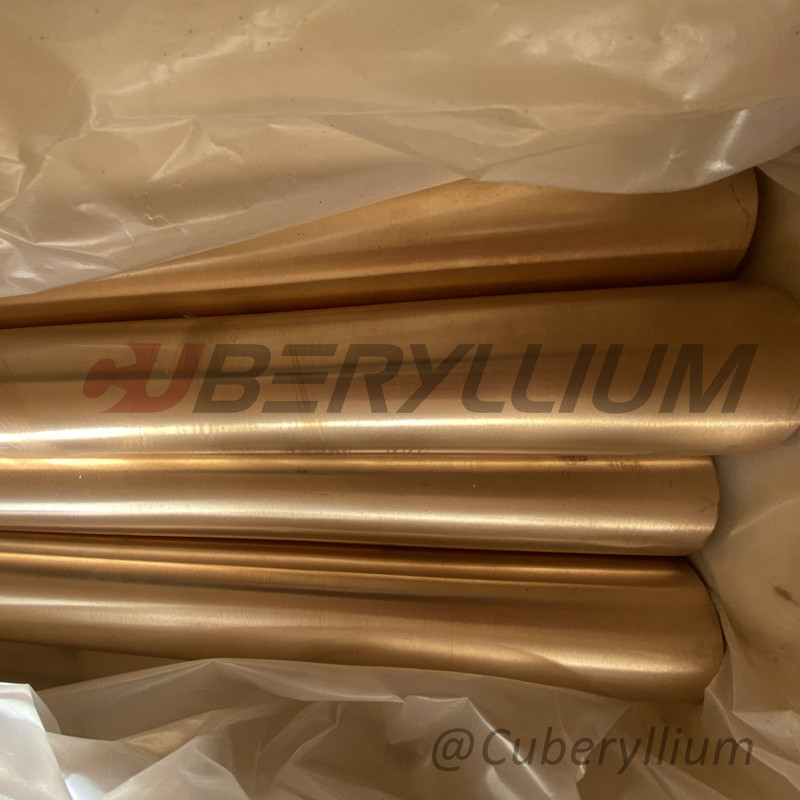

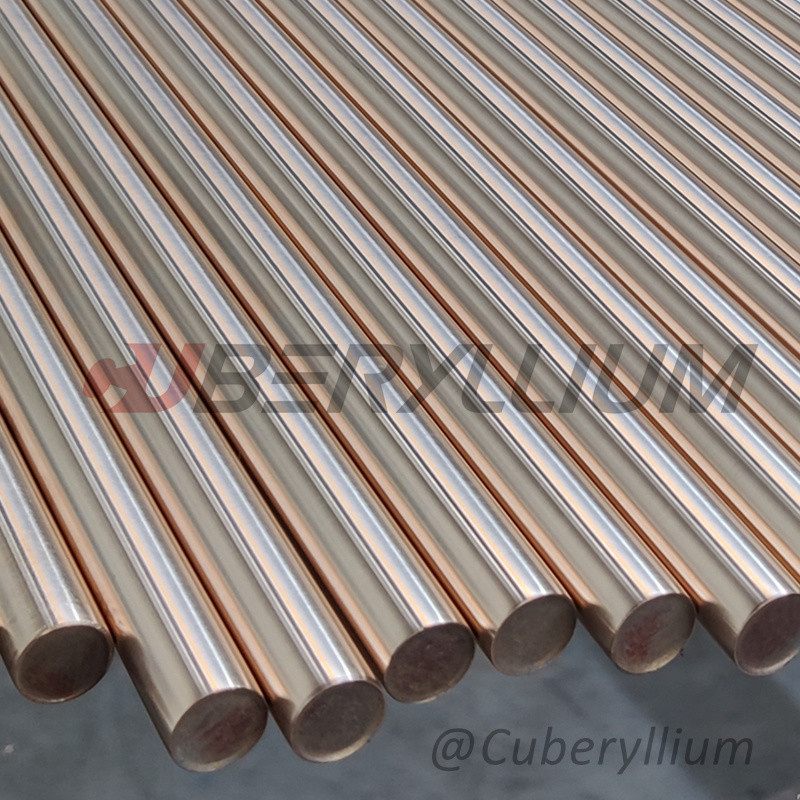

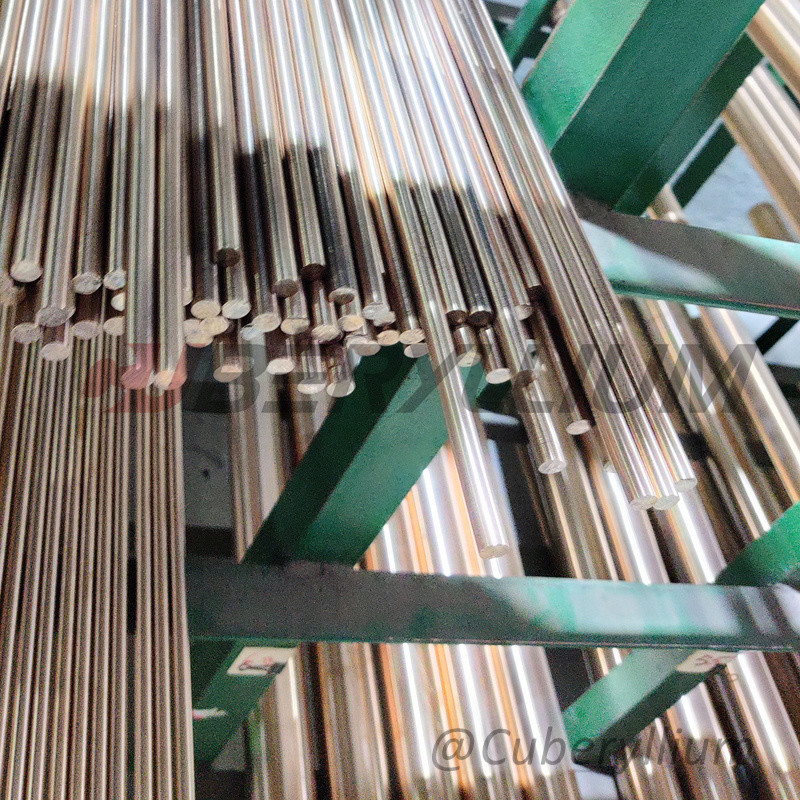

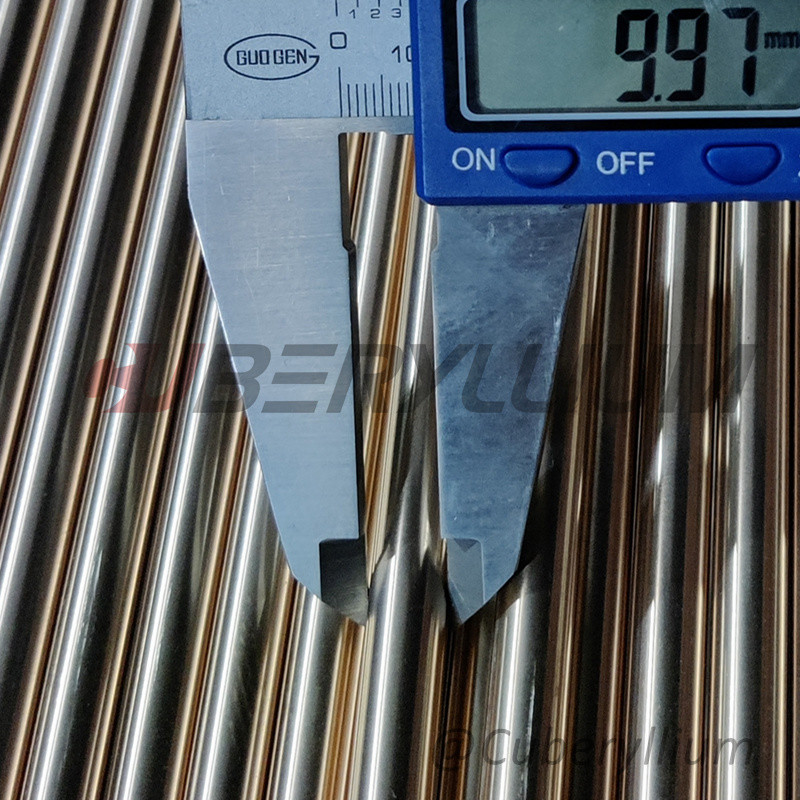

Product Photos:

CuBe2 W.Nr.2.1247 Copper Beryllium Rod With Diameter 10mm 16mm 20mm 0CuBe2 W.Nr.2.1247 Copper Beryllium Rod With Diameter 10mm 16mm 20mm 1





FAQ:

  • How can I identify high-quality copper alloy products?

By the physical shape, the proper analysis, and the correct mechanical values.



  • What are the benefits of using Copper Alloys?

Copper Alloys offer many manufacturing benefits including strength, conductivity, corrosion resistance, machinability and ductility. With superior electrical and thermal conductivity, and an attractive appearance, Copper Alloys are suitable for a wide range of applications.



  • Is there a possibility to order customized copper alloys?

Different copper alloys are tested for a very long time and always applicable to individual demands.
We have the experience to help customers producing customized products as per the customers' drawings.



  • What is the delivery time of copper alloys from Cuberyllium?

Usually with 7-10 working days, it will depend on the final qty requested by customers.
